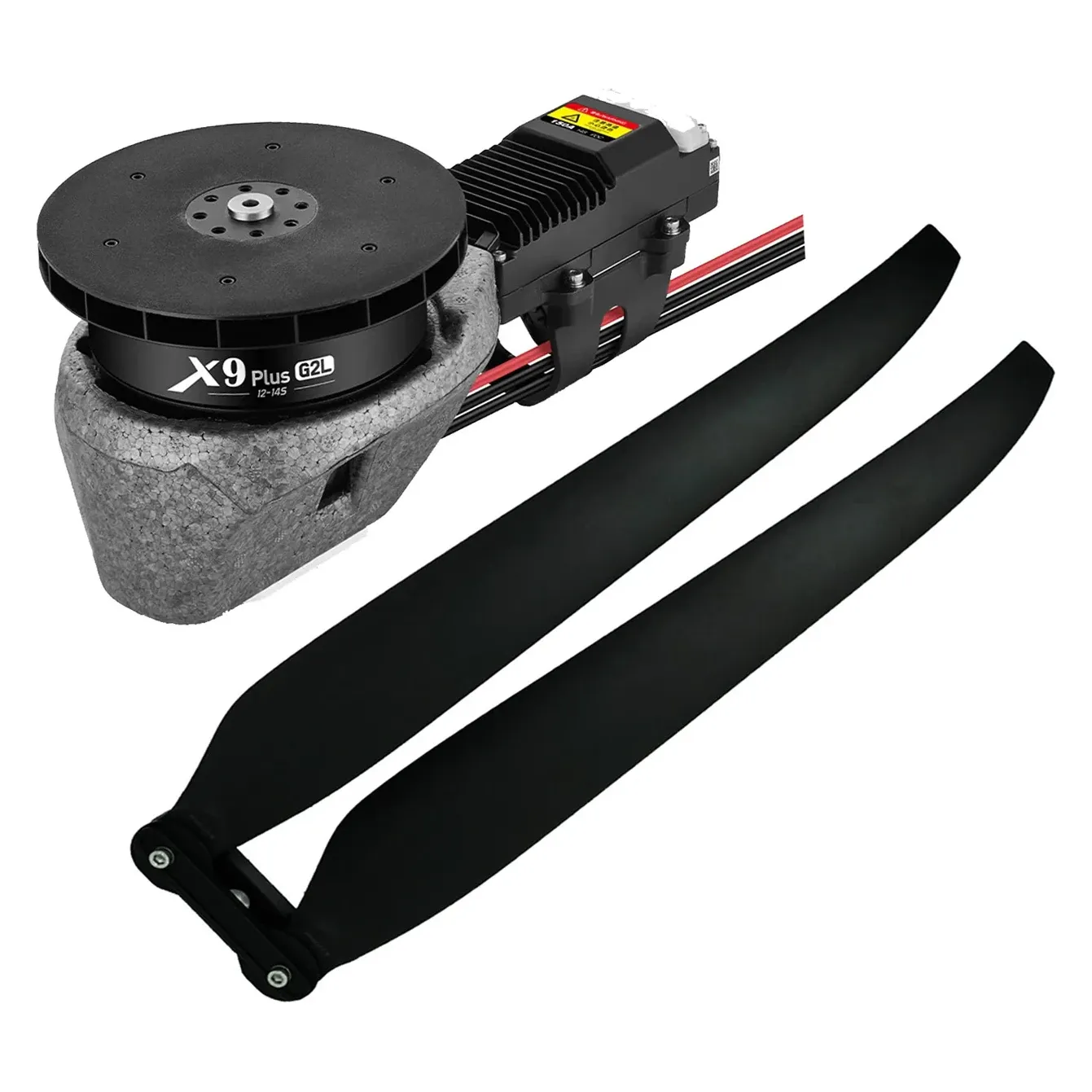

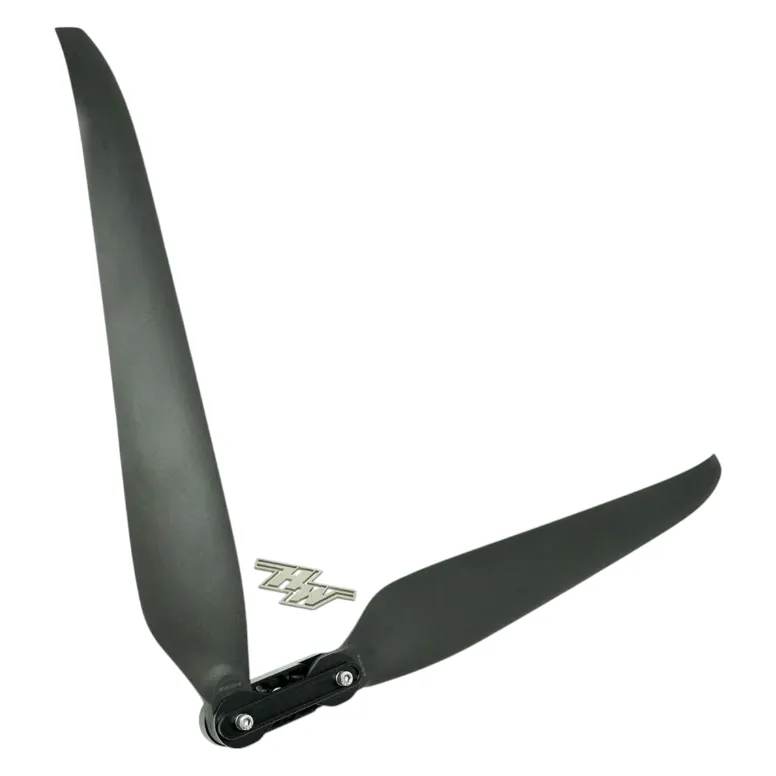

Hobbywing X9 Plus G2L Power System with 4314 Folding Propeller

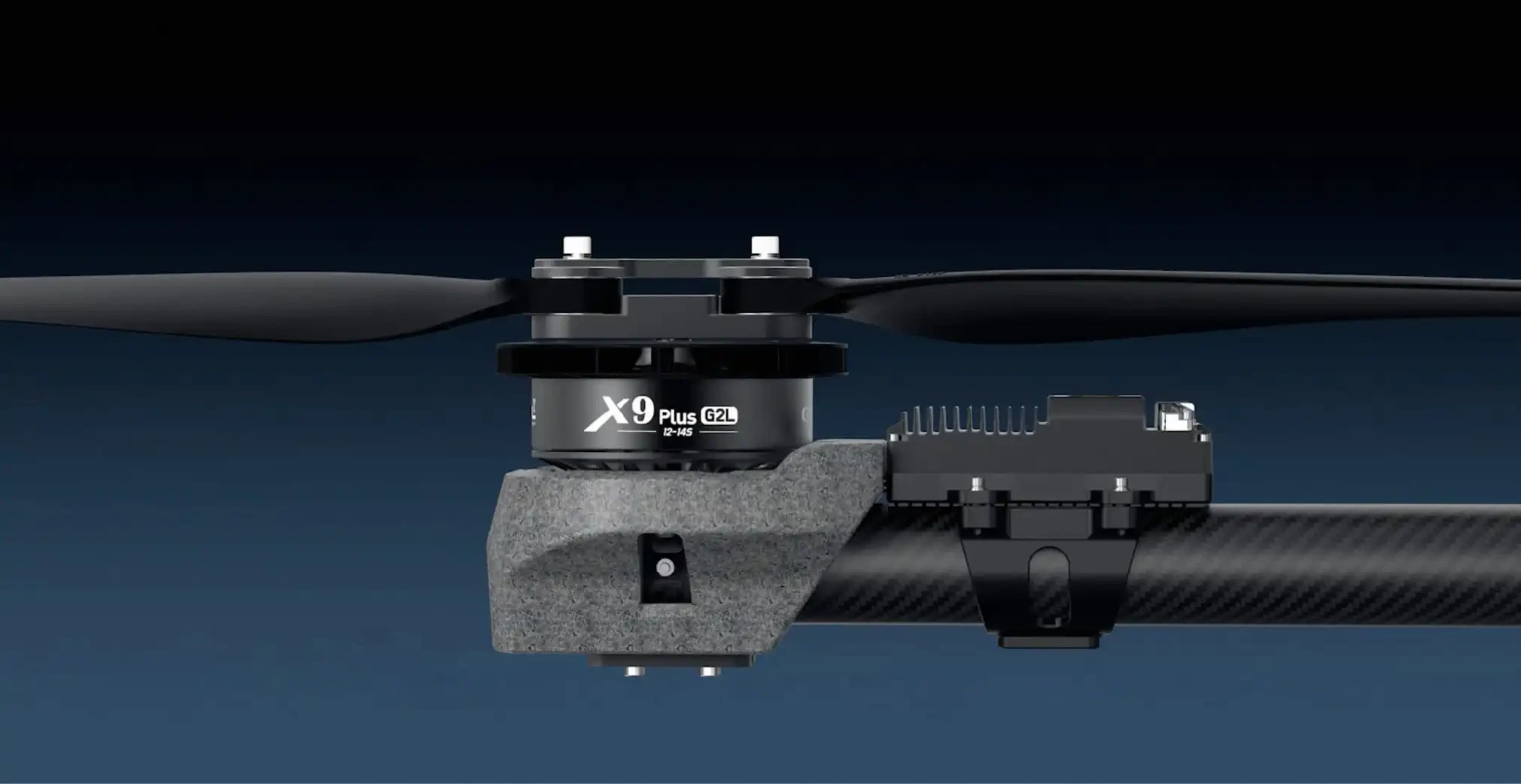

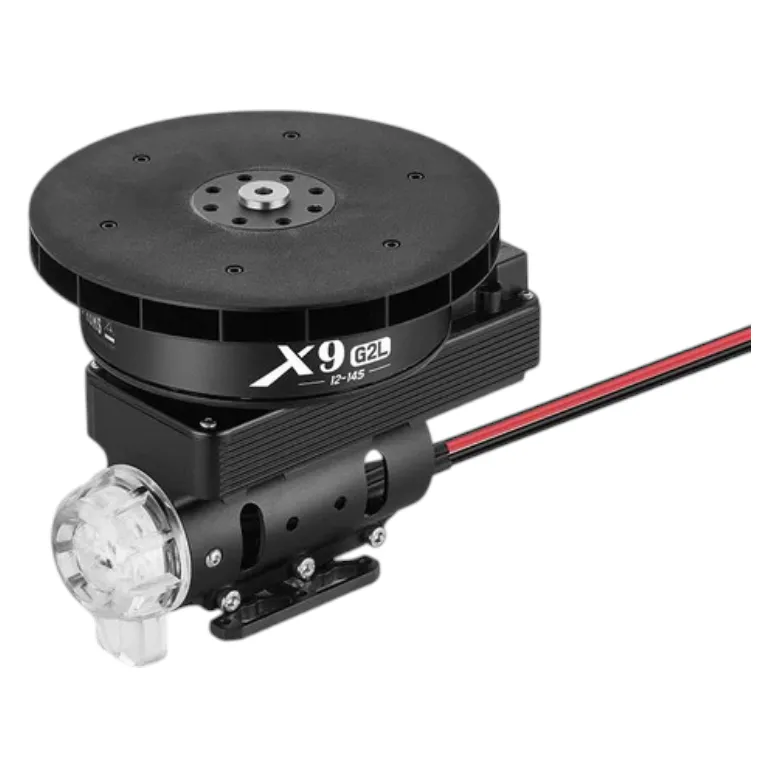

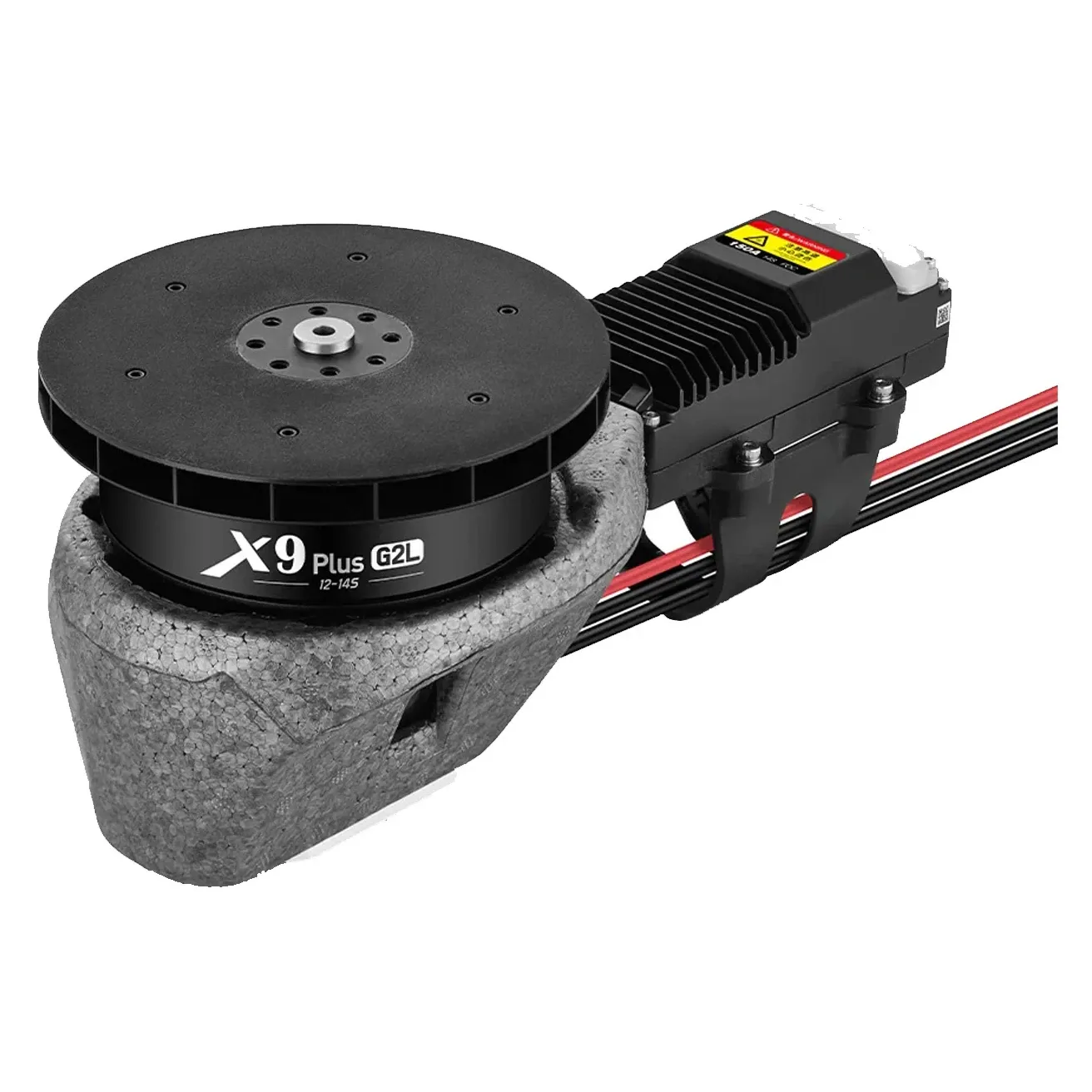

The Hobbywing X9 Plus G2L is an integrated propulsion unit that combines an 80KV motor, an FOC ESC and an MFP 43x14 folding propeller in one arm-end module. It suits 12S-14S agricultural sprayers and heavy-lift multirotors carrying 12-14 kg per axis, and mounts directly on 45 mm carbon arm tubes.

Key features

• 28 kg maximum thrust per axis at sea level, with 12-14 kg recommended takeoff weight per axis.

• Large 43x14 folding propeller paired with a low-KV 96x20 mm stator for long, efficient hover.

• Dual throttle input: Cyphal (UAVCAN) / DroneCAN digital plus PWM analogue, with automatic redundancy and real-time telemetry to the flight controller.

• Protection against power-on faults, over-voltage, over-current and stall, with onboard fault logging.

• IPX6 protection for spraying, dust and wet field conditions.

• Configuration and firmware updates via the flight controller or the Hobbywing DataLink app over Bluetooth.

Specifications

• KV: 80KV

• Stator: 96 x 20 mm, 36N40P

• Battery: 12S-14S LiPo (rated 48 V / 54 V, input 18-63 V)

• Max thrust: 28 kg per axis (sea level)

• Recommended takeoff weight: 12-14 kg per axis

• Rated power: 1700 W input / 1440 W output

• ESC current: 40 A continuous, 150 A peak (3 s)

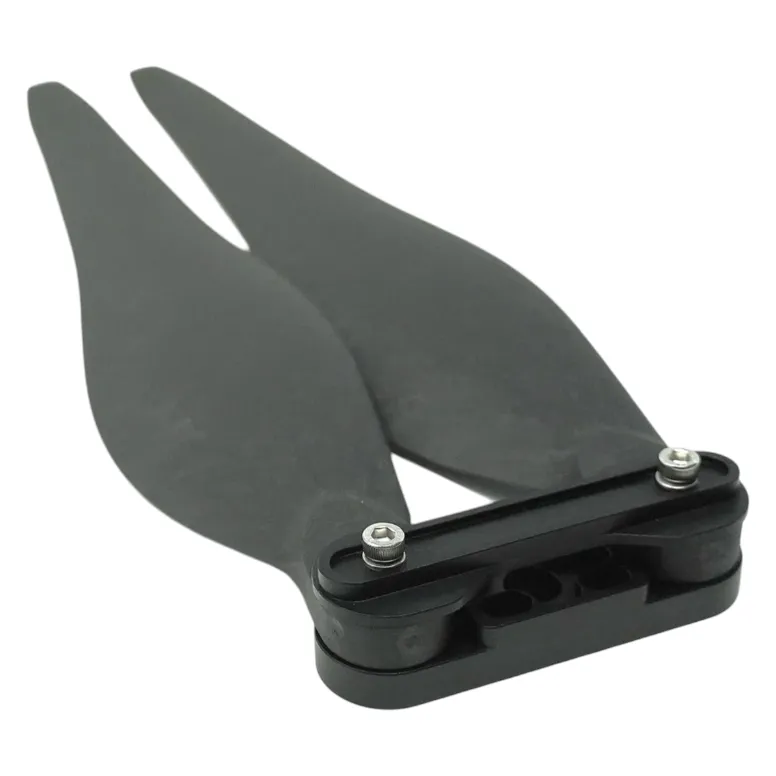

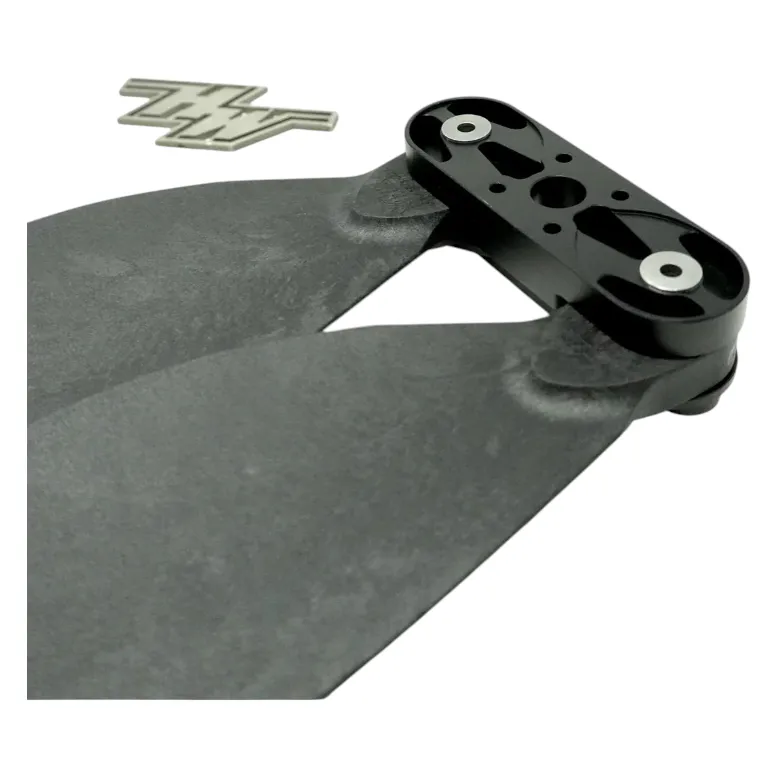

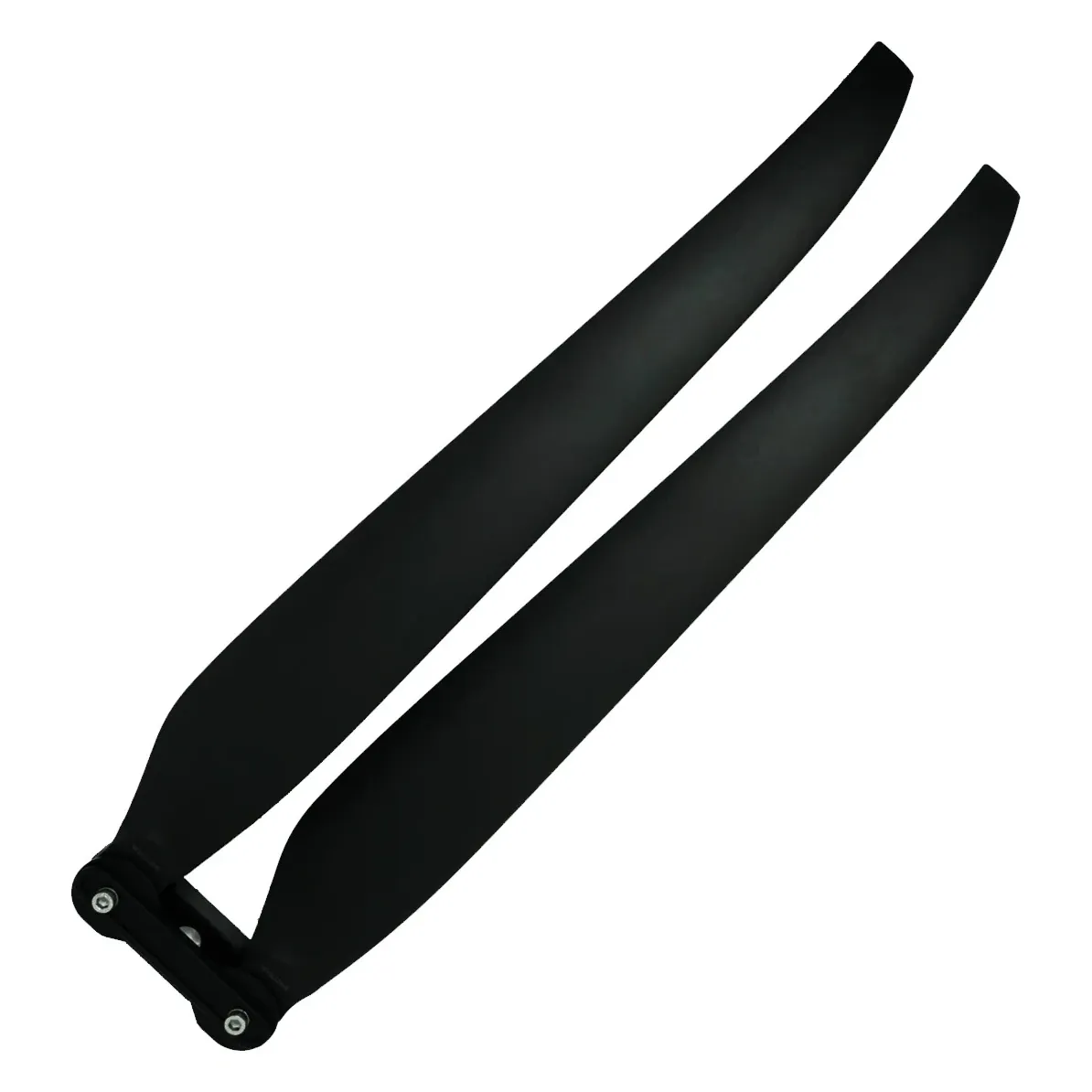

• Propeller: MFP 43x14 folding

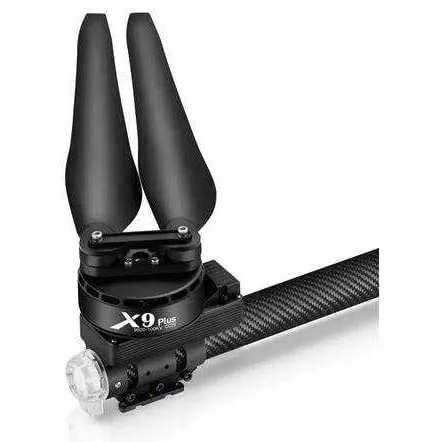

• Arm tube: 45 mm diameter

• Weight: 1852 g with cable and propeller

• Protection: IPX6

• Operating temperature: -20 to 50 °C

Order CW and CCW units in matched pairs for quad, hexa or octo layouts, and check that your flight controller is set for CAN or PWM throttle before first spin-up.
