T-Motor Data Link V2 Telemetry Module for Alpha ESCs

The T-Motor Data Link V2 is a communication module for T-Motor ALPHA series ESCs on heavy-lift and industrial multirotors. It collects, stores and transmits ESC data, and doubles as the interface for programming ALPHA ESC firmware to extend their compatibility.

Key features

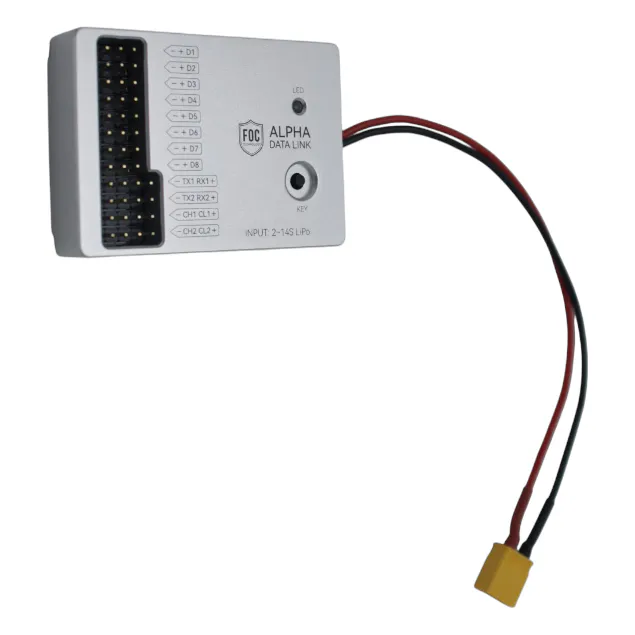

• Reads data from up to 8 ESC channels — a full set for an octocopter
• Real-time data collection and processing for flight analysis and fault-finding
• Independent serial port for data transmission

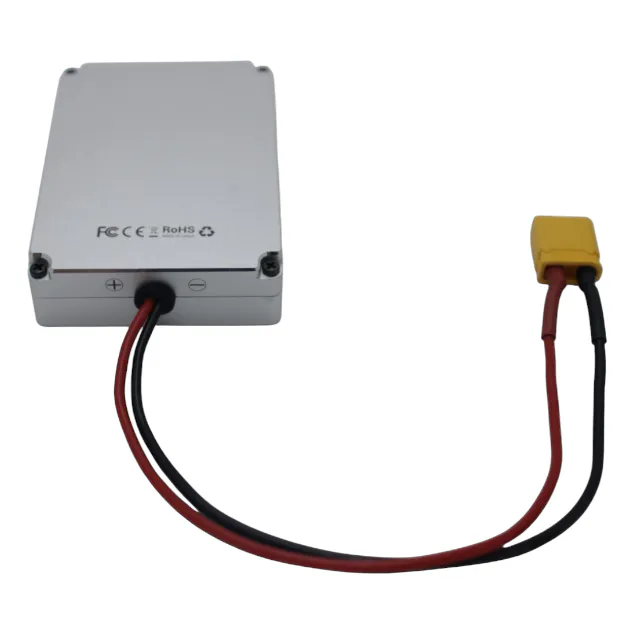

• Powered from the flight pack at 2–14S LiPo through an XT30U male connector
• Compact 55 × 38 × 12 mm body weighing 36 g

Specifications

• Input voltage: 2–14S LiPo
• Power connector: XT30U male
• ESC channels: 8
• Dimensions: 55 × 38 × 12 mm
• Weight: 36 g

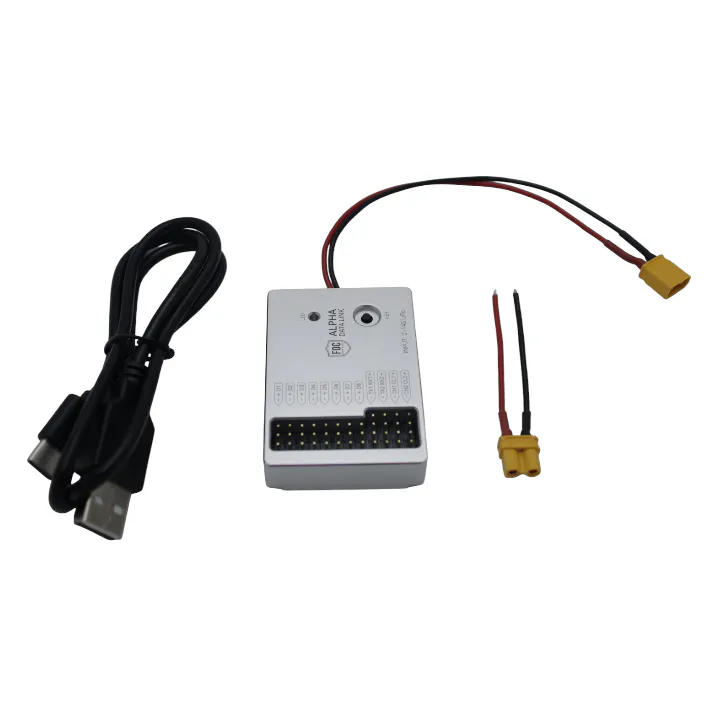

• In the box: Data Link V2, USB Type-C data cable

It is built for ALPHA series ESCs, so confirm your ESCs are ALPHA models before ordering. The included USB Type-C cable connects it to a computer for firmware work.
