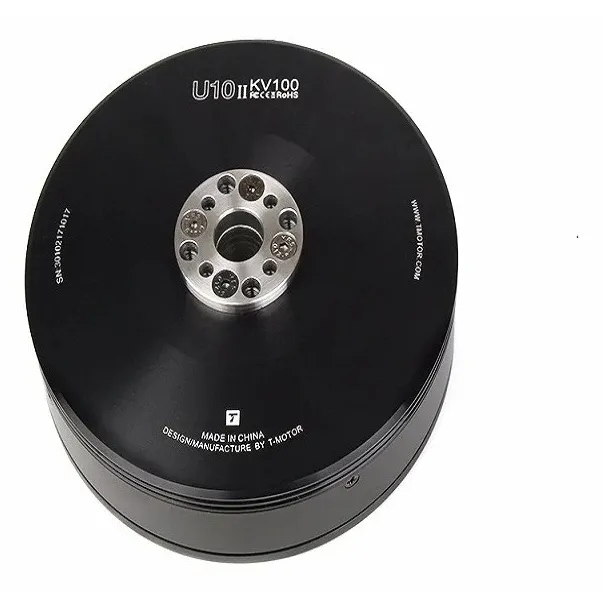

T-Motor U10II 100KV 12S Heavy-Lift Drone Motor

The T-Motor U10 II 100KV is a 12S heavy-lift motor for agricultural, industrial and long-endurance multirotors swinging 28-30 inch propellers. Its low 100KV winding trades top speed for torque, delivering up to 10.6 kg of thrust per motor.

Key features

• Efficiency gains: T-Motor quotes 20% higher efficiency and about 5% longer flight time for the U10 II redesign.

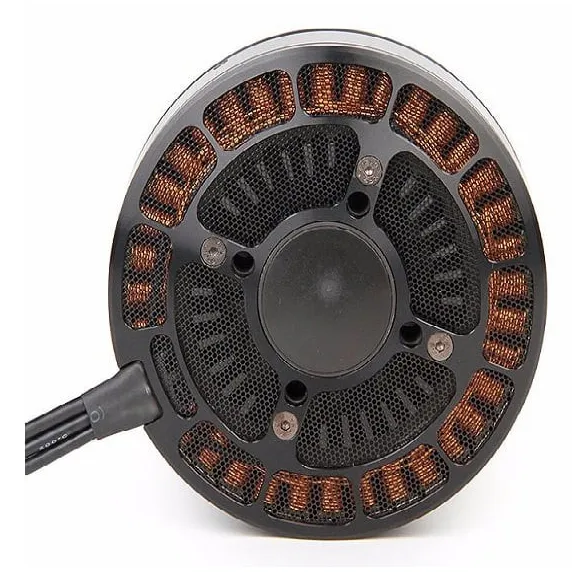

• New iron-core design with a dust-prevention net to keep debris out of the windings.

• Heavy-lift rating: 1600 W max power and 32.4 A peak current over 180 s on 12S.

• Scales to big airframes: with 28 inch carbon props T-Motor recommends about 16 kg take-off weight on a quad, 24 kg on a hexa and 32 kg on an octo.

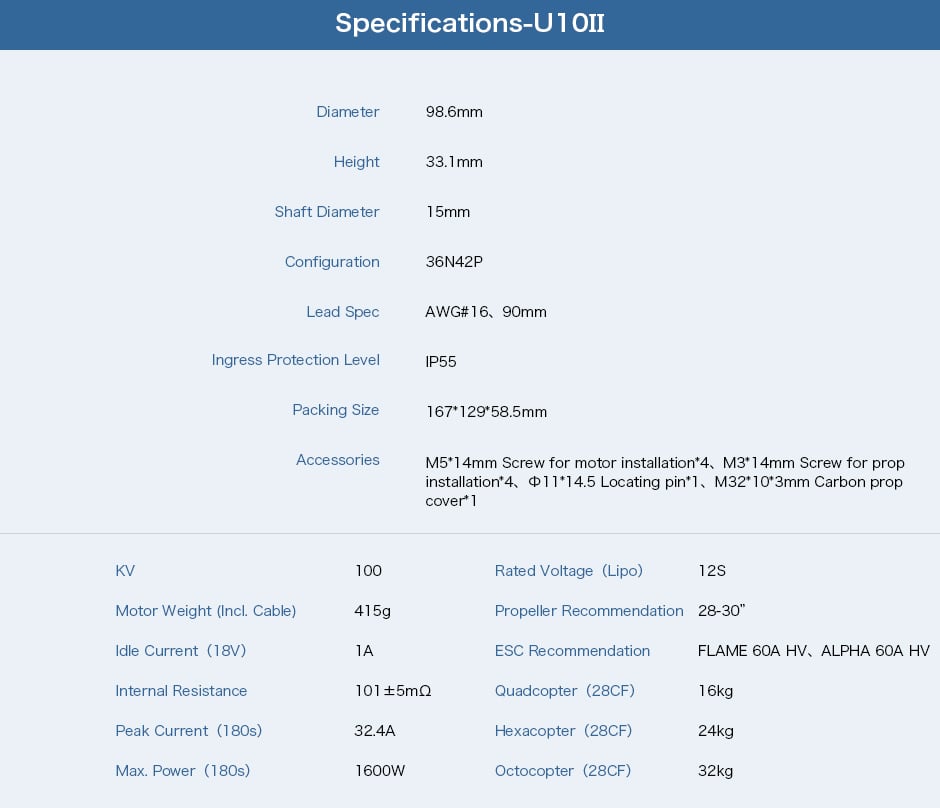

Specifications

• Rated voltage: 12S LiPo

• KV: 100

• Weight: 415 g incl. cable

• Idle current (18 V): 1 A

• Peak current (180 s): 32.4 A

• Max power (180 s): 1600 W

• Max thrust: 10.6 kg

• Recommended props: 28-30 inch

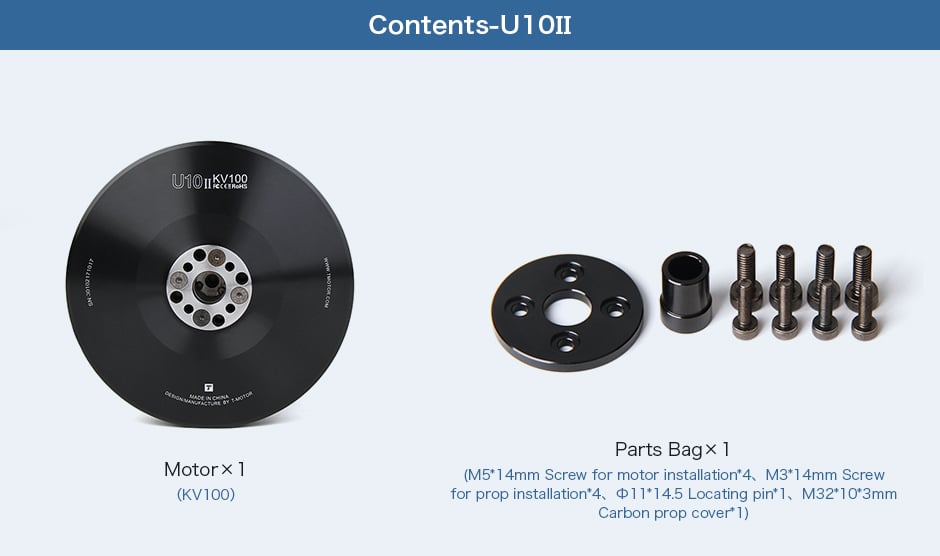

Pair it with a 12S ESC rated comfortably above the 32.4 A peak and 28-30 inch carbon props; one motor is supplied per order.
