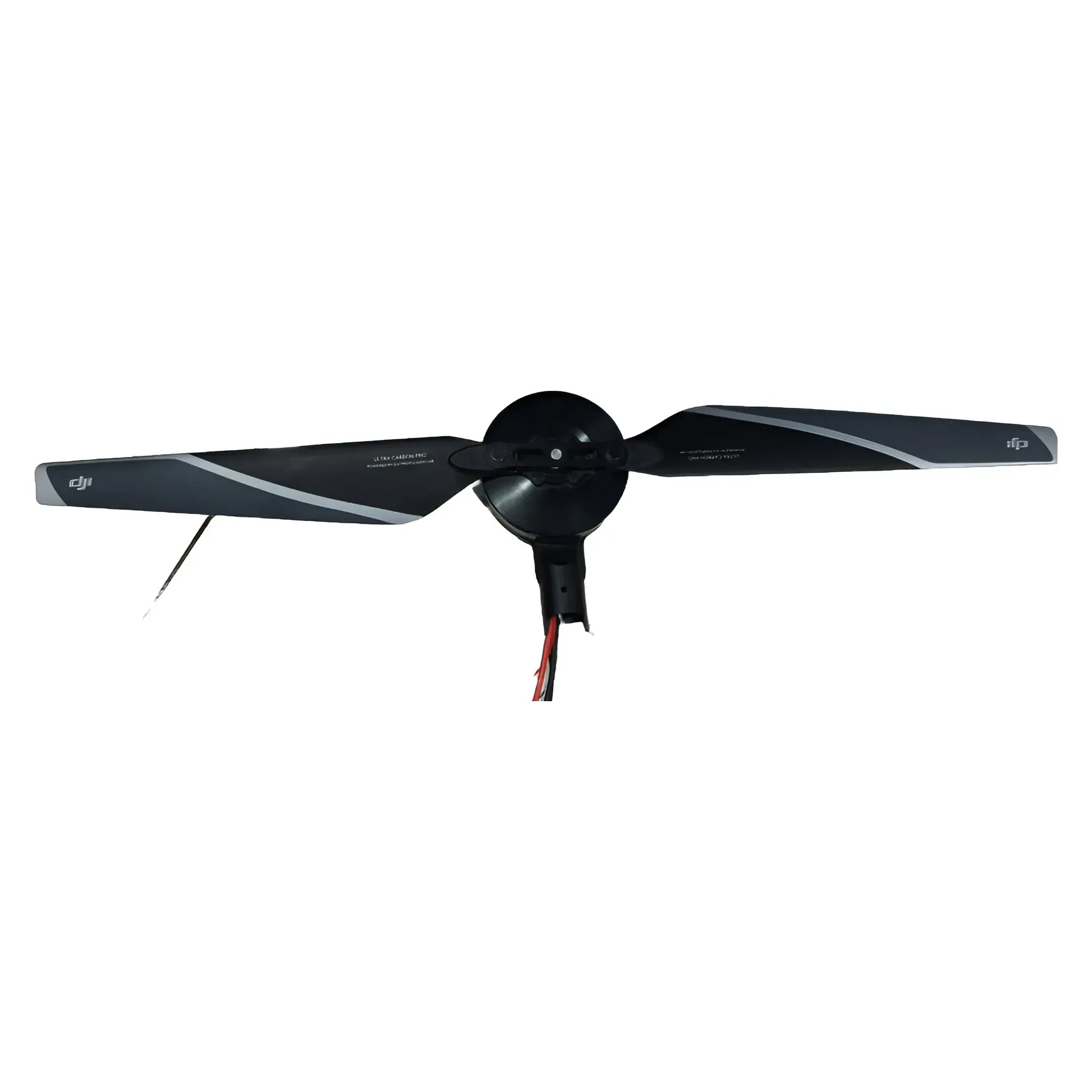

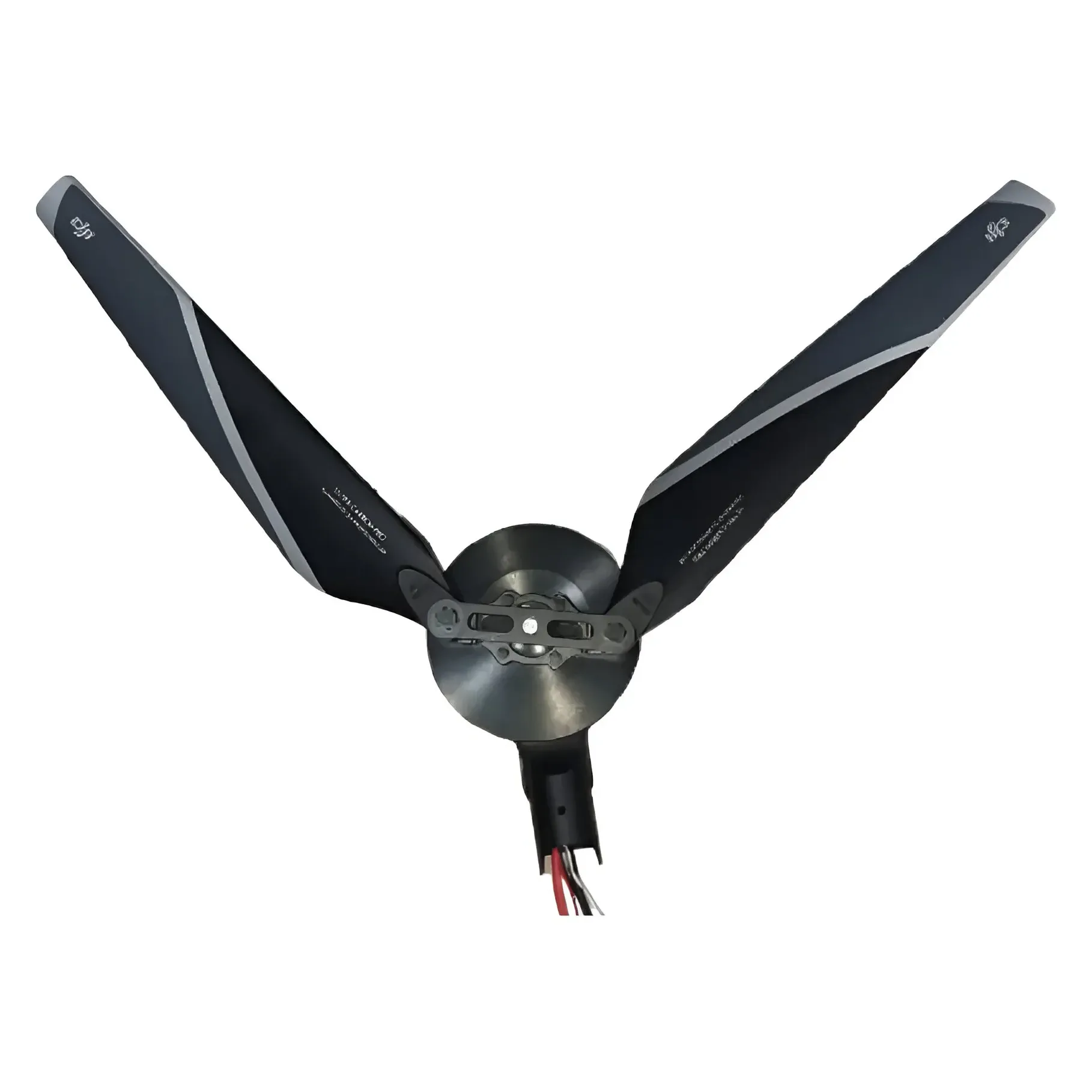

DJI E5000 Advanced M10 Motor with R2880 Folding Propeller

DJI's E5000 is a tuned propulsion set for heavy industrial and agricultural multirotors: one M10 brushless motor, a 1280 FOC ESC and a 28-inch R2880 folding propeller, matched to carry 4.5–7 kg of take-off weight per rotor on a 12S battery. The motor bearings and the ESC are sealed against rain, pesticide and salt spray, so the units can be washed down after spraying.

Key features

• Up to 14 kg of thrust per rotor at 44.4 V (sea level)
• M10 motor with a 100 × 10 mm stator, 120 KV, single-strand windings and centrifugal-pump cooling with a central heat sink
• 1280 FOC ESC rated 80 A continuous and 120 A peak, with multicolour status LEDs, in-flight and ground protections and a backup throttle

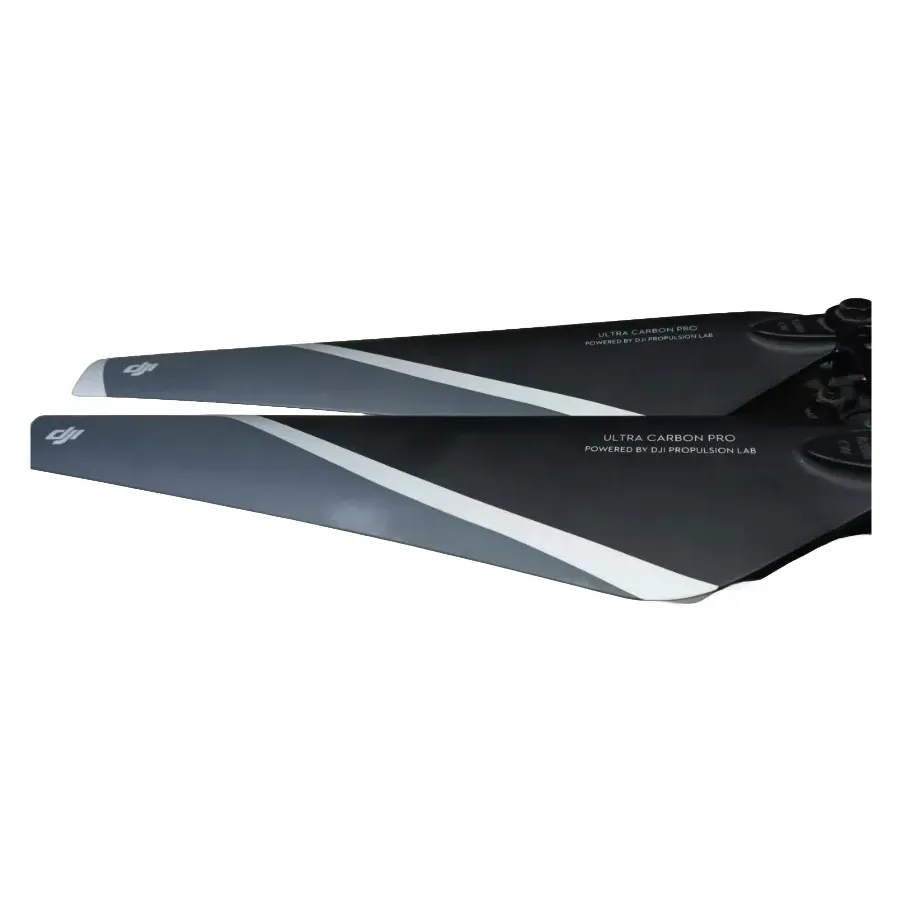

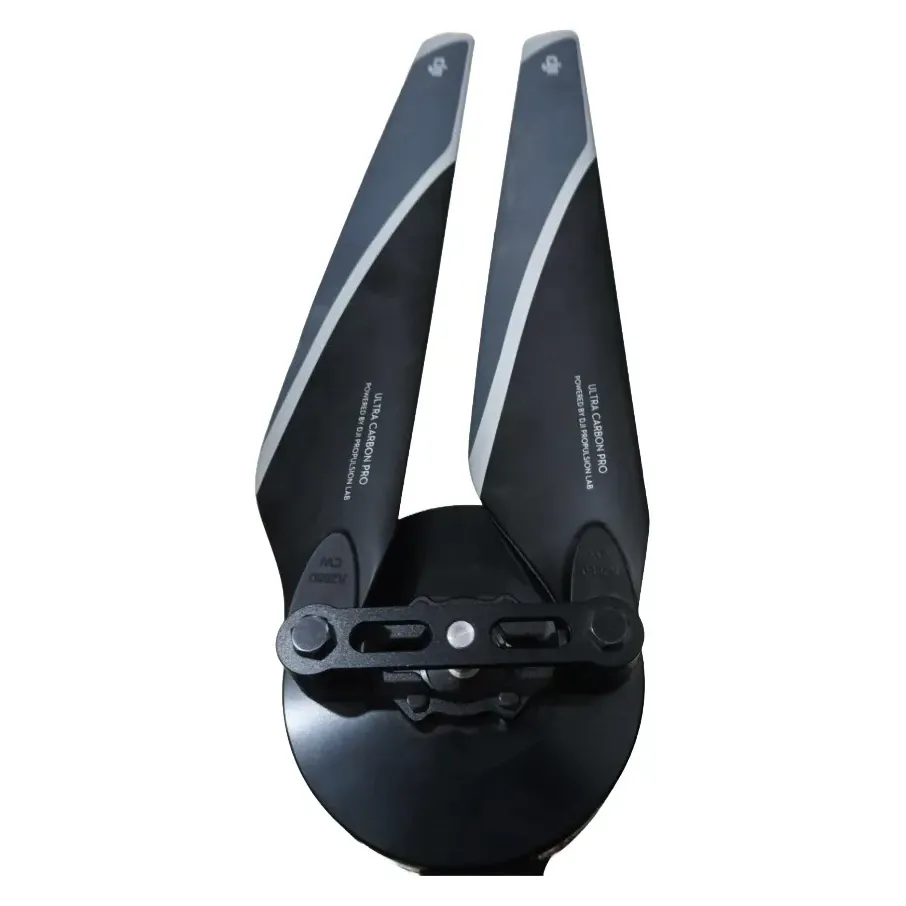

• R2880 Ultra Carbon Pro folding propeller, 28 × 8 inch, 161 g
• Rated for operation from −10 °C to 50 °C

Specifications

• Motor stator: 100 × 10 mm
• KV: 120 rpm/V
• ESC current: 80 A continuous, 120 A peak (under 3 s)
• ESC max voltage: 52.2 V
• Recommended battery: 12S LiPo
• Propeller: R2880, 28 × 8 in (711 × 203 mm), 161 g
• Max thrust: 14 kg per rotor (44.4 V, sea level)
• Recommended take-off weight: 4.5–7.0 kg per rotor
• Operating temperature: −10 °C to 50 °C
• In the box: 1 × M10 motor, 1 × 1280 ESC, 1 × R2880 propeller

Each set covers one rotor: a quad needs four for roughly 18–28 kg all-up weight, a hexacopter six for 27–42 kg. Check your frame's arm-tube diameter against the E5000 mount before ordering.
