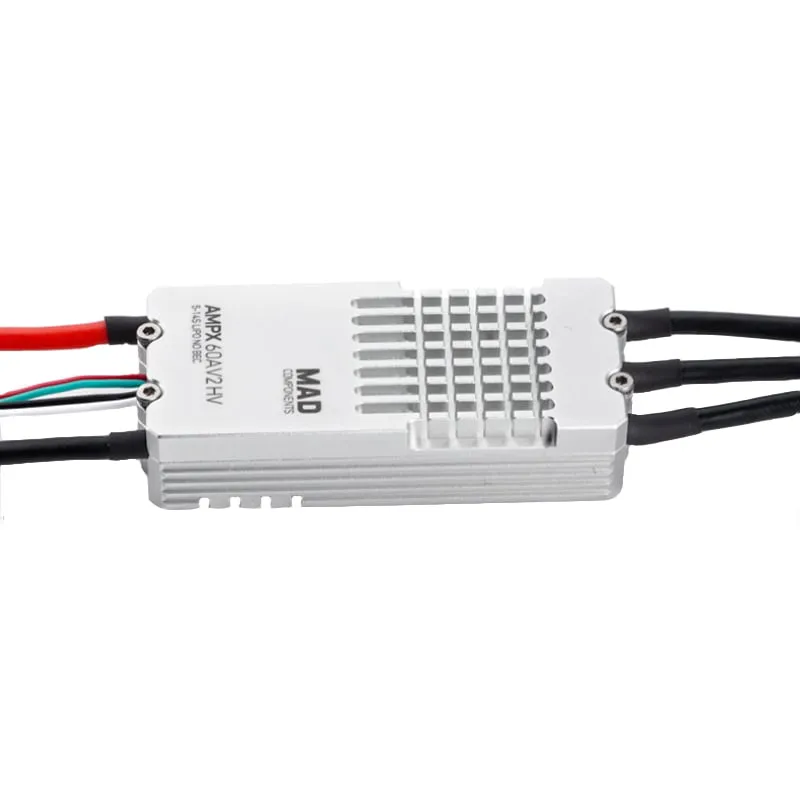

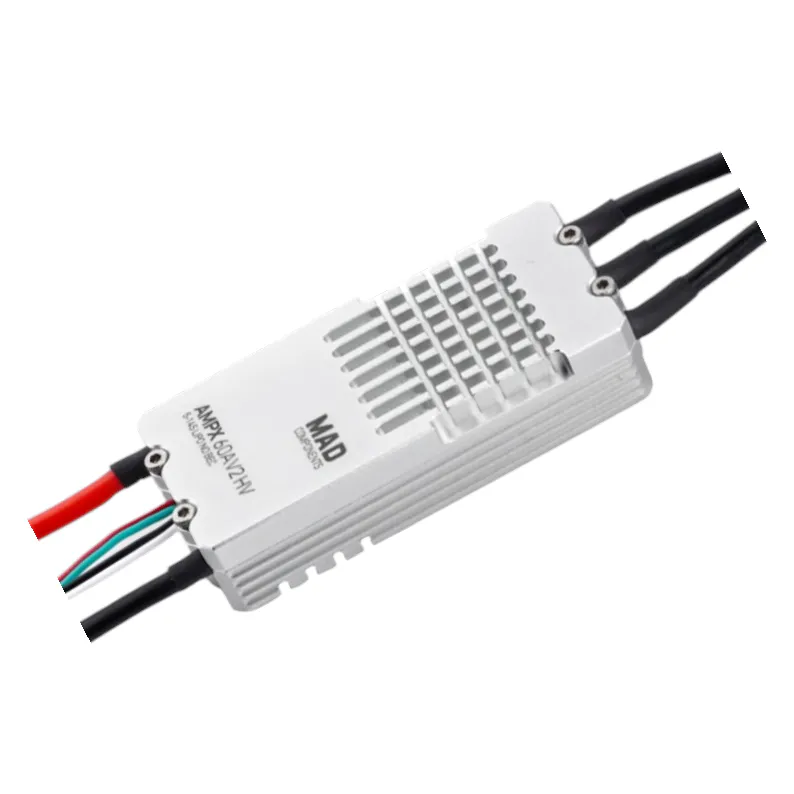

MAD AMPX 60A 5-14S Drone ESC V2.0 Silver
₹21,499Incl. GST
SKU MAD-AMPX-60A-V2-SLV
Made in India: NoBrand: MAD ComponentsESC Current: 60 AInput Voltage: 5–14S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The MAD Components AMPX 60A V2.0 is a single brushless ESC for 5–14S LiPo multirotors used in mapping, surveying and industrial work. It accepts both PWM throttle and CAN control, and reports voltage, current and temperature back to the flight controller over DroneCAN or Cyphal CAN.
Key features
- 16–64V input range covers 5S to 14S LiPo packs.
- Dual throttle control: PWM signal or CAN commands from the flight controller.
- Real-time telemetry of voltage, current and temperature over DroneCAN or Cyphal CAN.
- Overload protection with automatic restart.
- Upgradeable firmware.
Specifications
- Battery: 5–14S LiPo (16–64V)
- Control inputs: PWM and CAN
- CAN protocols: DroneCAN, Cyphal CAN
- Telemetry: Voltage, current, temperature
- BEC: None
This model has no BEC output, so power the flight controller and any servos from a separate BEC or power module. For CAN control and telemetry, use a flight controller with a CAN port running ArduPilot or PX4; order one ESC per motor.
| Made in India | No |
|---|---|
| Brand | MAD Components |
| ESC Current | 60 A |
| Input Voltage | 5–14S |
| ESC Firmware | Proprietary |
| BEC | No |
