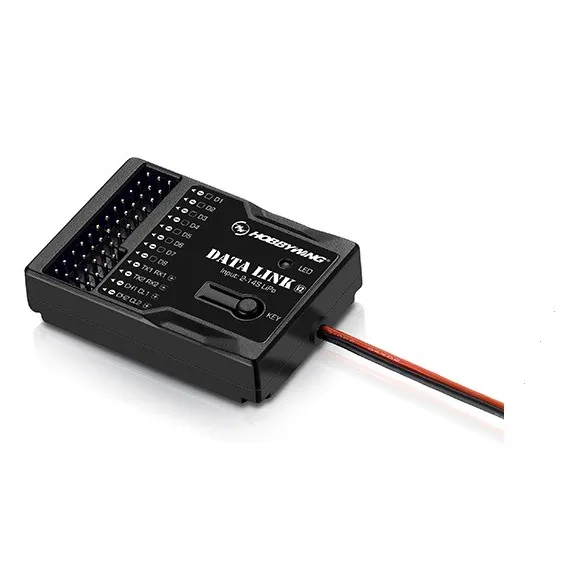

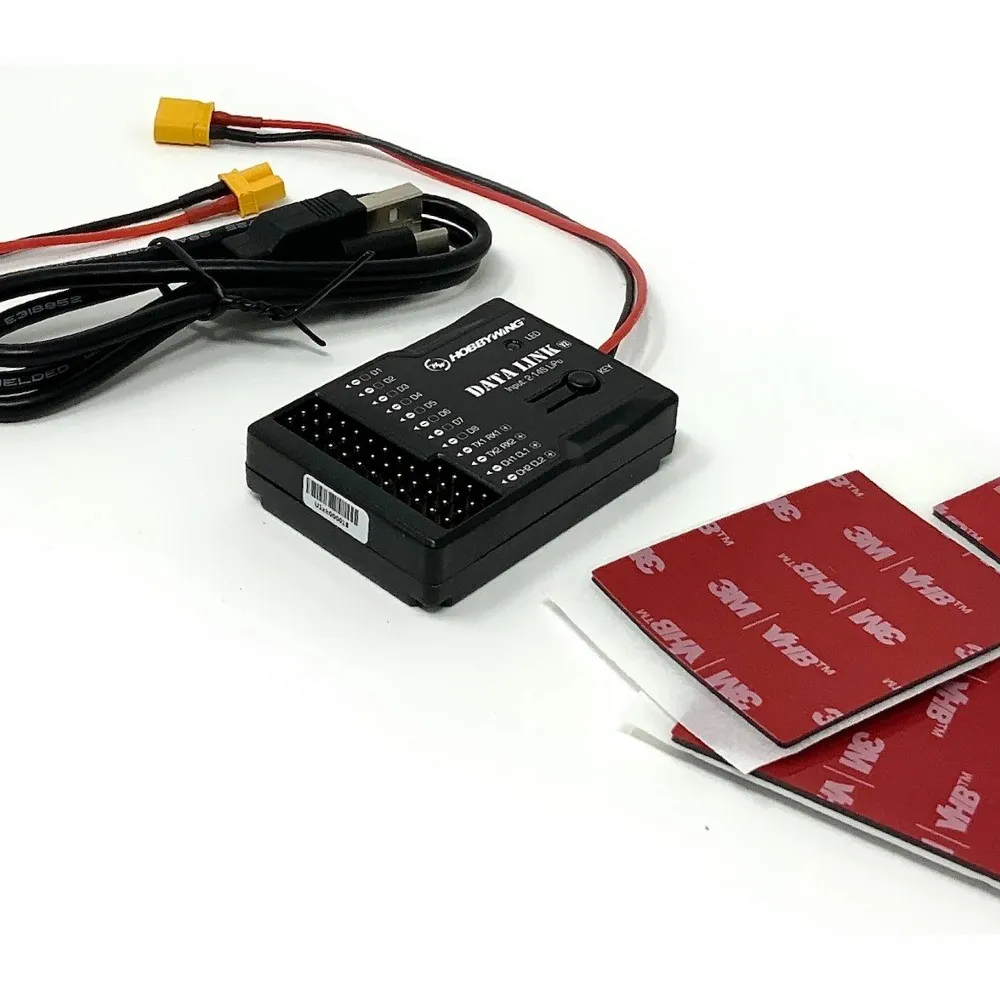

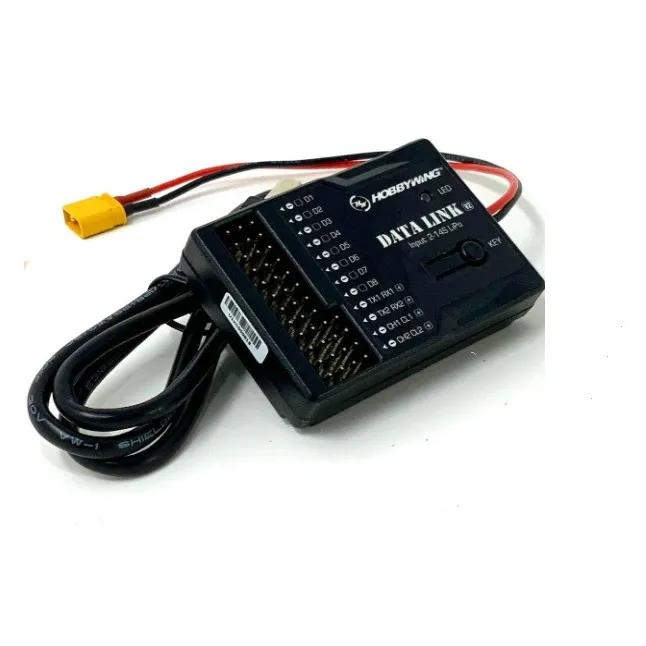

Hobbywing Data Link V2 for XRotor X6/X8/X9 Power Systems

The Hobbywing Data Link V2 is the communication module for Hobbywing's industrial XRotor X-Series power systems, used on agricultural and commercial multirotors. It links the power system to the aircraft's control equipment, collecting, storing and forwarding ESC data so operators can watch motor and ESC status in real time and trace faults after a flight.

Key features

• Onboard logging: stores power-system and flight data on a 128M memory card for later fault analysis.
• Three interfaces: USB, CAN and serial telemetry for the flight controller or a computer.
• Firmware updates: upgrades both the ESC and the Data Link itself.
• Wide supply range: runs from 6 to 81 V.
• X-Series compatibility: works with the XRotor X6, X8 and X9 industrial power systems.

Specifications

• Telemetry: USB, CAN, serial
• Input voltage: 6-81 V
• Compatible batteries: 2-14S LiPo
• Size: 57 × 40 × 13 mm (without wires)
• Weight: 27 g

Fit one per aircraft to read live power-system status, pull logs after an incident and keep ESC firmware current across a spraying or survey fleet.
