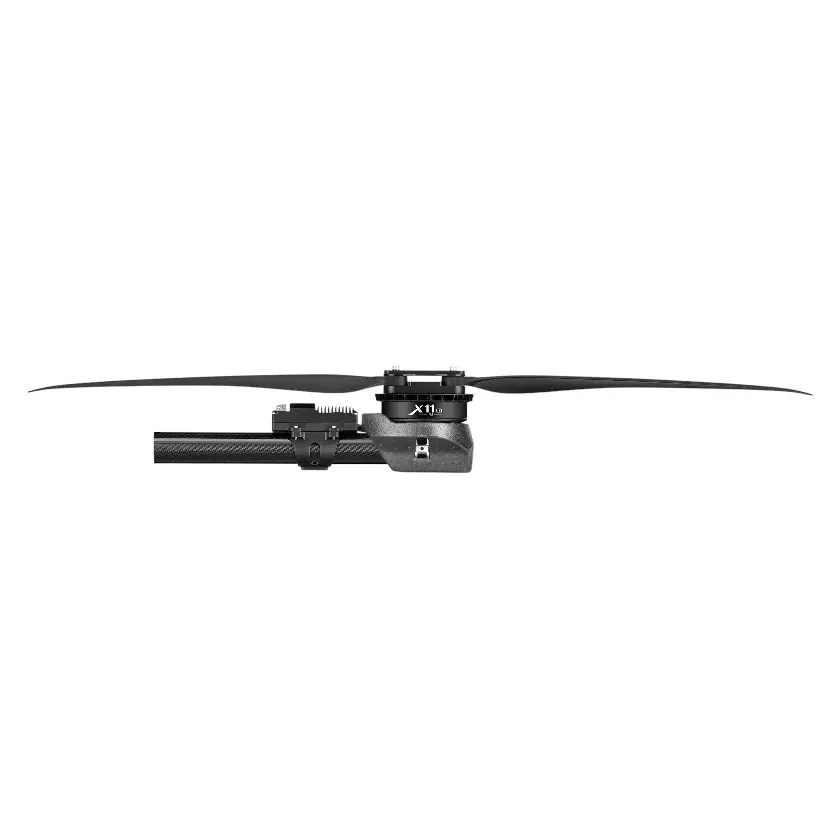

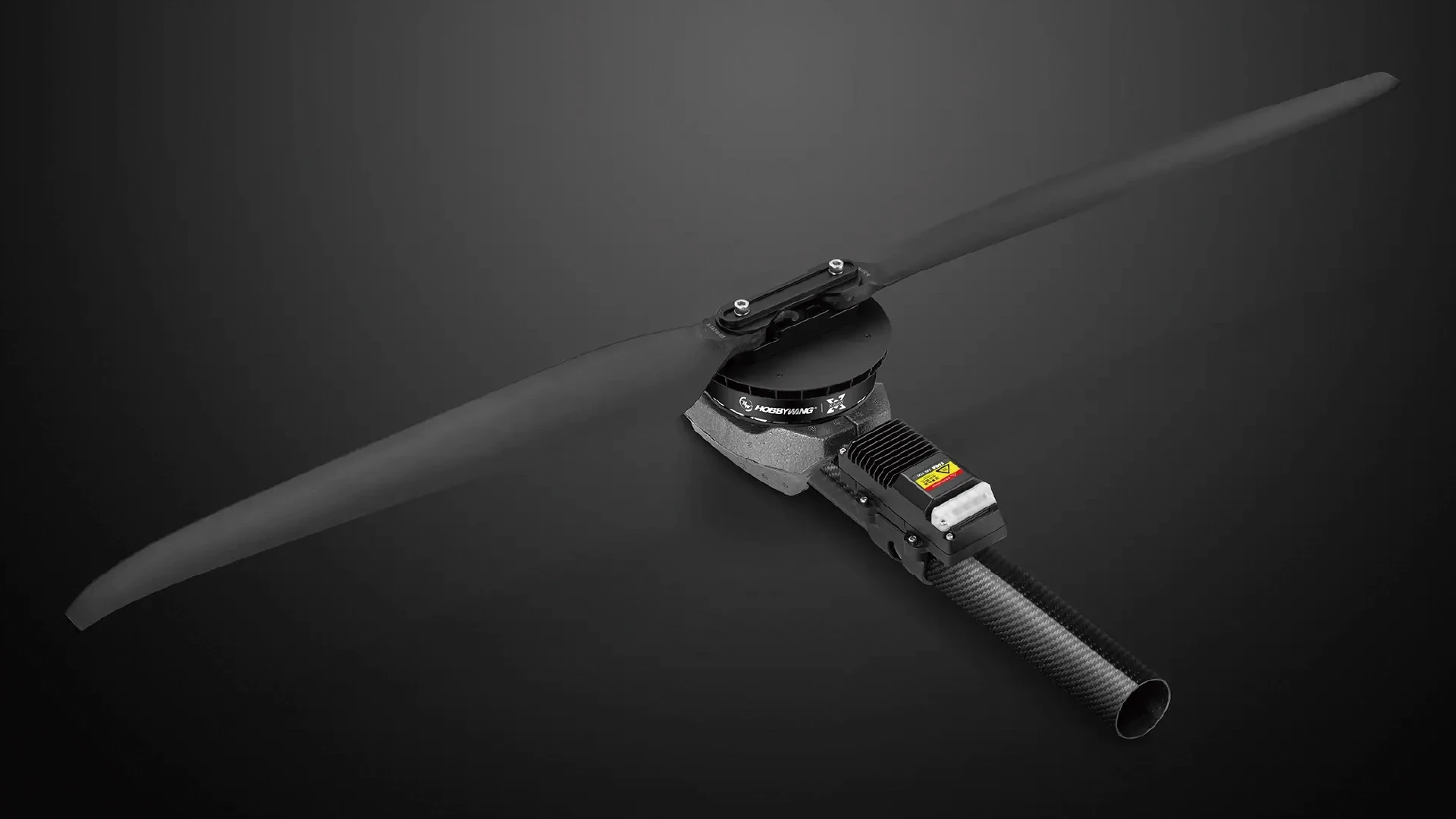

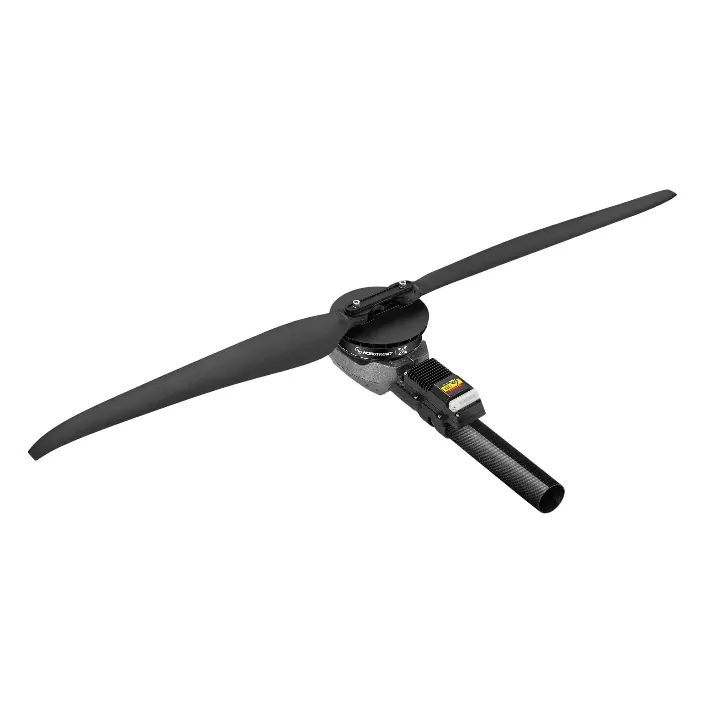

Hobbywing X11 G2 Power System with MFP 43x14" Folding Propeller

The Hobbywing X11 G2 is an all-in-one propulsion unit, combining motor, ESC and an MFP 43×14 folding propeller, for 14S agricultural sprayers and heavy-lift multirotors. Each axis produces up to 32 kg of thrust, and Hobbywing recommends a take-off weight of 17 kg per axis for the best efficiency.

Key features

• 32 kg max thrust per axis at sea level, 7.5 g/W at the recommended 17 kg per axis

• 1870 W rated continuous output from a 95KV, 36N40P motor with a cooling fan

• Integrated ESC rated 60 A continuous and 150 A peak (3 s), with fault storage and logging

• PWM plus CAN throttle and Cyphal (UAVCAN) communication; parameters via the DataLink Box G3

• IPX6 protection against spray and rain

• Clamps onto 45 mm outer-diameter arm tubes

Specifications

• Battery: 14S LiPo (54 V rated), 18–63 V input

• Max thrust: 32 kg (sea level)

• Recommended take-off weight: 17 kg per axis

• Rated output: 1870 W continuous

• Motor: 95KV, 36N40P, 111 × 15 mm stator, Ø120.1 mm (138 mm with fan)

• ESC current: 60 A continuous, 150 A peak (3 s)

• Throttle input: PWM + CAN, 1050–1950 µs

• Propeller: MFP 43×14 folding, carbon-fibre-reinforced nylon, 427 g total (146 g per blade)

• Arm tube: 45 mm OD

• Cables: 12AWG power lead, 1050 mm; signal lead, 1090 mm

• Weight: 1980 g with cables and propeller

• Ingress protection: IPX6

• Operating temperature: -20 to 50 °C

Throttle range calibration is not supported, so set the flight controller's motor outputs to 1050–1950 µs before the first spin-up. Signal pinout: black GND, white PWM, red CAN-H, grey CAN-L.
