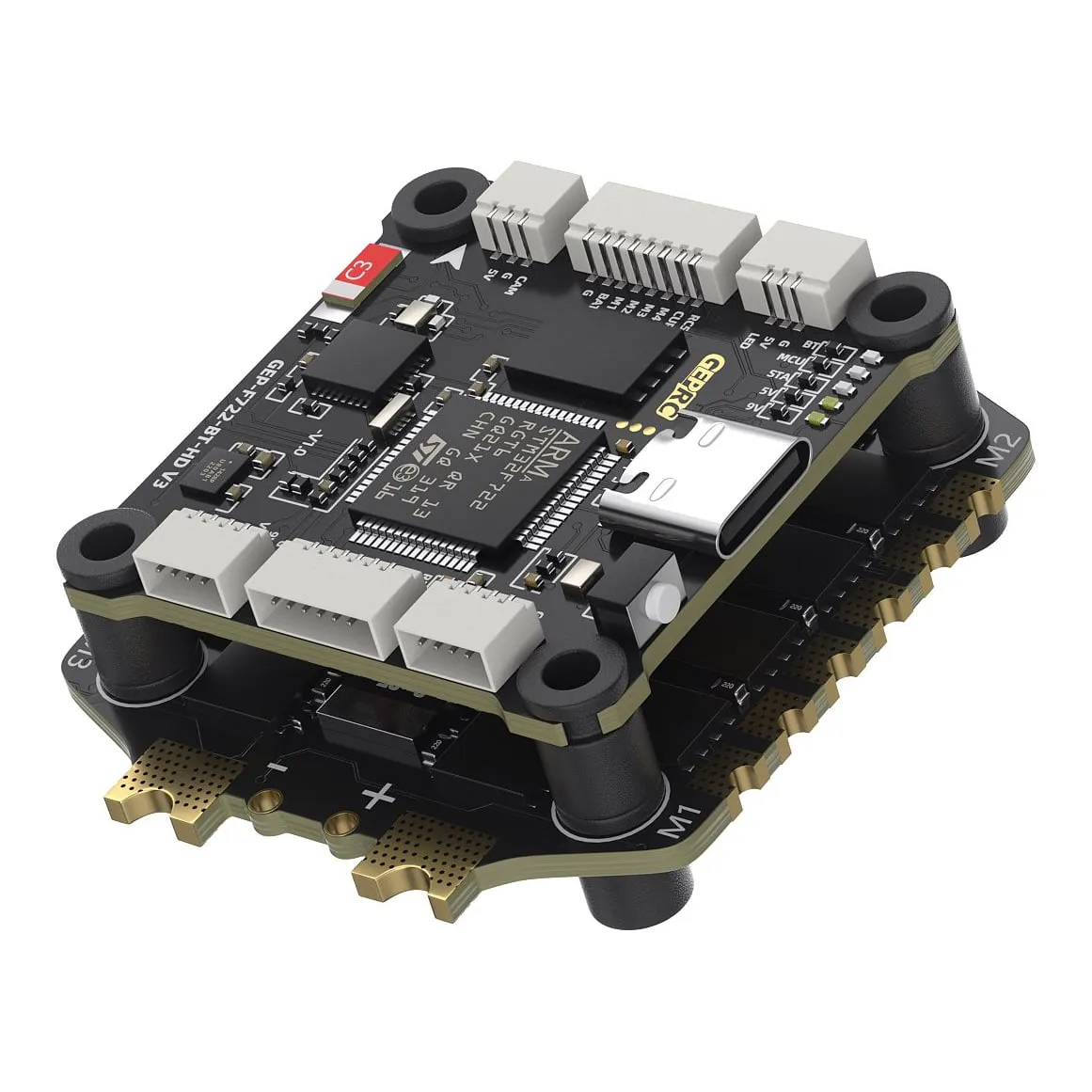

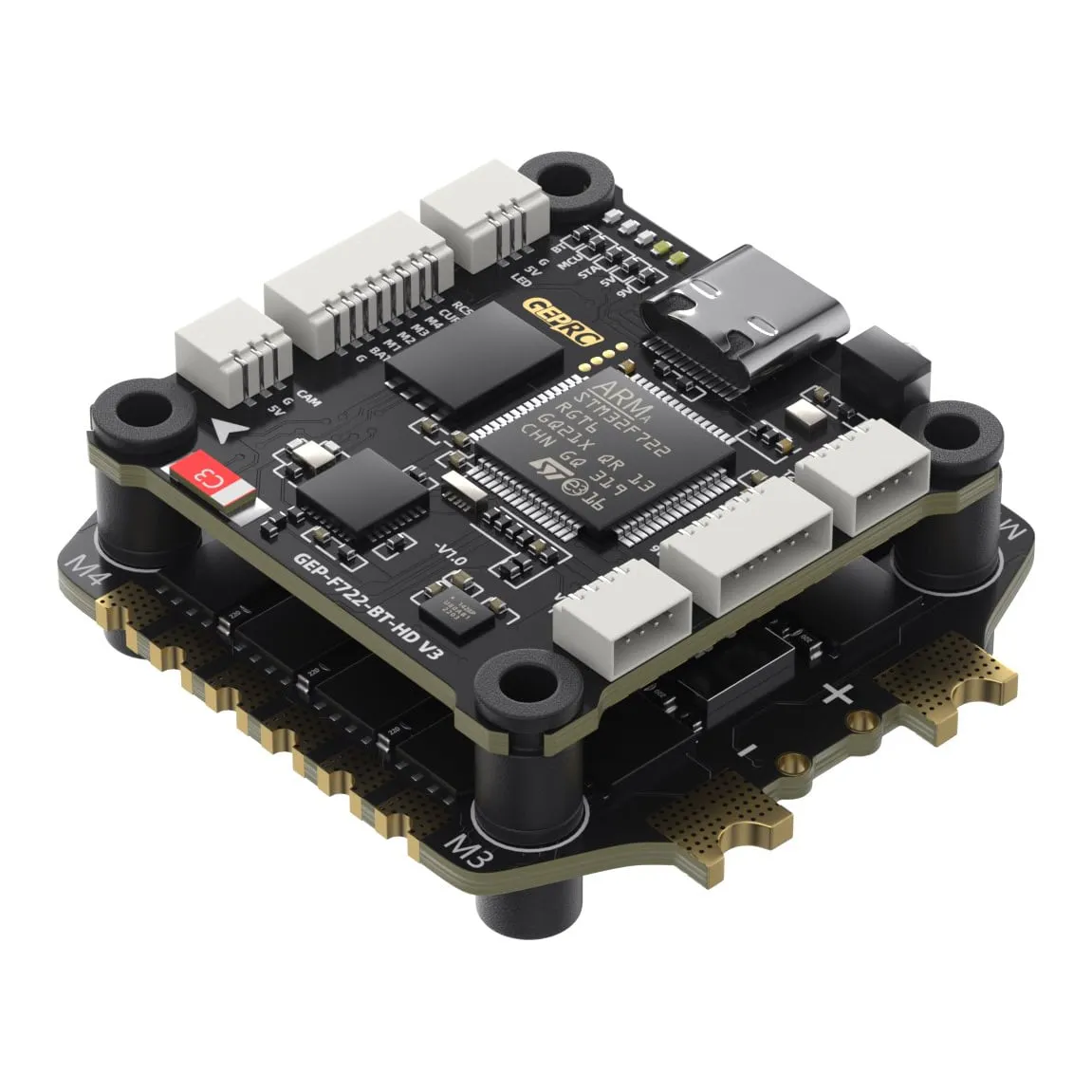

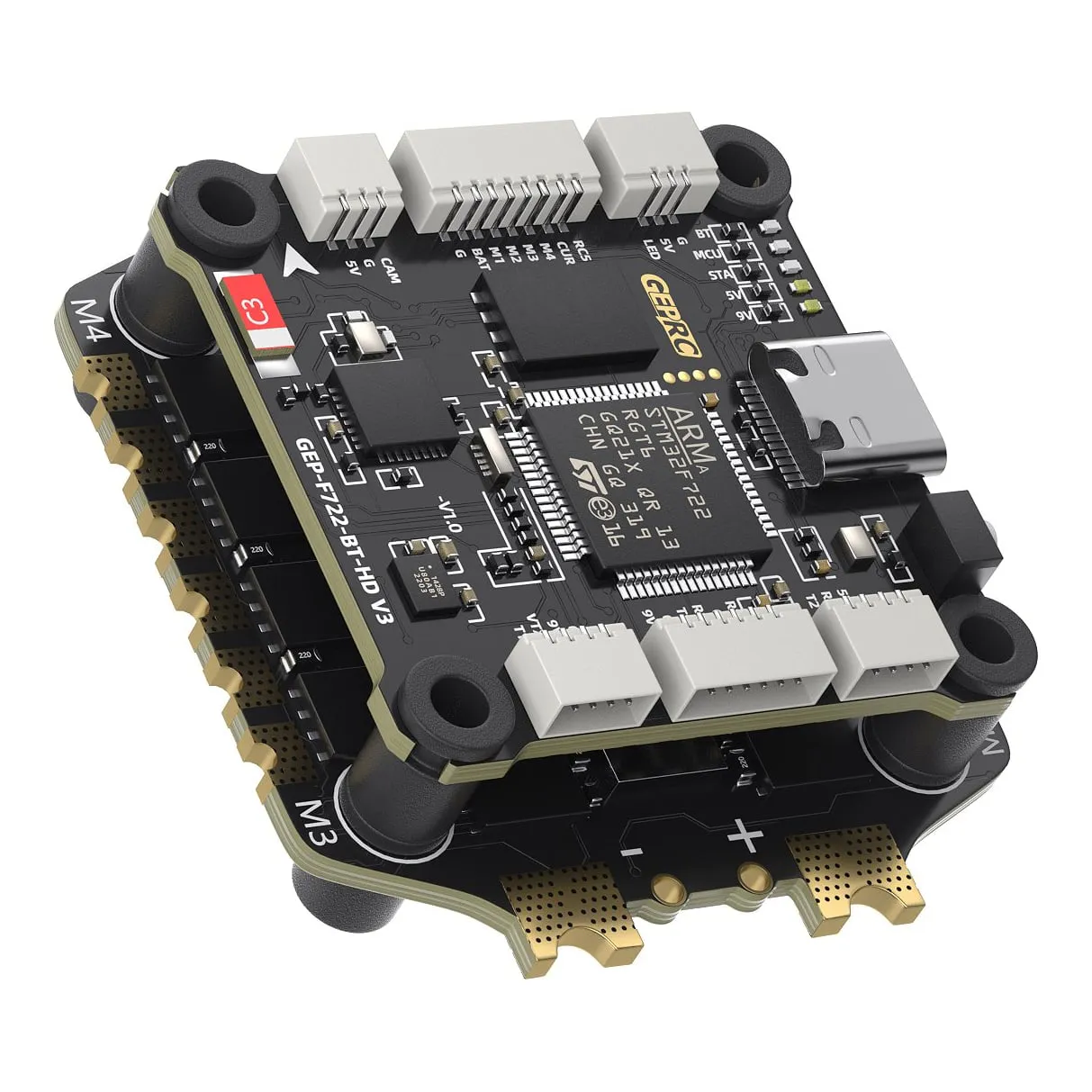

GEPRC Taker F722 BT 8Bit 65A Stack

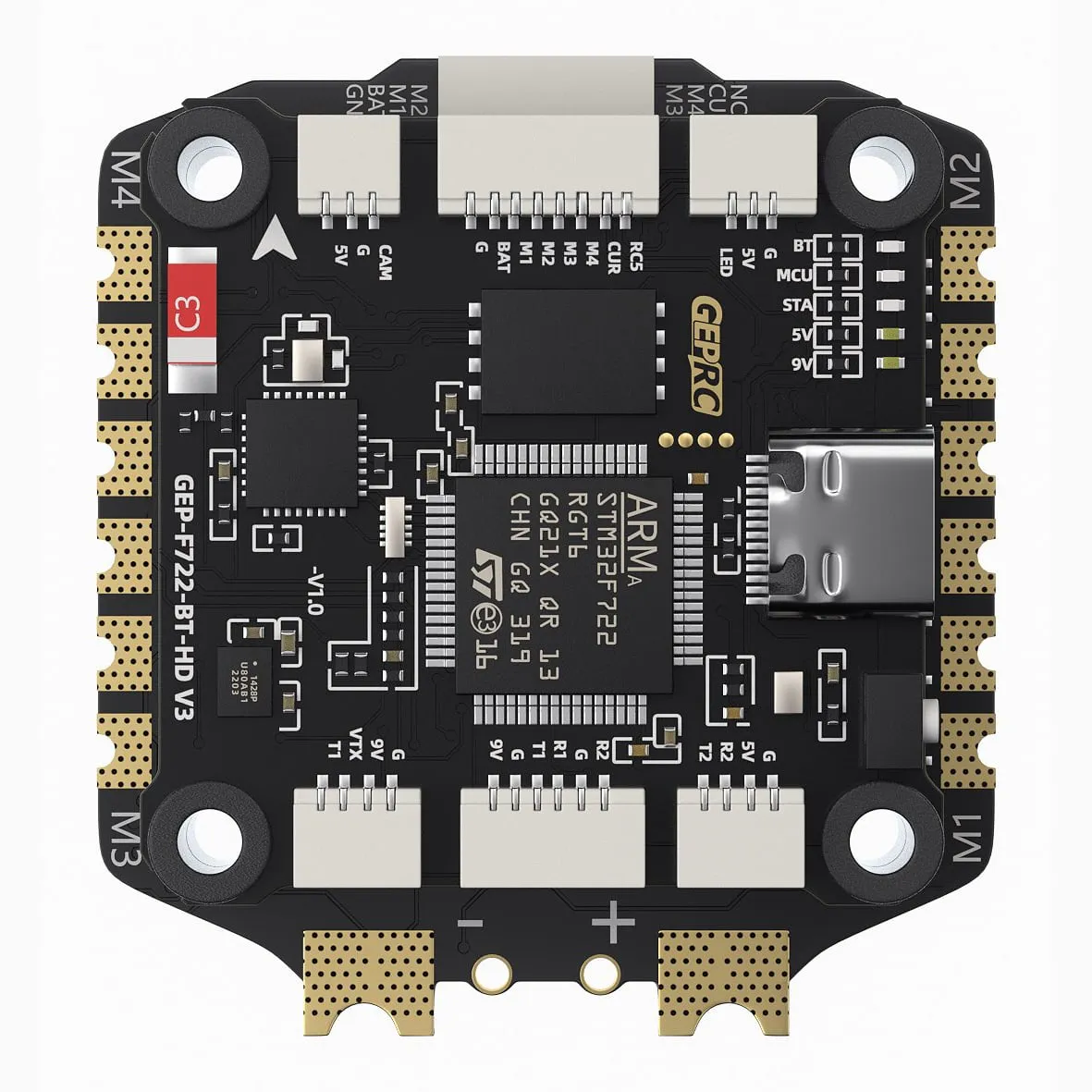

A two-board 30.5x30.5 stack that pairs GEPRC's GEP-F722-BT-HD V3 flight controller with the Taker H65_8S_BLS 65A 4-in-1 ESC. It suits 30.5mm-pattern freestyle and long-range quads on 3-6S, and plugs straight into a DJI Air Unit for HD builds.

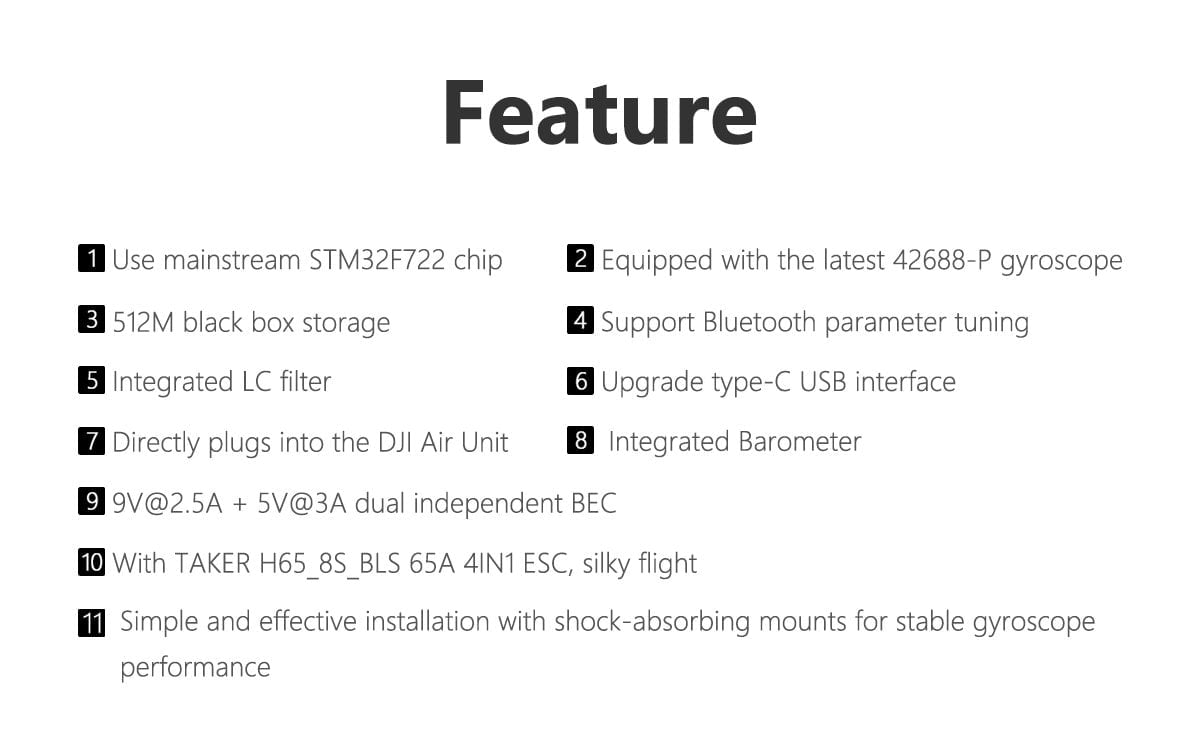

Key features

• STM32F722 processor with an ICM42688-P gyro on SPI, soft-mounted on silicone grommets.

• 512M onboard blackbox, integrated barometer, AT7456E Betaflight OSD and a USB-C port.

• Dual independent BEC: 9V at 2.5A and 5V at 3A, with an integrated LC power filter.

• Five UARTs; UART4 is reserved for the Bluetooth module.

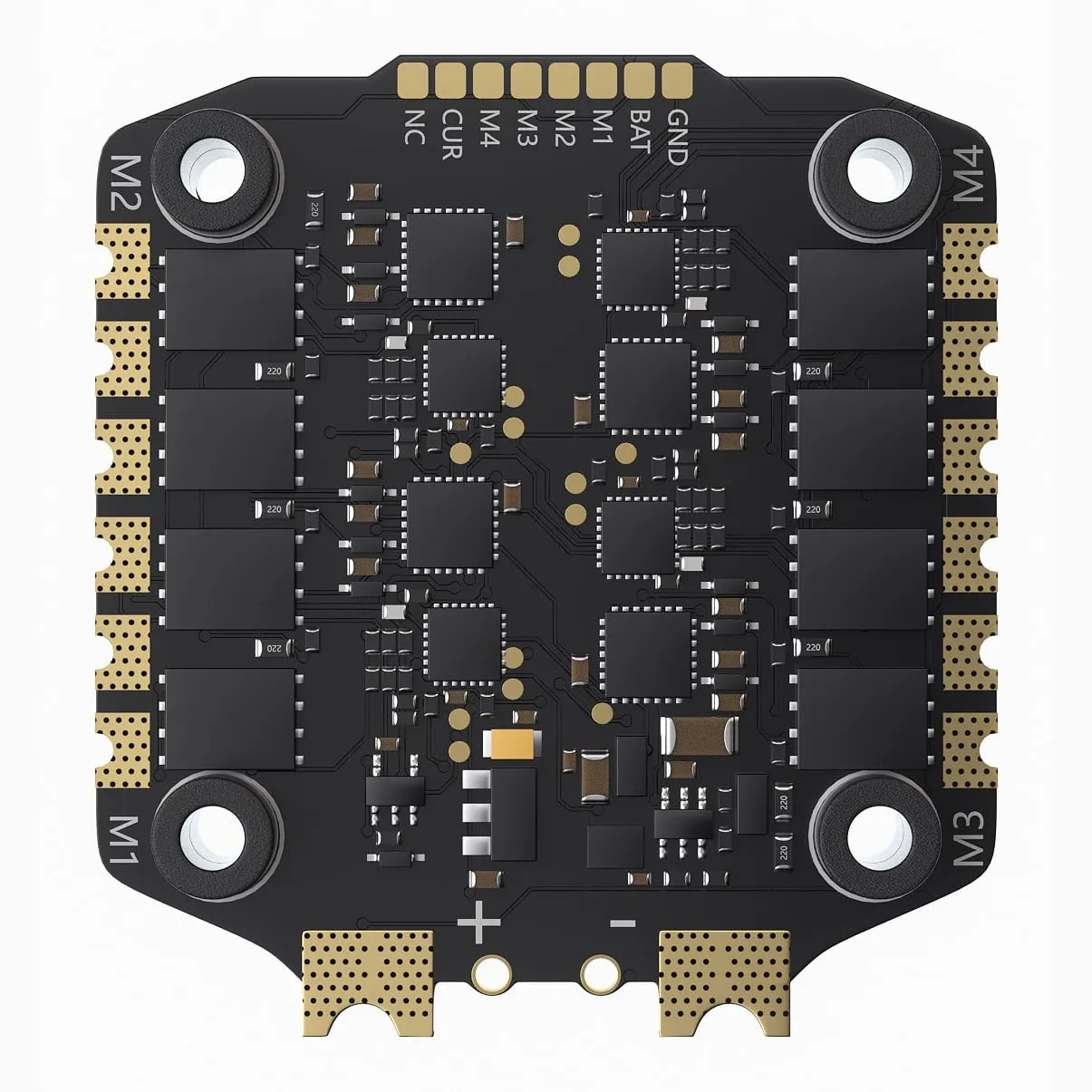

• 8-bit BLHeli_S ESC rated 65A continuous and 70A burst for 5 seconds, with a built-in current sensor and DShot150/300/600.

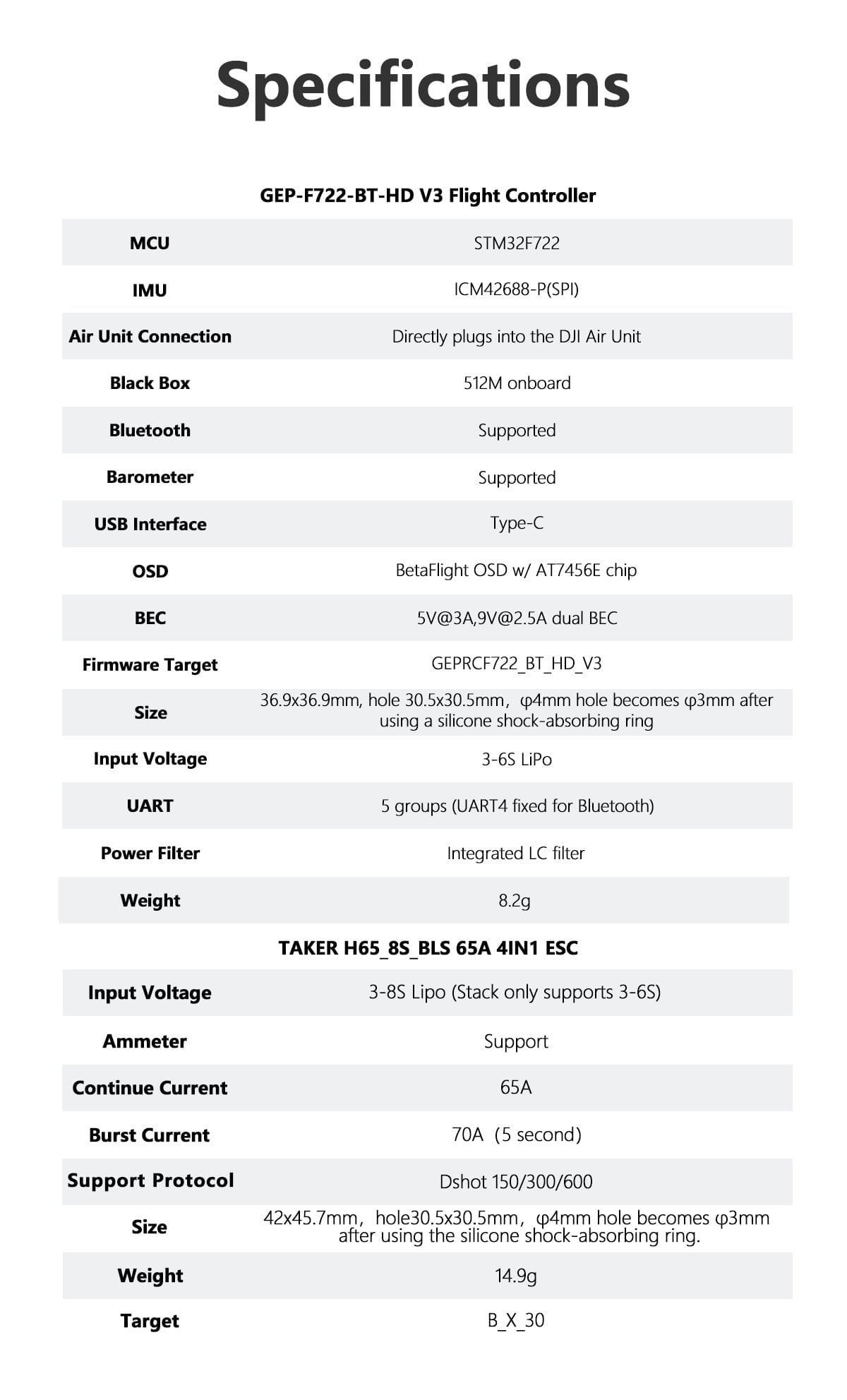

Specifications

• FC MCU: STM32F722

• Gyro: ICM42688-P (SPI)

• FC input voltage: 3-6S LiPo

• FC firmware target: GEPRCF722_BT_HD_V3

• FC size: 36.9 x 36.9 mm

• FC weight: 8.2 g

• ESC input voltage: 3-8S LiPo

• ESC current: 65A continuous, 70A burst (5 s)

• ESC target: B_X_30

• ESC size: 42 x 45.7 mm

• ESC weight: 14.9 g

• Mounting: 30.5 x 30.5 mm, 4 mm holes reduced to 3 mm by the silicone grommets

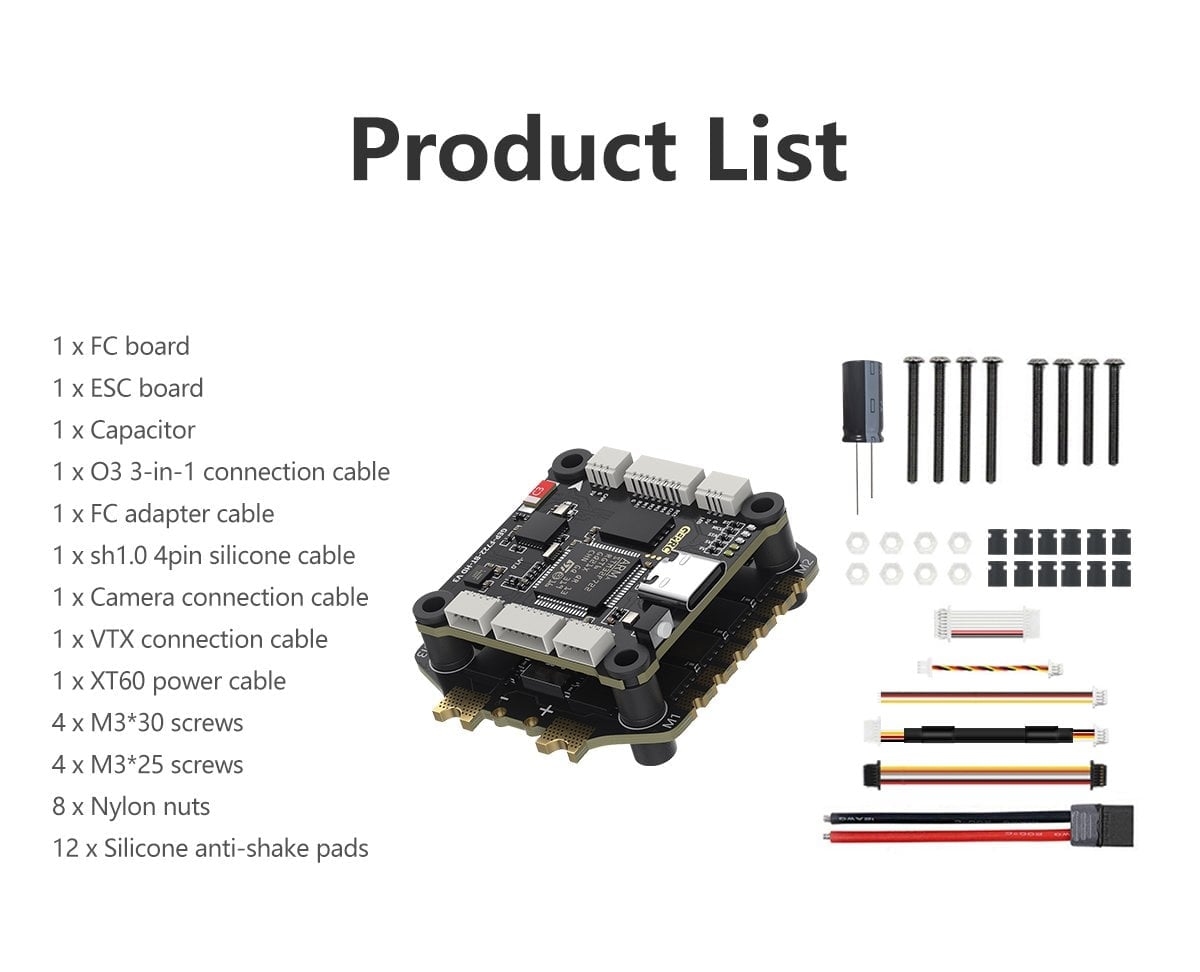

The ESC alone is rated to 8S, but the flight controller is rated 3-6S, so run the stack at 6S maximum. GEPRC states that batches since February 2026 ship without Bluetooth tuning while the hardware is revised, so plan to configure over USB-C. The box includes a capacitor, an XT60 power lead, DJI O3, camera and VTX cables, M3x30 and M3x25 bolts, nylon nuts and silicone dampers.
