GEPRC Taker F722 BLS 80A V2 Stack

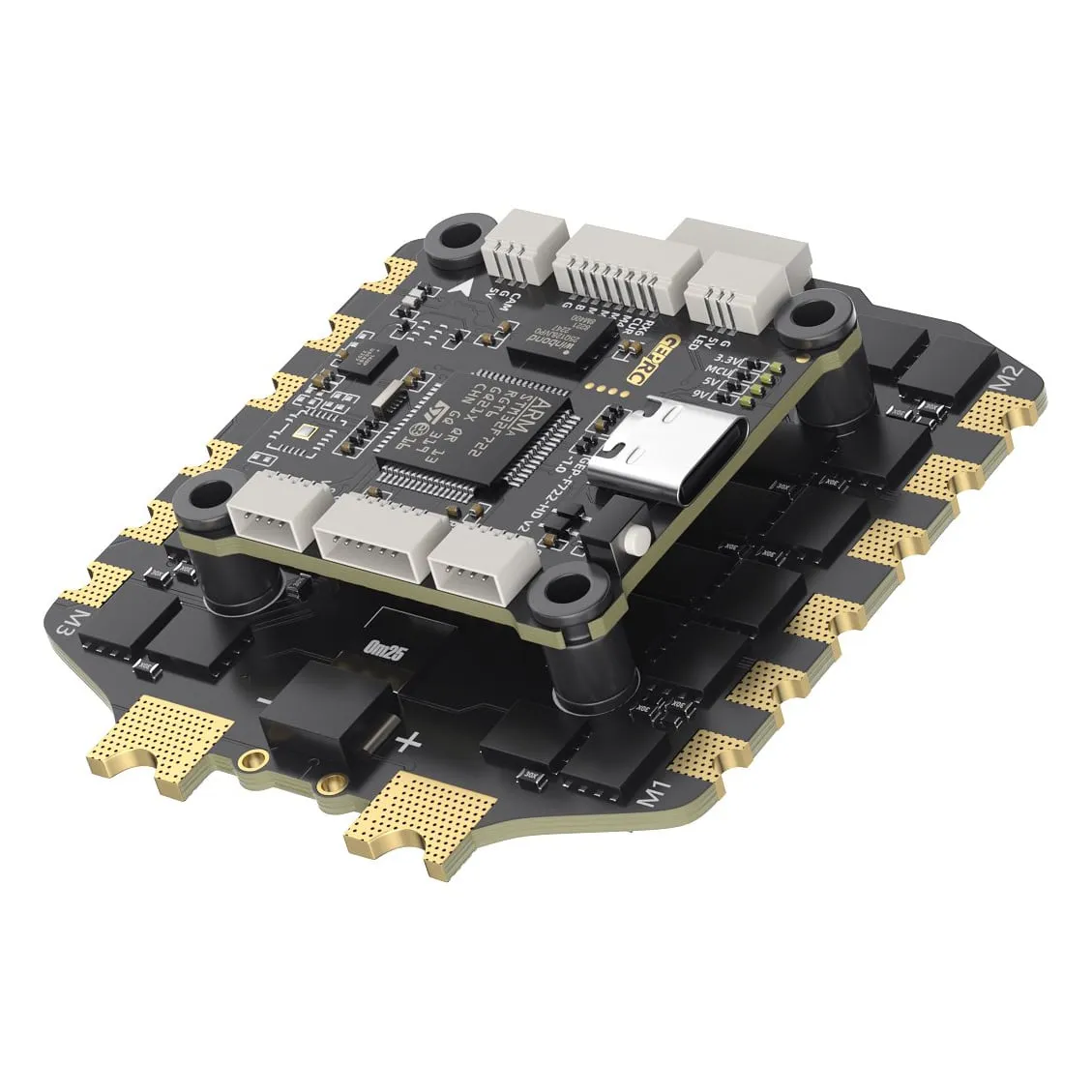

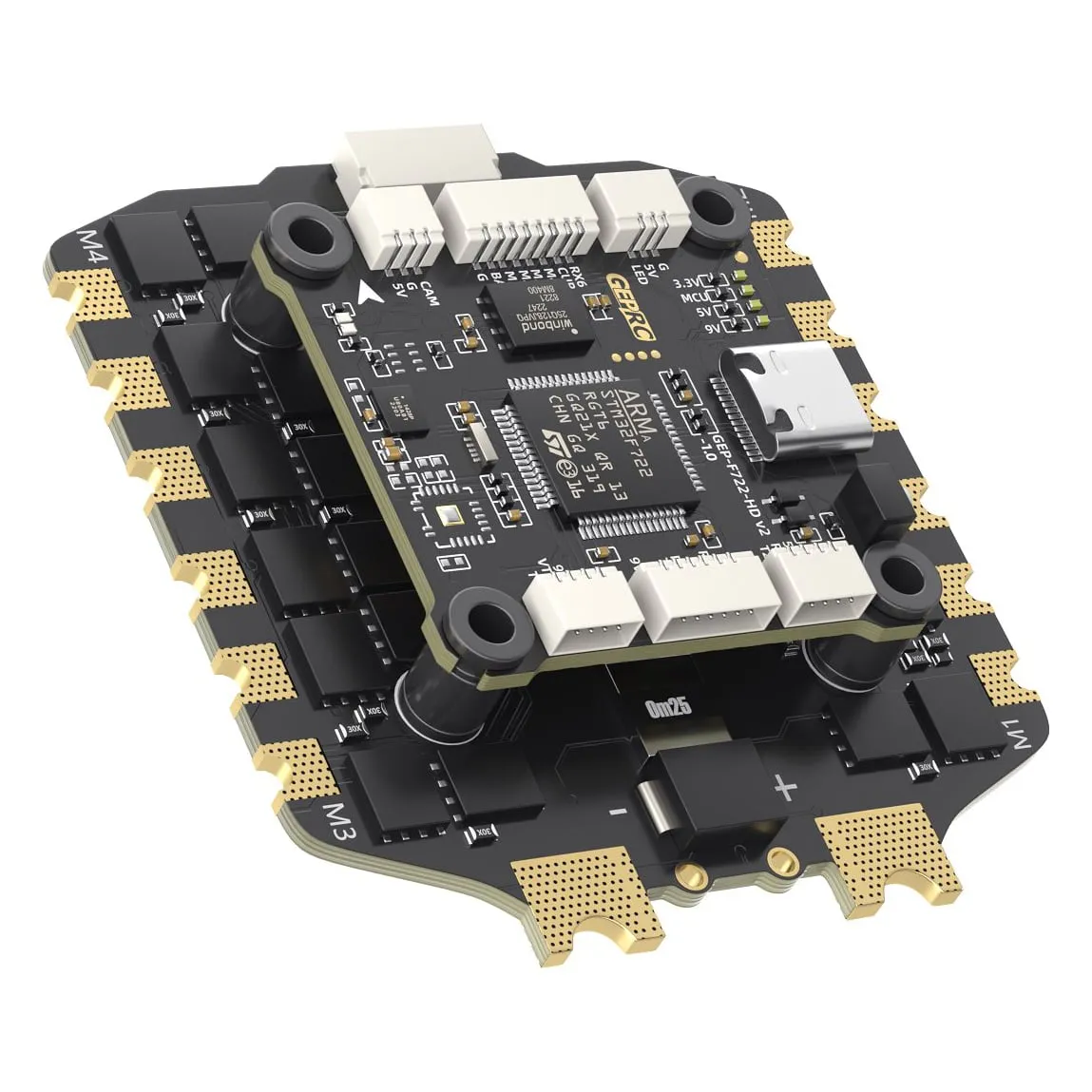

The GEPRC Taker F722 BLS 80A V2 pairs the GEP-F722-HD V2 flight controller with the Taker H80_BLS 80A 4-in-1 ESC on a 30.5x30.5 mm stack, for 3-6S freestyle, long-range and heavier builds that need current headroom. The FC has a plug-in port for the DJI Air Unit, so digital builds go together without a custom harness.

Key features

• STM32F722 processor with an ICM42688-P gyro on SPI
• 16 MB onboard blackbox, barometer, Betaflight OSD (AT7456E) and five UARTs
• Dual independent BECs, 5 V at 3 A and 9 V at 2.5 A, with an integrated LC power filter
• 80 A continuous and 85 A burst (5 s) ESC with dual MOSFETs and a current sensor
• BLHeli_S ESC firmware, DShot150/300/600 support

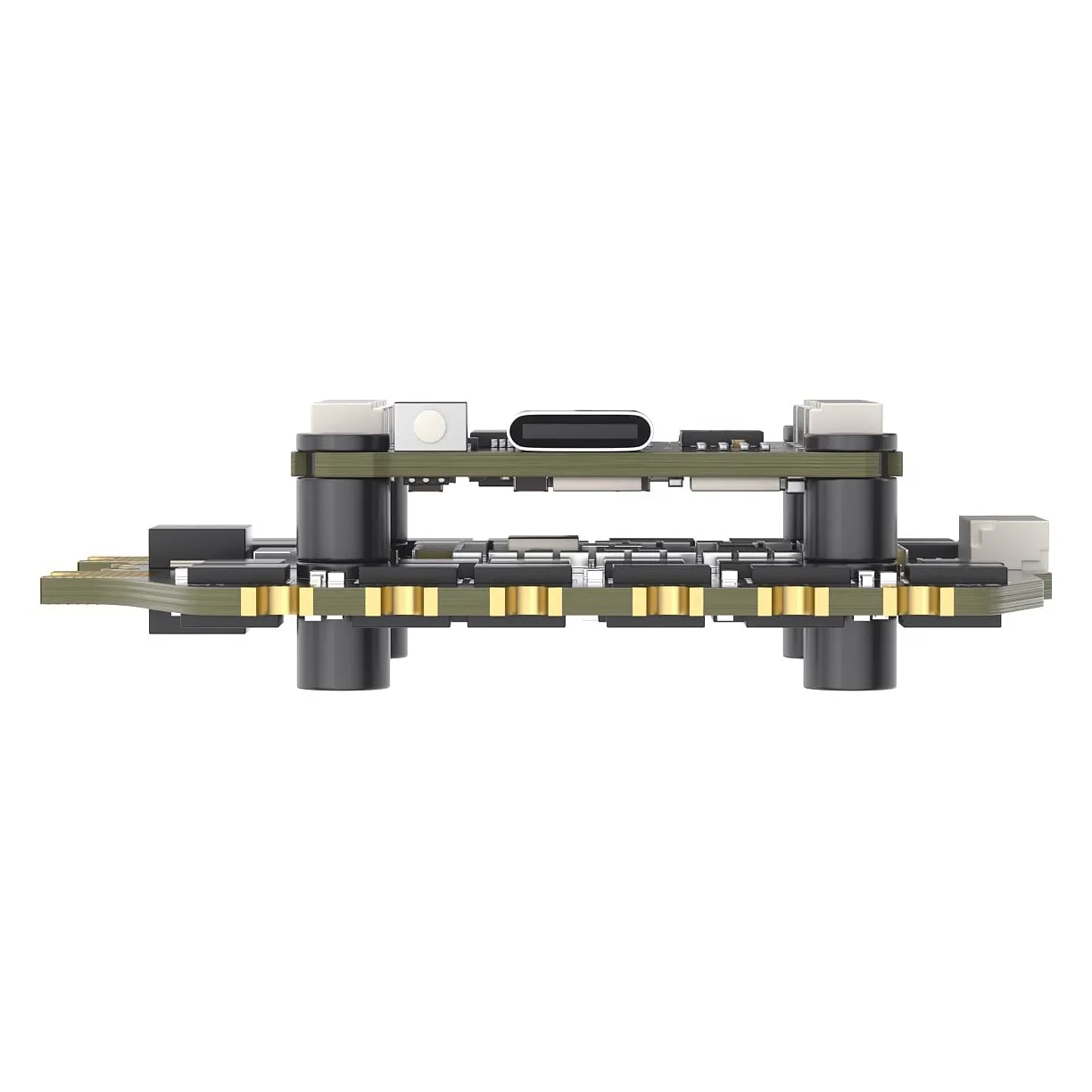

• Silicone dampers soft-mount the boards to keep the gyro stable

Specifications

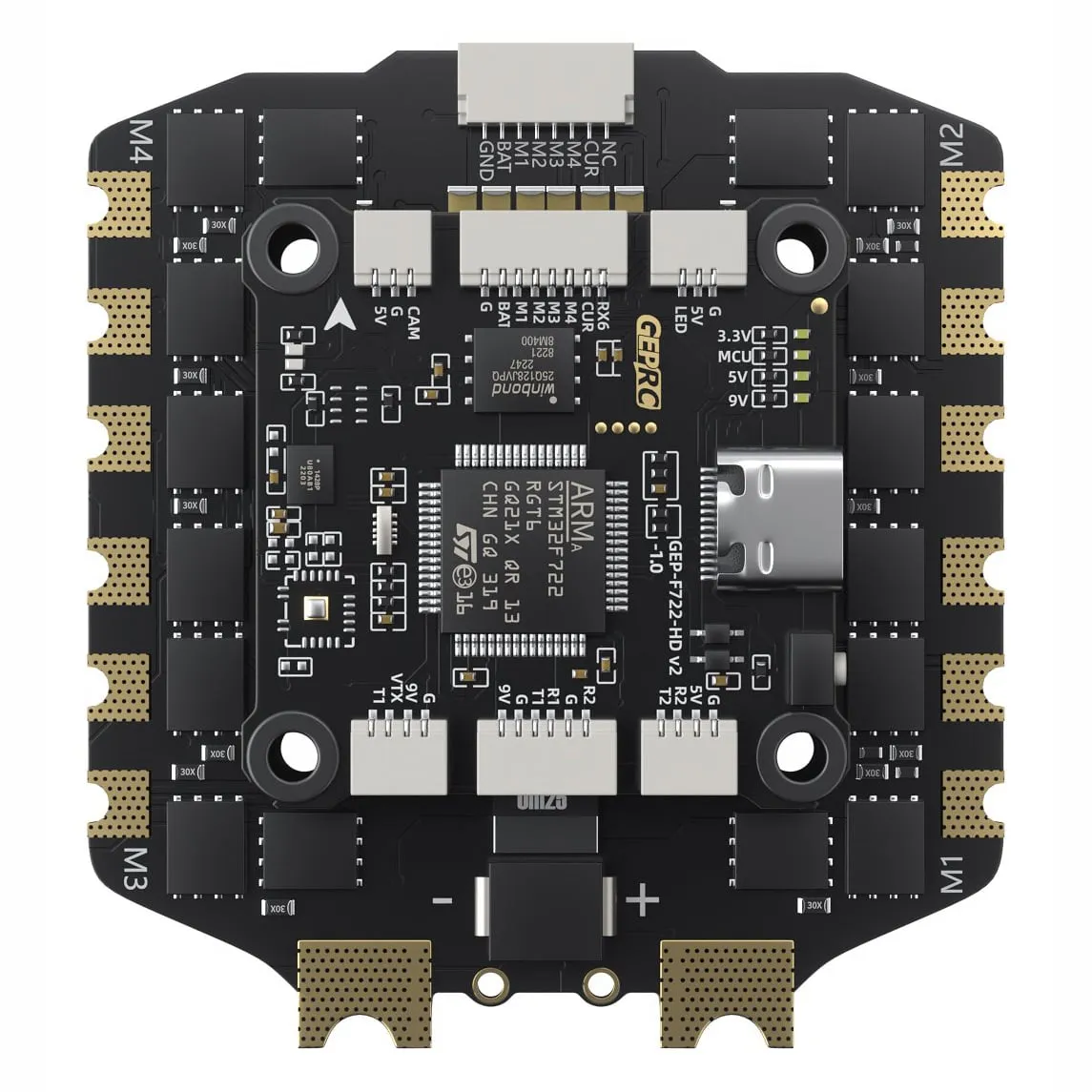

• Flight controller: GEP-F722-HD V2
• MCU: STM32F722
• Gyro: ICM42688-P (SPI)
• Blackbox: 16 MB
• OSD: Betaflight OSD, AT7456E chip
• UARTs: 5
• BEC: 5 V @ 3 A and 9 V @ 2.5 A
• USB: Type-C
• FC firmware target: GEPRCF722
• FC size: 36.85 × 36.85 mm, 30.5x30.5 mm holes
• FC weight: 8.1 g

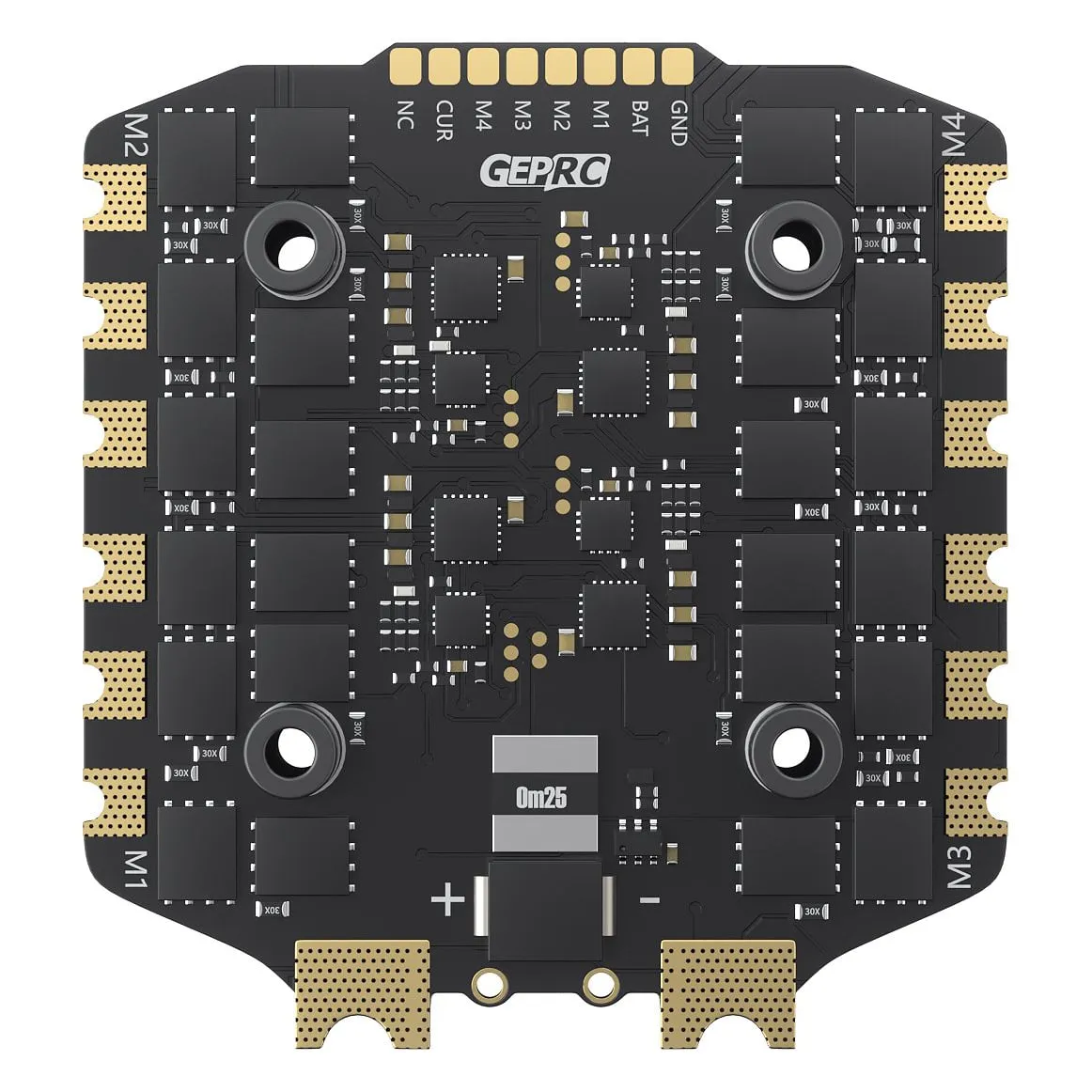

• ESC: Taker H80_BLS 80A 4-in-1
• ESC current: 80 A continuous, 85 A burst (5 s)
• ESC protocol: DShot150/300/600
• ESC firmware target: B_X_30 (BLHeli_S)
• ESC weight: 28.1 g
• Input voltage: 3-6S LiPo

The 4 mm mounting holes step down to M3 with the silicone damper rings, so the stack fits standard 30.5x30.5 mm frames. Use the 9 V BEC for a digital air unit or HD camera and keep the 5 V rail for the receiver, GPS and LEDs.
