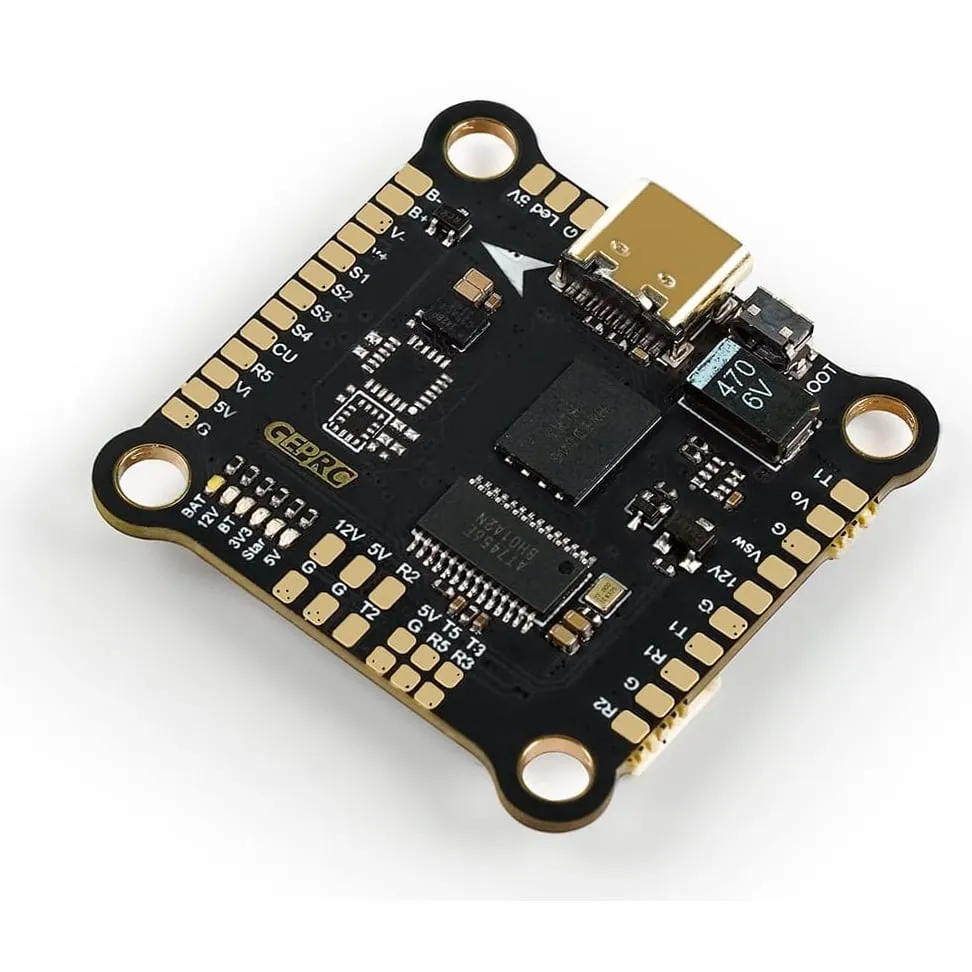

GEPRC SPAN F722-BT-HD V2 Stack

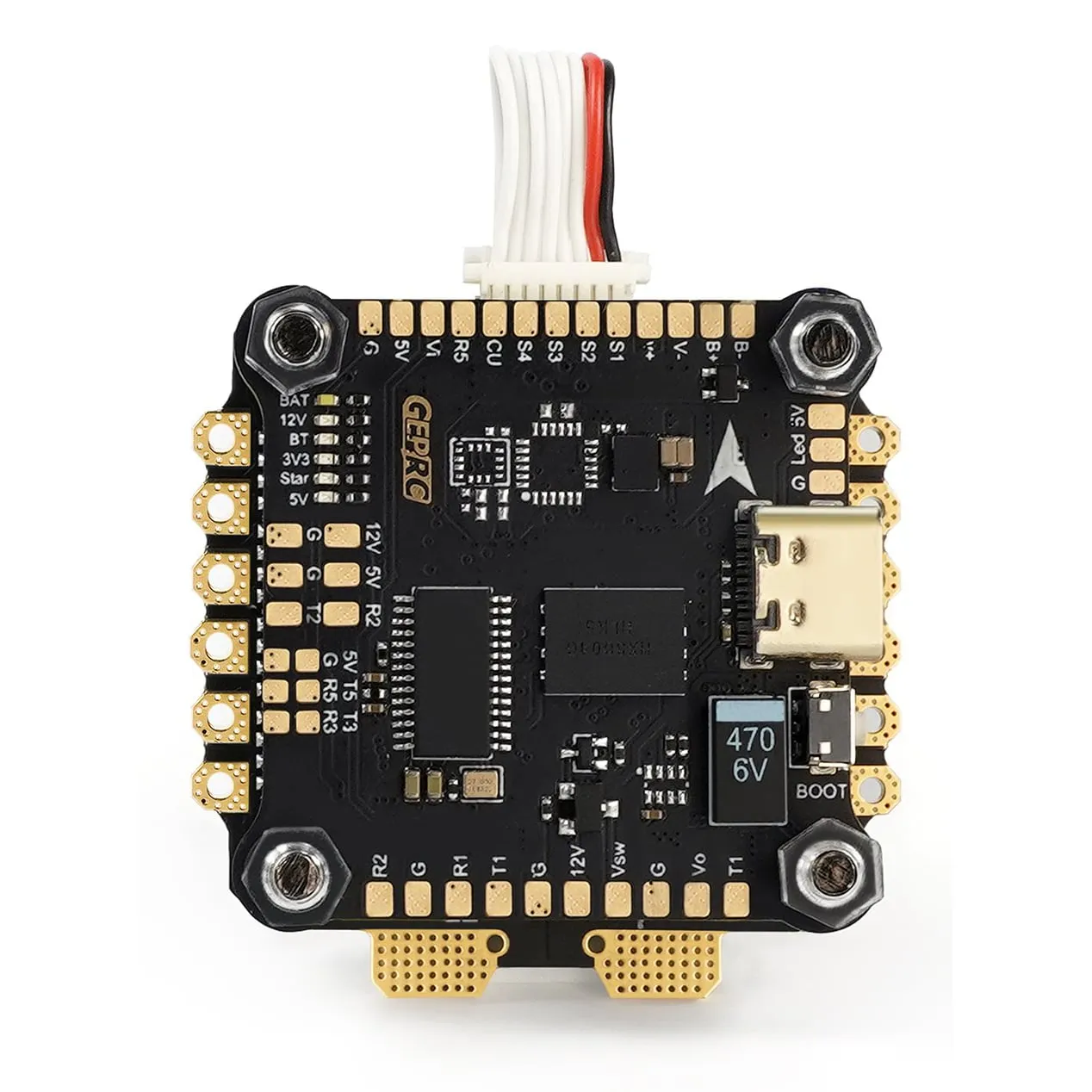

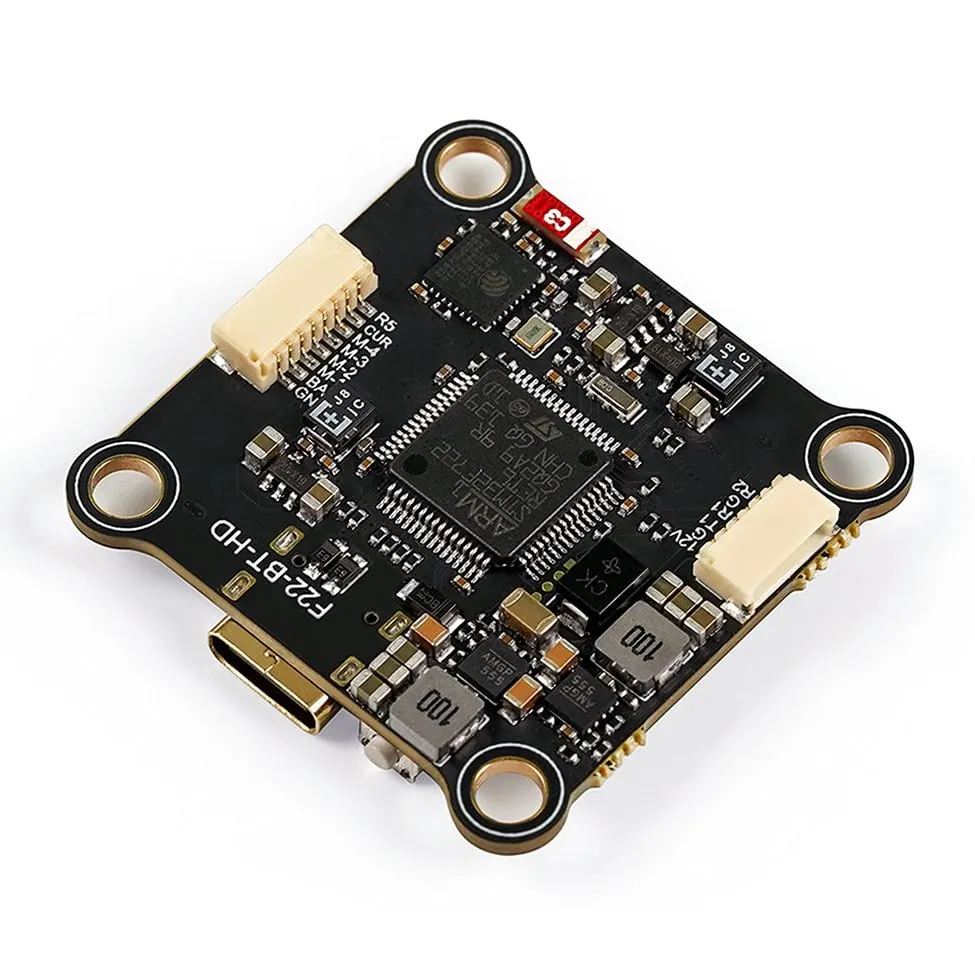

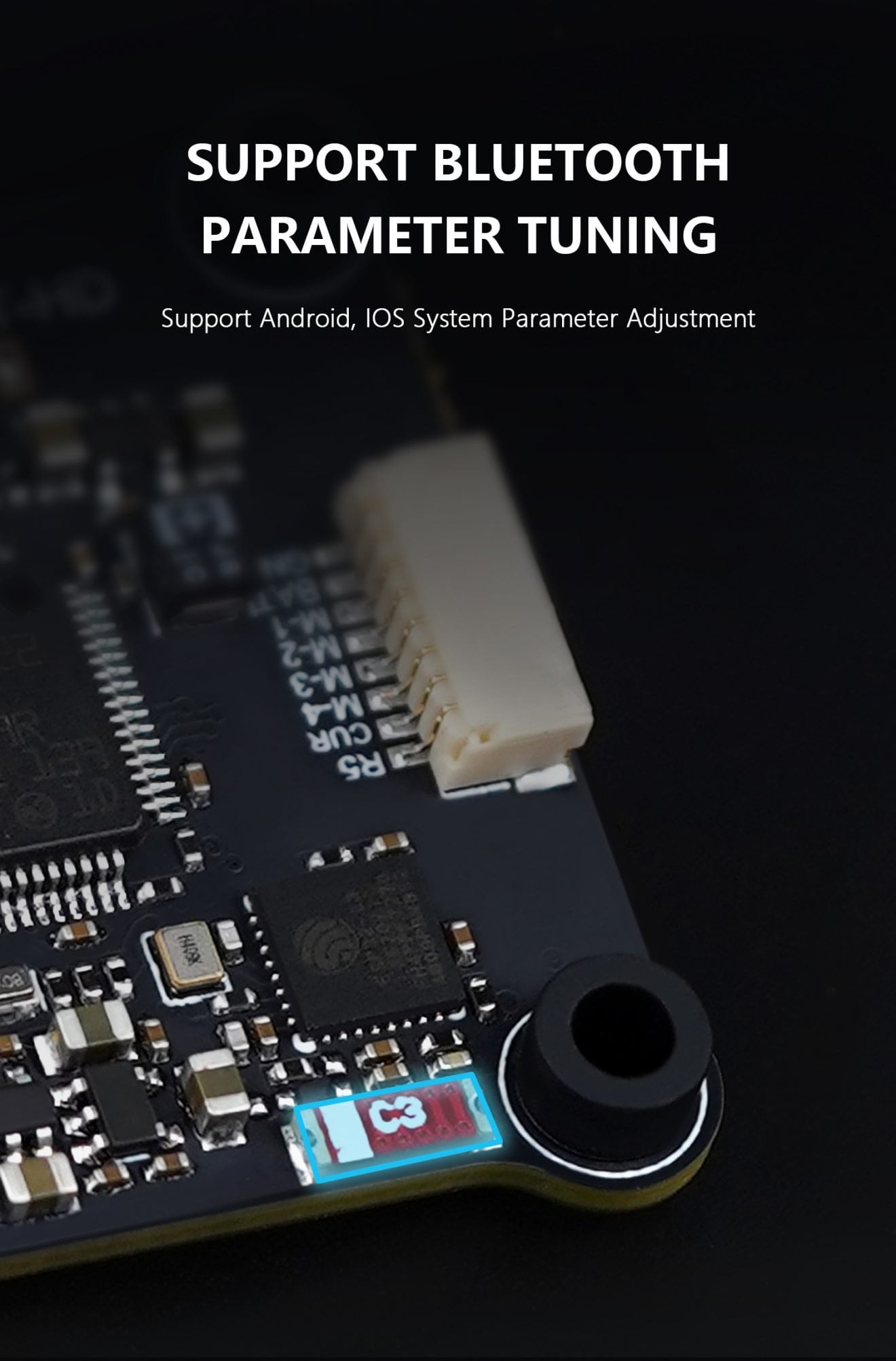

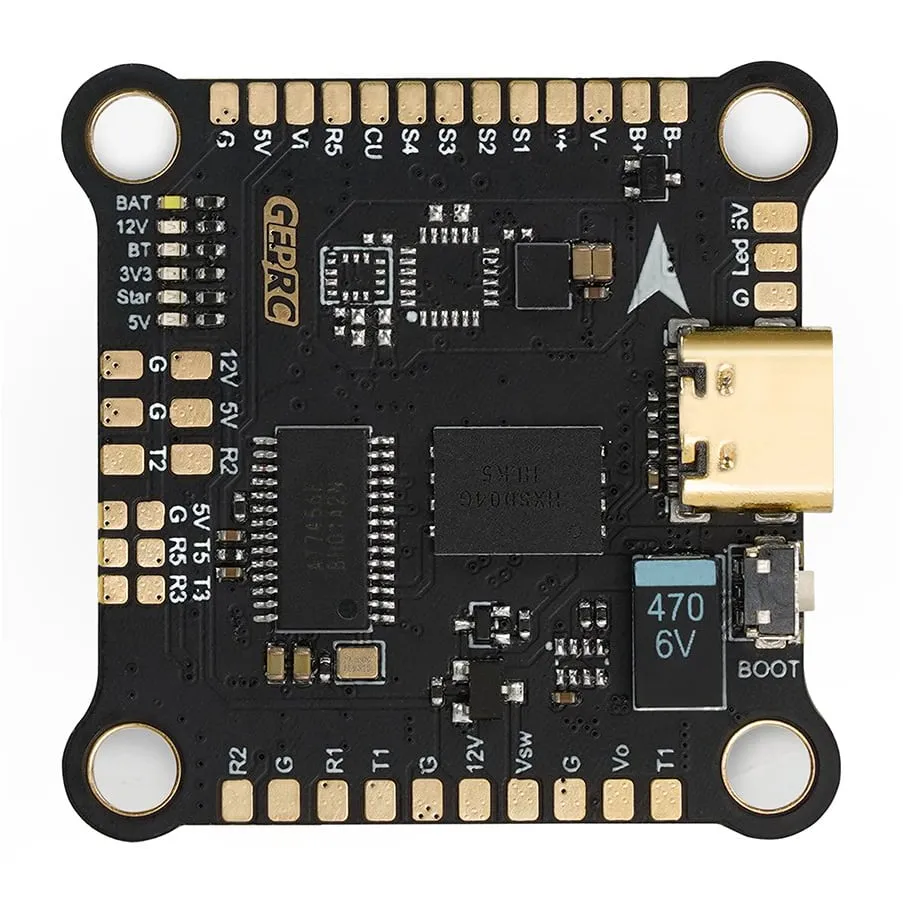

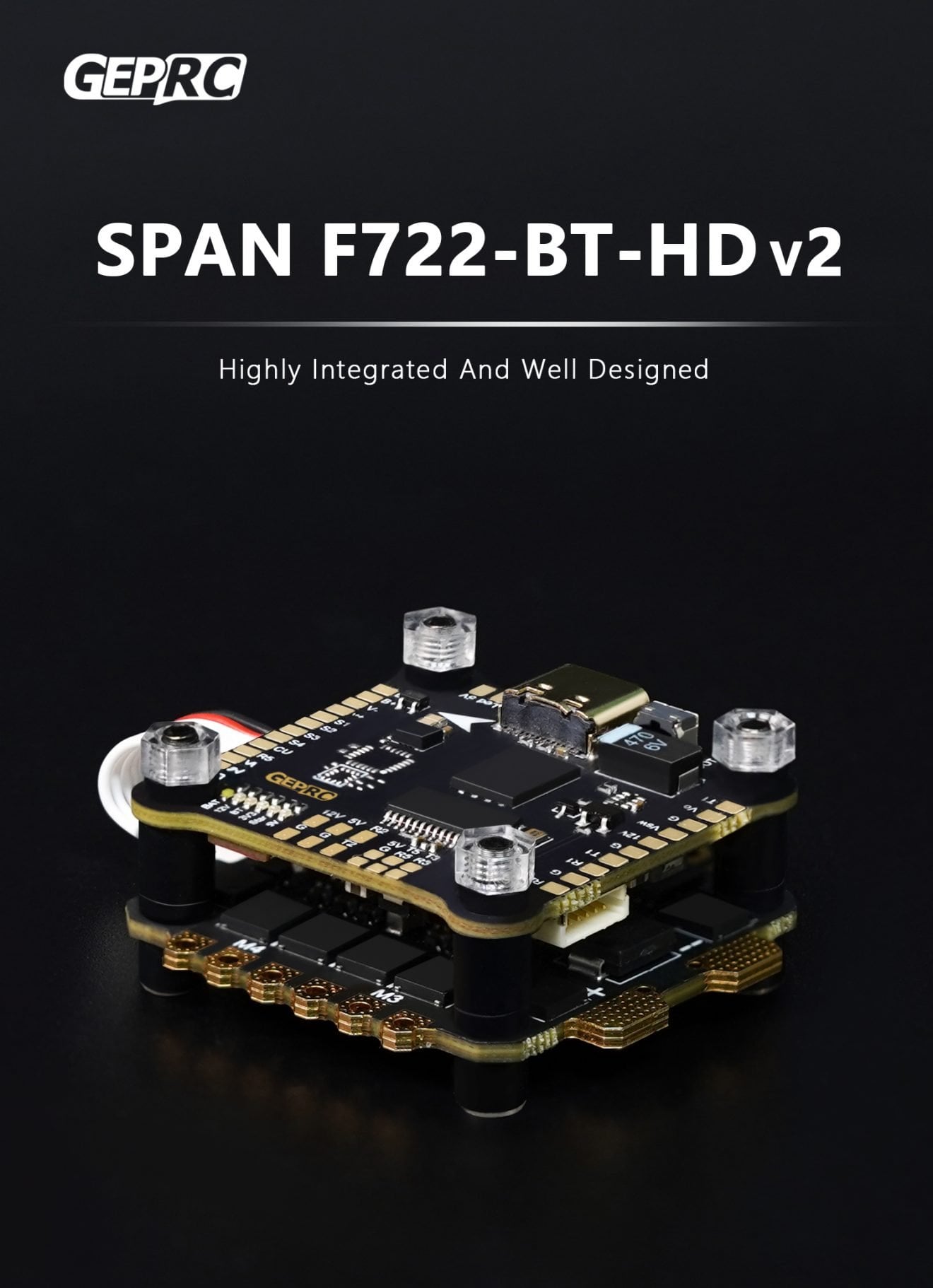

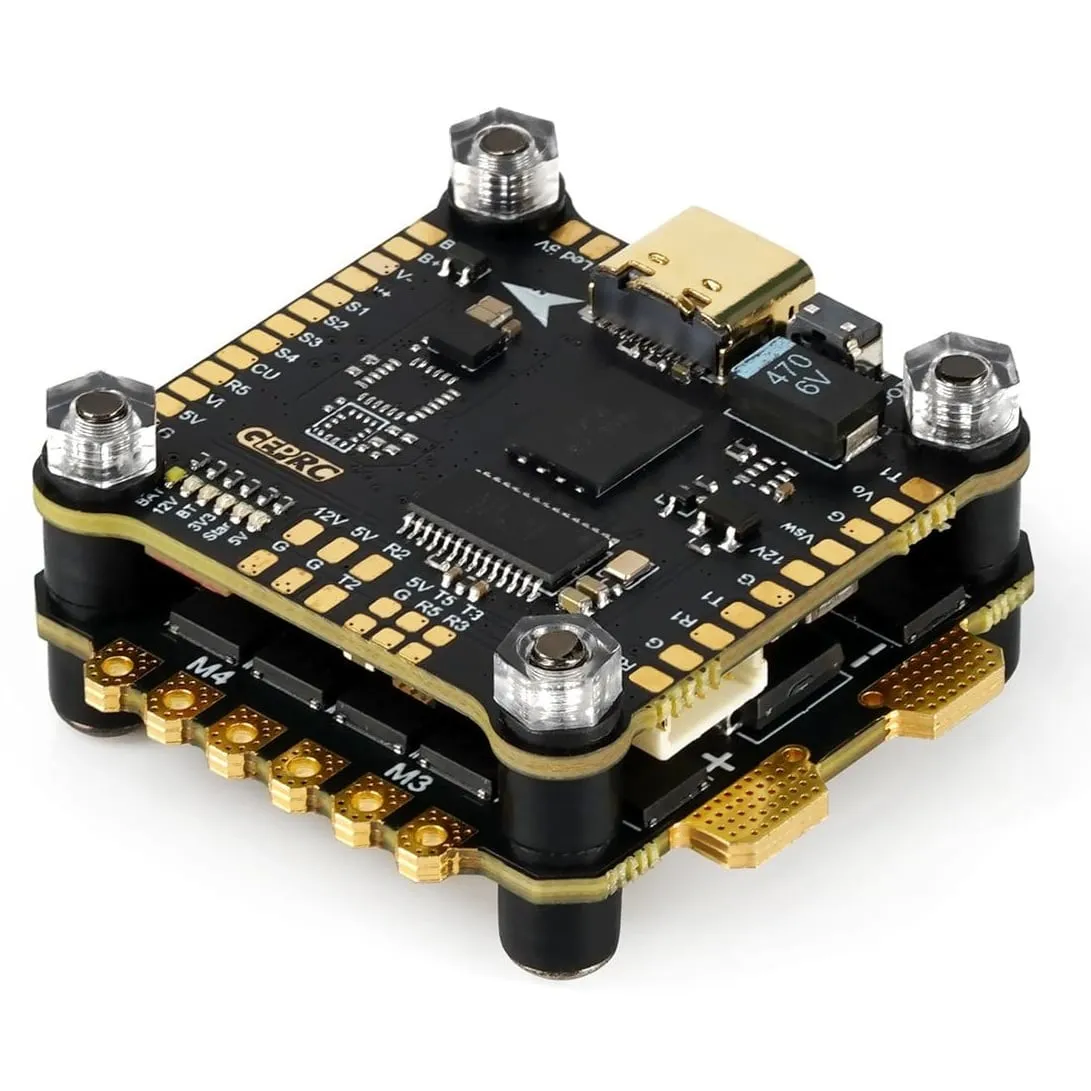

The GEPRC SPAN F722-BT-HD V2 is an F722 flight-controller and 4-in-1 ESC stack designed to plug straight into a DJI Air Unit, with Bluetooth parameter tuning built in for quick field adjustments. The flight controller and ESC come as a matched two-board stack, which simplifies wiring on a full-size build.

Key features

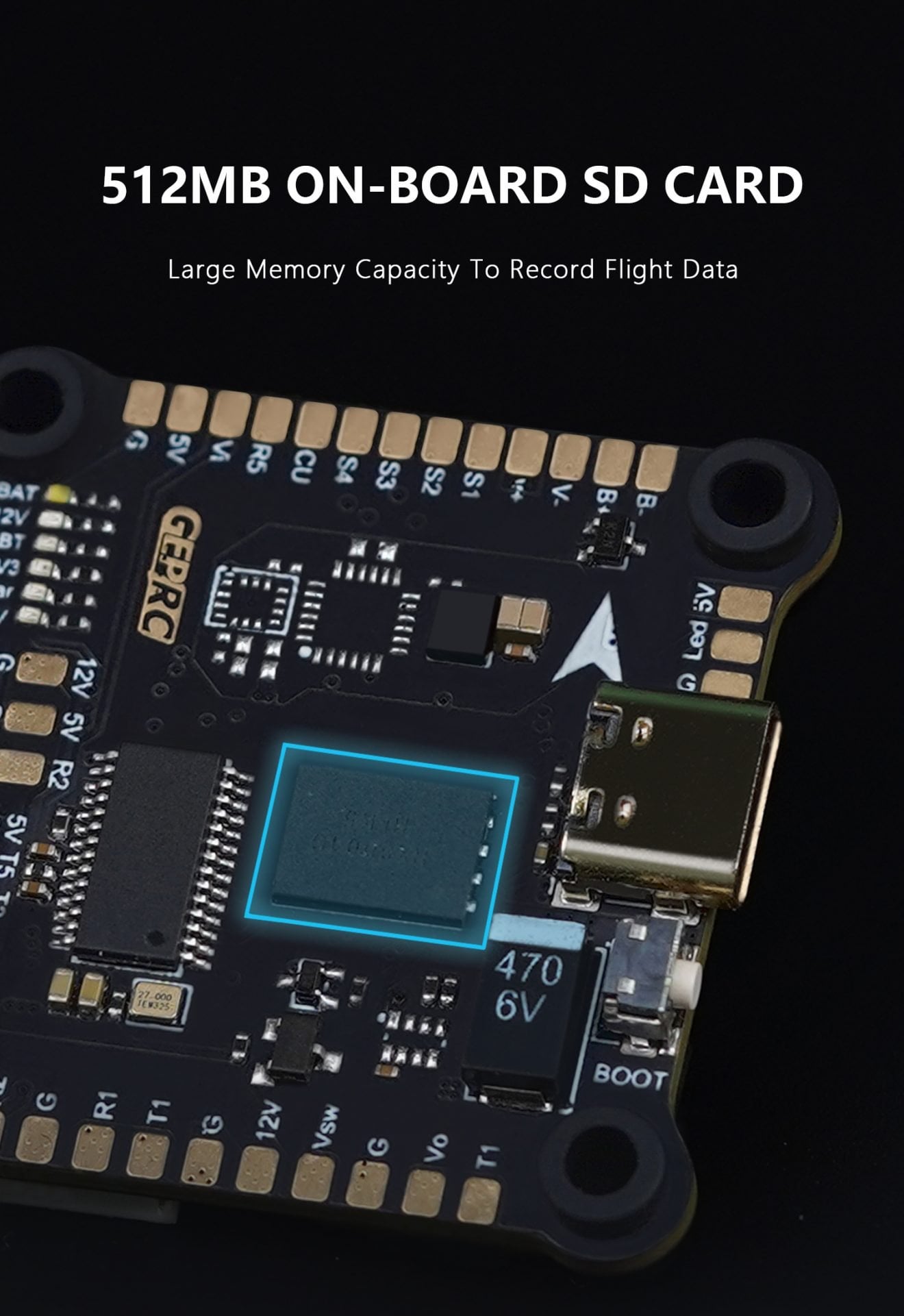

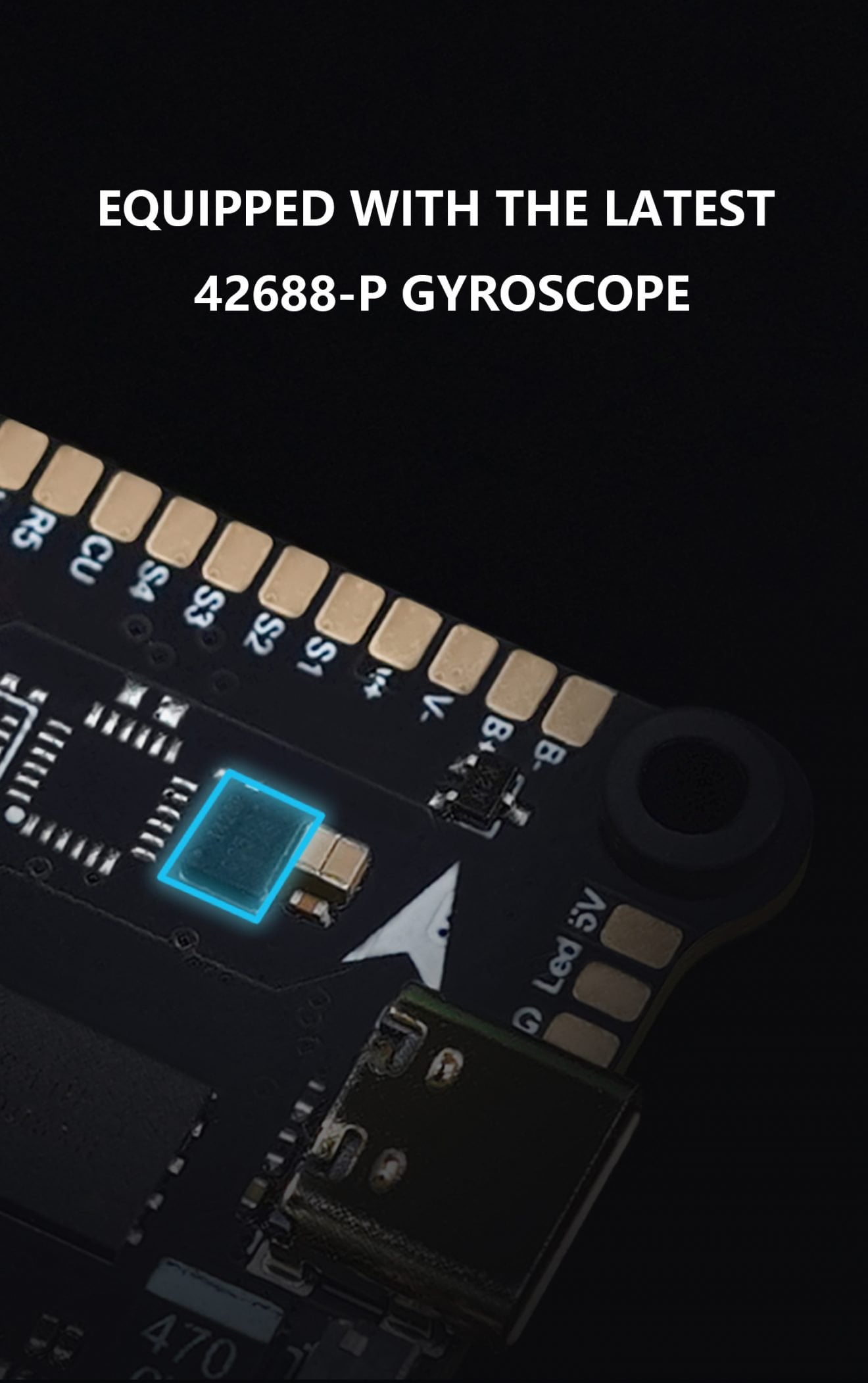

• F722 processor with an ICM42688-P gyro and 512MB onboard blackbox for detailed flight logging.

• Direct plug-in connector for the DJI Air Unit avoids soldering, and the stack accepts a wide range of receivers including Sbus, CRSF, DSMX and iBus.

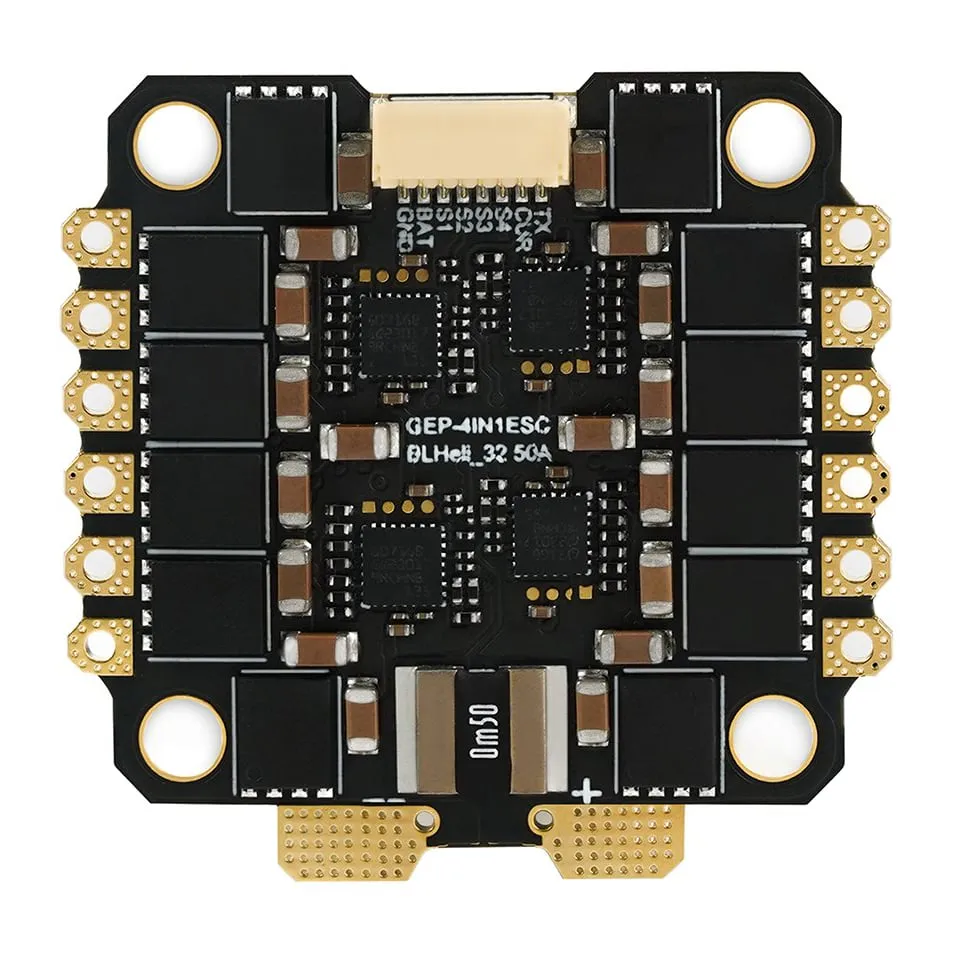

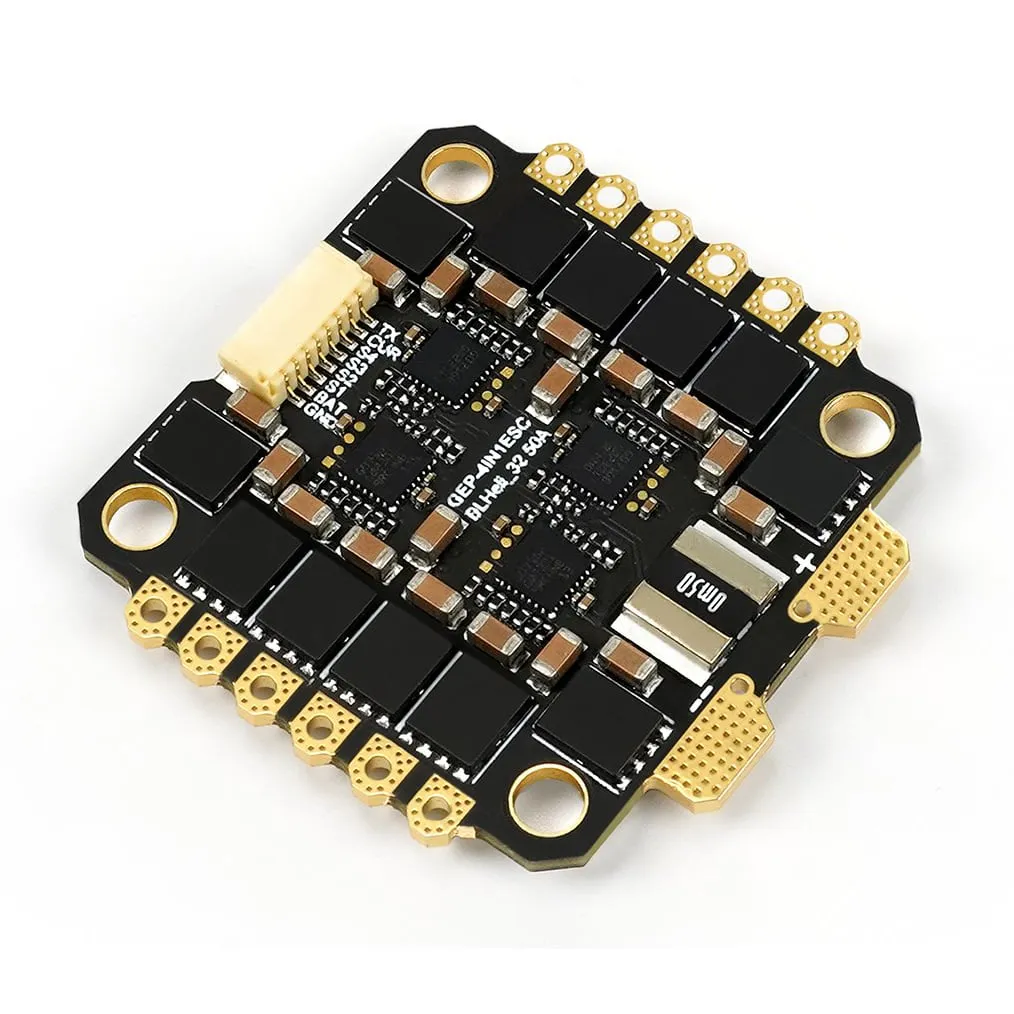

• BLHeli_32 4-in-1 ESC delivers 50A continuous and 55A peak (5 seconds) current on 3-6S power.

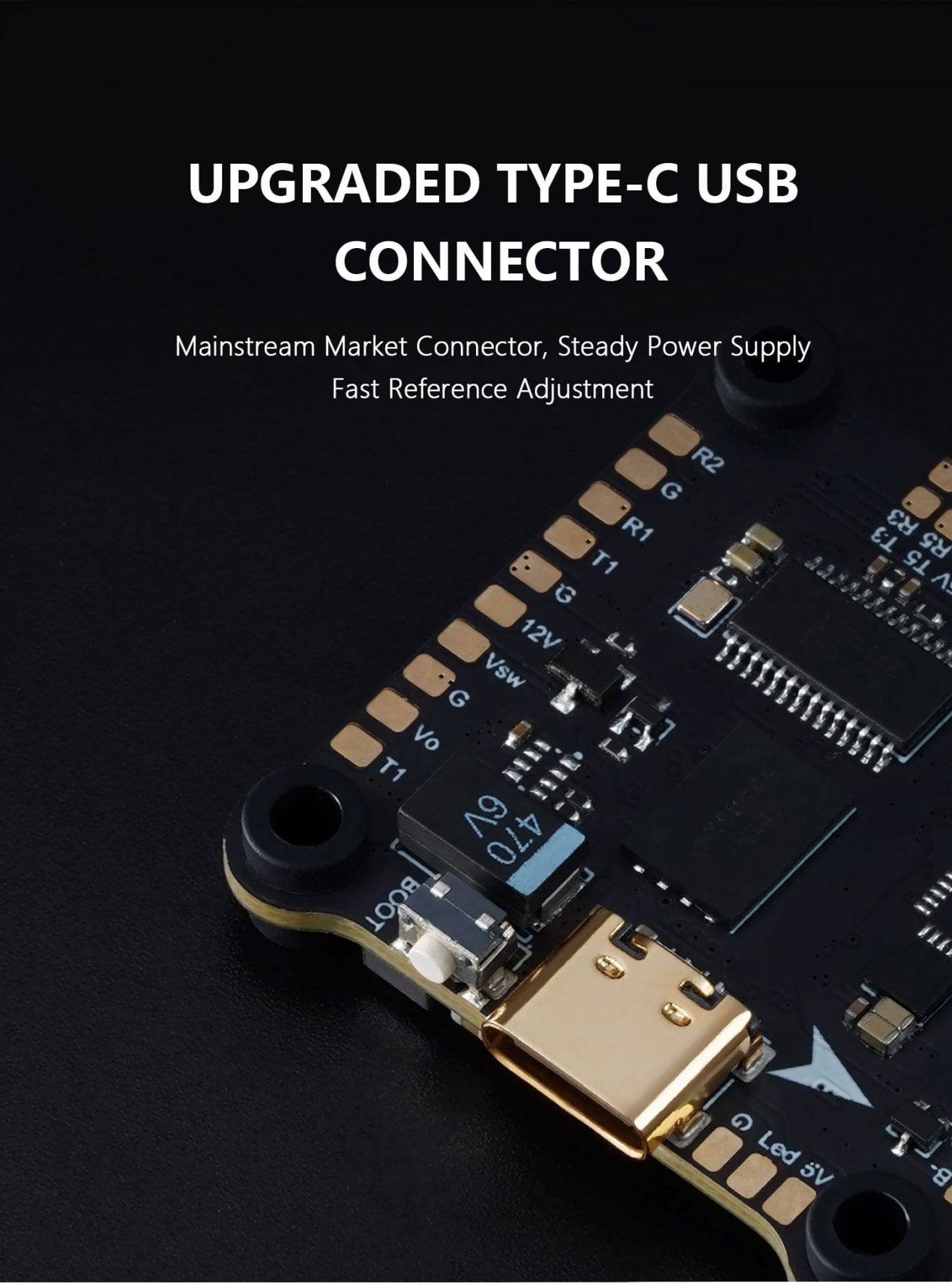

• Type-C USB connector and integrated LC filtering improve durability and reduce electrical noise.

• 30.5 x 30.5mm mounting fits standard full-size frames and stack hardware.

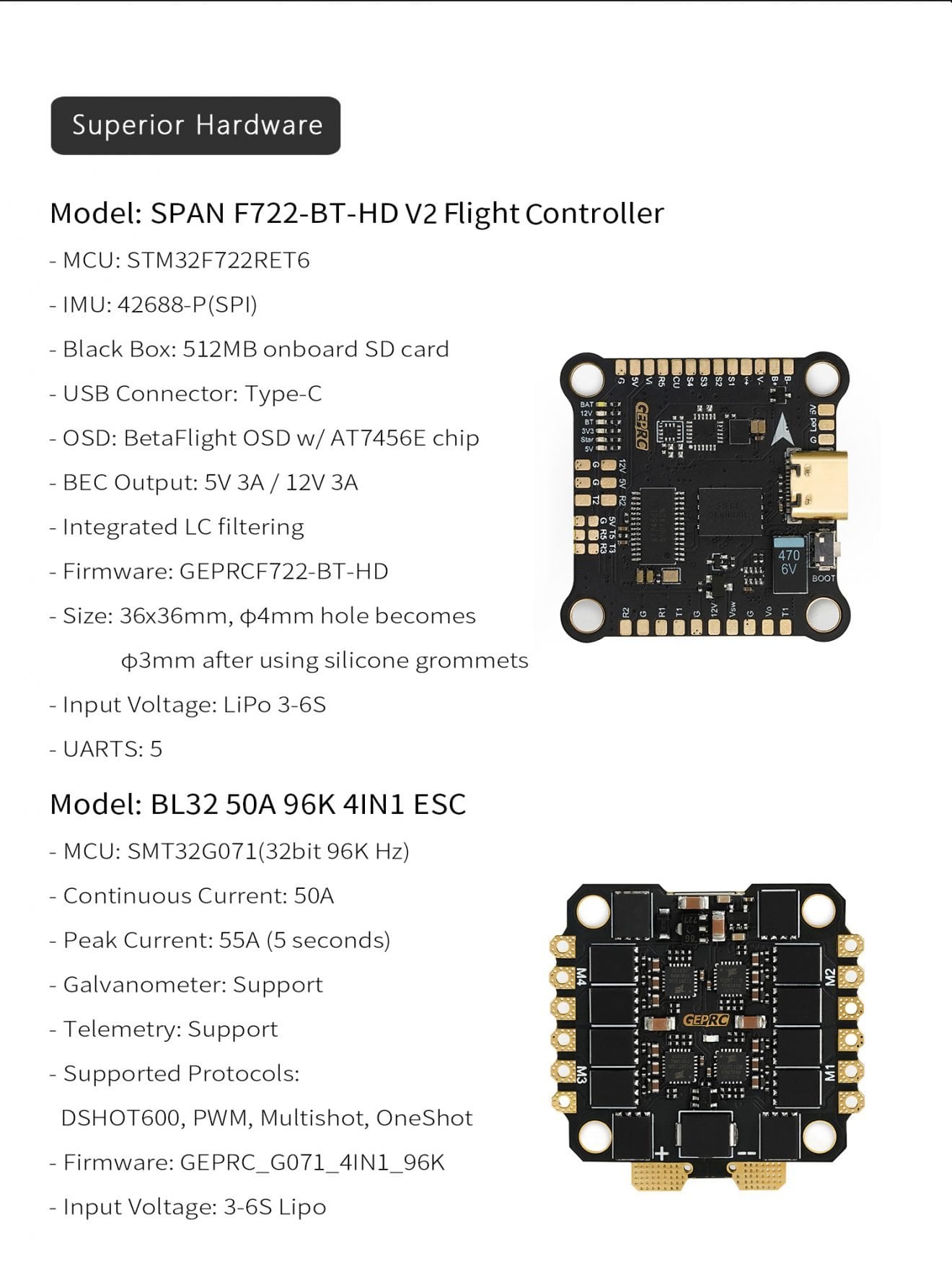

Specifications

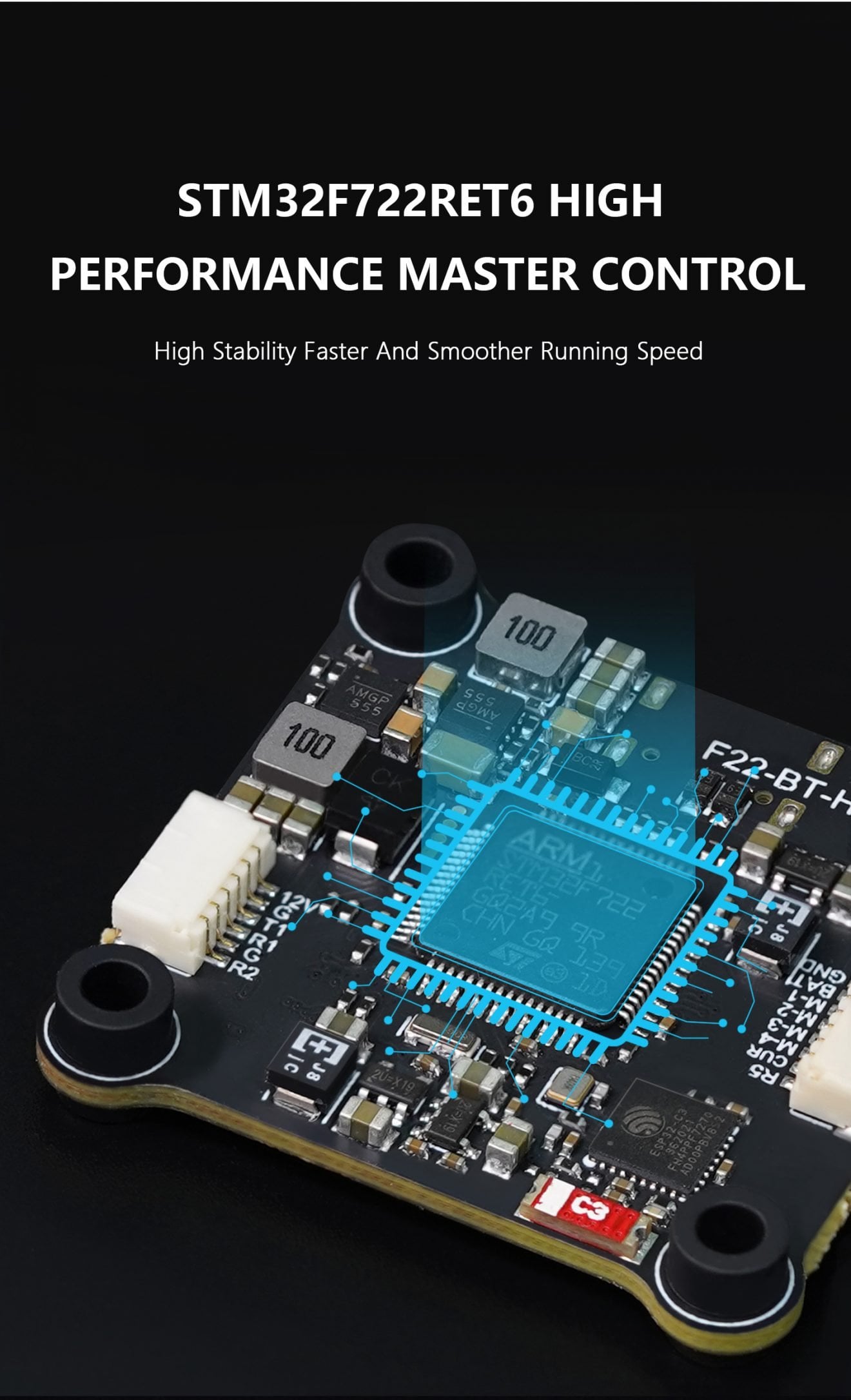

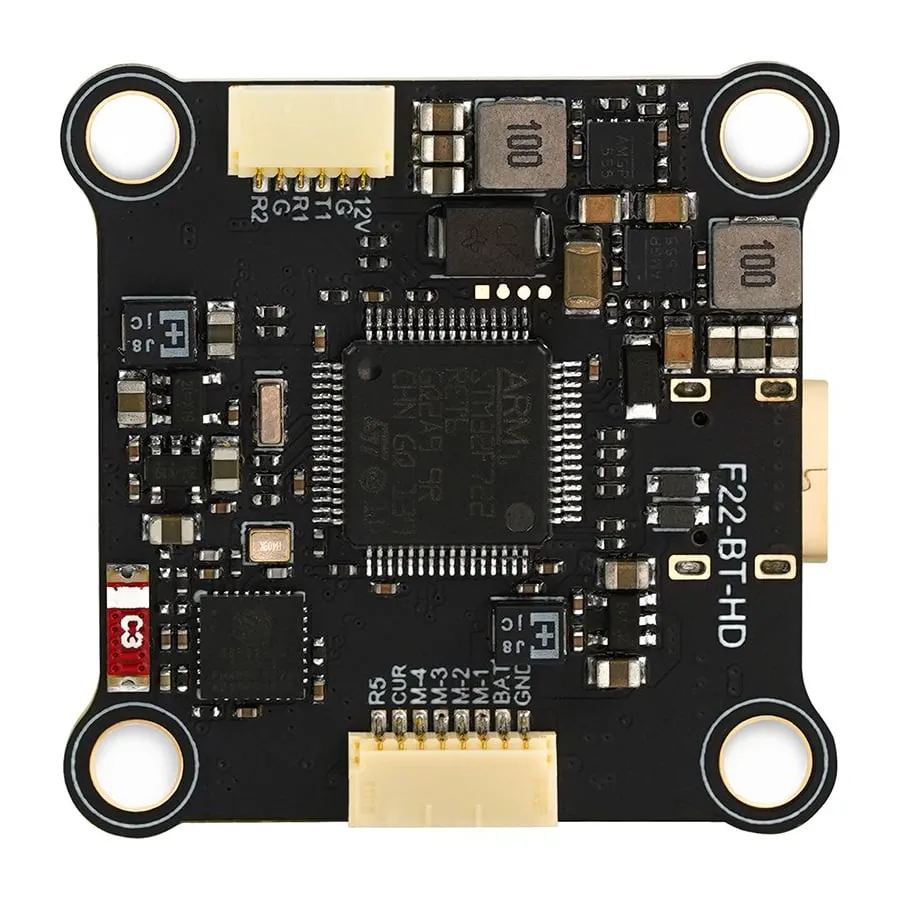

• FC processor: F722

• Gyro: ICM42688-P

• OSD: AT7456E

• UARTs: 5

• BEC: 5V 3A, 12V 3A

• Input voltage: 3-6S

• ESC current: 50A continuous, 55A peak

• ESC MCU: STM32G071, 96K, with current sensor and telemetry

• Mounting: 30.5 x 30.5mm

• FC size: 36 x 36 mm, 4 mm holes (3 mm with the silicone grommets)

• In the box: flight controller, ESC, capacitor, DJI Air Unit cable, FC-ESC cable, XT60 power cable, M3 x 30 and M3 x 24 screws, nylon nuts, silicone grommets

Suits builders assembling a custom HD or analogue FPV quad who want Bluetooth tuning and onboard logging without adding a separate logging module.
