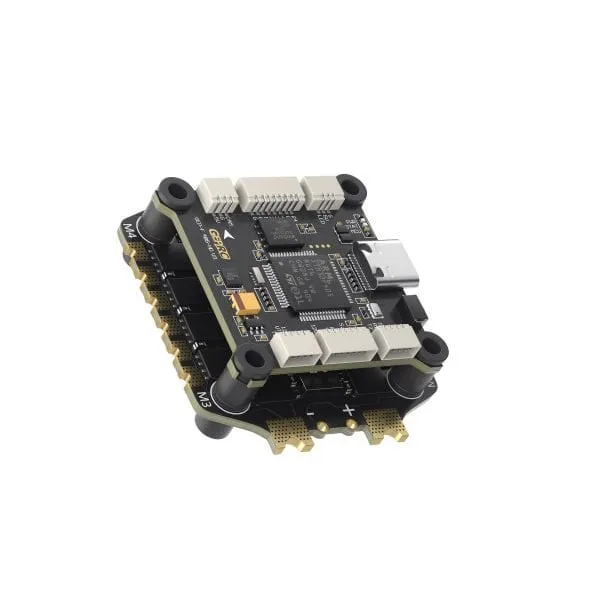

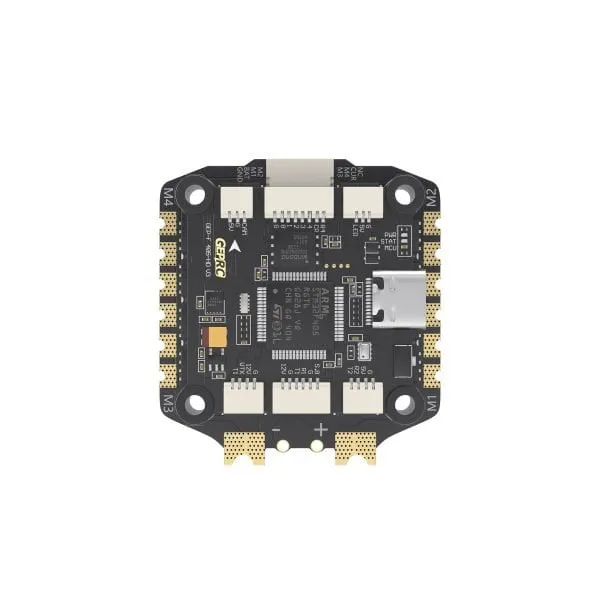

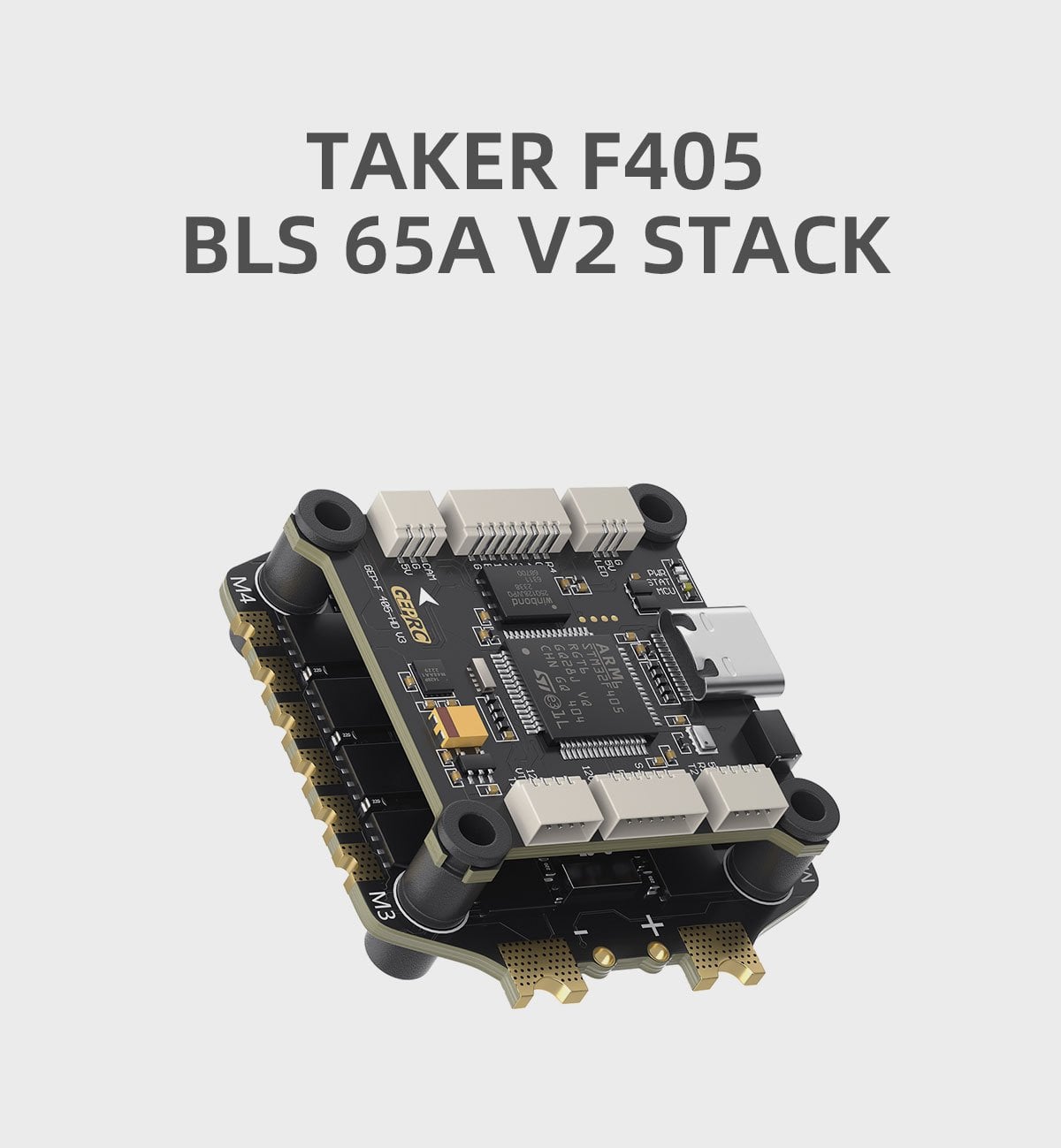

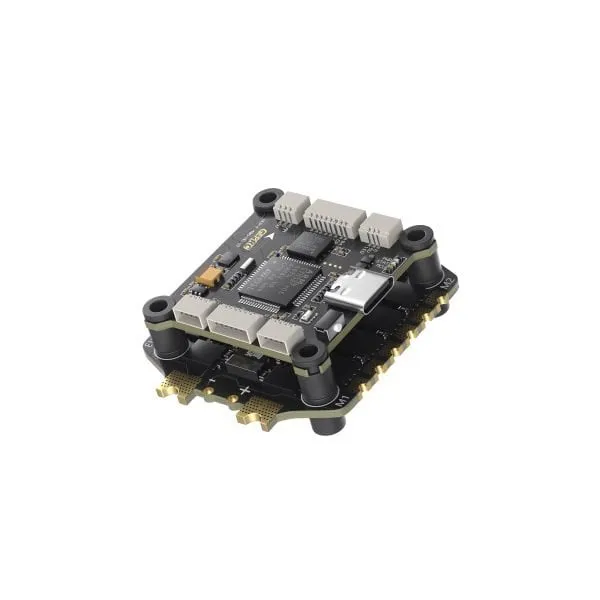

GEPRC TAKER F405 BLS 65A V2 Stack

The GEPRC TAKER F405 BLS 65A V2 Stack pairs a fast F405 flight controller with a high-headroom 65A 4-in-1 ESC. Engineered for demanding 5-inch freestyle rigs, racing setups, and heavy 7-inch builds, this 30.5x30.5mm stack delivers the burst power required for aggressive 6S flying. The V2 flight controller features an upgraded ICM42688-P gyro for clean noise profiling, alongside dual BECs and plug-and-play ports tailored for modern digital FPV ecosystems.

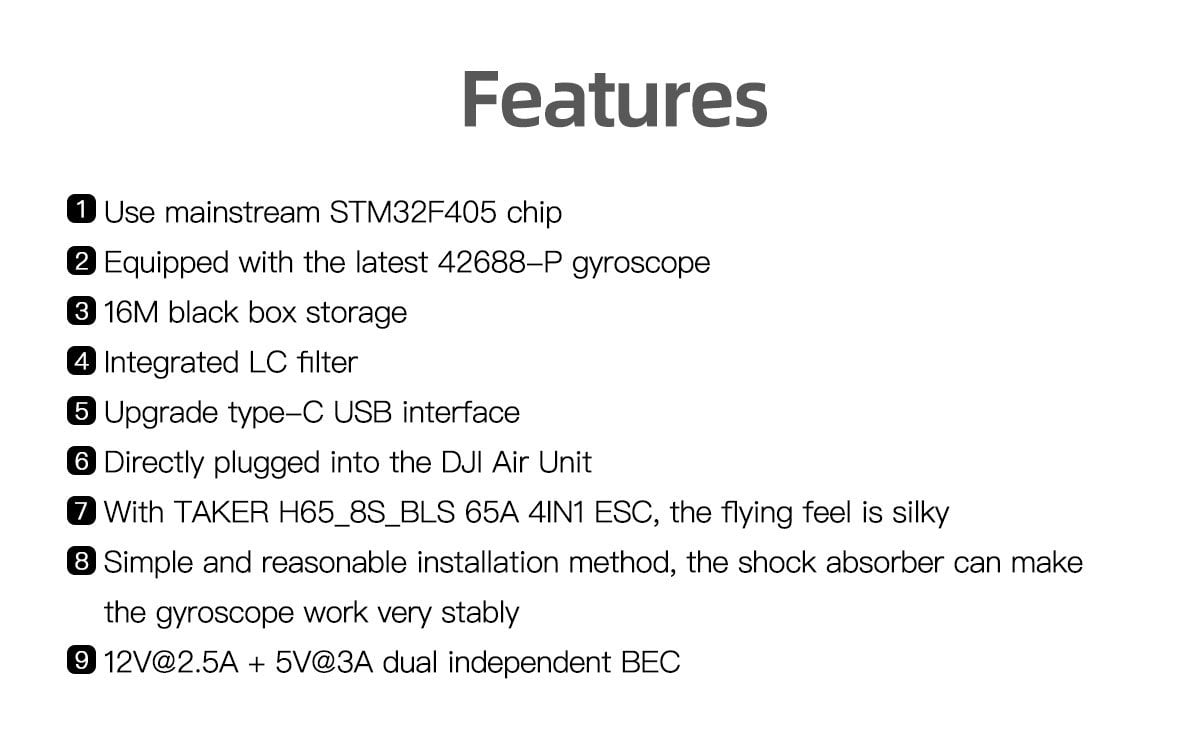

Key features

• 65A continuous output handles heavy payload quads and high-KV 6S motor setups without breaking a sweat.

• ICM42688-P IMU provides stable, low-noise flight data for locked-in Betaflight tunes.

• Dedicated 9V/2.5A and 5V/3A BECs safely power DJI O3, Walksnail, or HDZero VTX units directly from the board.

• Plug-and-play digital HD connector minimises soldering and simplifies bench work.

• 16MB onboard blackbox flash memory allows for precise post-flight tuning and vibration analysis.

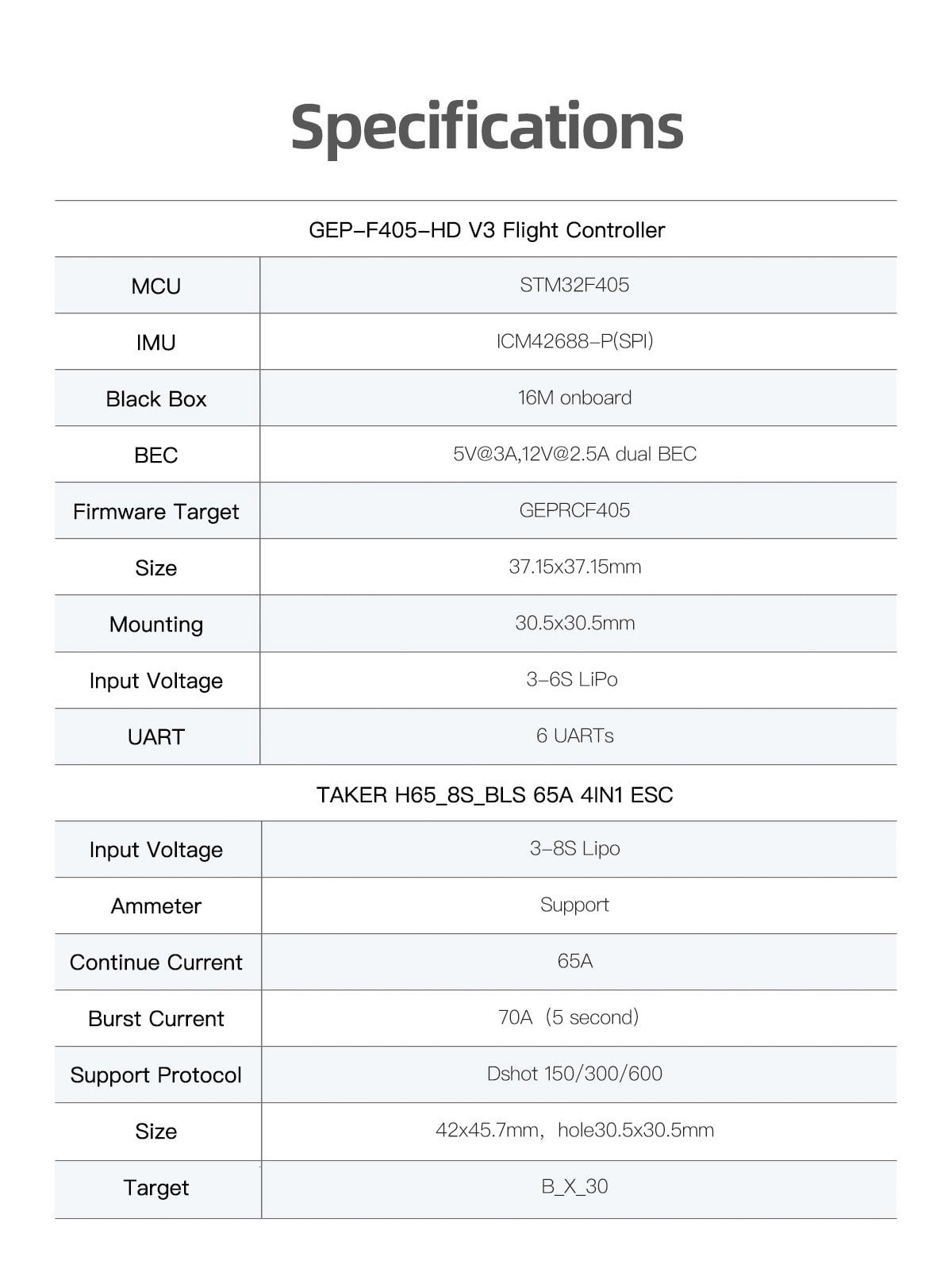

Specifications

• Flight Controller MCU: STM32F405

• Gyro / IMU: ICM42688-P

• ESC Continuous Current: 65A

• Input Voltage: 3-6S LiPo

• BEC Output: 5V @ 3A, 9V @ 2.5A

• Firmware Targets: GEPRCF405 (Betaflight) / BLHeli_S (ESC)

• Mounting Size: 30.5x30.5mm

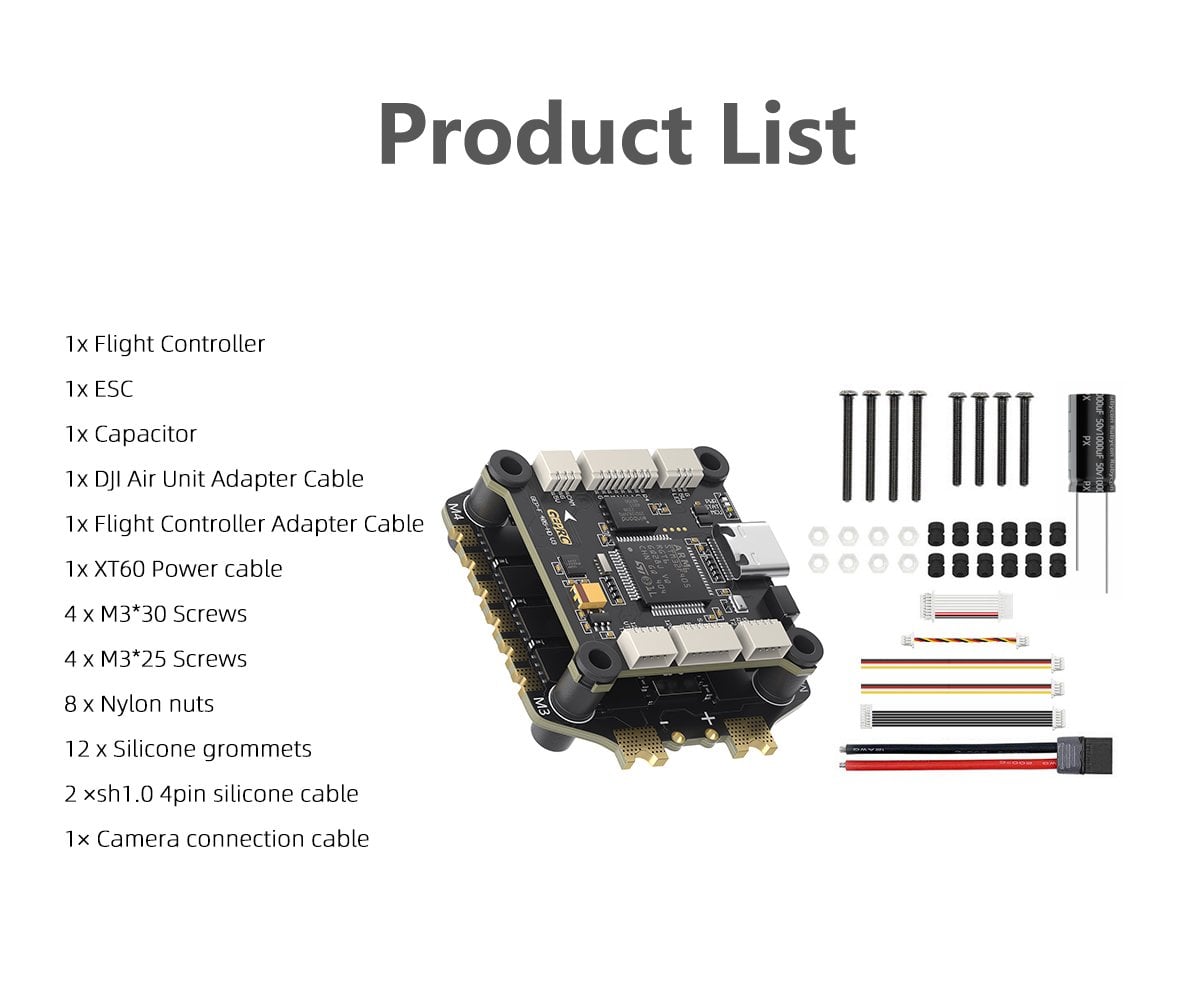

This stack includes shock-absorbing silicone grommets to step the mounting holes down to M3, protecting the sensitive gyro from frame resonance.
