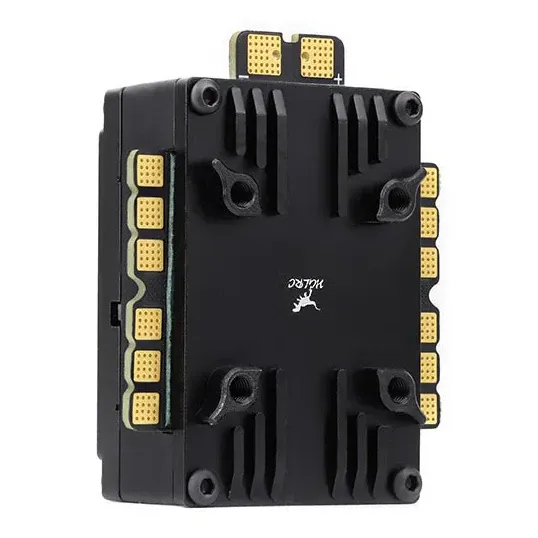

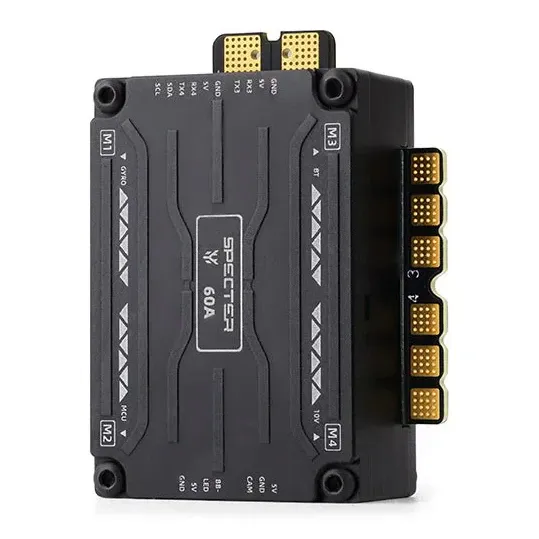

HGLRC Specter F760 BOX Stack — F722 FC, 60A BLHeli_32 ESC

The HGLRC Specter F760 BOX pairs an STM32F722 flight controller with a 60A BLHeli_32 4-in-1 ESC in one plug-in stack for 2-6S FPV freestyle and racing builds. The flight controller sits inside a CNC-machined heat-sink shell that keeps debris off the board, and every module connects by plug rather than solder pads, which makes installation and later swaps quicker.

Key features

• F722 flight controller with MPU6000 gyro, BMP280 barometer and 16MB blackbox
• 60A continuous (65A for 10 seconds) 4-in-1 ESC on an STM32G071 running BLHeli_32, DShot600/300/150
• Built-in Bluetooth on UART5 for tuning from a phone app
• Dual BEC: 10V 2A for an HD air unit plus 5V, with a 10V power switch controllable from Betaflight
• Built-in capacitor and soft-mounted board for cleaner gyro data
• Plug-in harnesses supplied for DJI, VTX, camera, receiver, LED and GPS

Specifications

• FC MCU: STM32F722
• Gyro: MPU6000
• OSD: AT7456E
• Firmware target: HGLRCF722 MINI V2 (Betaflight)
• ESC firmware: BLHeli_32 (SPECTER60_G_128)
• Input voltage: 2-6S LiPo (7.4-22.8 V)
• Current: 60A continuous, 65A burst (10 s)
• Mounting: 20x20 mm, M3
• Stack size: 44.2 x 30 x 21.15 mm
• Weight: approx. 39 g

Check that your frame takes a 20x20 M3 stack and has room for the 21 mm stack height; the 10V BEC and supplied DJI harness suit an HD digital air unit.
