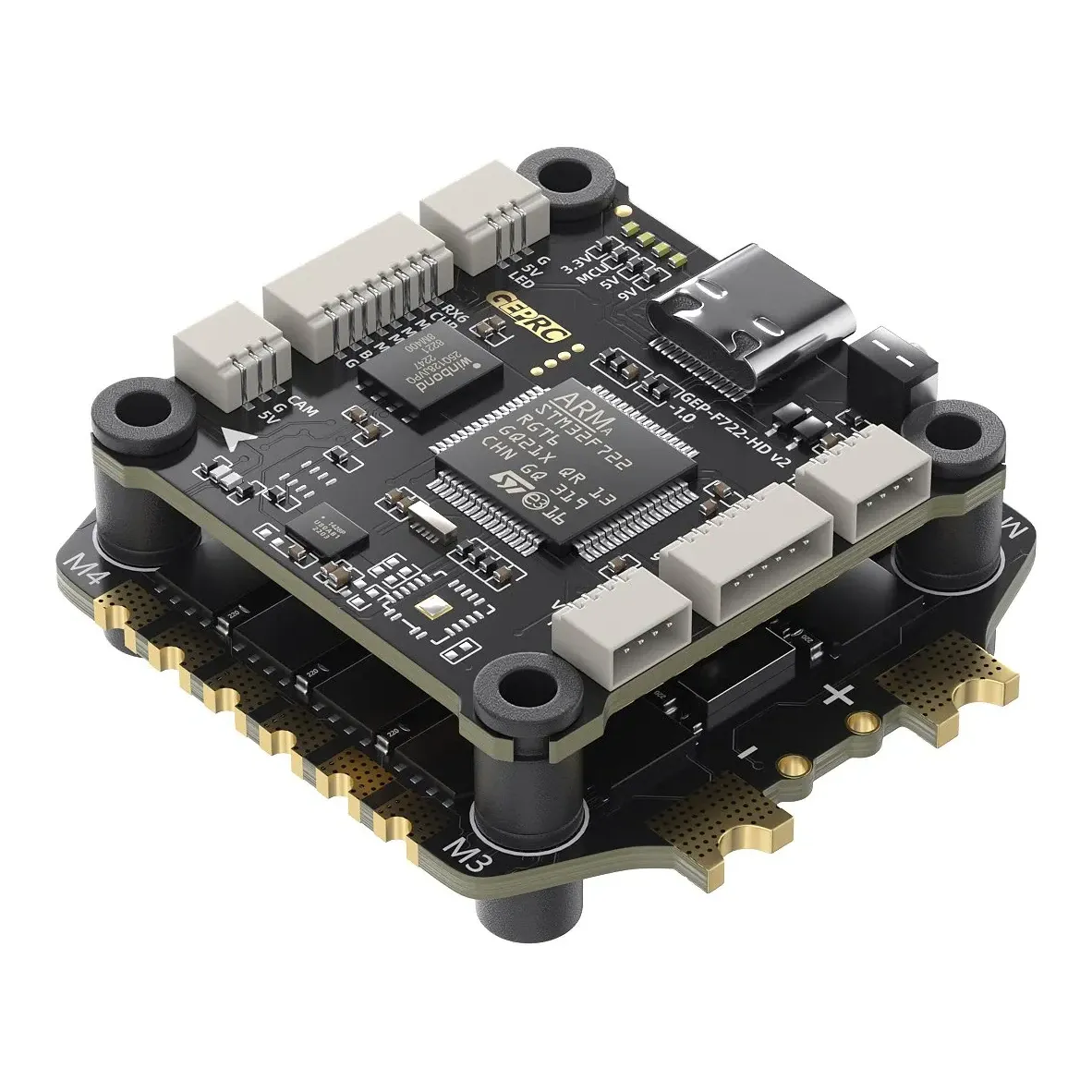

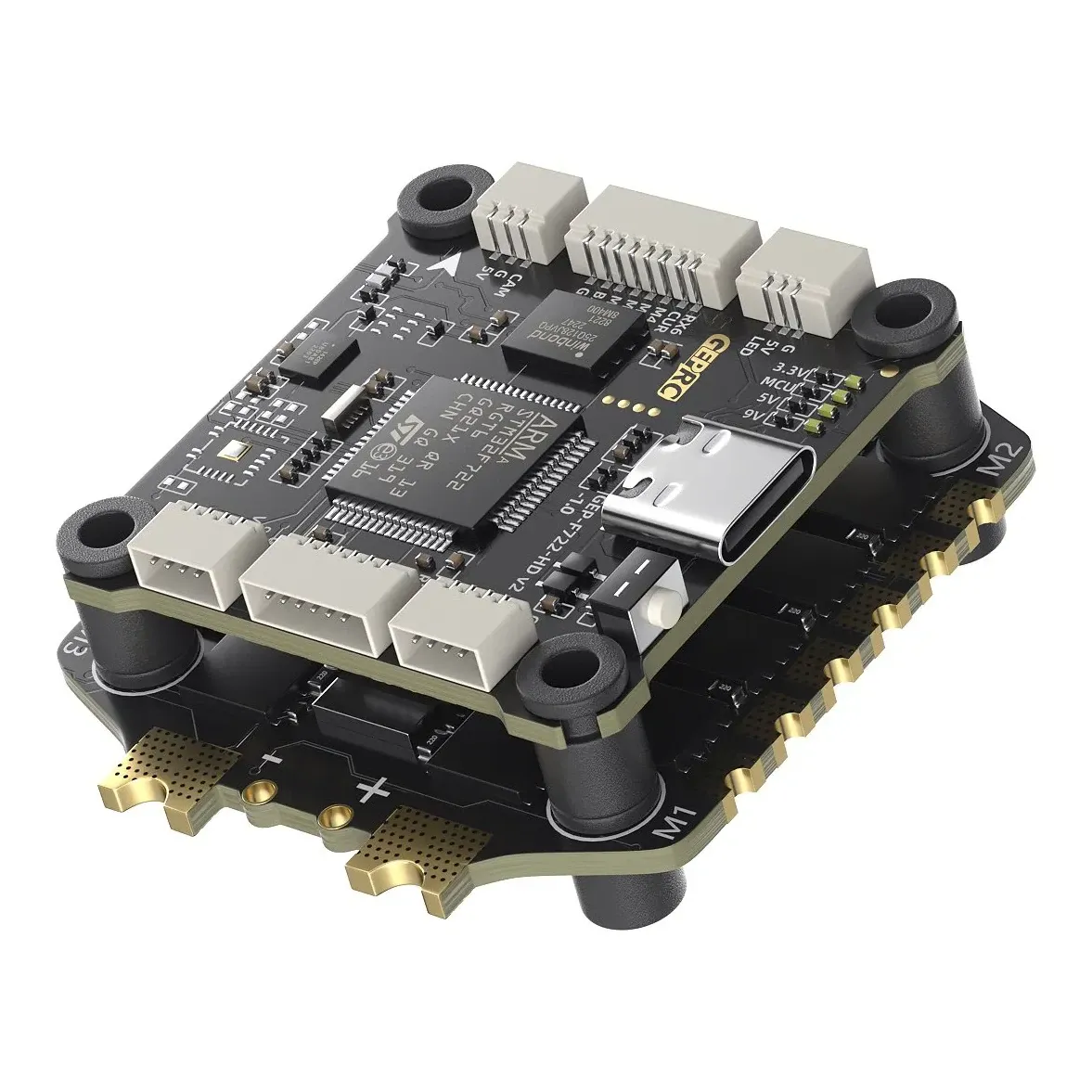

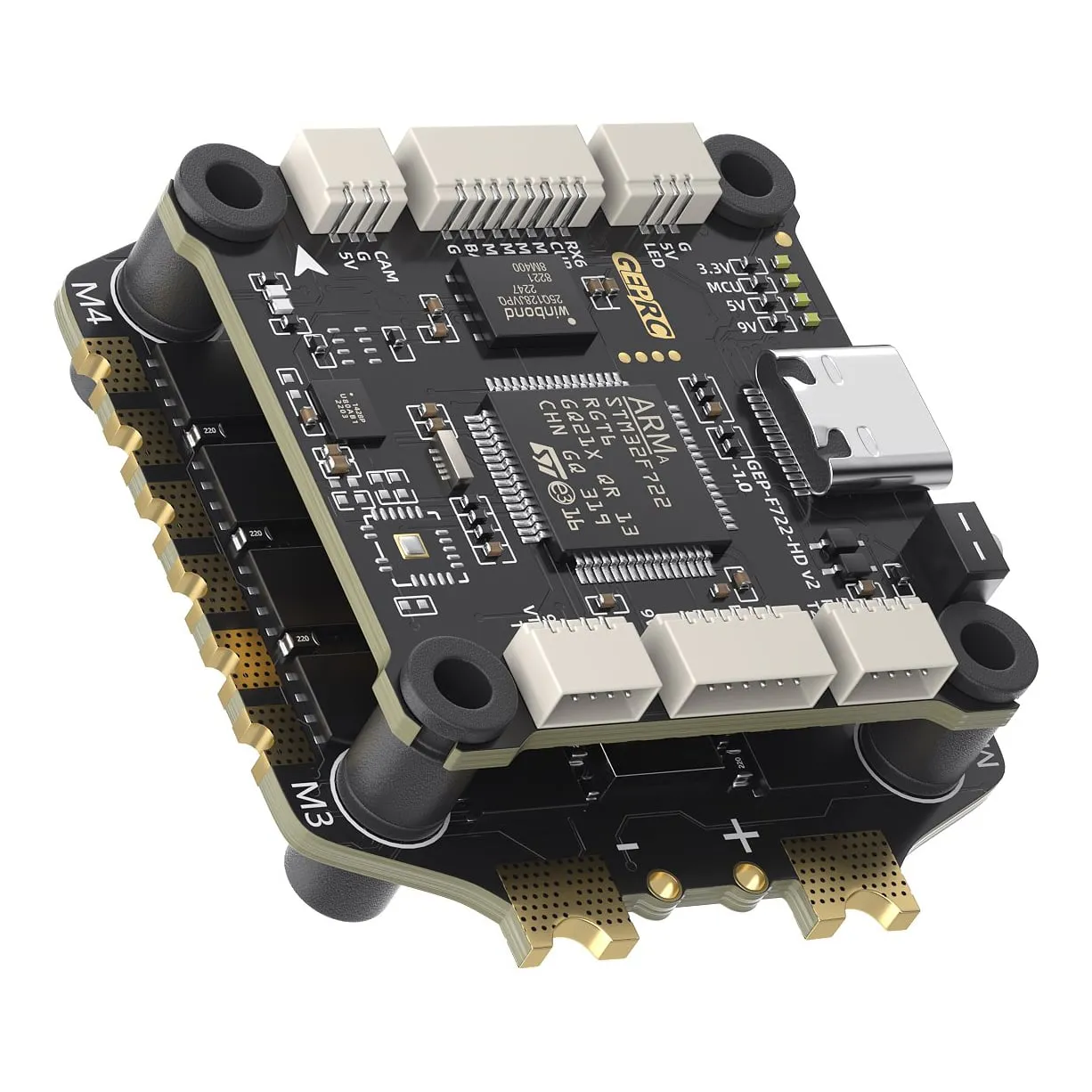

GEPRC Taker F722 BLS 65A V2 Stack (3-6S, 30.5x30.5)

The GEPRC Taker F722 BLS 65A V2 stack combines the GEP-F722-HD V2 flight controller with the Taker H65_8S_BLS 65A 8-bit 4-in-1 ESC on a 30.5 x 30.5 mm pattern. It suits 5-inch freestyle and racing quads that want more current headroom than the 60A version, with direct DJI Air Unit plug-in for HD setups.

Key features

• STM32F722 FC with ICM42688-P gyro, onboard barometer and 16M blackbox
• Taker H65_8S_BLS ESC: 65A continuous, 70A burst (5 s), with built-in current sensor
• Dual independent BECs: 9V 2.5A and 5V 3A
• Direct DJI Air Unit plug-in, plus AT7456E Betaflight OSD for analog cameras
• Type-C USB, integrated LC filter and five UARTs

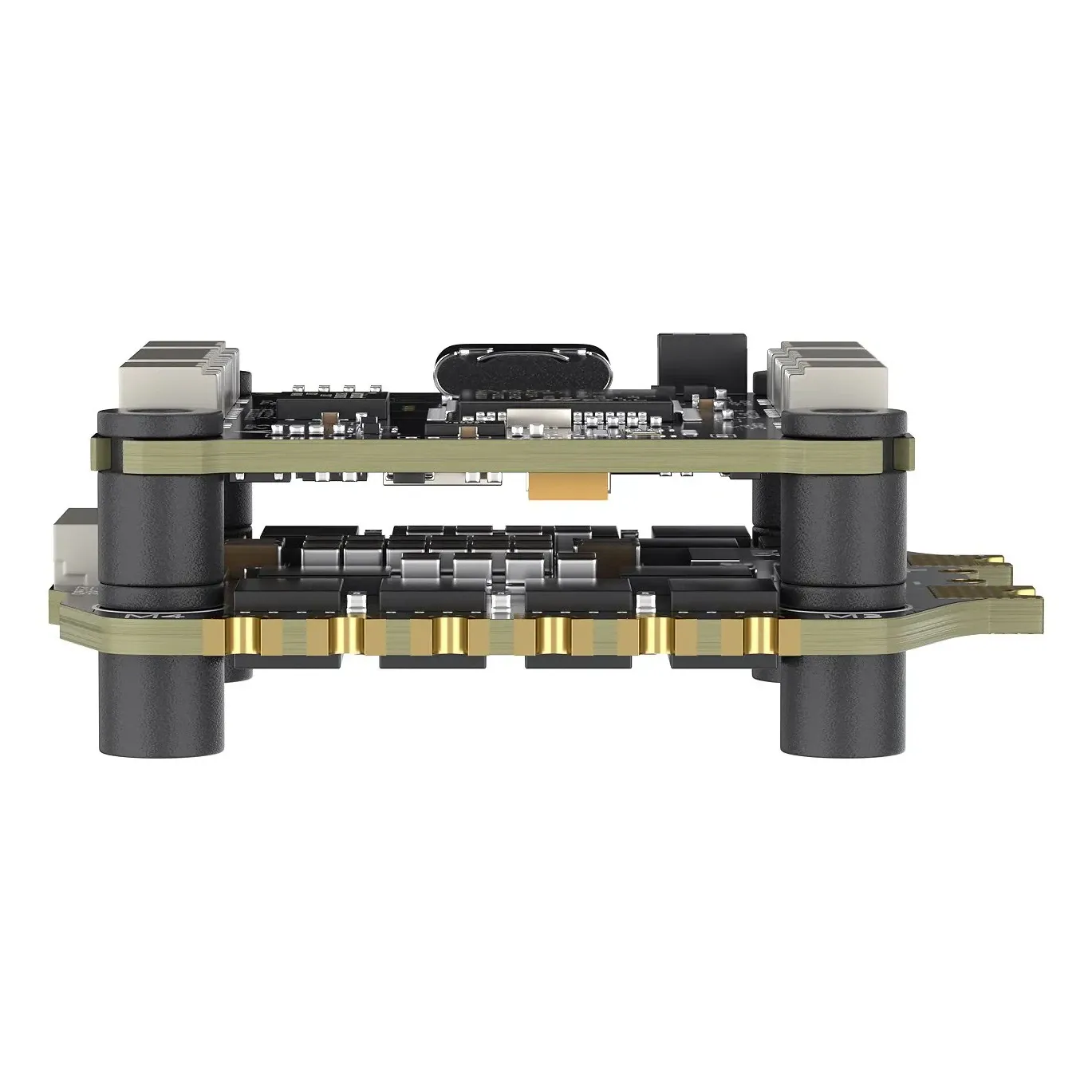

• Silicone pads soft-mount both boards on M3 hardware for a cleaner gyro signal

Specifications

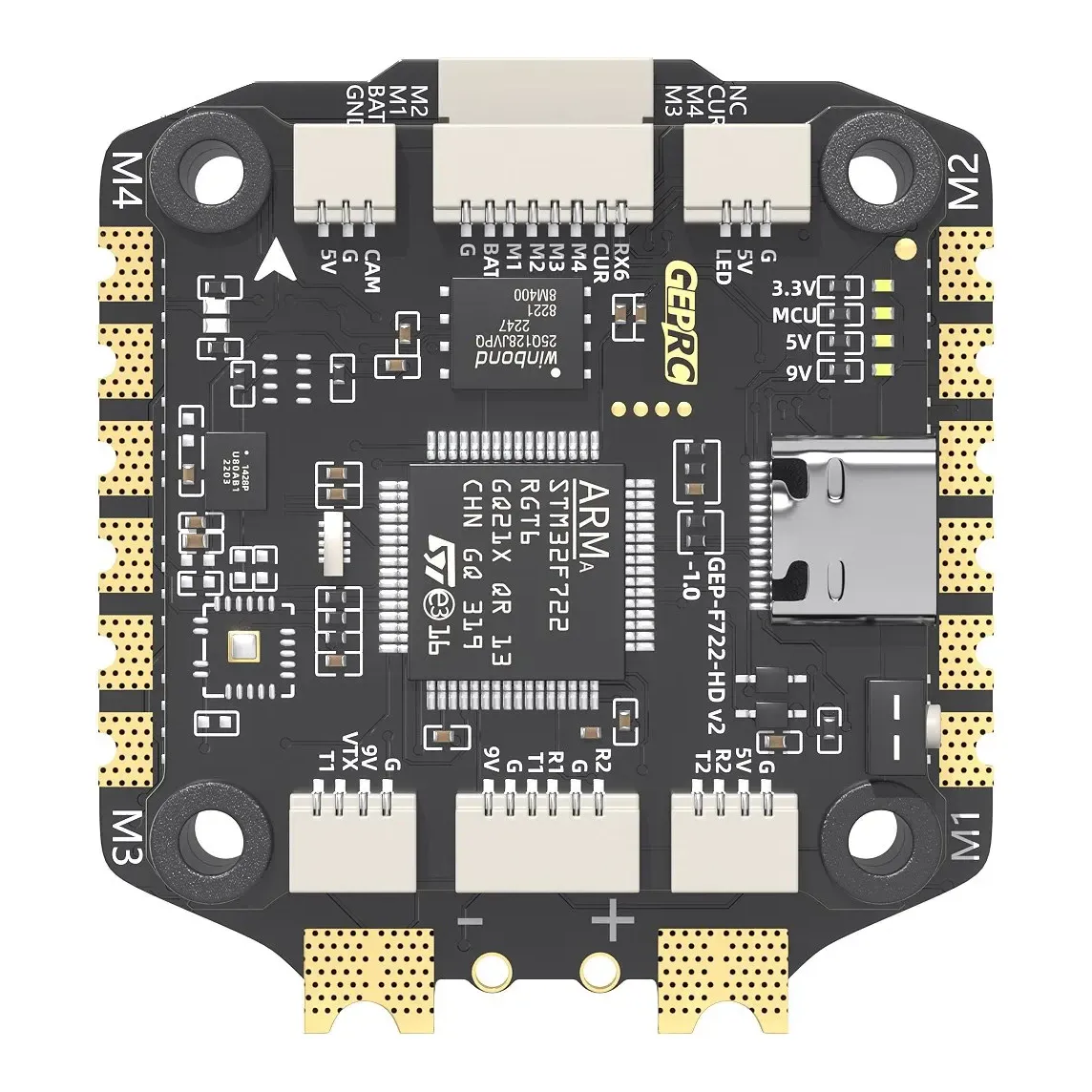

• FC: GEP-F722-HD V2, STM32F722, ICM42688-P, target GEPRCF722
• FC input: 3-6S LiPo
• FC size / weight: 36.85 x 36.85 mm, 8.1 g

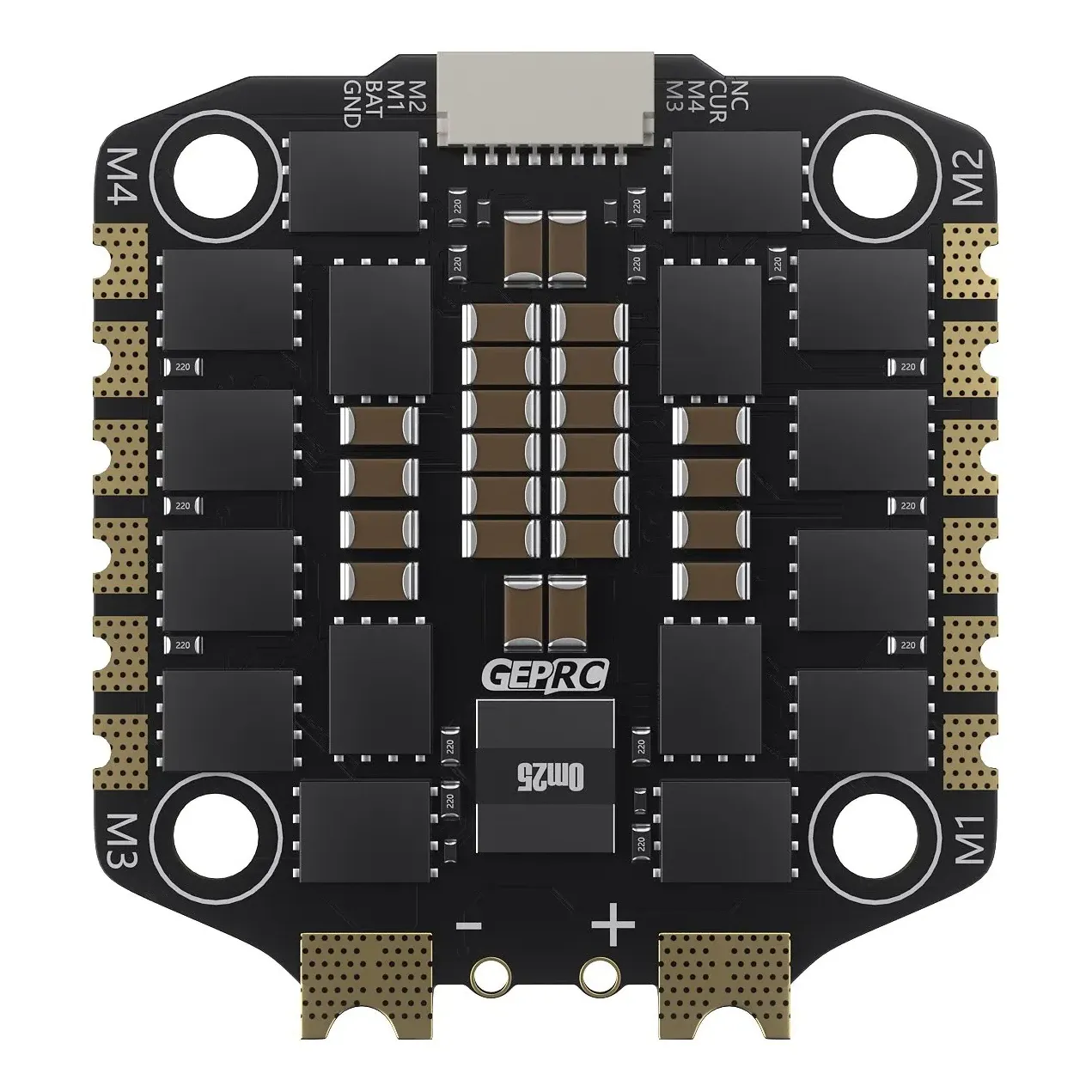

• ESC: Taker H65_8S_BLS, 3-8S LiPo, target B_X_30
• ESC current: 65A continuous, 70A burst (5 s)
• ESC protocols: DShot150/300/600
• ESC size / weight: 42 x 45.7 mm, 14.9 g
• Mounting: 30.5 x 30.5 mm

The ESC on its own is rated to 8S, but the flight controller is limited to 3-6S, so run the stack as supplied on 6S or below. In the box: FC, ESC, capacitor, DJI Air Unit cable, FC adapter cable, XT60 power lead, four M3 x 30 mm and four M3 x 25 mm screws, eight nylon nuts, eight silicone pads, two SH1.0 4-pin silicone cables and a camera cable.
