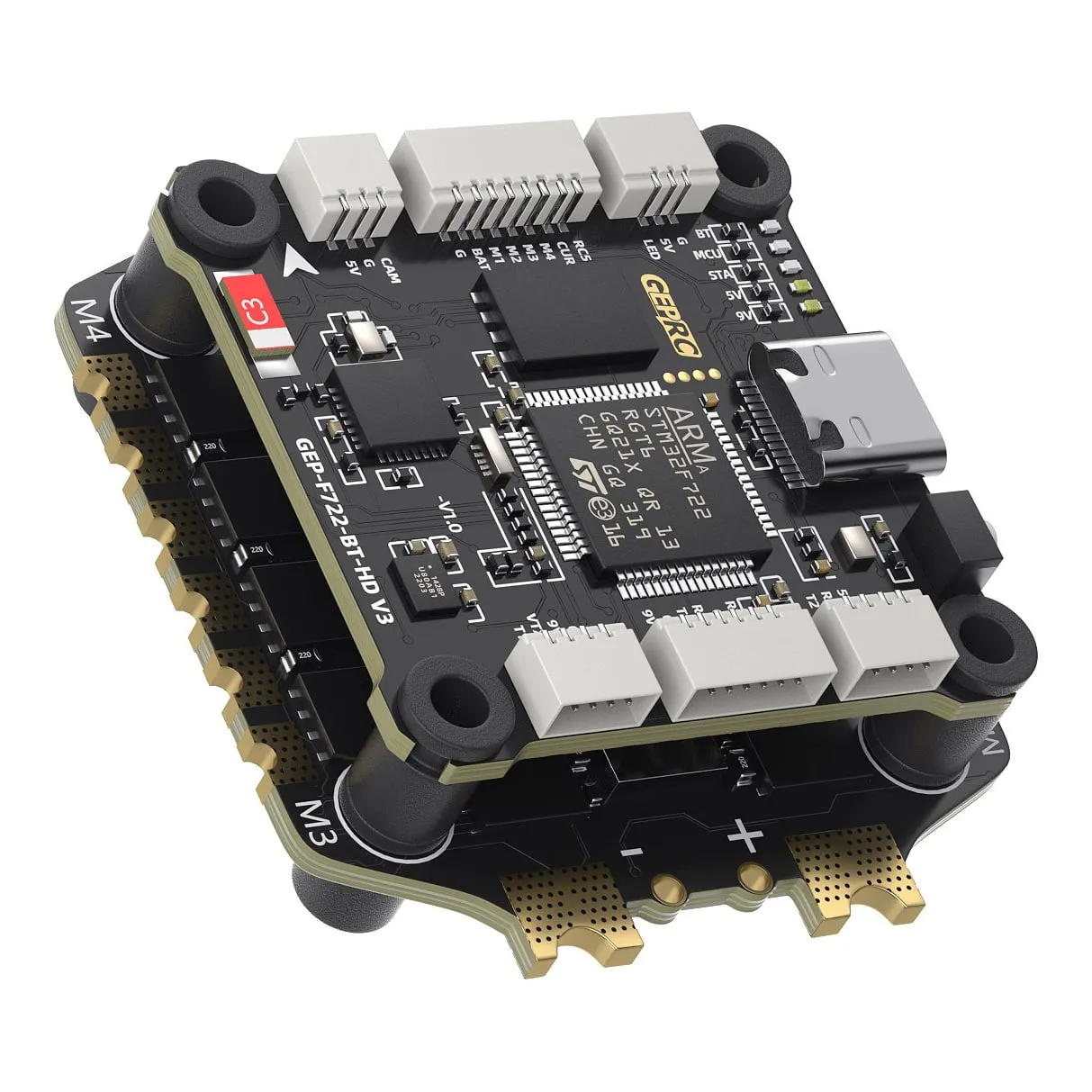

GEPRC Taker F722 BT 8Bit 60A Stack (3-6S, 30.5x30.5)

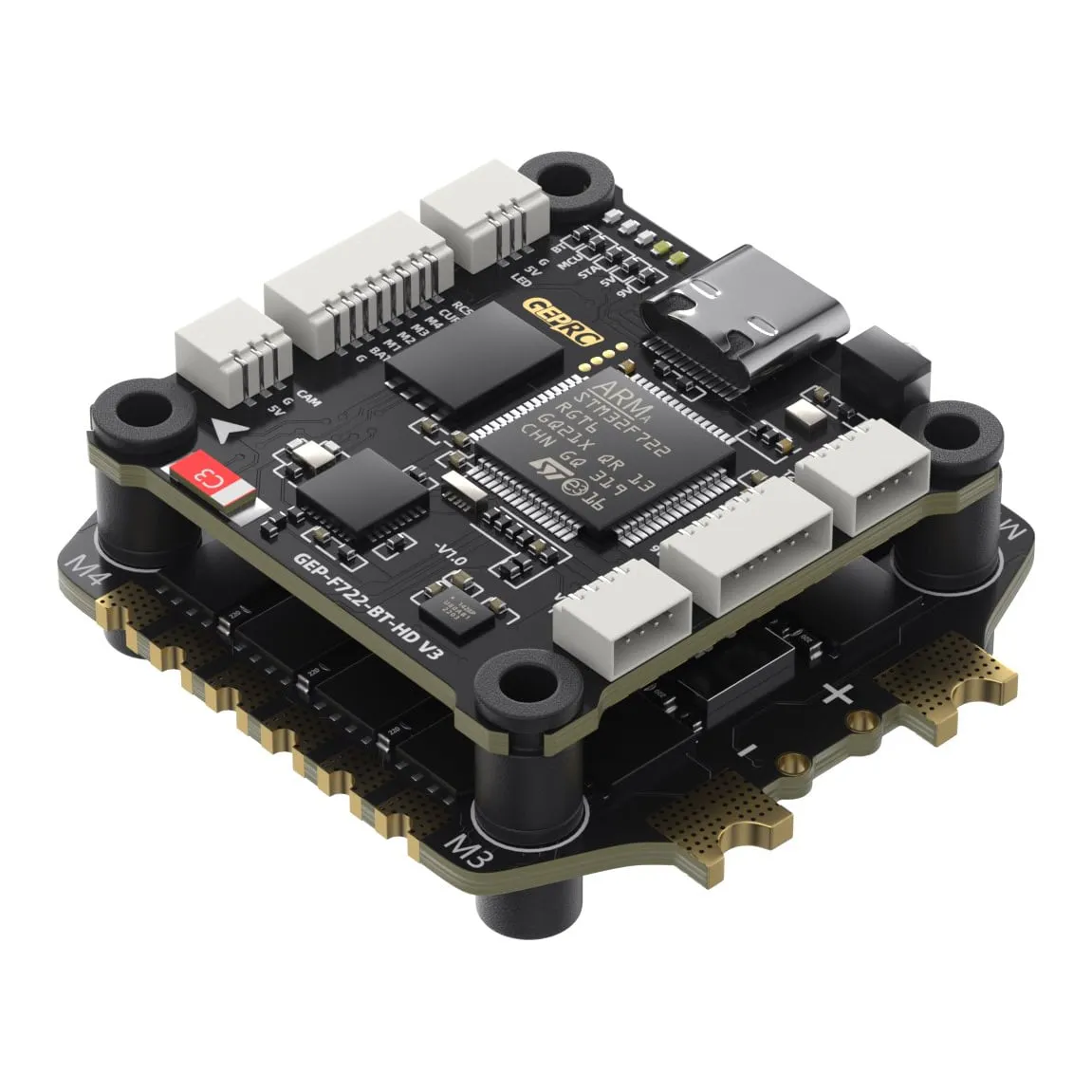

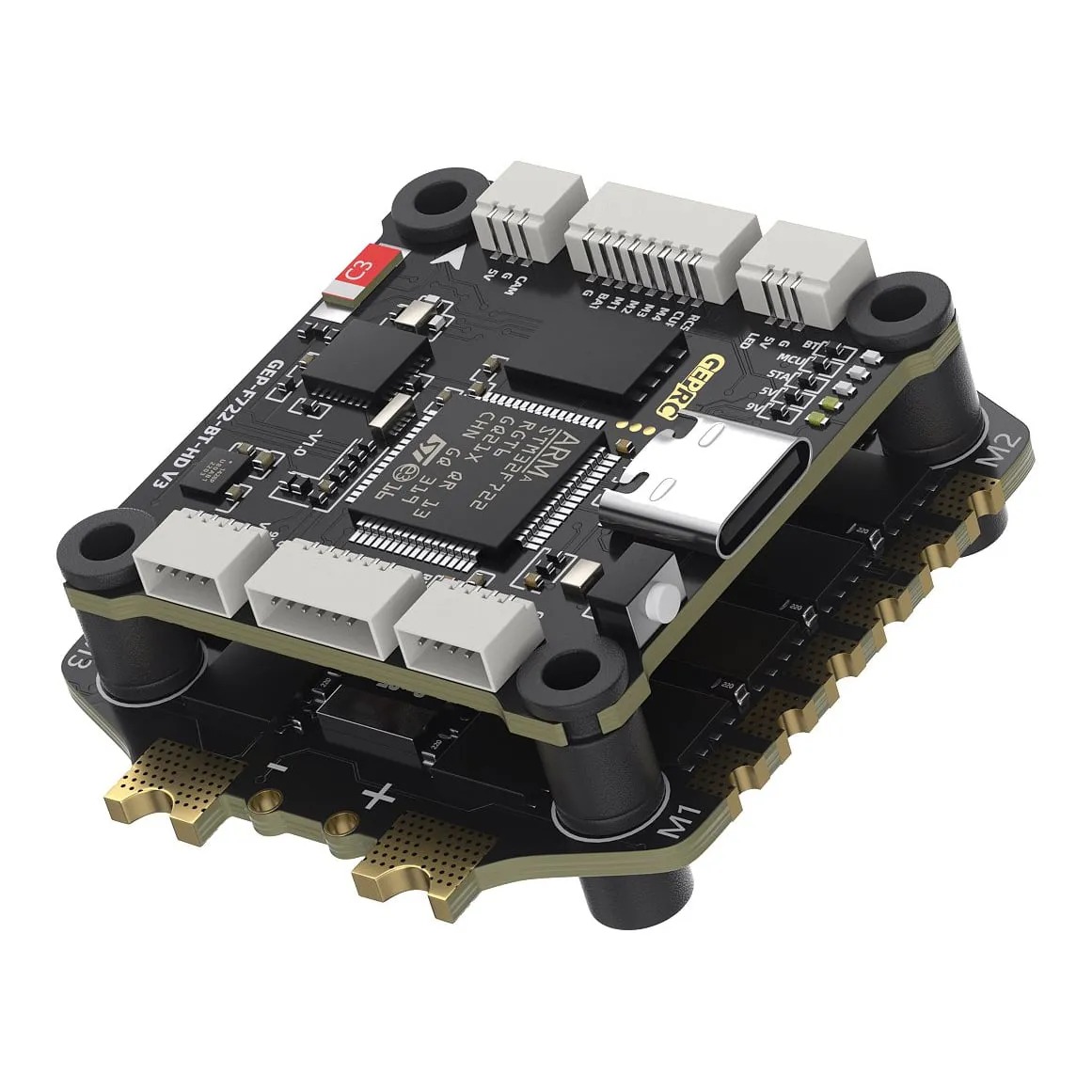

The GEPRC Taker F722 BT 8Bit 60A stack pairs the GEP-F722-BT-HD V3 flight controller with the Taker H60_BLS 60A 4-in-1 ESC on a 30.5 x 30.5 mm pattern. It is aimed at 5-inch freestyle and racing builds on 3-6S that want an onboard barometer, a large 512M blackbox and direct DJI Air Unit plug-in.

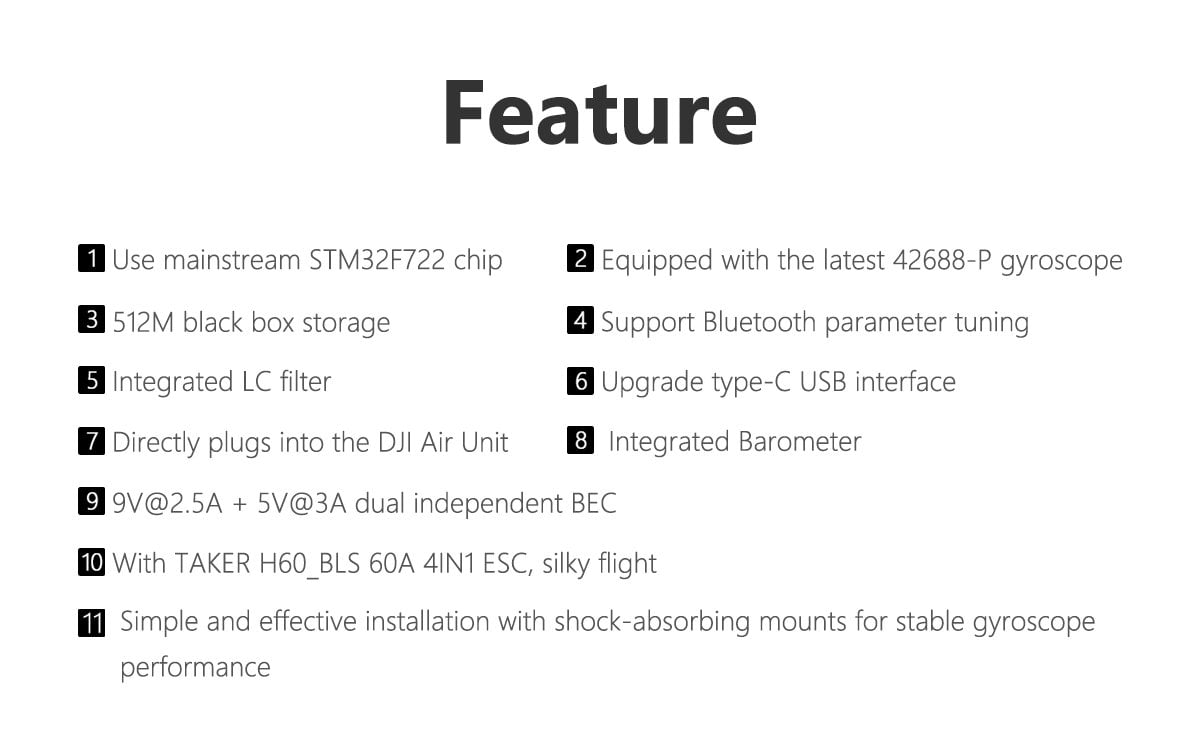

Key features

• STM32F722 FC with ICM42688-P gyro and integrated barometer

• 512M onboard blackbox for long flight logs

• Bluetooth parameter tuning on UART4 (see the batch note below)

• Taker H60_BLS ESC: 60A continuous, 65A burst (5 s), with built-in current sensor

• Dual independent 9V 2.5A and 5V 3A BECs, integrated LC filter and Type-C USB

• Direct DJI Air Unit plug-in, plus AT7456E Betaflight OSD for analog cameras

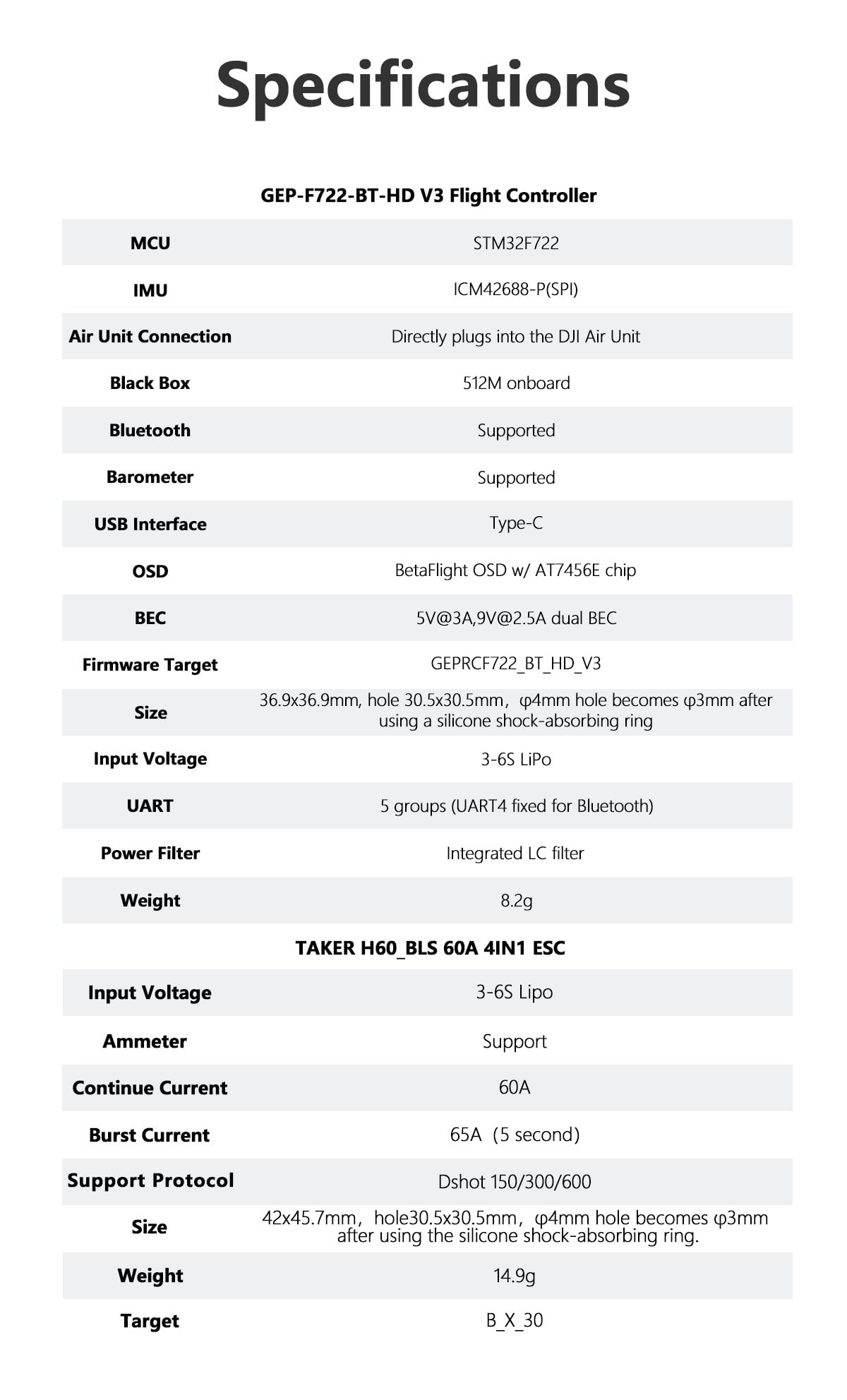

Specifications

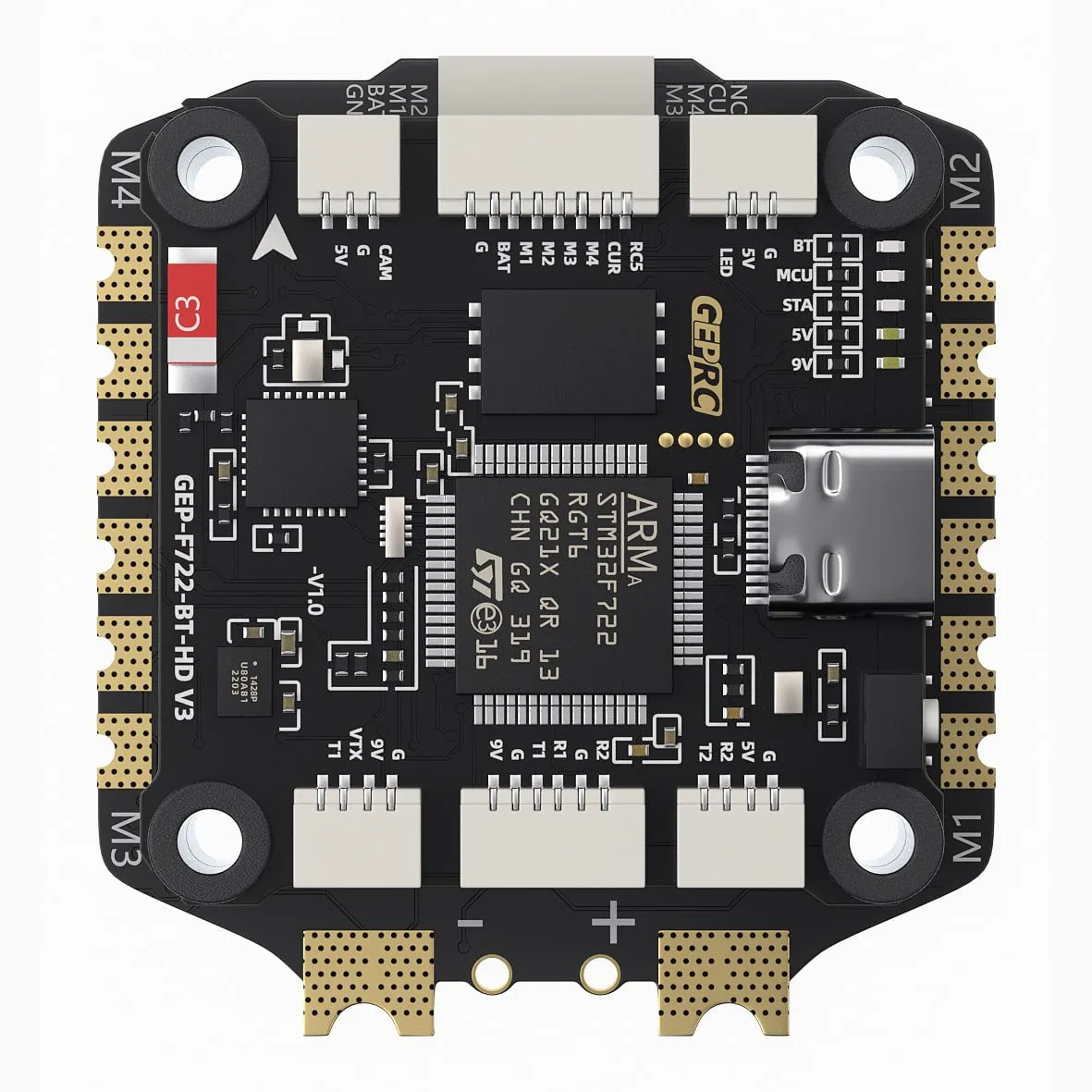

• FC: GEP-F722-BT-HD V3, STM32F722, ICM42688-P, target GEPRCF722_BT_HD_V3

• FC input: 3-6S LiPo

• FC size / weight: 36.9 x 36.9 mm, 8.2 g

• UARTs: 5 (UART4 reserved for Bluetooth)

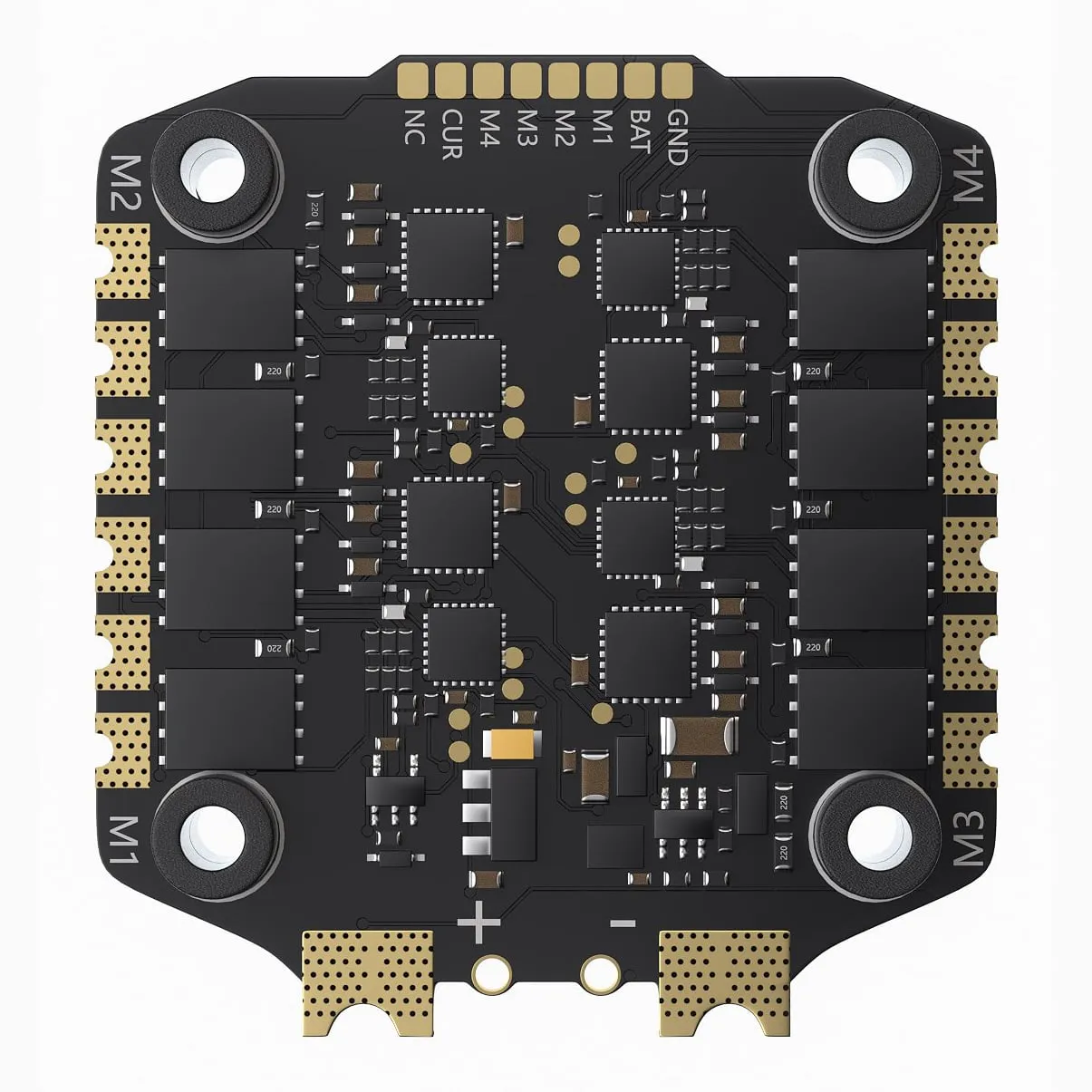

• ESC: Taker H60_BLS, 3-6S LiPo, target B_X_30

• ESC current: 60A continuous, 65A burst (5 s)

• ESC protocols: DShot150/300/600

• ESC size / weight: 42 x 45.7 mm, 14.9 g

• Mounting: 30.5 x 30.5 mm, 4 mm holes reduced to 3 mm by the silicone grommets

Batch note: GEPRC has announced that stacks produced since February 2026 ship with Bluetooth tuning disabled after a temporary hardware change, with no date yet for its return. The flight controller and ESC are otherwise unaffected, so plan on configuring the stack over USB-C.
