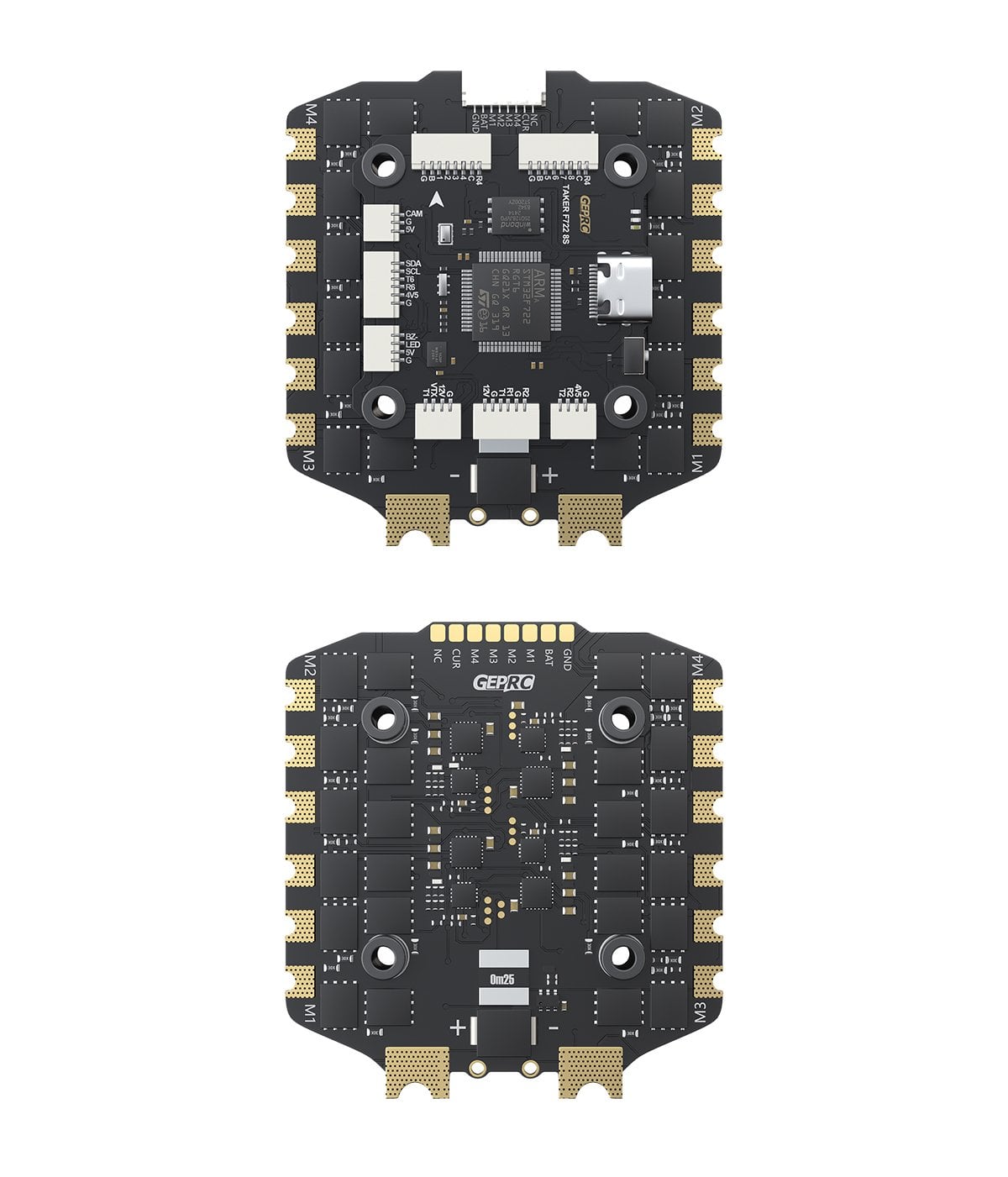

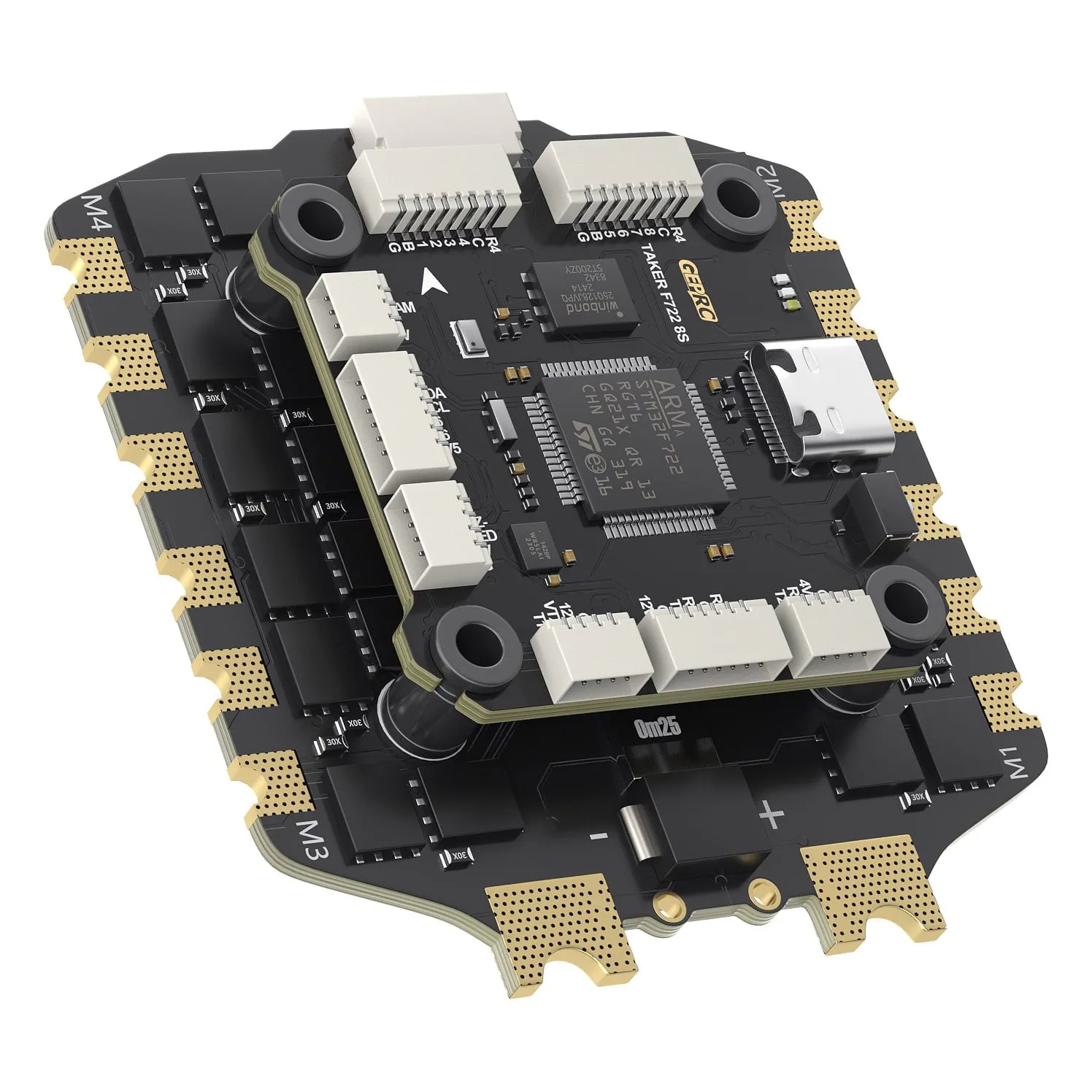

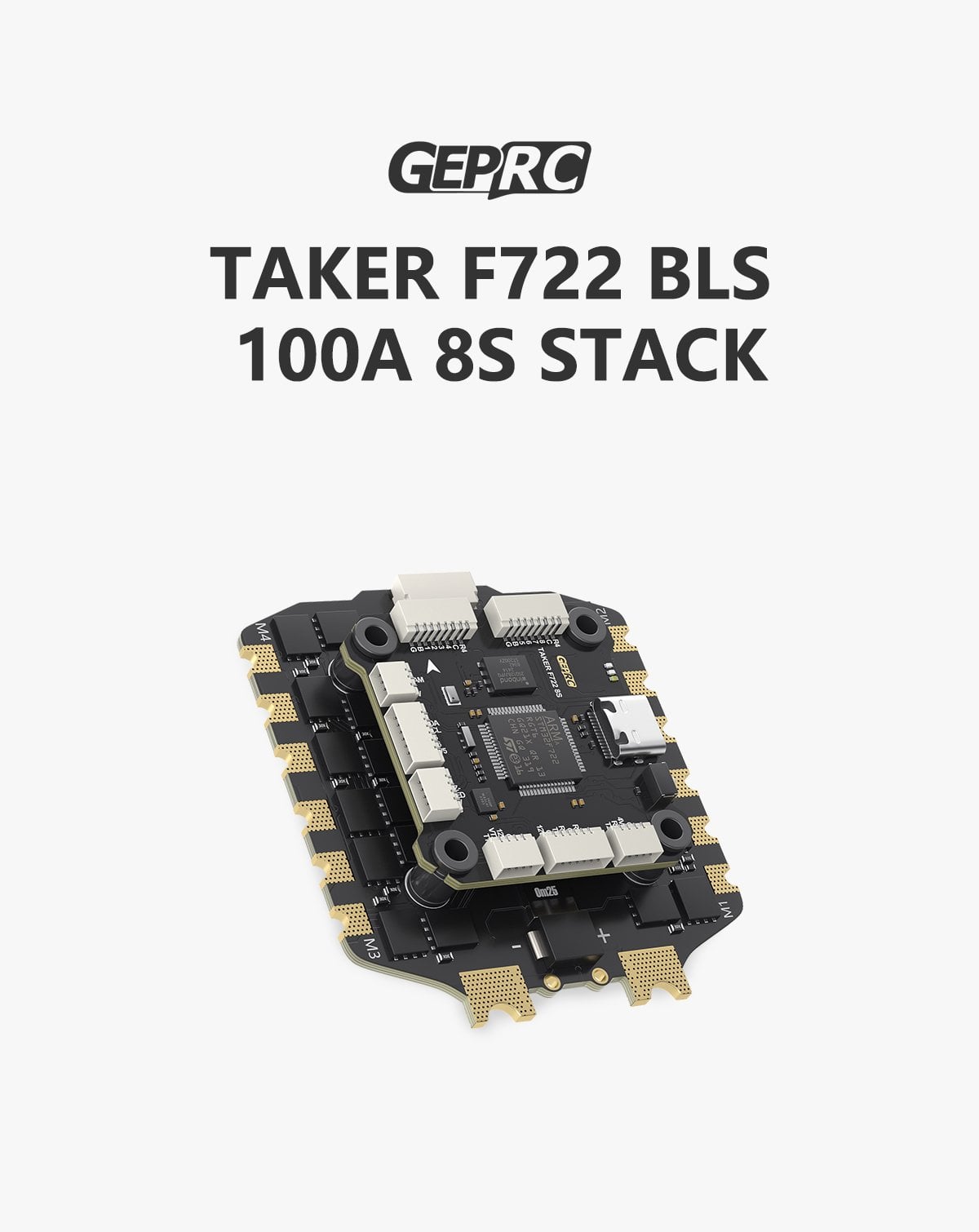

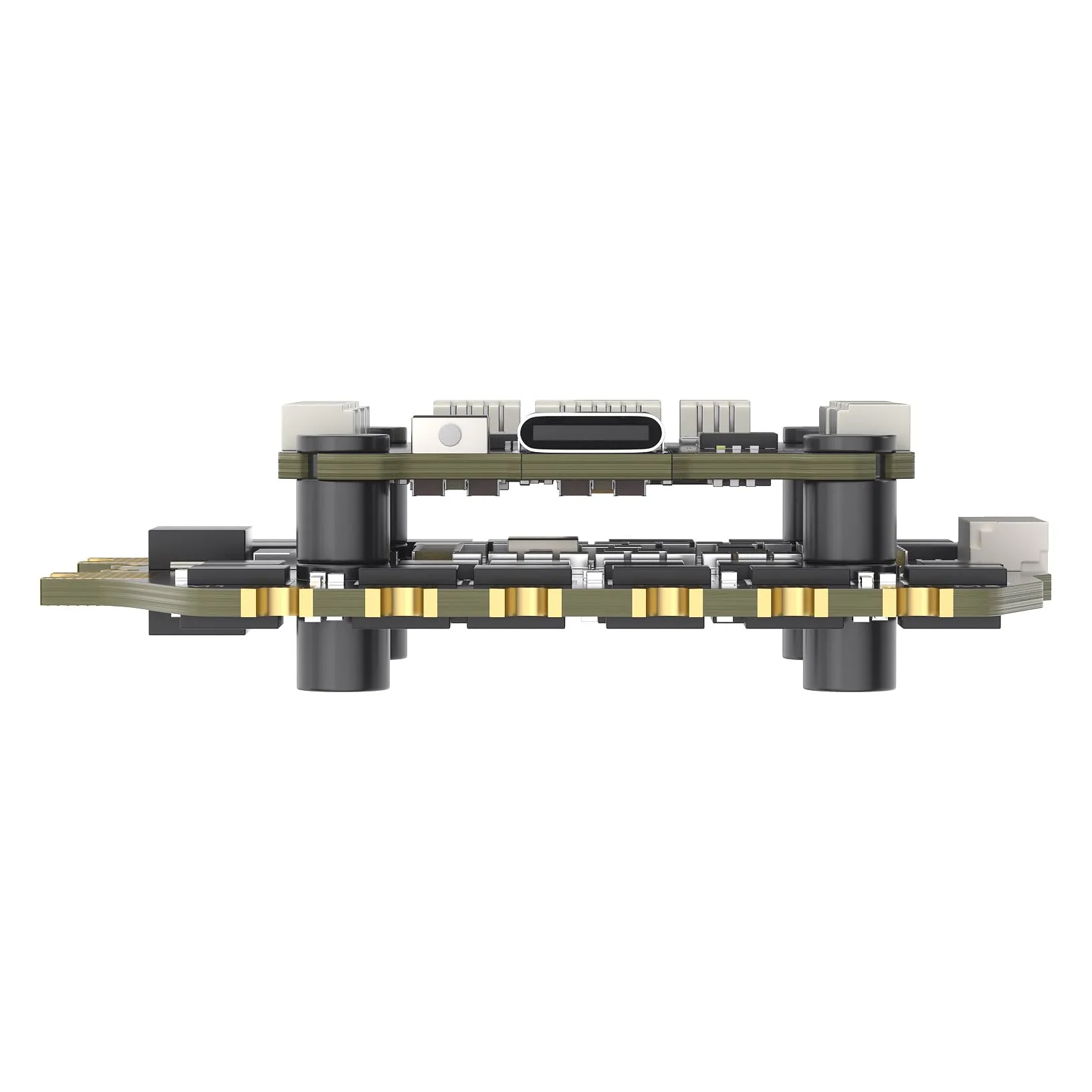

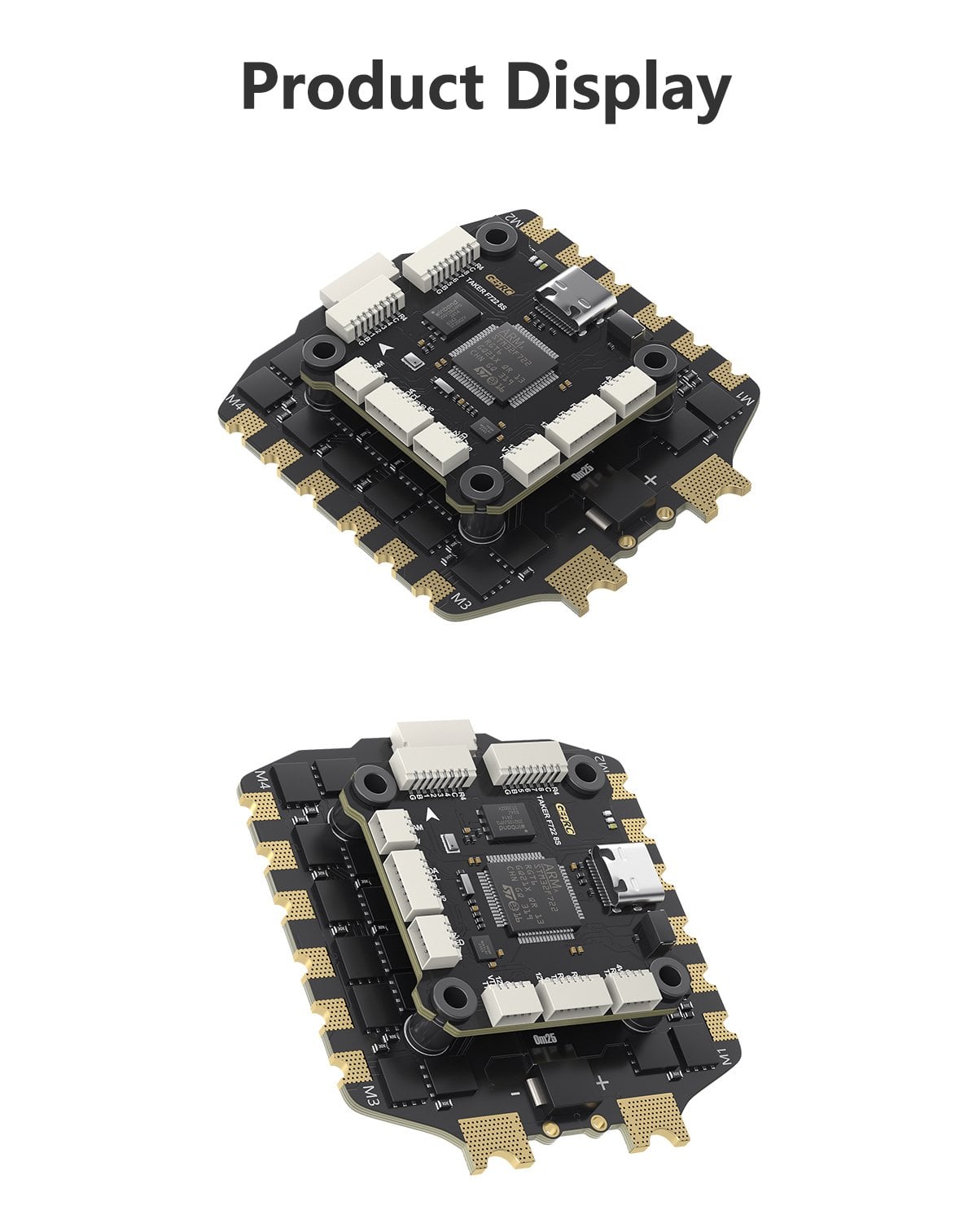

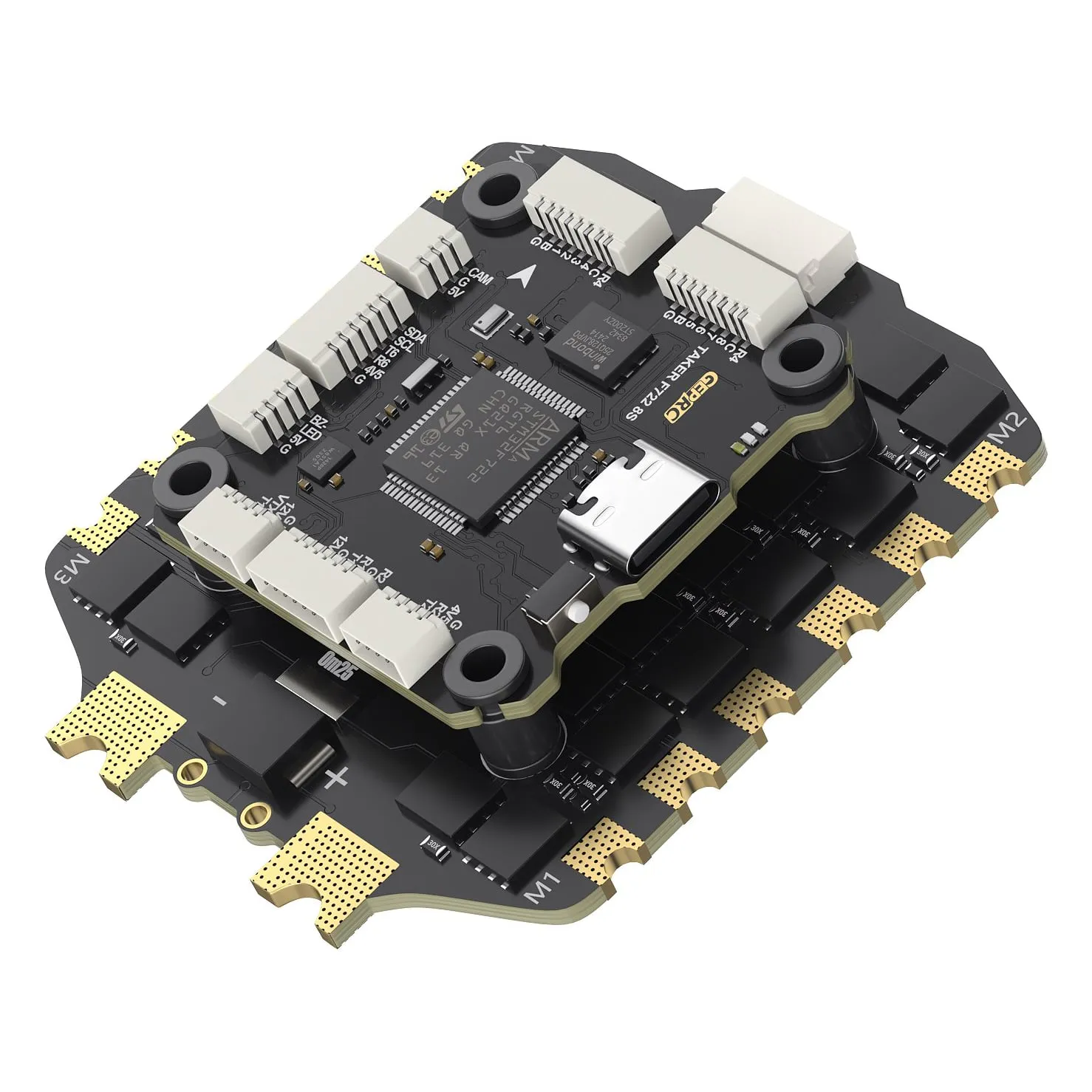

GEPRC TAKER F722 BLS 100A 8S Stack

The GEPRC TAKER F722 BLS 100A 8S Stack is built for heavy-lift cinelifters, macro quads, and X-Class rigs requiring extreme current delivery. Combining an F722 flight controller with a massive 100-amp BLHeli_S ESC, this stack accommodates direct 8S input to drive large stators and heavy payloads without stressing your power components.

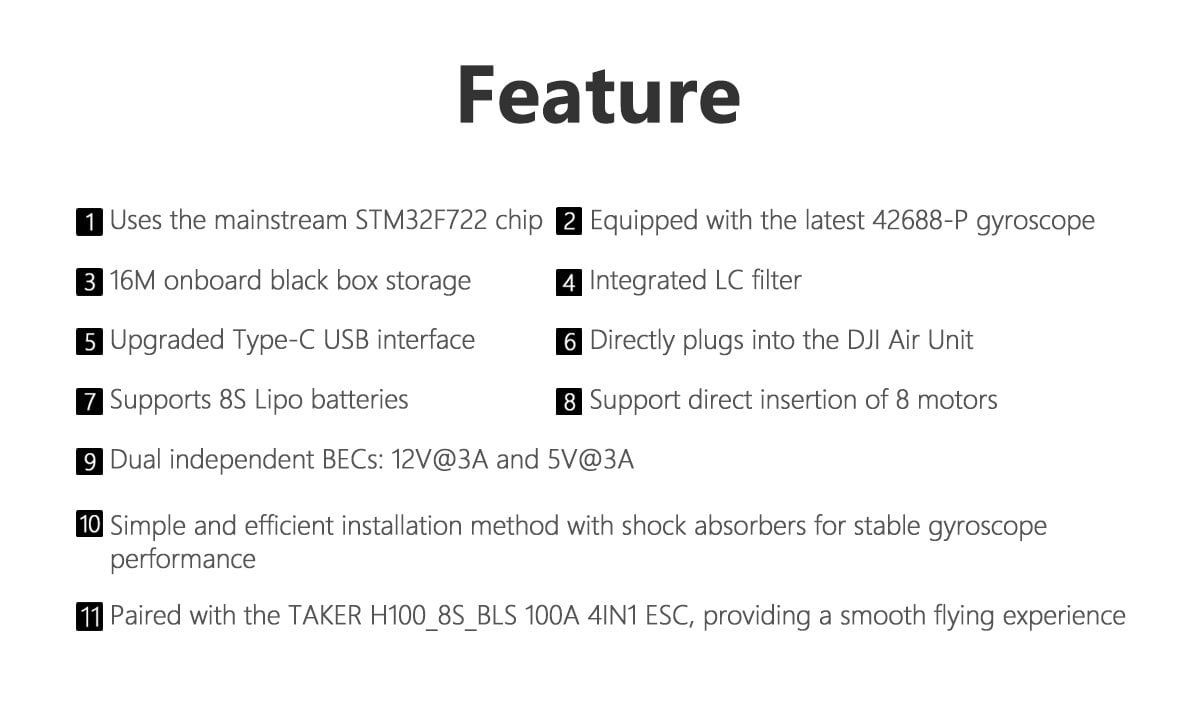

Key features

• 100A continuous current limit easily supports the large-stator motors used in 7-inch to 10-inch builds.

• 3-8S LiPo input, up to 8S for high-voltage, lower-heat drivetrain configurations.

• STM32F722 processor manages complex Betaflight filtering and maintains high loop rates.

• Integrated barometer provides accurate altitude data for GPS rescue and autonomous functions.

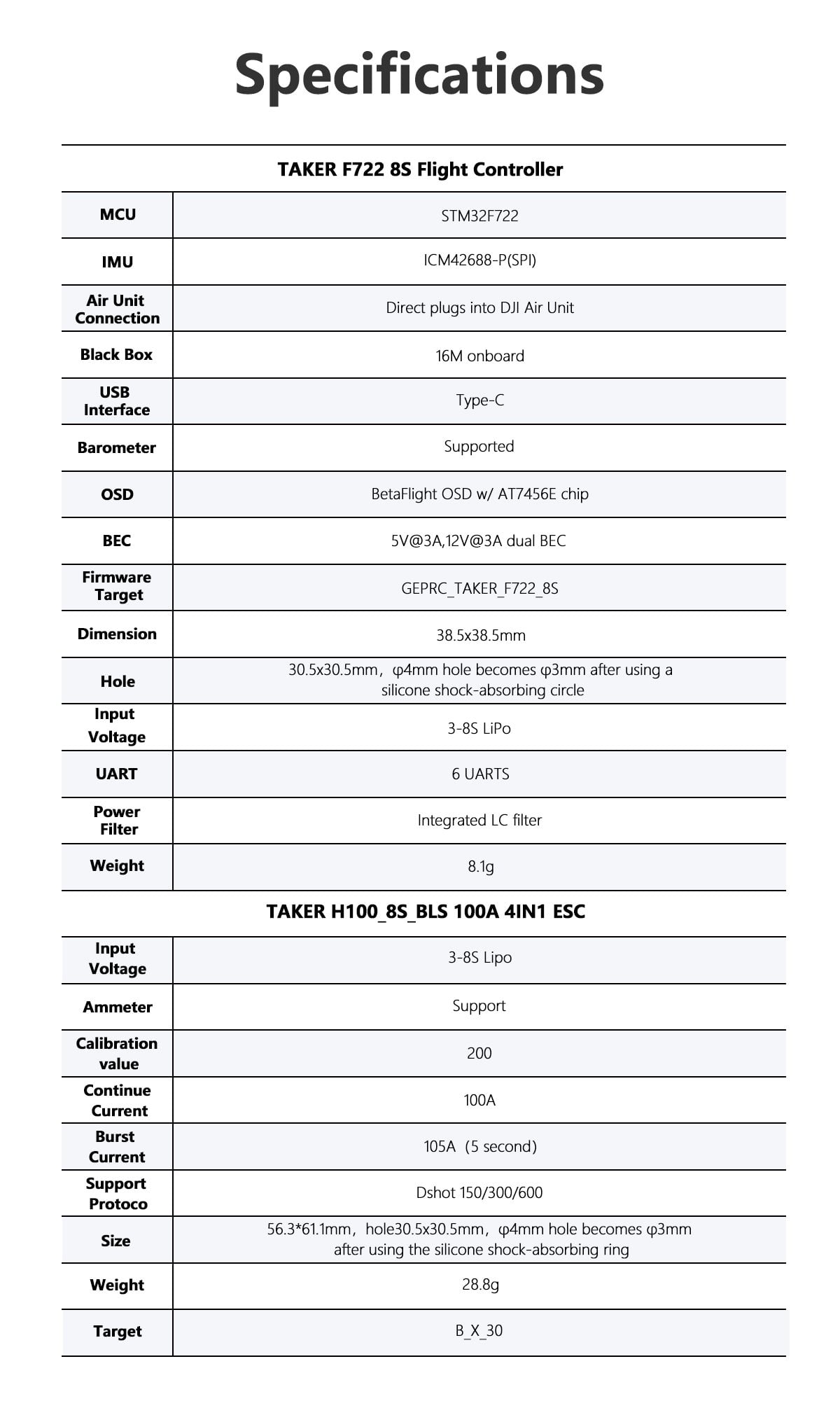

Specifications

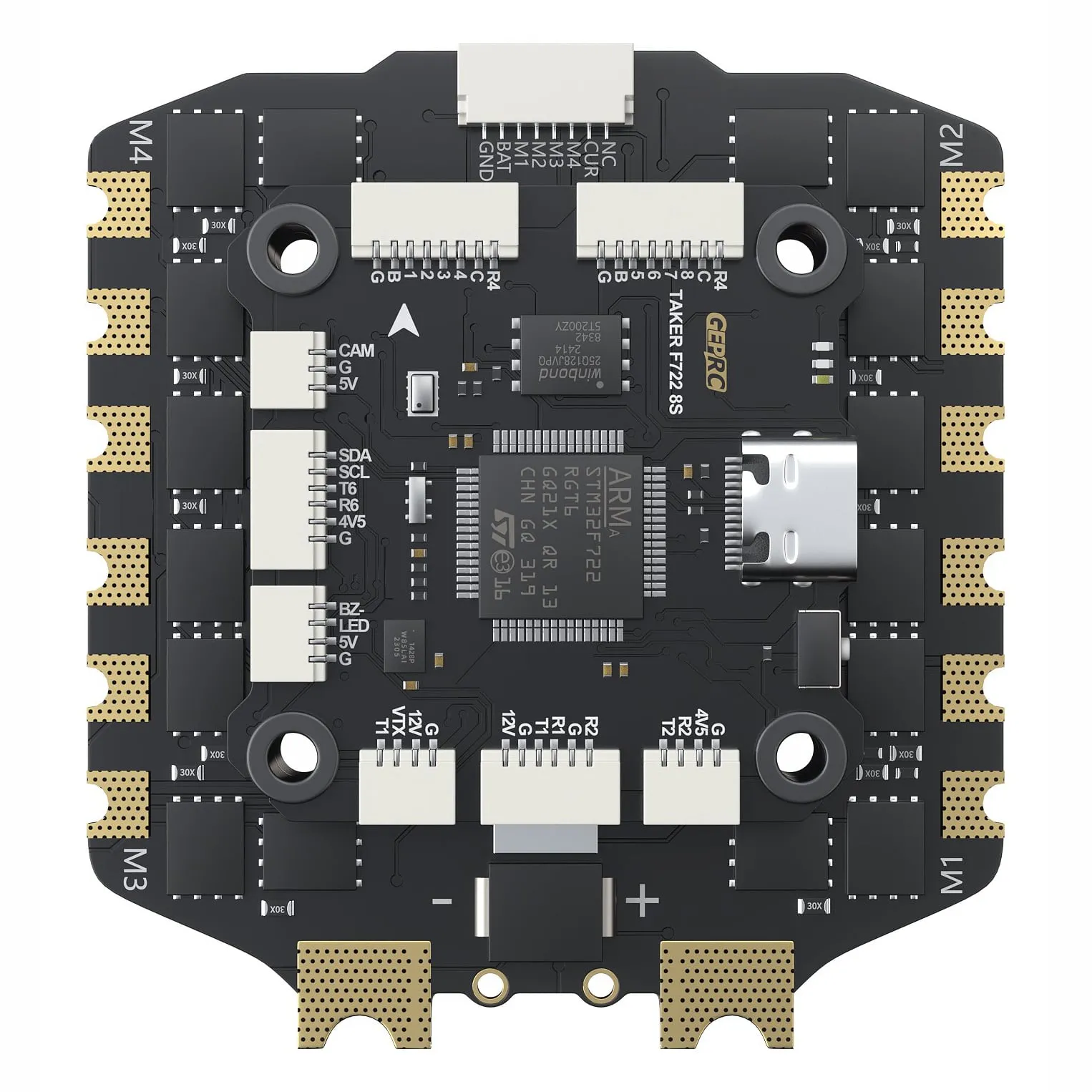

• MCU: STM32F722

• Gyro: ICM42688P

• Continuous Current: 100A (105A burst for 5 seconds)

• Input Voltage: 3-8S LiPo

• FC Firmware: Betaflight

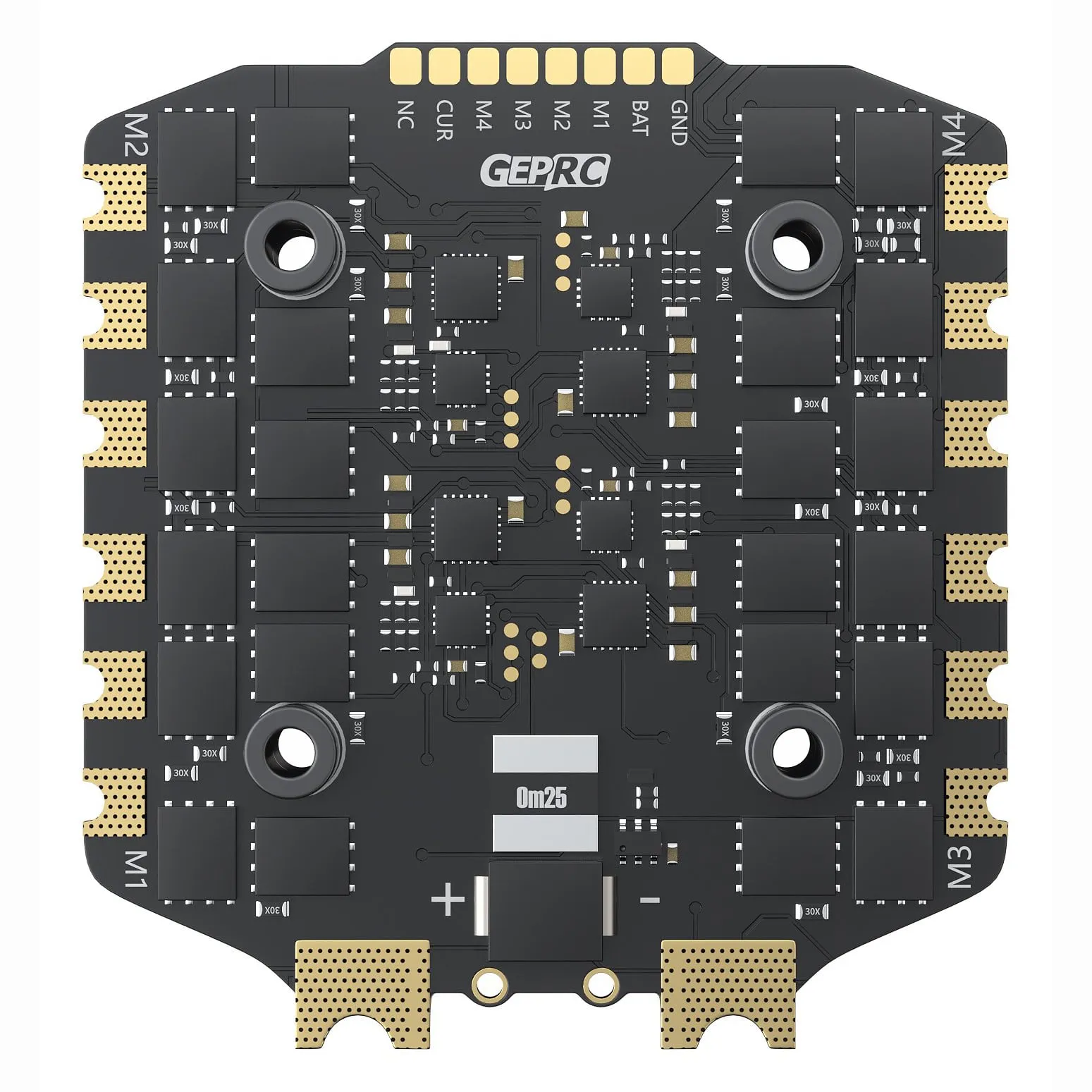

• ESC Firmware: BLHeli_S

• Mounting Pattern: 30.5x30.5

This stack is necessary when your build outgrows standard 50A hardware, offering the strict electrical overhead required to swing heavy propellers on high-voltage systems safely.
