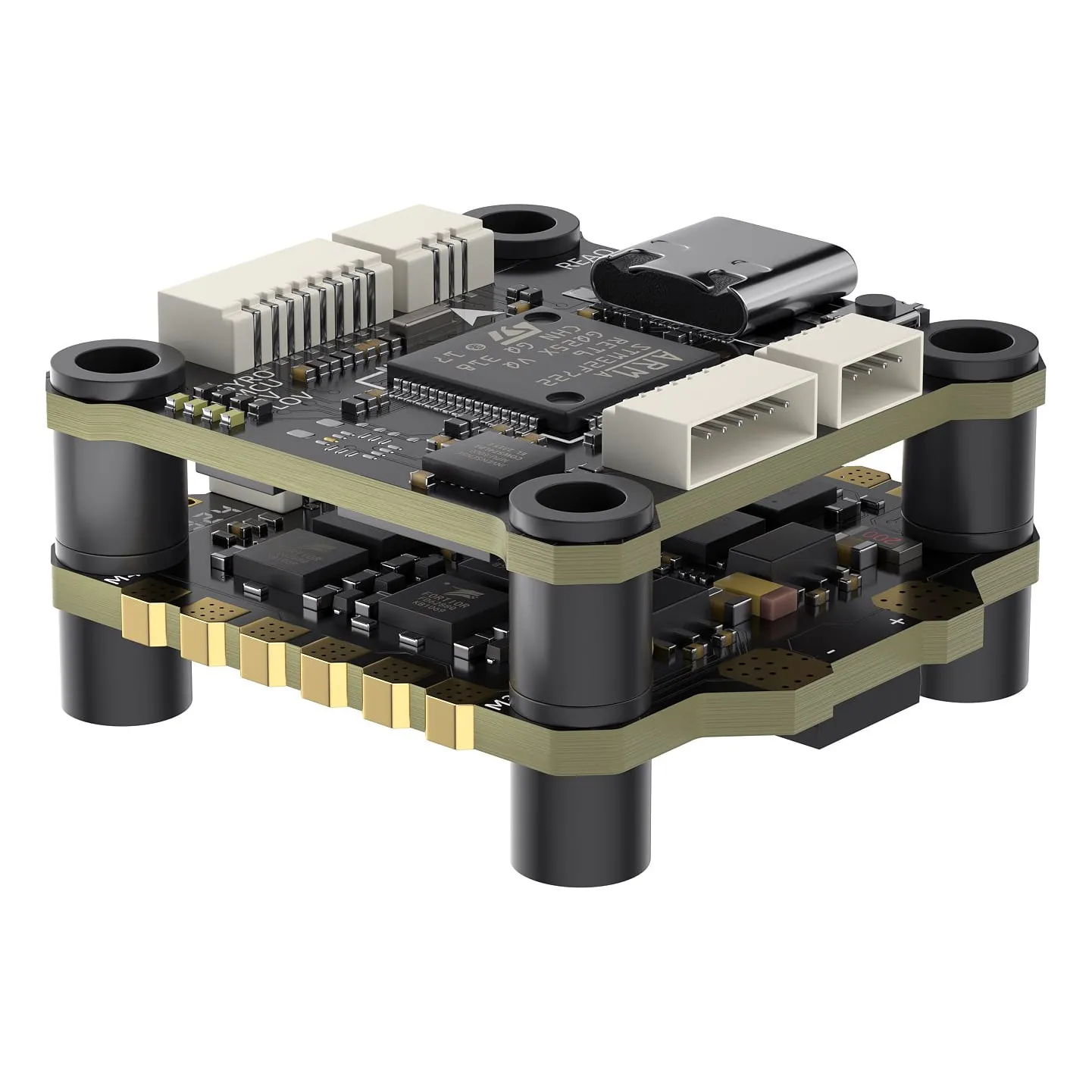

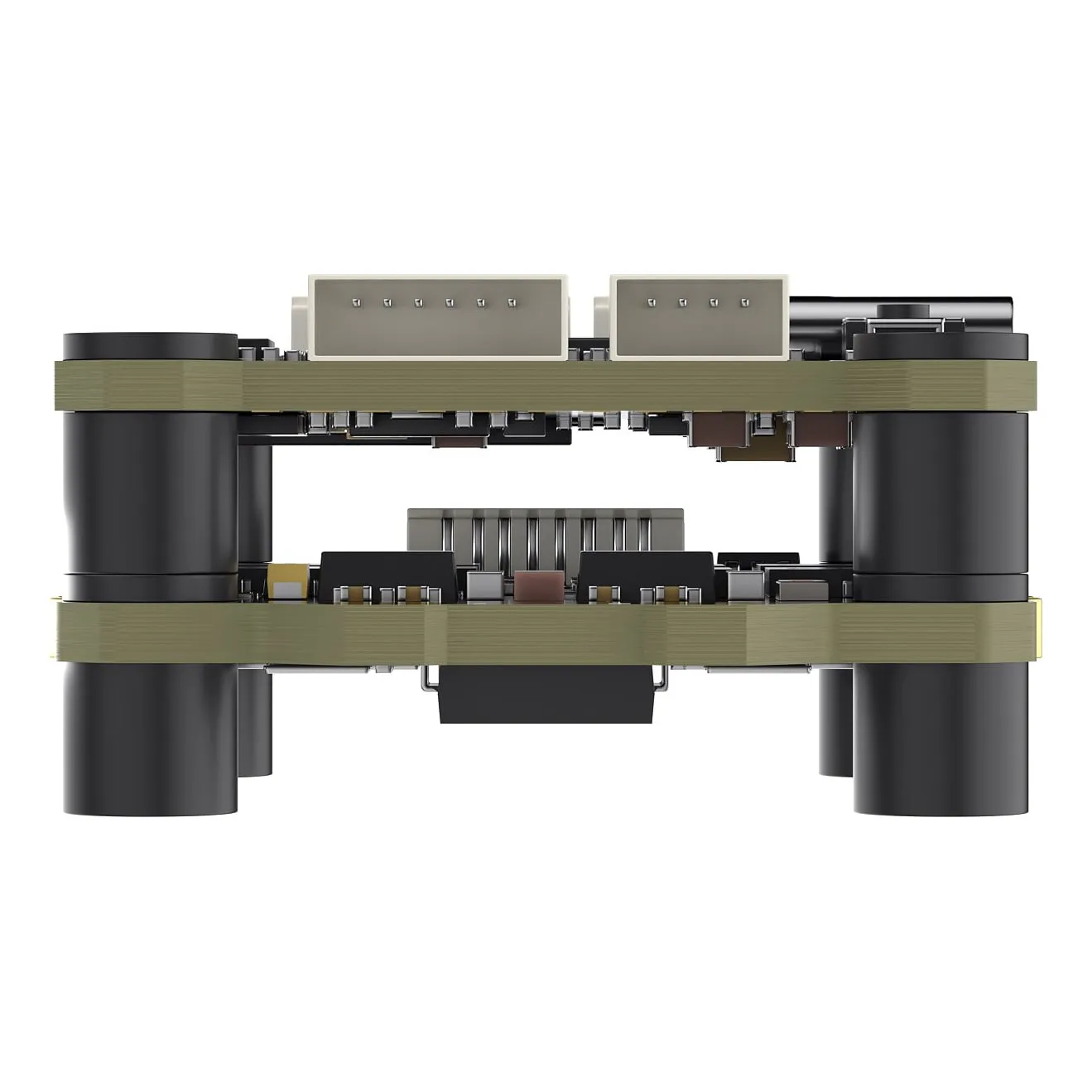

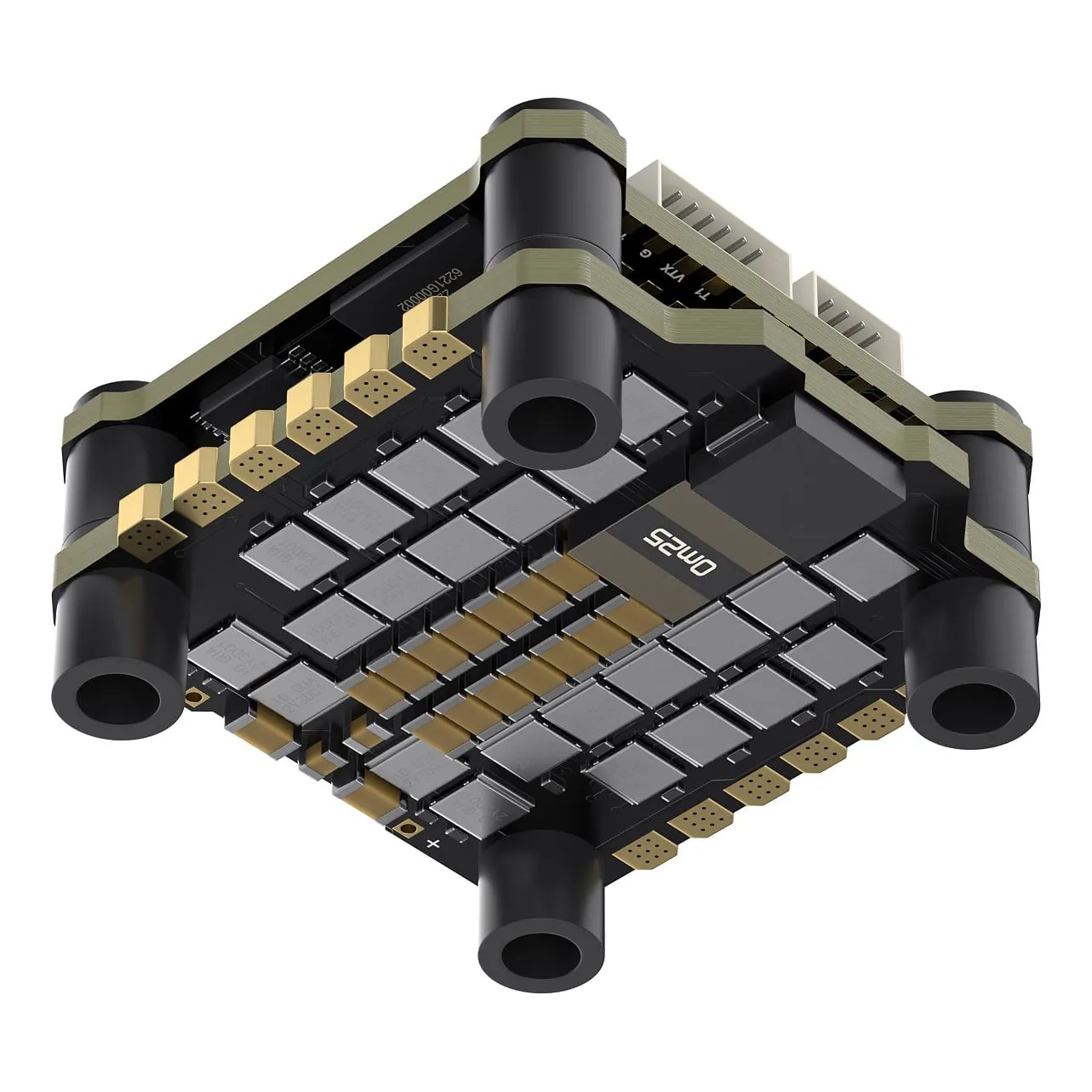

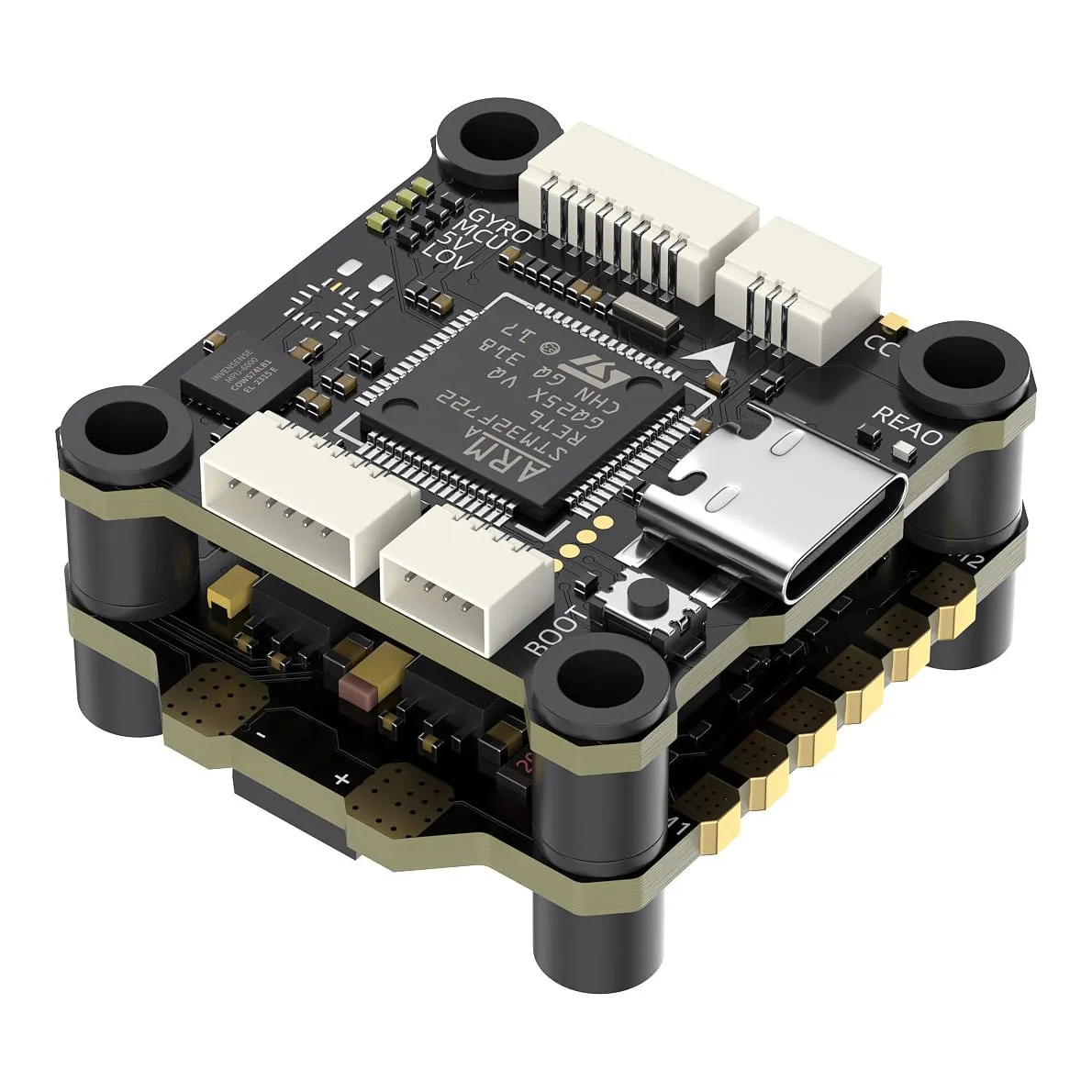

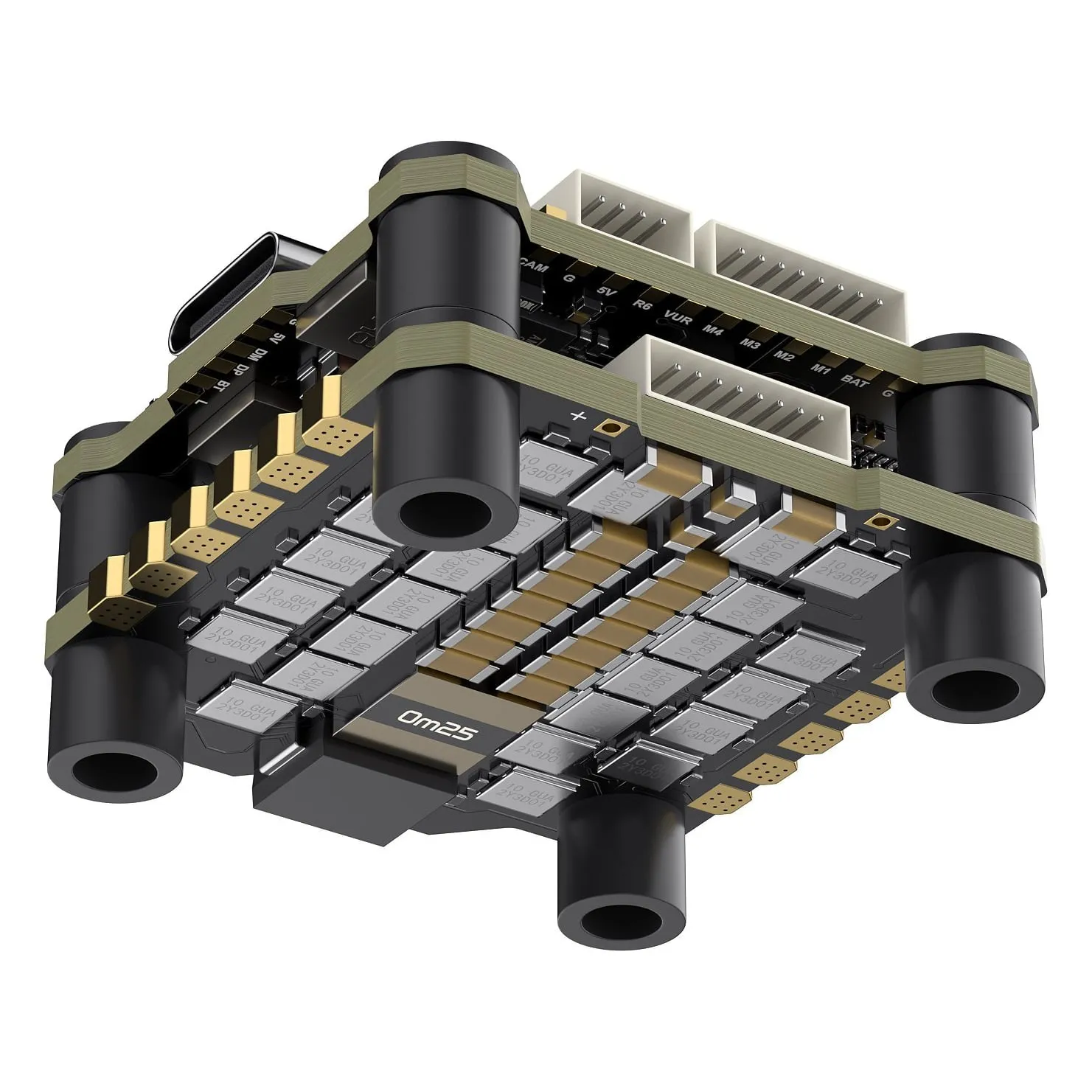

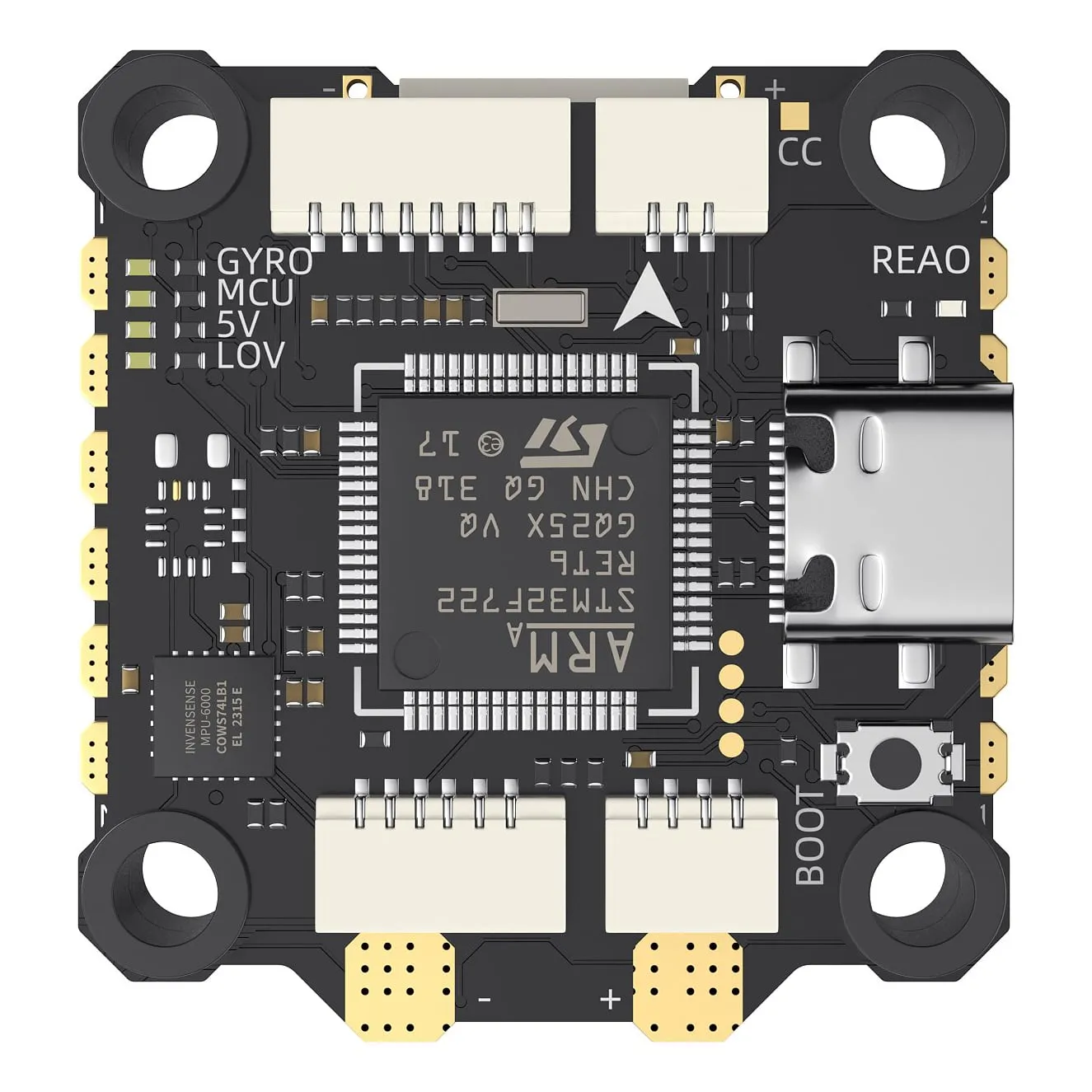

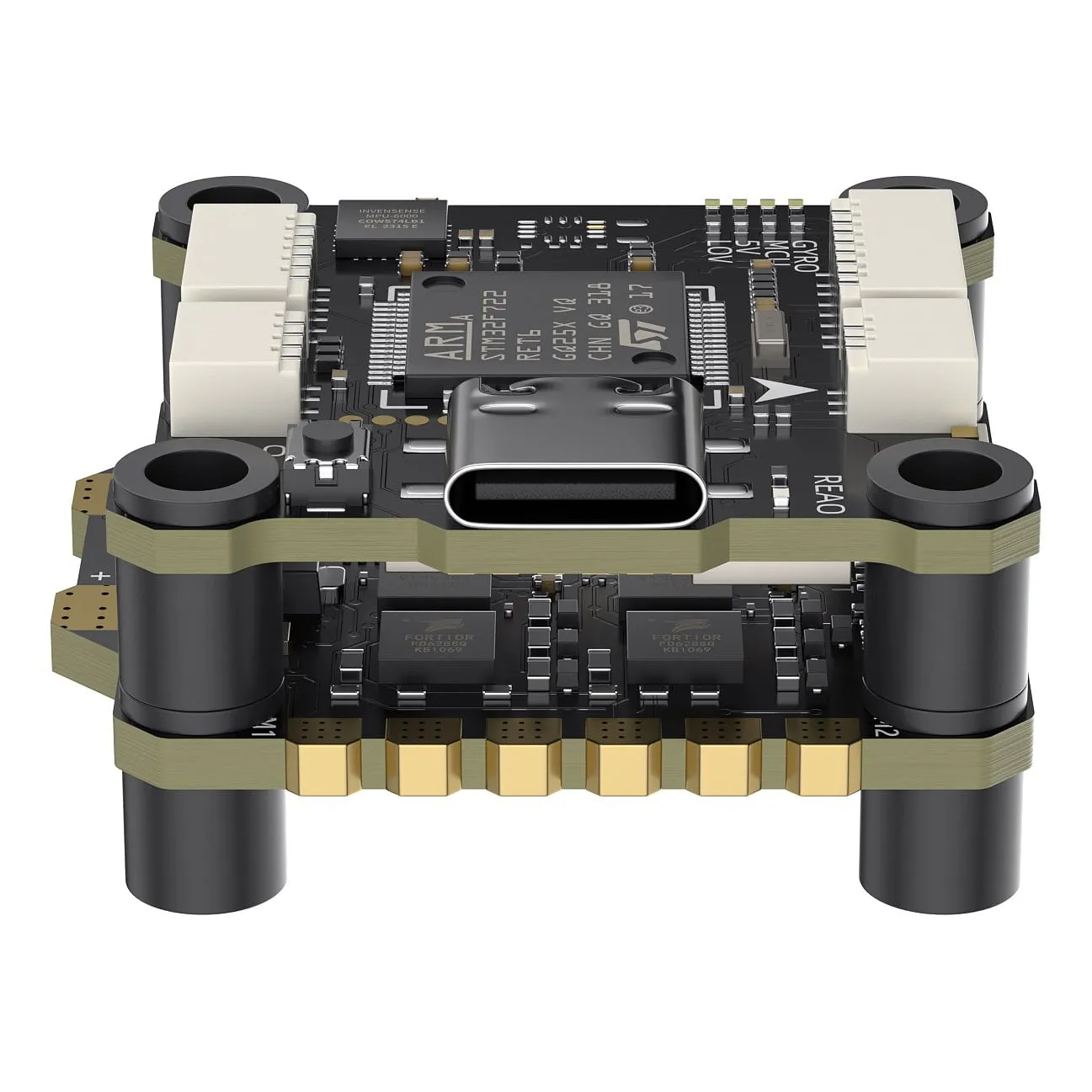

GEPRC Taker F722 BL32 E55A SE Stack

The GEPRC Taker F722 BL32 E55A SE is an F722-based flight controller and 4-in-1 ESC stack aimed at racing builds, pairing a reliable MPU6000 gyro with a 55A BLHeli_32 ESC on a compact 25.5x25.5mm mounting pattern.

Key features

• Solder-free SH1.0 terminal wiring alongside traditional pads, plus a direct plug-in connector for the DJI Air Unit.
• Dual independent BEC outputs (5V/2.5A and 10V/2A) power receivers, digital VTX systems and other accessories.
• 32Mb onboard flash gives Blackbox logging for tuning and crash analysis.
• Metal-encapsulated MOSFET ESC rated 55A continuous, 60A burst, tested stable on a 2306.5 1350KV motor with 7.5-inch props.

Specifications

• MCU: STM32F722RET6
• Gyro: MPU6000
• Mounting size: 25.5x25.5 mm
• Input voltage: 2-6S LiPo
• Continuous current: 55 A
• Burst current: 60 A (5 s)
• ESC firmware: BLHeli_32, DShot up to 600
• UARTs: 6
• Weight: FC 6.0 g, ESC 9.6 g

The 25.5x25.5mm mounting pattern suits most AIO-style frames; confirm your frame uses this hole spacing before ordering, since it differs from the more common 30.5x30.5mm layout.
