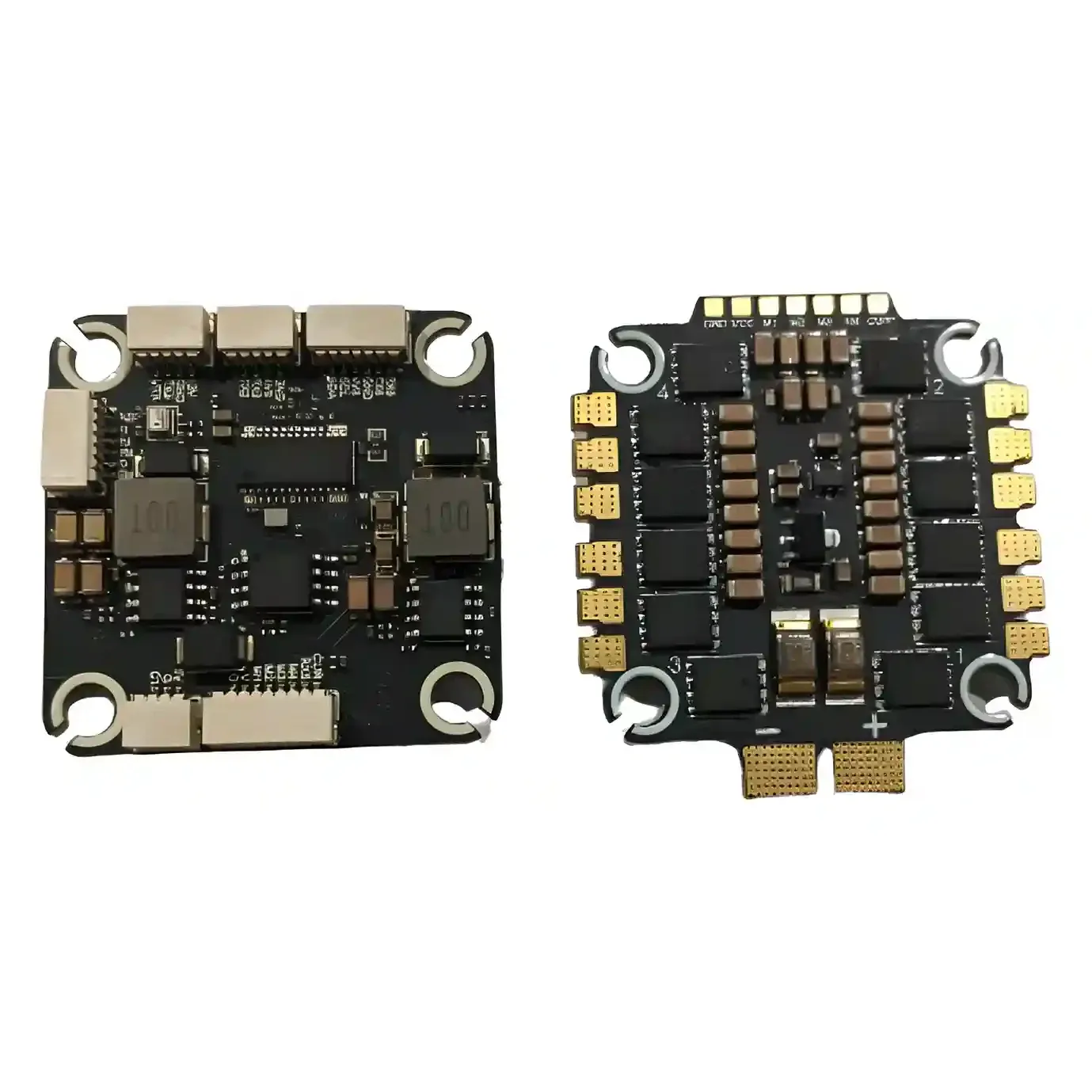

F722 BLS 55A V2 30.5x30.5mm FC & ESC Stack

A 30.5 x 30.5 mm stack pairing a V2 STM32F722 flight controller with a 55A BLHeli_S 4-in-1 ESC, for 3-6S freestyle, racing and cinematic quads that need F7 processing headroom and enough serial ports for a full peripheral load.

Key features

• SPI-connected MPU6000 gyro, valued for its low noise and mature Betaflight tuning.
• Five UARTs for receiver, VTX control, GPS and telemetry, plus Betaflight OSD on board.
• 16 MB blackbox flash for flight logs and tuning; USB-C port.
• Built-in 5 V 2 A BEC for receiver, GPS and other 5 V peripherals.
• ESC delivers 55 A continuous per channel on BLHeli_S, with DShot150/300/600, Oneshot125 and Multishot.
• Runs Betaflight and INAV.

Specifications

• FC processor: STM32F722RET6
• Gyro: MPU6000 (SPI)
• Input voltage: 3-6S LiPo (up to 25.2 V)
• UARTs: 5
• Blackbox: 16 MB flash
• BEC: 5 V / 2 A
• ESC: 55 A continuous per channel, BLHeli_S
• Mounting: 30.5x30.5 mm

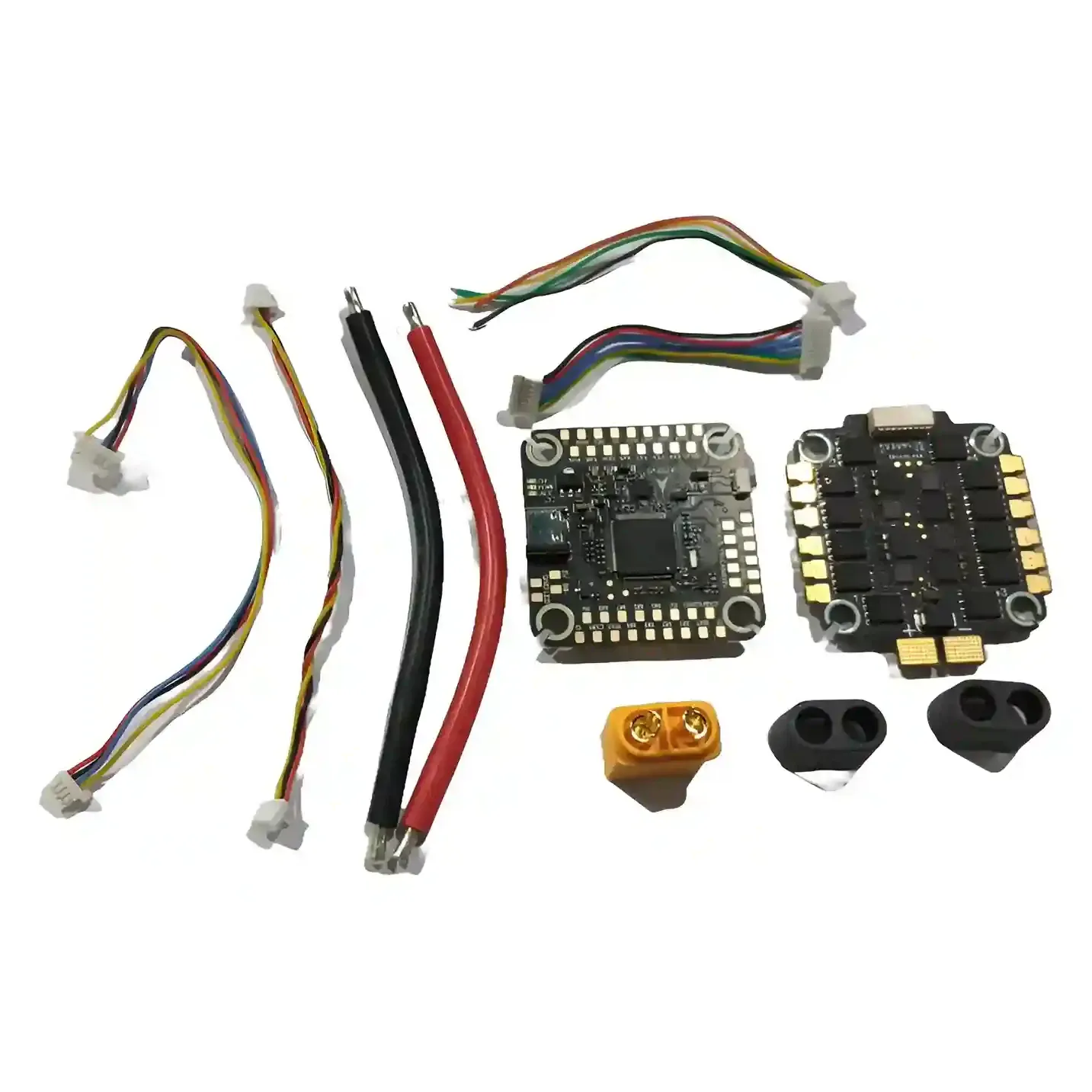

• In the box: flight controller, ESC, XT60 power lead, power input cable, 8-pin FC-to-ESC cable, 6-pin accessory cable, JST-SH harnesses, rubber grommets

The 5 V 2 A BEC covers a receiver, GPS and an analog camera; power a digital air unit straight from battery voltage. The 55A ESC rating gives headroom for 5-inch and 6-inch freestyle motors on 6S.
