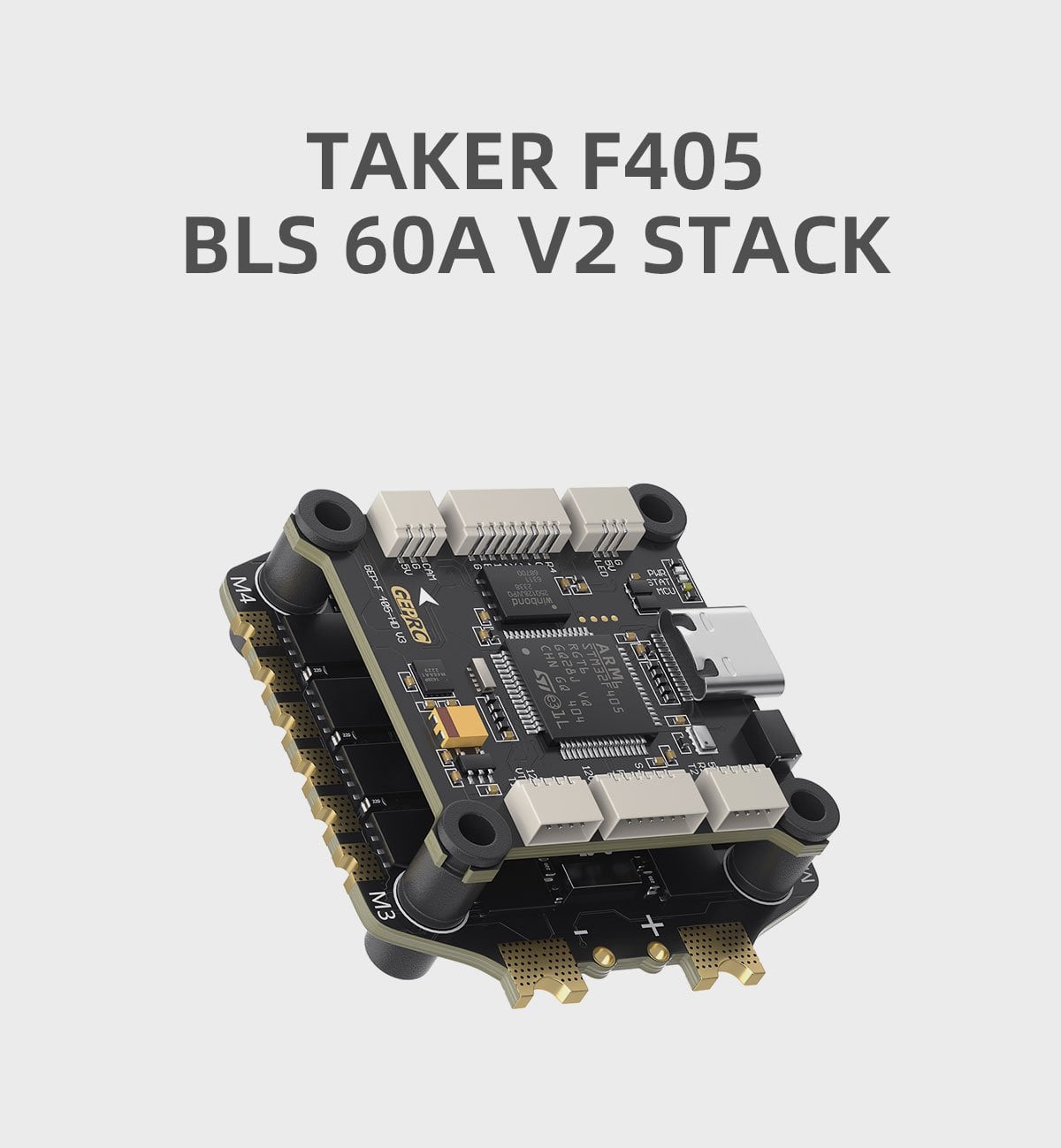

GEPRC Taker F405 BLS 60A V2 Stack

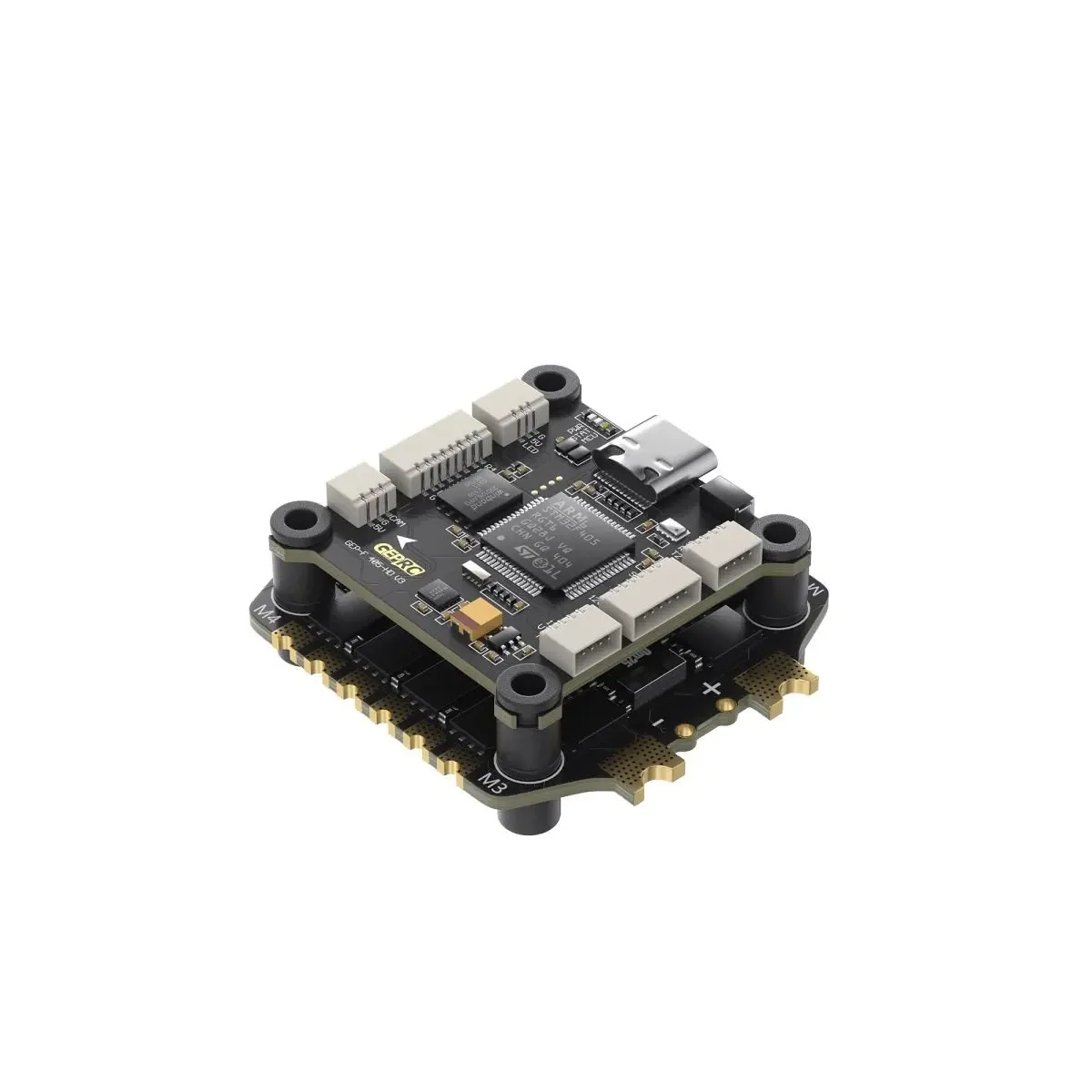

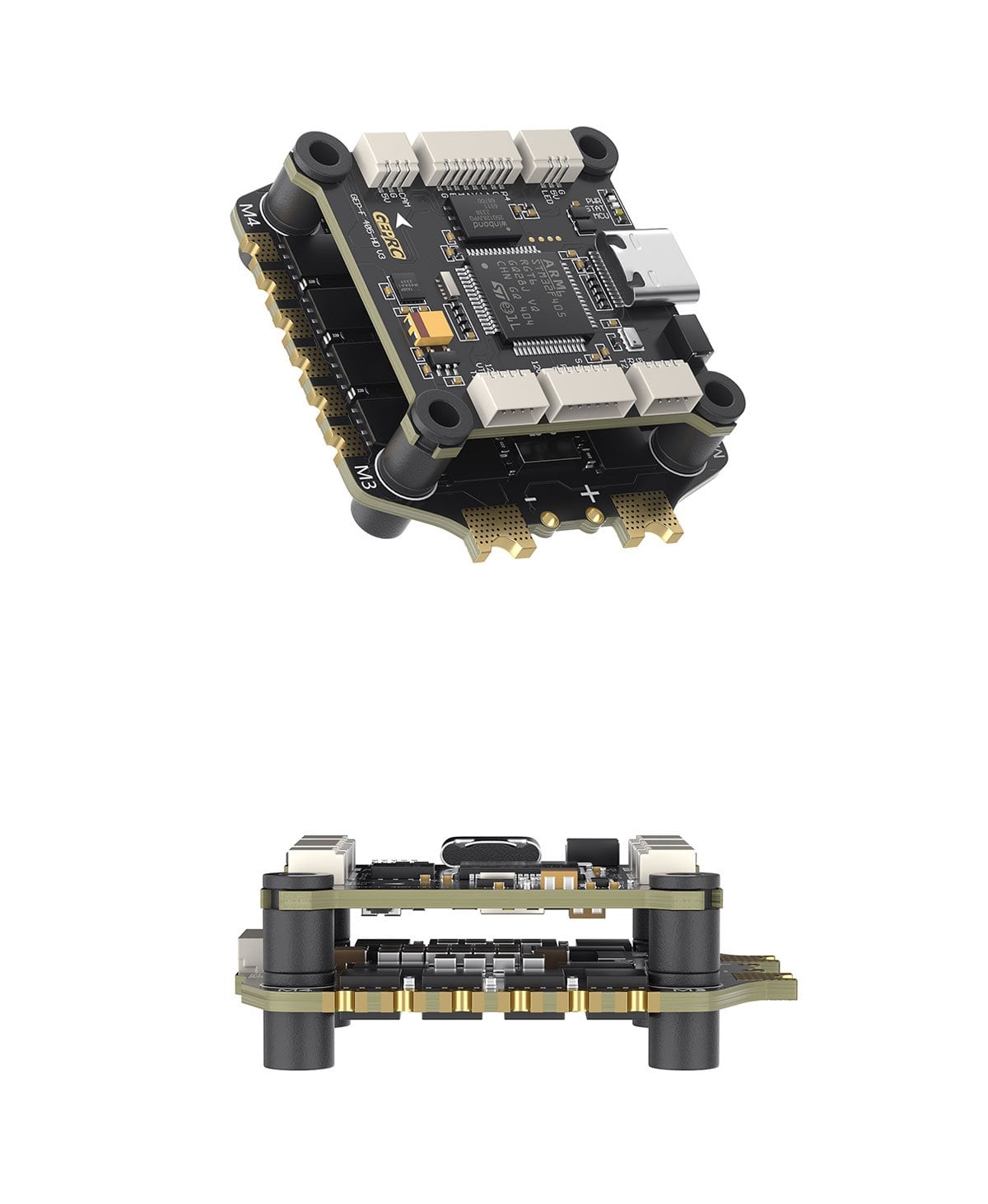

The GEPRC TAKER F405 BLS 60A V2 Stack is a robust, full-size 30.5x30.5 flight stack designed for 5-inch to 7-inch freestyle, racing, and mid-range builds. Pairing a feature-rich F405 flight controller with a high-current 60A BLHeli_S ESC, this stack delivers clean, reliable power for aggressive flight styles and heavy payload carrying on 3-6S setups.

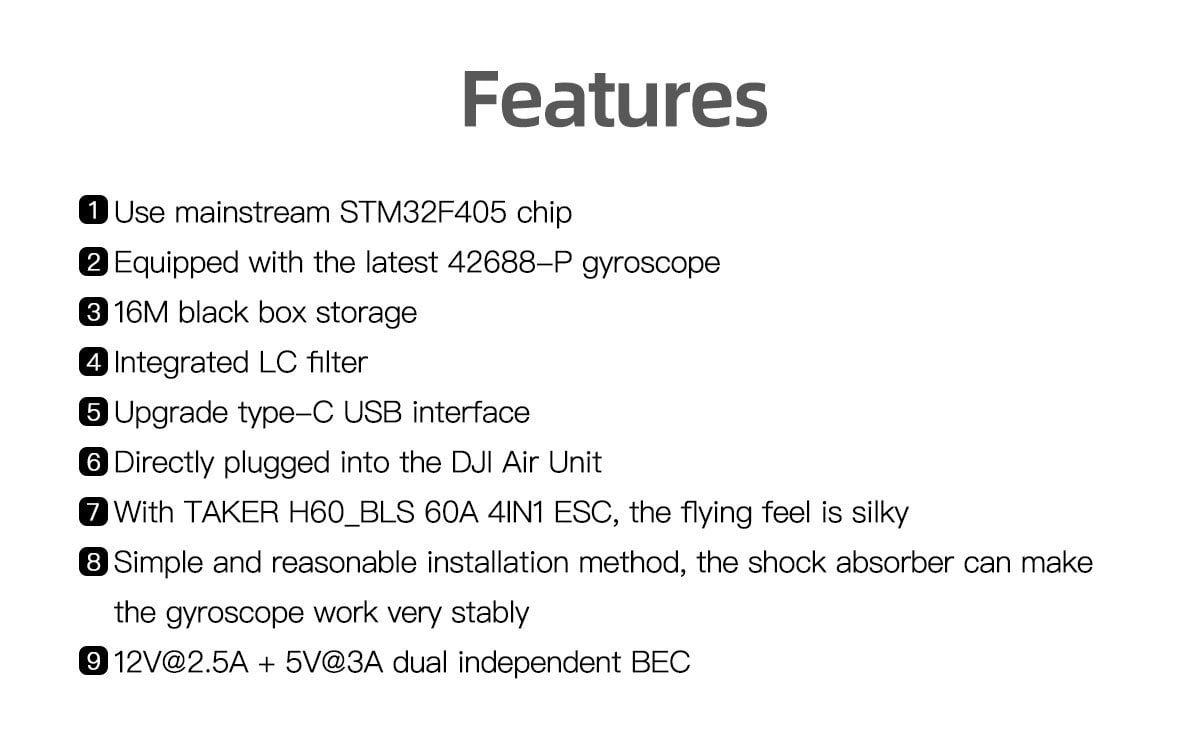

Key features

• F405 MCU, ICM42688-P gyro and an onboard BMP280 barometer ensure fast processing loop times and crisp flight tuning.
• Dedicated 12V/2.5A and 5V/3A BECs provide clean power to air units, analog VTXs, receivers, and GPS modules.
• Plug-and-play wiring port for digital FPV systems (DJI O3, Vista, Walksnail) simplifies the build process.

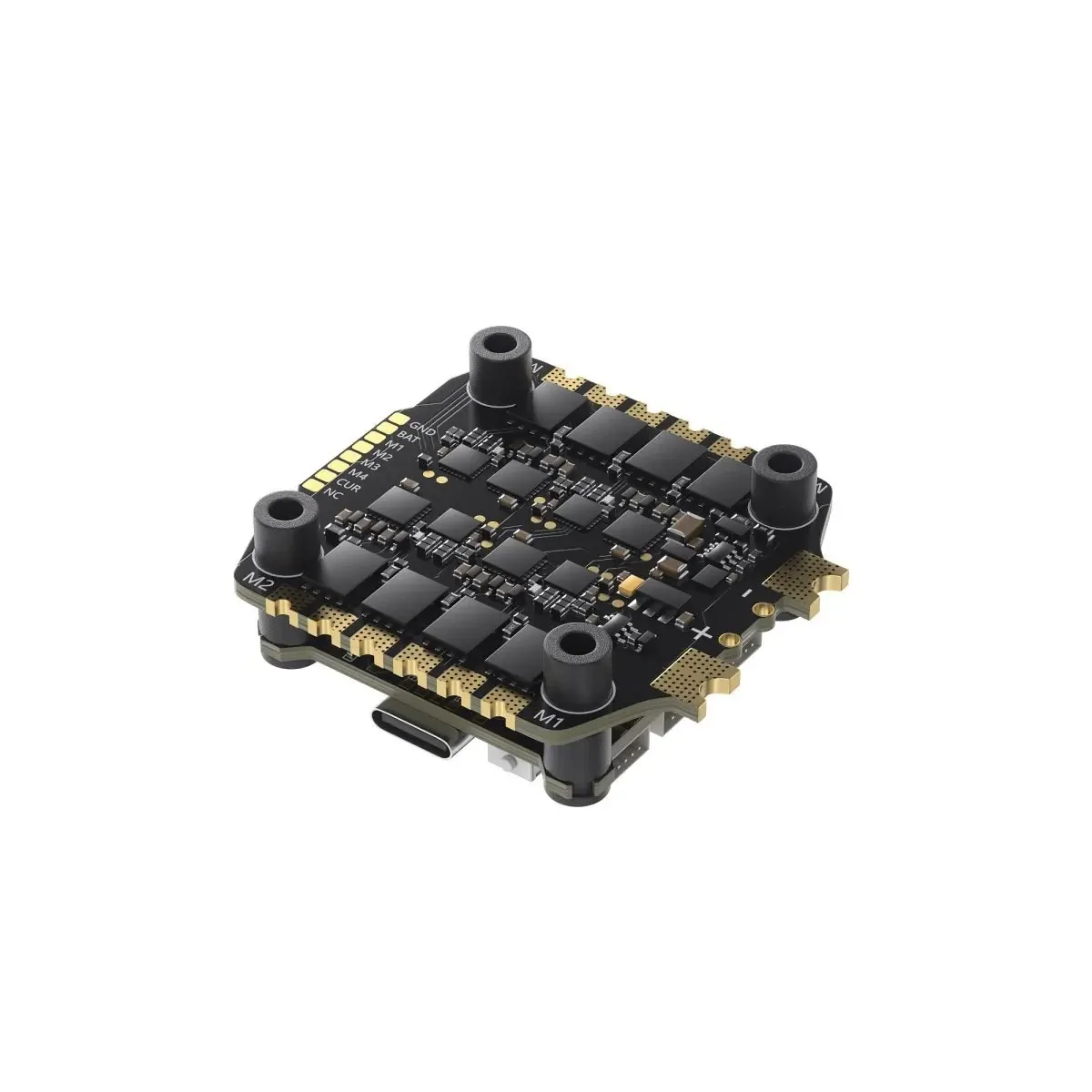

• 60A continuous (65A burst) BLHeli_S ESC manages high-kV motors and rapid throttle punches.
• 16MB onboard blackbox flash memory allows for detailed flight logging and PID tuning.

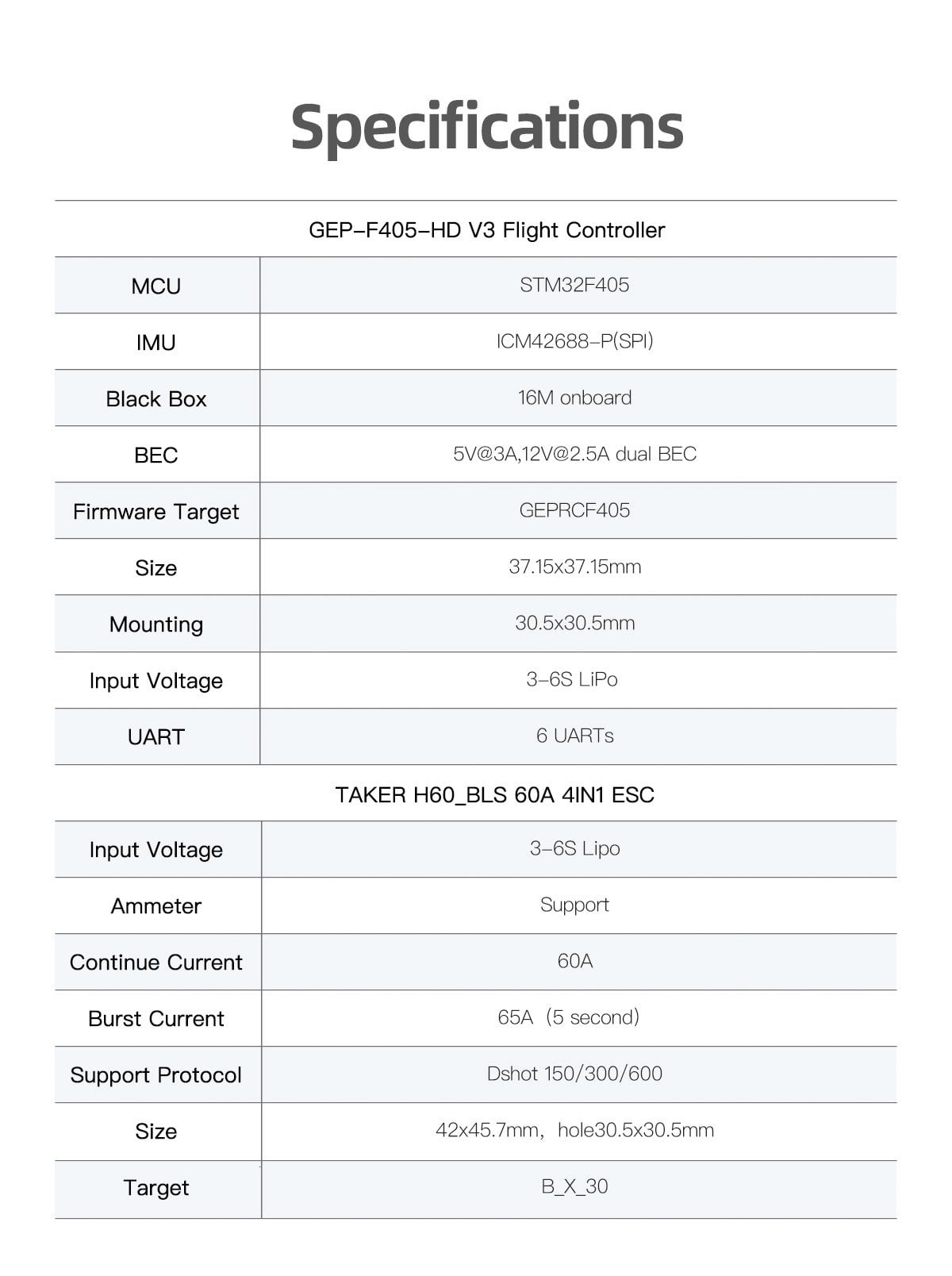

Specifications

• MCU: STM32F405
• Gyro: ICM42688-P
• Barometer: BMP280
• Input Voltage: 3-6S
• Continuous Current: 60A
• Burst Current: 65A
• ESC Firmware: BLHeli_S
• BEC: 5V/3A, 12V/2.5A
• Blackbox: 16MB
• OSD: AT7456E
• Mounting: 30.5x30.5 (M3)
• Weight: FC 7.3g, ESC 14.9g

Integrated with standard M3 mounting holes, the TAKER F405 V2 stack drops neatly into most mid-to-large FPV frames. It comes ready for modern digital HD builds while retaining full analog OSD compatibility via the onboard AT7456E chip.
