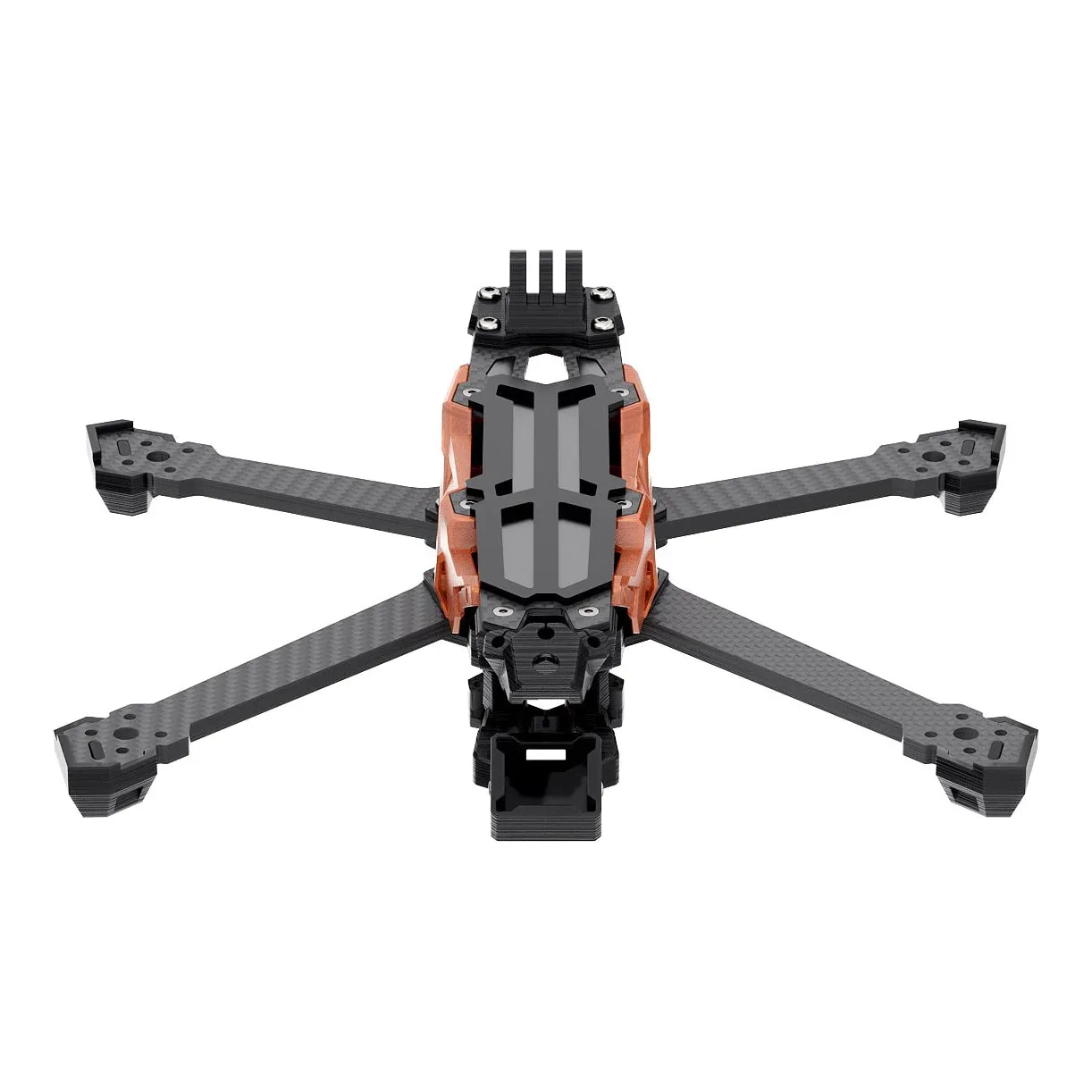

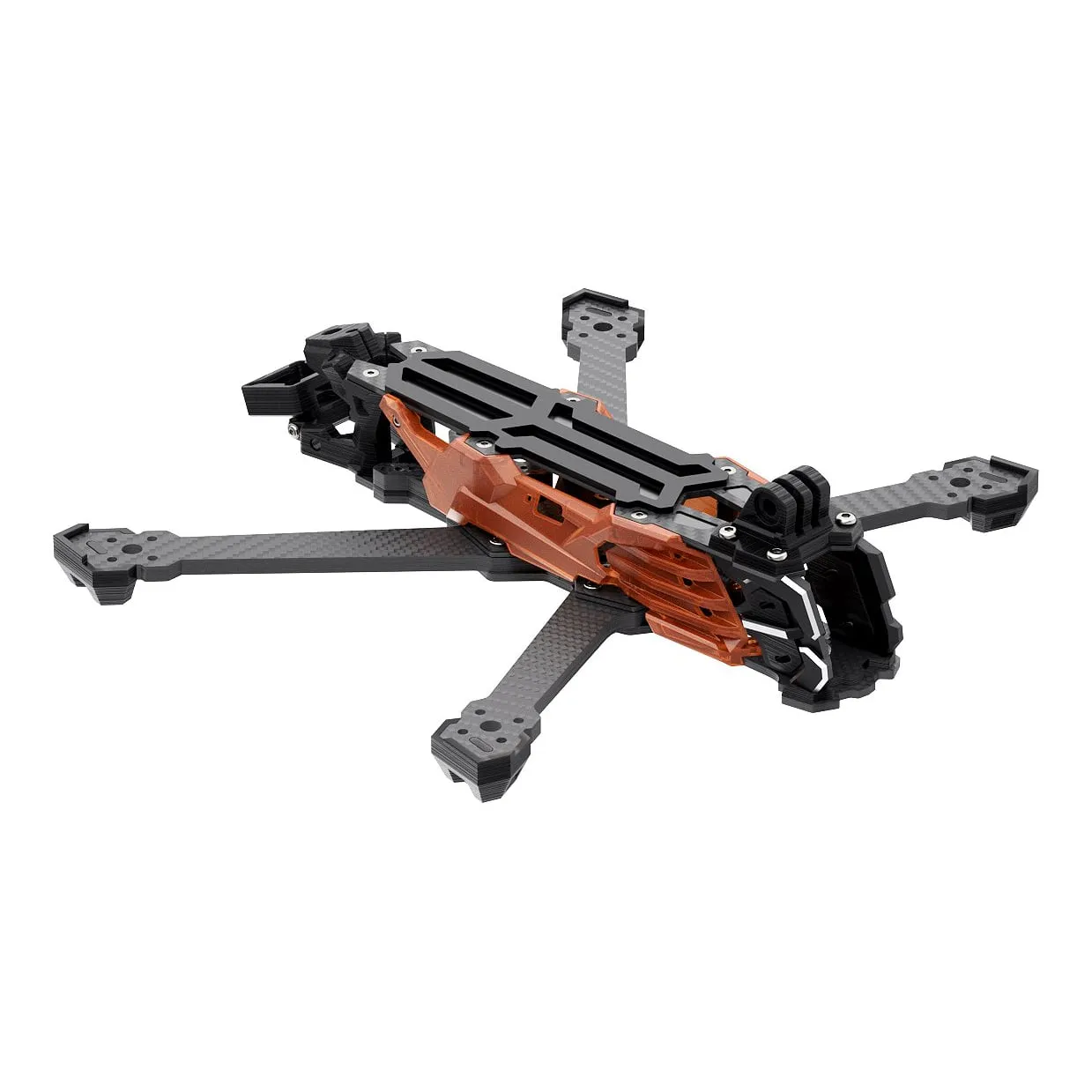

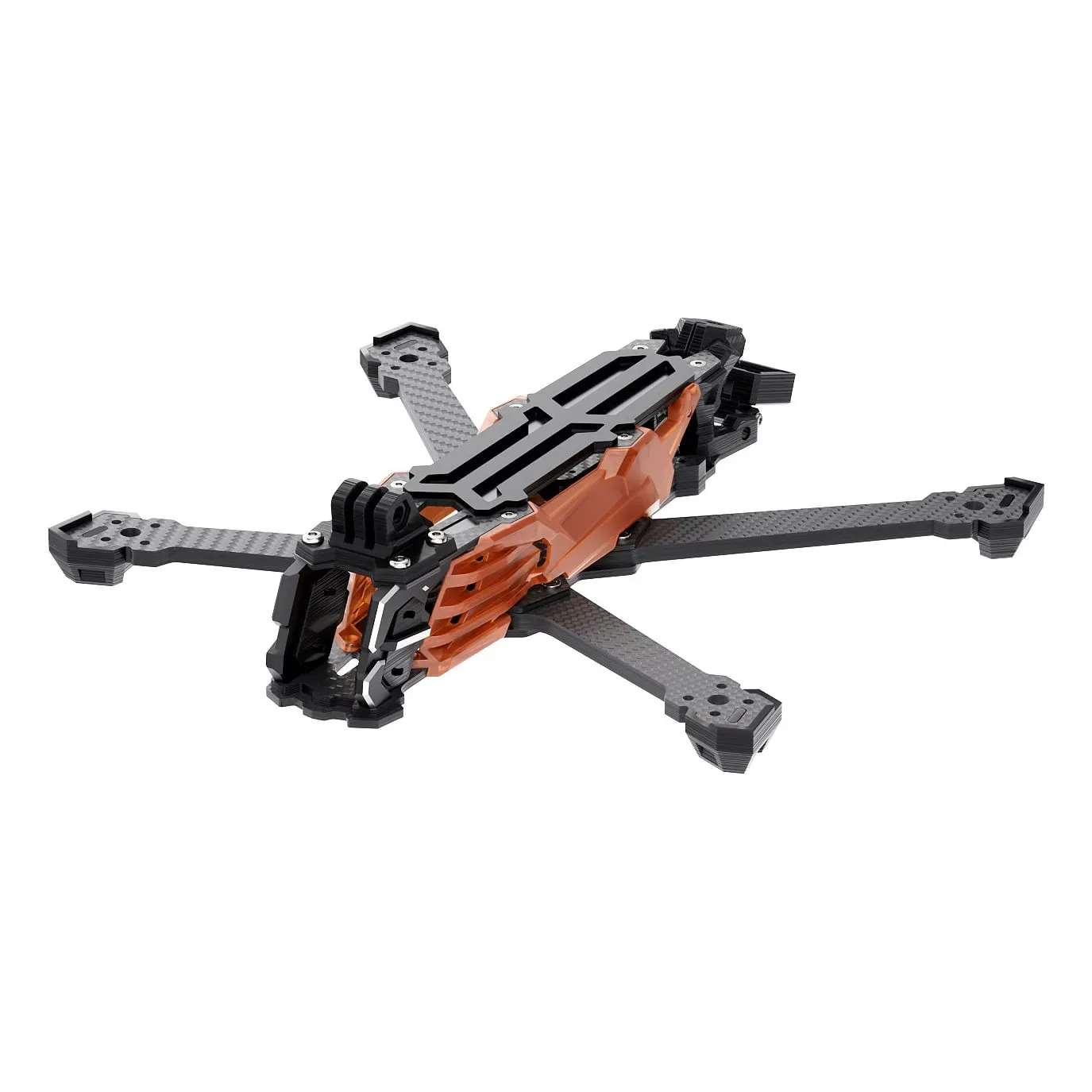

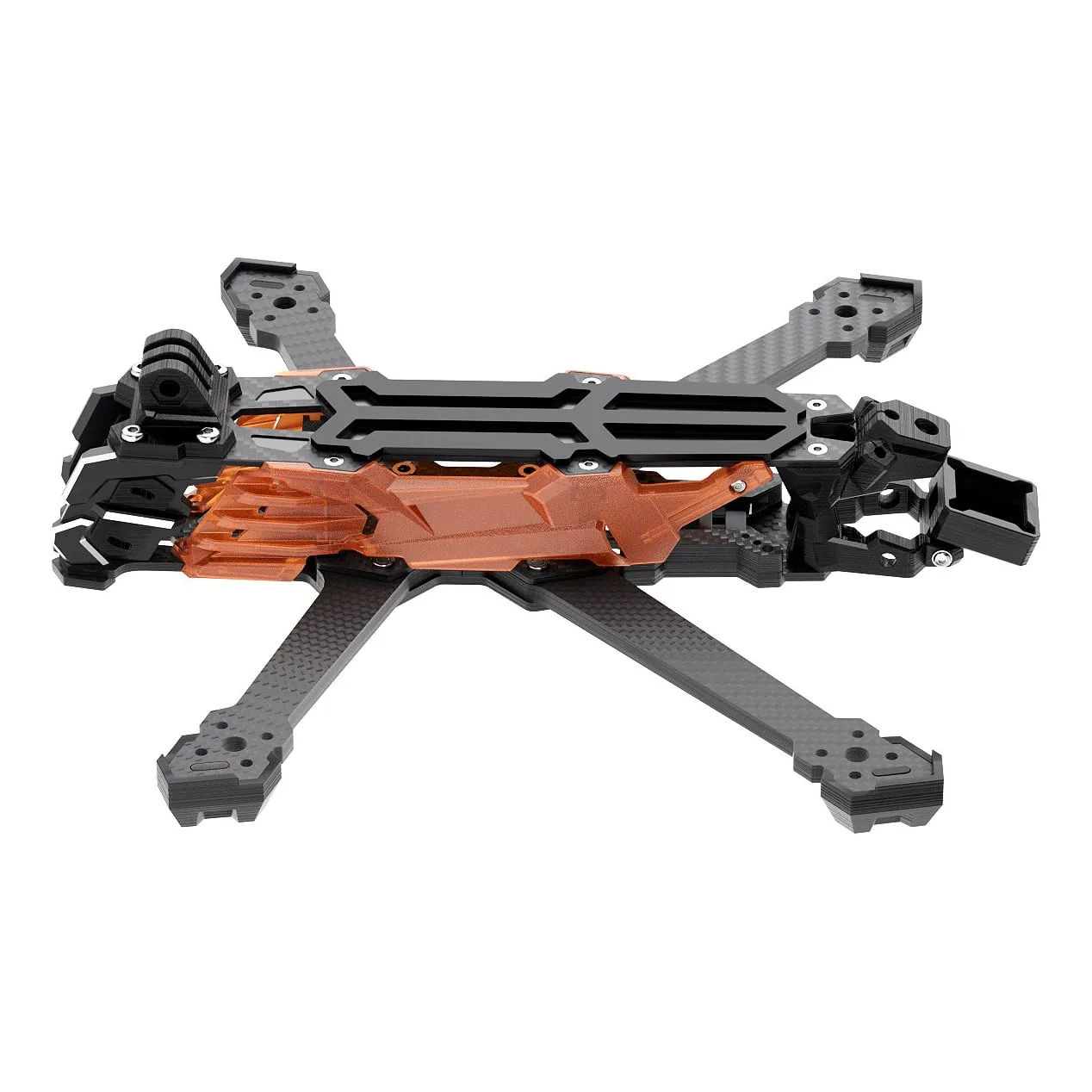

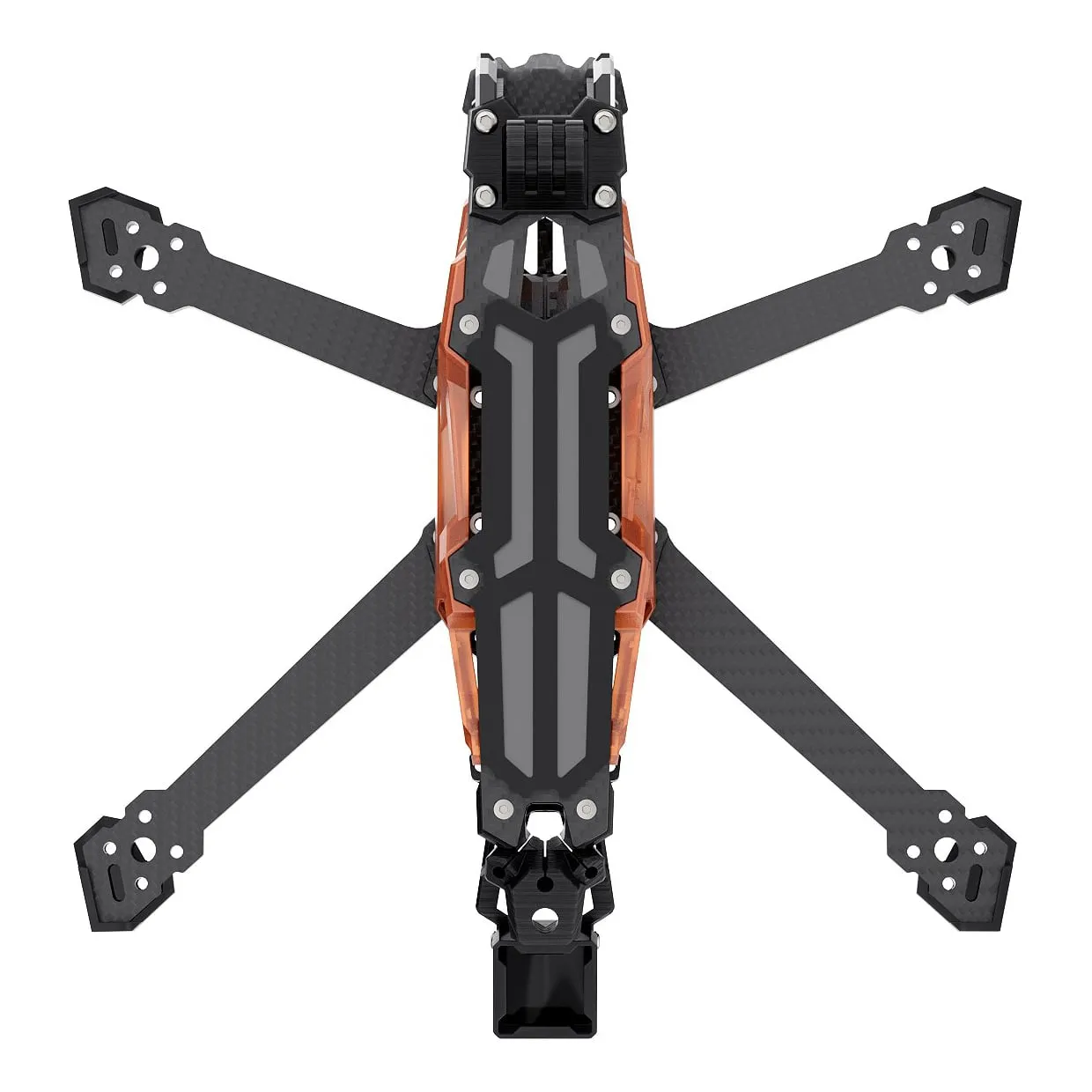

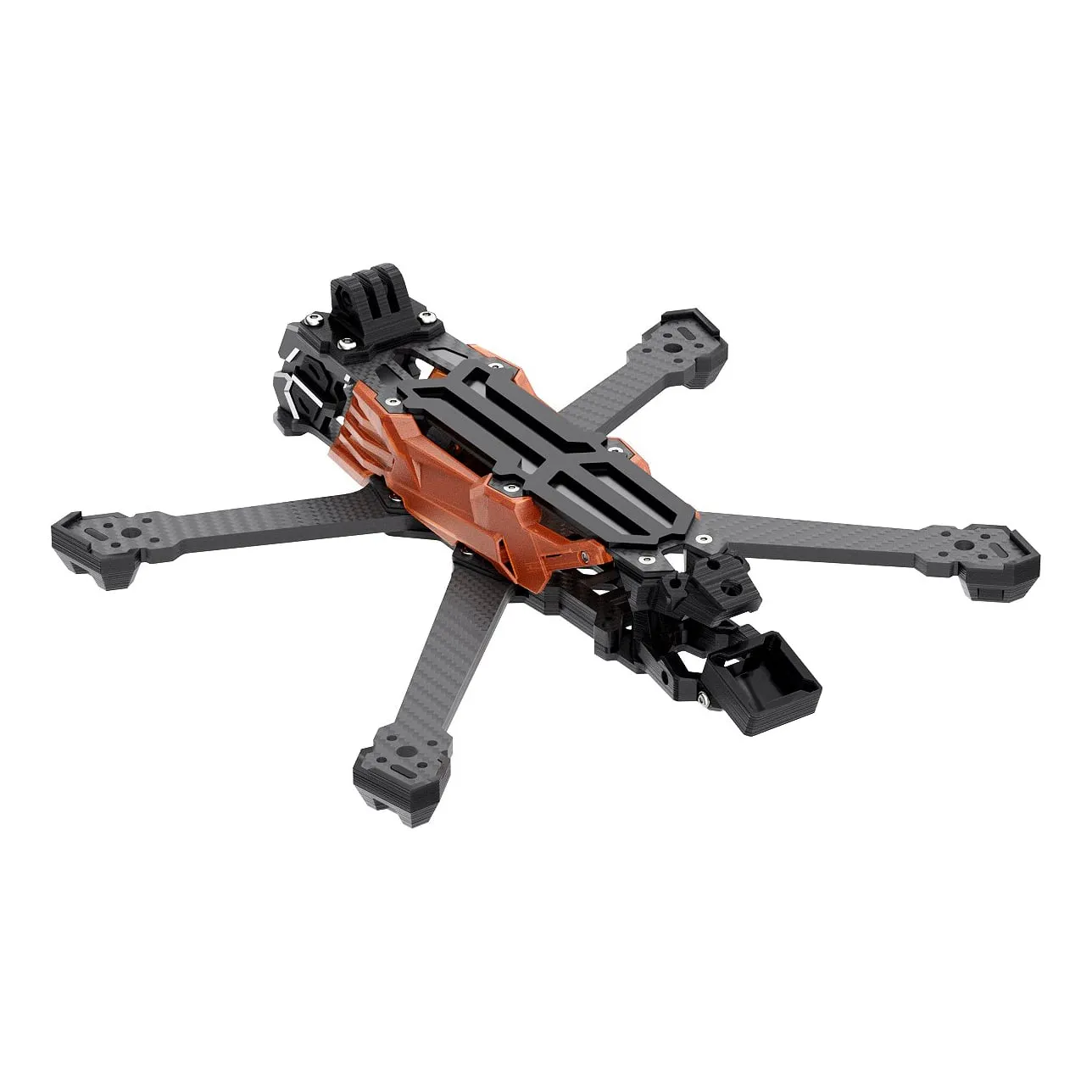

GEPRC GEP-Vapor-D5-O4 Pro Frame
₹8,199Incl. GST
SKU GEPRC-VAPOR-D5-O4PRO-FRAME
Prop Size: 5"Wheelbase: 238.4 mmCamera Size: 19mm, 20mmMade in India: No
Dispatched within 2 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The GEPRC GEP-Vapor-D5-O4 Pro is a 5-inch long-range frame built around the DJI O4 Pro air unit. Its deadcat arm layout sweeps the front arms back to keep propellers out of the HD video feed, on a carbon fibre chassis sized for cinematic cruising.
Key features
- Dedicated aluminium lens mount matched to the O4 Pro VTX, with vibration-damping silicone
- 5mm carbon fibre arms for rigidity, plus camera guard side panels and a front lip for impact protection
- Quick-release design speeds up field repairs after a crash, without a full teardown
- Rear antenna mount supports both the stock O4 Pro antenna and common SMA replacement antennas
Specifications
- Wheelbase: 238.4mm
- Arm thickness: 5.0mm
- FC mounting: 20x20mm / 30.5x30.5mm
- VTX mounting: 20x20mm / 25x25mm / 30.5x30.5mm
- Motor mounting: 16x16mm
- Camera mounting: 19mm / 20mm
- Recommended propeller: 5-inch
- Weight: approx. 221g
Includes battery straps, silicone pads, a full screw set and the L-key/wrench tools needed for assembly.
| Prop Size | 5" |
|---|---|
| Wheelbase | 238.4 mm |
| Camera Size | 19mm, 20mm |
| Made in India | No |
| Brand | GEPRC |
| Weight | 221 g |
| Material | Carbon Fiber |
| Arm Thickness | 5 mm |
| Mounting Size | 20x20, 30.5x30.5 |
| Motor Mount | 16x16mm |
