Flywoo GOKU GM10 Mini V3 GPS

The Flywoo GOKU GM10 Mini V3 is a compact GPS module tailored for micro and lightweight FPV builds requiring accurate GPS rescue and position hold functionality. Built around the advanced u-blox M10 architecture, this V3 module delivers significantly faster satellite acquisition and higher tracking sensitivity than legacy M8 receivers, ensuring a rapid 3D fix before you arm your quad.

Key features

• u-blox M10050 chipset enables concurrent reception from up to three GNSS constellations for maximum precision.
• Maintains a robust position lock and high satellite counts even in complex terrain or urban flight environments.
• Low-profile 18x18mm footprint integrates easily onto the top plates of tight freestyle and long-range frames.

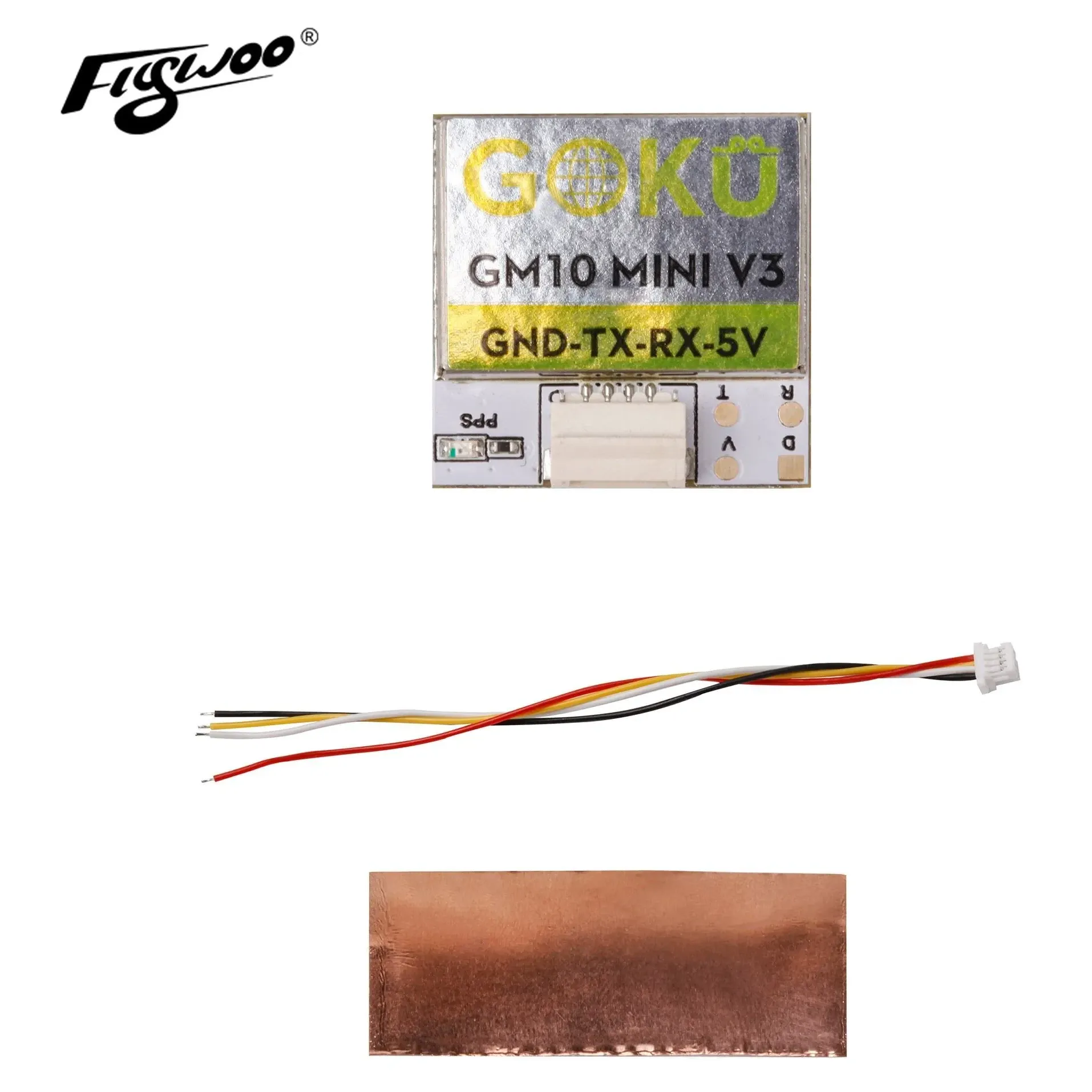

• Features a built-in SH1.0 connector and includes pre-crimped wiring for direct plug-and-play installation with modern flight controllers.

Specifications

• GNSS receiver: u-blox M10050
• Supported constellations: GPS, GLONASS, Galileo, BeiDou
• Output protocol: UBLOX
• Default baud rate: 115200 bps
• Input voltage: 3.3V to 5V

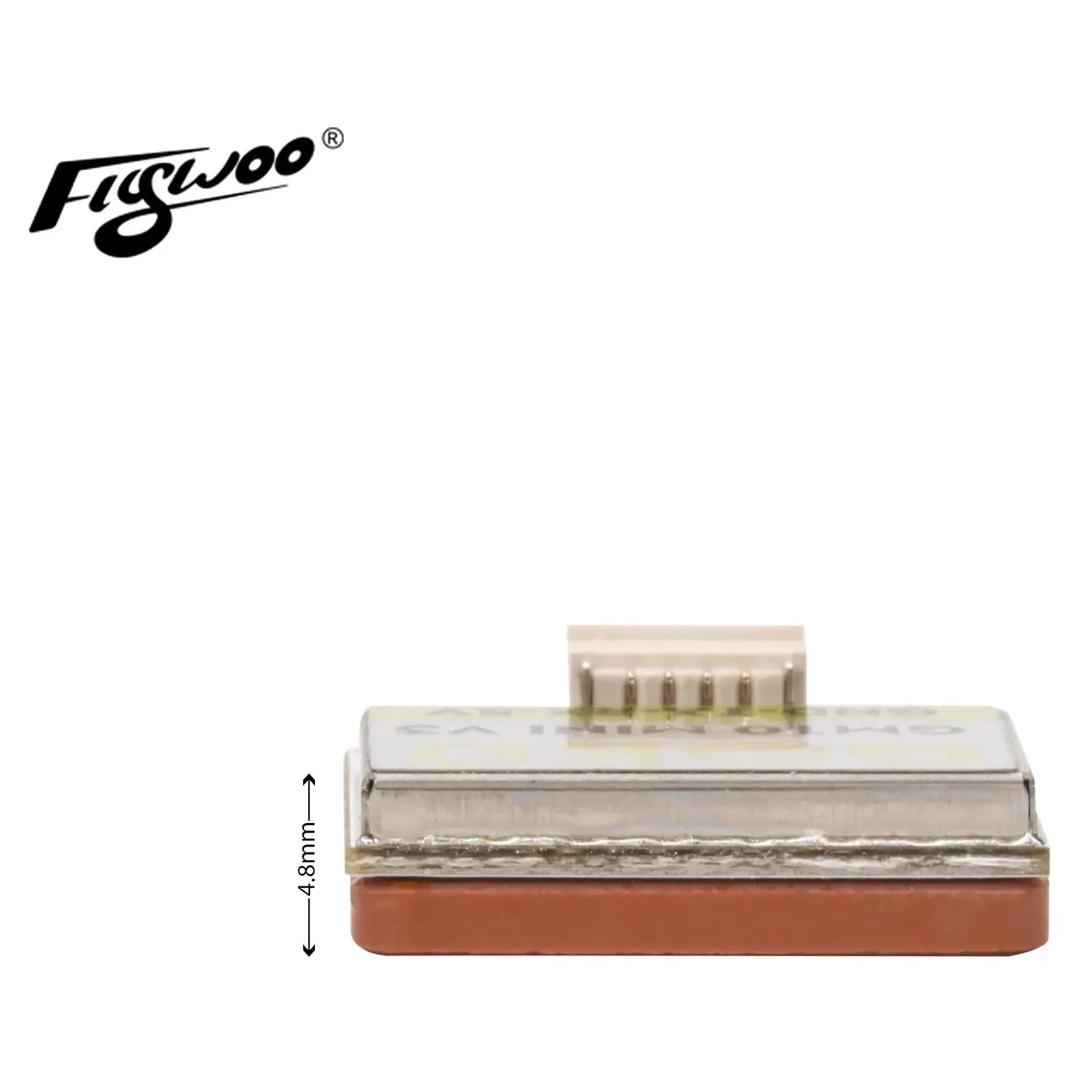

• Dimensions: 18 x 18 x 4.8 mm
• Weight: 4.1 g

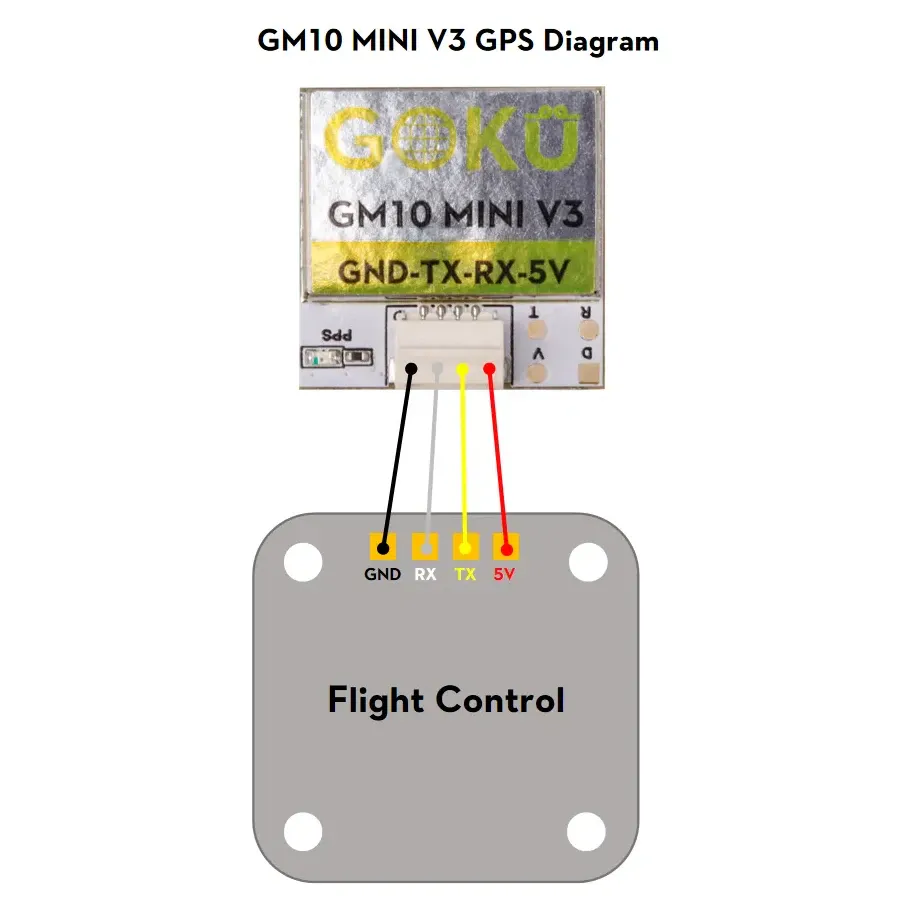

When installing, ensure your flight controller UART is configured to 115200 baud and the UBLOX protocol in Betaflight, ArduPilot, or INAV to establish communication with the receiver.
