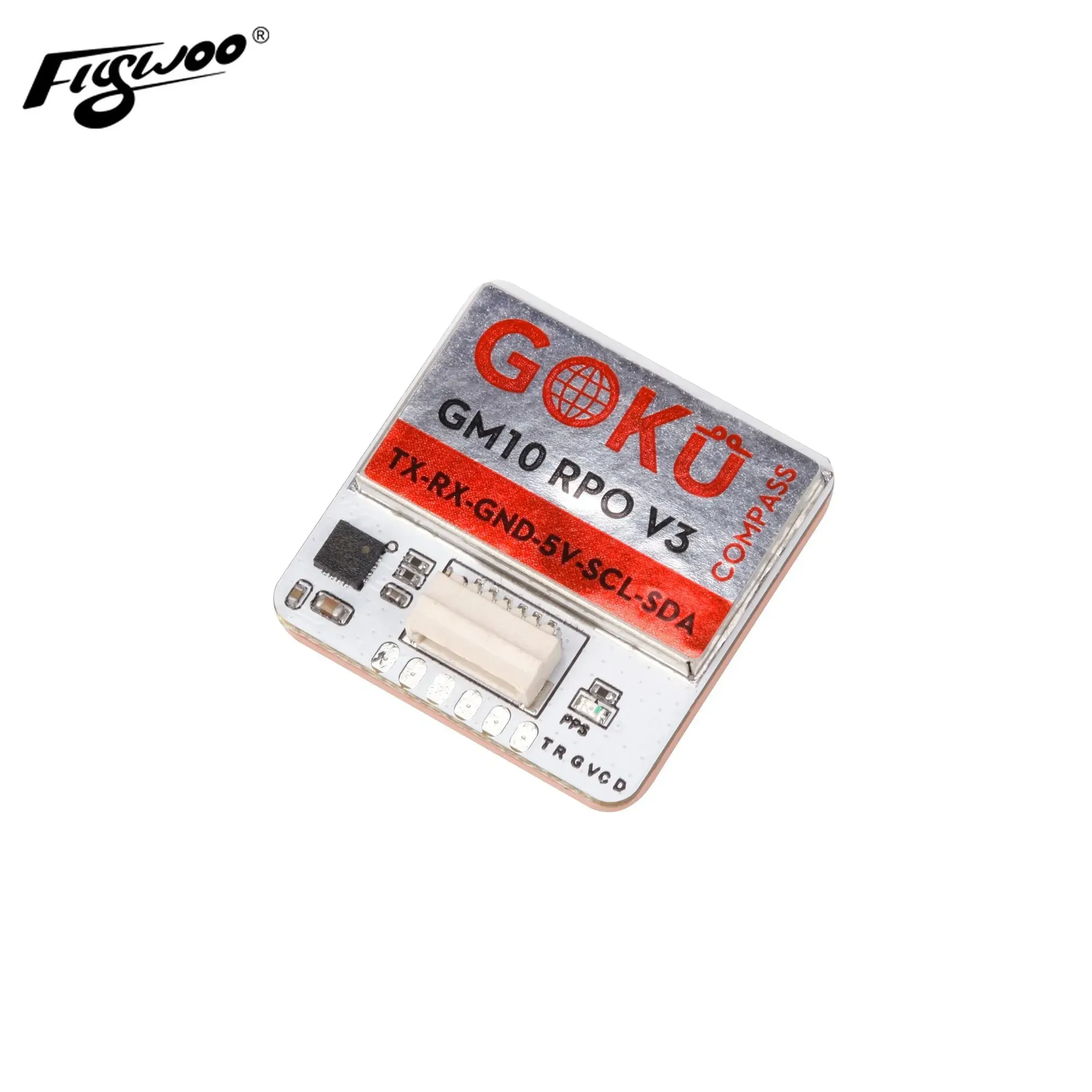

GOKU GM10 Pro V3 GPS w/ Compass

The Flywoo GOKU GM10 Pro V3 is a highly sensitive GPS and compass module tailored for long-range FPV drones, fixed-wing aircraft, and autonomous builds requiring reliable Return-to-Home (RTH) capabilities. Powered by the 10th-generation u-blox M10050 chipset, it tracks up to four satellite constellations concurrently for dense urban reliability and highly accurate positional data.

Key features

• 10th-Gen architecture: Leverages the u-blox M10050 chip for stronger signal retention and rapid cold-start locks.

• Integrated compass: Built-in 3-axis magnetometer provides accurate directional heading crucial for INAV and ArduPilot navigation.

• Fast hot starts: An onboard supercapacitor stores ephemeris data, allowing instant satellite acquisition when swapping flight batteries.

• Concurrent tracking: Simultaneously receives GPS, GLONASS, Galileo, and BeiDou networks.

Specifications

• Chipset: u-blox M10050

• Compass protocol: I2C

• Supported constellations: GPS, GLONASS, Galileo, BeiDou

• Input voltage: 3.3V to 5V

• Baud rate: 115200 bps

• Connector: 6-pin SH1.0 (1.0mm pitch)

• Dimensions: 22 x 22 x 5.4 mm

• Weight: 5.8 g

Note: Ensure your flight controller is running Betaflight 4.3 or newer, as earlier versions do not support the UBLOX protocol for M10 generation GPS units. At 22x22mm, it fits standard mid-size TPU GPS mounts perfectly on 5-inch to 7-inch frames.
