GEPRC M10 Nano GPS Module

The GEPRC M10 Nano is an ultra-compact, featherweight GPS module designed specifically for micro drones, toothpick builds, and weight-sensitive cinewhoops. Powered by the 10th-generation u-blox M10 chipset, it delivers rapid satellite acquisition and rock-solid signal retention, allowing your sub-250g quad to lock onto satellites much faster than older M8 alternatives.

Key features

• Built around the u-blox M10 GNSS chip for significantly faster cold starts and higher active satellite counts.
• Concurrent reception of up to three constellations (GPS, Galileo, and BDS) for superior positioning accuracy in challenging signal environments.
• Minimalist footprint weighing just 2.1 grams, making it virtually unnoticeable on micro FPV builds.
• Integrated low-noise amplifier (LNA) and SAW filter to mitigate interference from video transmitters and high-current wiring.

Specifications

• GNSS Chip: u-blox M10
• Supported Constellations: GPS, Galileo, BDS, QZSS, SBAS
• Input Voltage: 3.3-5V
• Baud Rate: 115200 bps
• Output Protocol: UBLOX

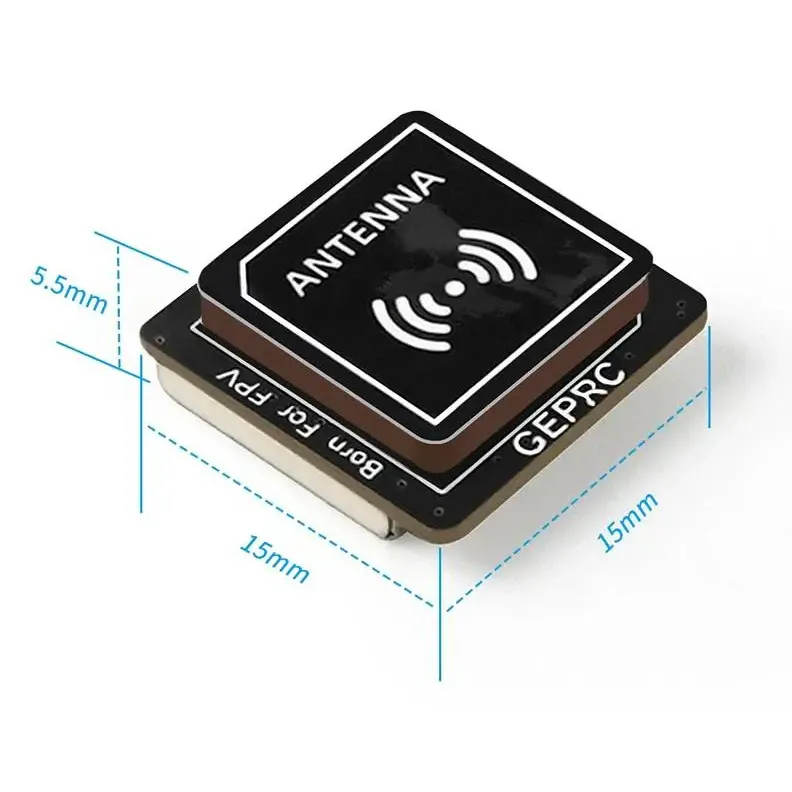

• Dimensions: 15 x 15 x 5.5 mm
• Weight: 2.1 g

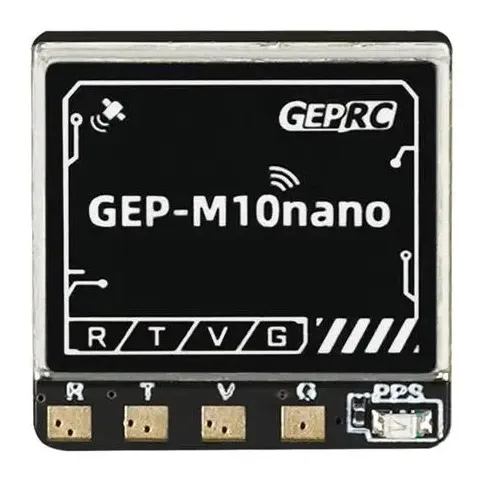

Because this Nano version omits a built-in magnetometer (compass), it can be mounted directly on your top plate or TPU tail mount without suffering from electromagnetic interference caused by nearby power leads. Simply wire it to any spare flight controller UART to enable Betaflight GPS Rescue and live OSD telemetry.
