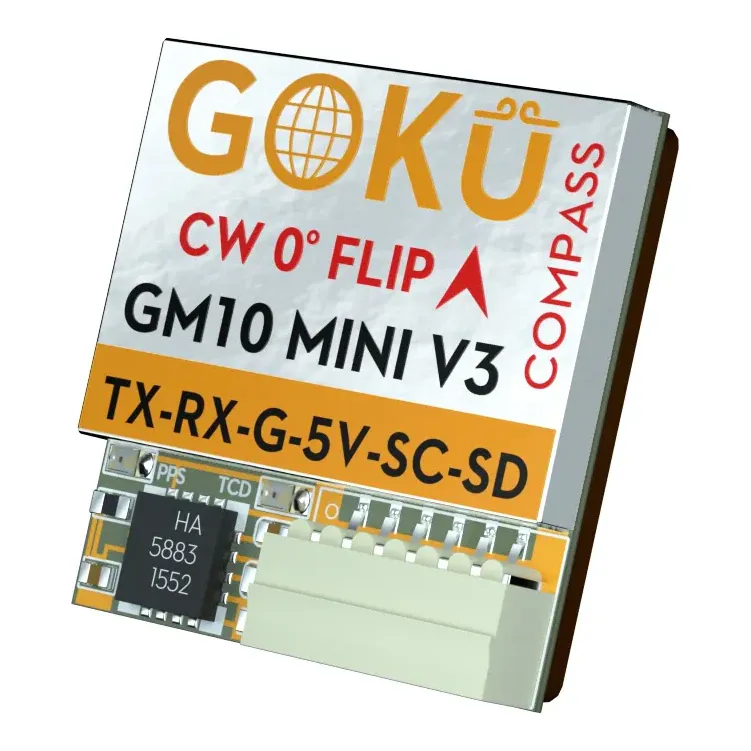

Flywoo GOKU GM10 Mini V3 GPS w/Compass

The Flywoo GOKU GM10 Mini V3 is a compact 18mm GPS and compass module for mid-sized FPV quads, long-range cruisers and cinewhoops. Built on the 10th-generation u-blox M10050 chip, it acquires satellites faster and holds lock more reliably than older M8N modules.

Key features

• u-blox M10 chipset tracks GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS concurrently, up to 32 satellites.
• Integrated QMC5883L compass supplies the heading data Betaflight GPS Rescue and INAV navigation need.
• Built-in flash and a farad capacitor retain configuration and ephemeris data for a fast hot start between battery swaps.

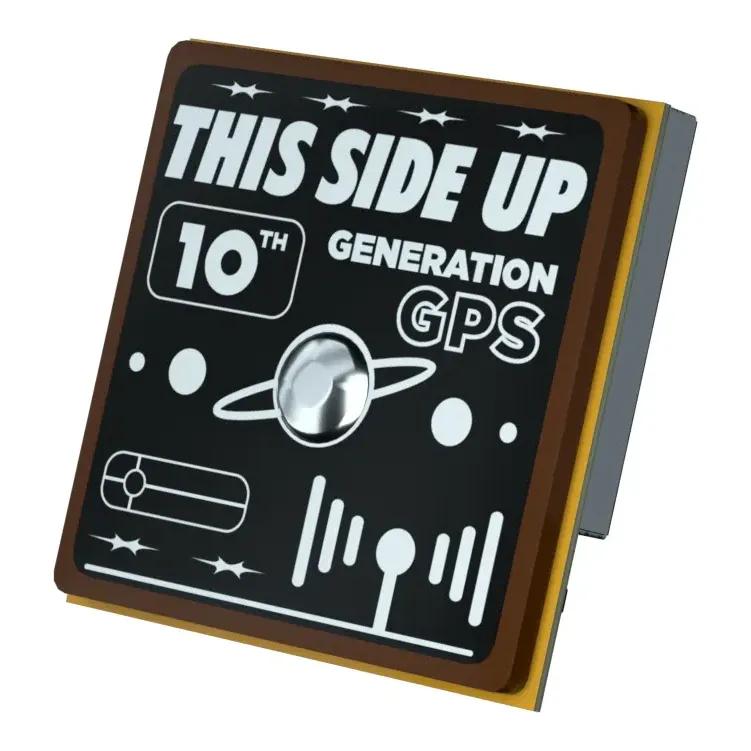

• Compact 18 x 18mm ceramic patch antenna keeps the footprint small for tighter top-plate mounts.
• 10Hz default update rate (adjustable 1-10Hz) for smooth telemetry and heading tracking.

Specifications

• GNSS chip: u-blox M10050
• Receiving format: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
• Compass: QMC5883L, integrated
• Data protocol: UBLOX / NMEA
• Default baud rate: 115200 bps
• Input voltage: 5V

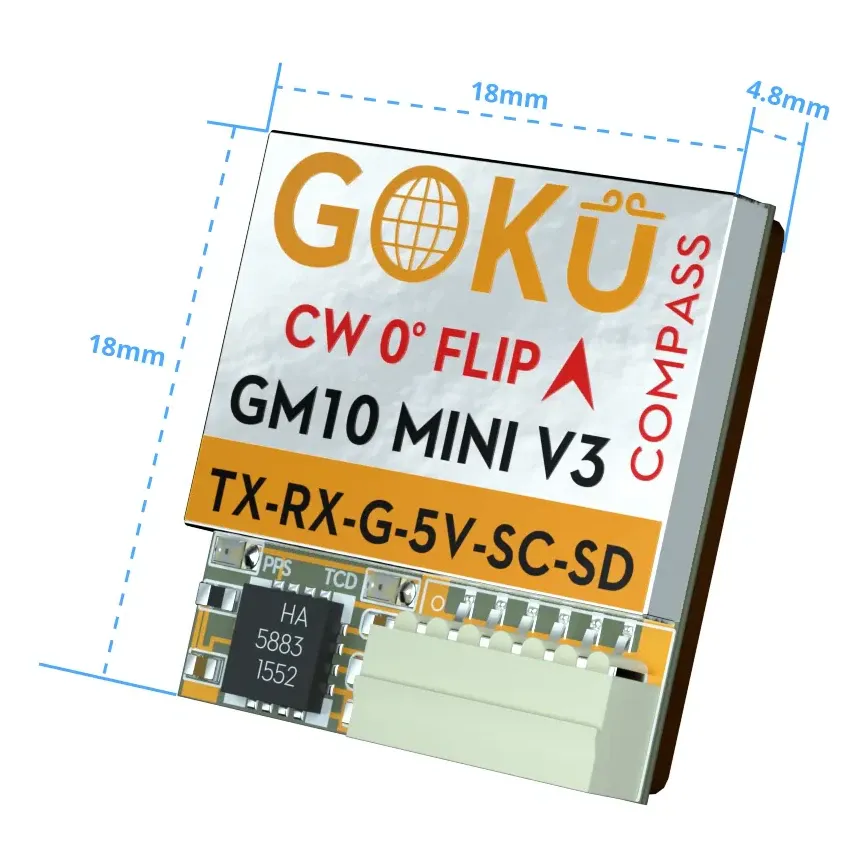

• Dimensions: 18 x 18 x 4.8mm
• Weight: 4.1g
• Channels: 72
• Firmware: Betaflight 4.3+ for UBLOX protocol (4.2 and earlier use NMEA)
• In the box: GPS module, 150 mm cable, copper foil

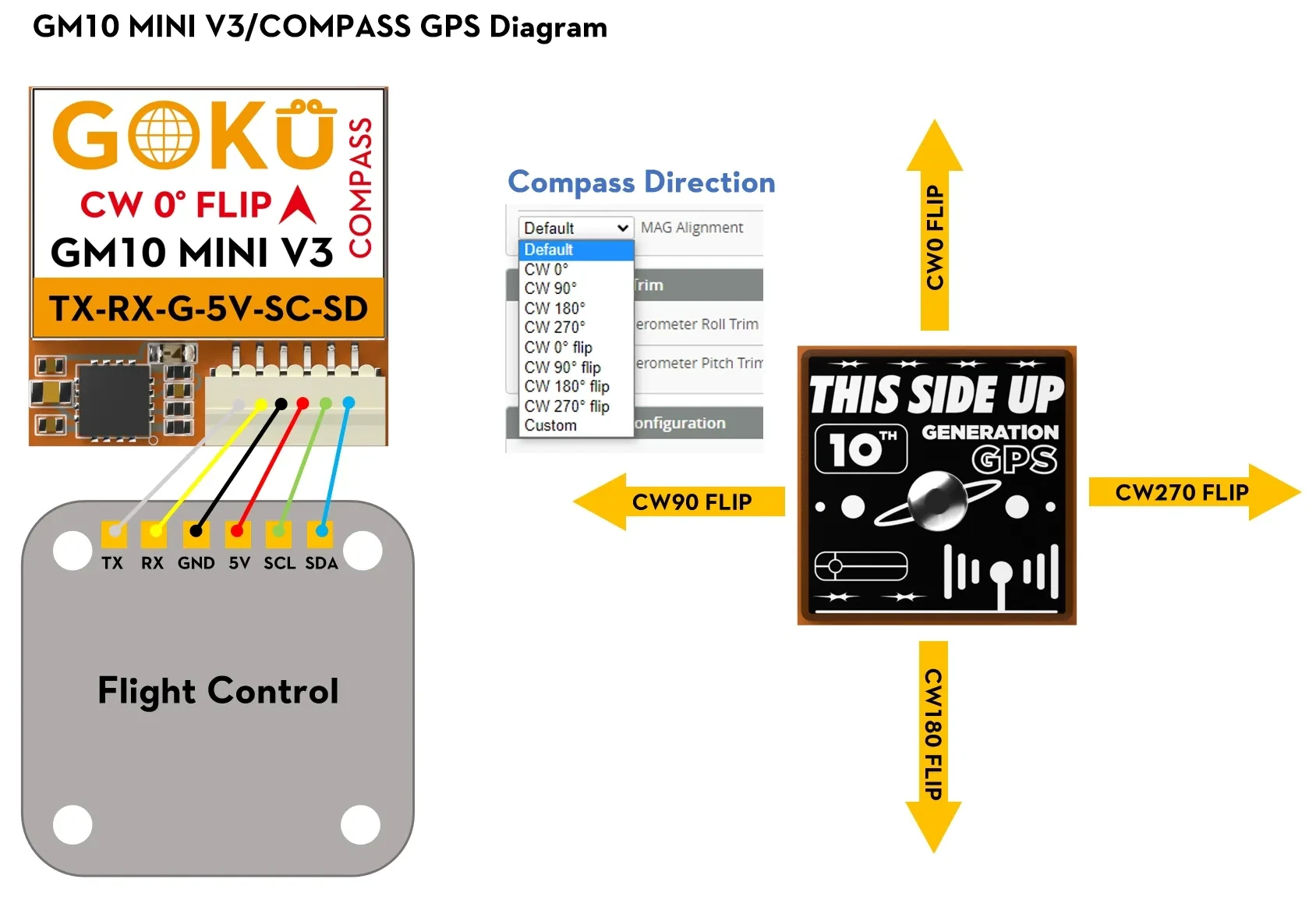

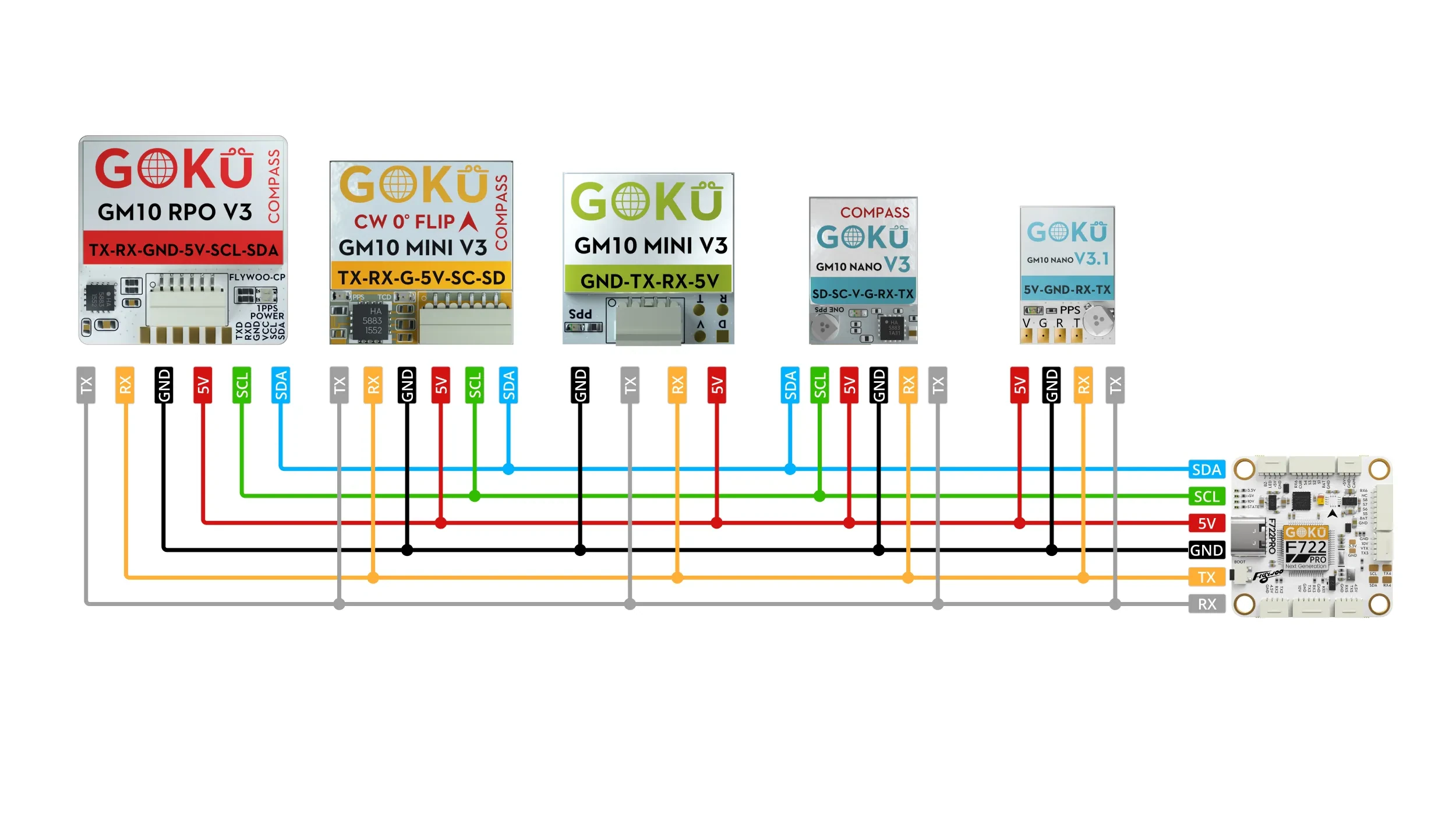

Connects via a 6-pin SH1.0 patch seat (TX, RX, GND, 5V, SCL, SDA). Mount it high on the frame, away from the battery leads, motors and ESCs, to keep the compass reading clean.
