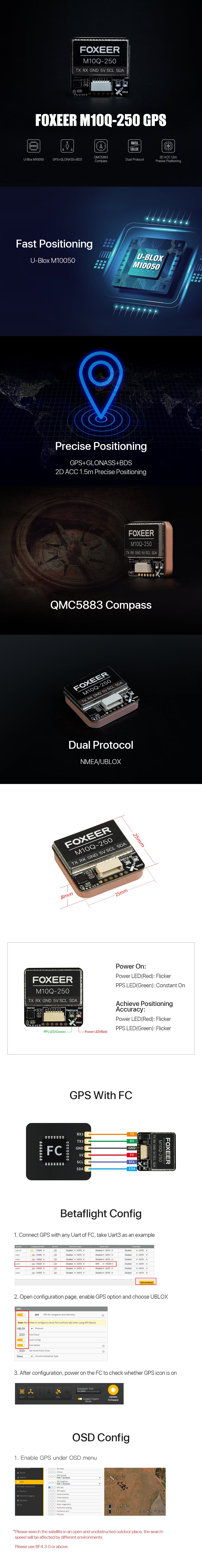

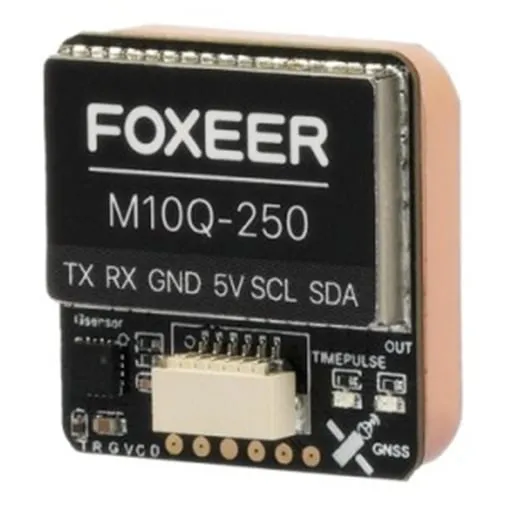

Foxeer M10Q 250 GPS 5883 Compass

The Foxeer M10Q 250 is a mid-sized GPS and compass module built around the 10th-generation u-blox M10 chipset. Designed for 5-inch to 7-inch long-range FPV drones, cinelifters, and fixed-wing builds, it provides fast satellite locks and precise heading data necessary for reliable Betaflight rescue modes or INAV autonomous waypoints.

Key features

• 10th-generation u-blox M10 architecture for concurrent multi-constellation tracking (GPS, GLONASS, Galileo, and BDS).

• Integrated QMC5883 compass communicates over I2C to provide accurate directional orientation.

• Large 25x25mm ceramic patch antenna yields significantly higher signal gain and faster cold-start locks compared to micro 12mm or 18mm modules.

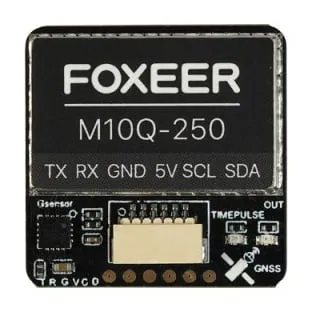

• Includes a pre-crimped 6-pin SH1.0 connector alongside direct solder pads for versatile flight controller wiring.

Specifications

• GNSS Chipset: u-blox M10 (M10050)

• Compass: QMC5883

• Supported Constellations: GPS, GLONASS, Galileo, BDS, QZSS, SBAS

• Protocols: UART (GPS) / I2C (Compass)

• Baud Rate: 115200 bps

• Input Voltage: 4.5V - 5.3V

• Dimensions: 25 x 25 x 8 mm

• Weight: 12g

For accurate magnetometer readings, ensure the module is mounted as far away as possible from high-current battery leads, ESCs, and VTX antennas to minimise electromagnetic interference.
