Flywoo GOKU GM10 Nano V3.1 GPS
SKU FLYWOO-GOKU-GM10-NANO-V31
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Flywoo GOKU GM10 Nano V3.1 is an ultra-compact GPS module built for lightweight long-range and freestyle FPV builds where every gram counts. It uses the u-blox M10050 (10th-generation) chipset for fast satellite acquisition and connects through a new plug-in 4-pin pad connector, so no soldering is needed for installation.
Key features
- Multi-constellation GNSS tracks GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS across 72 search channels for a fast, reliable fix.

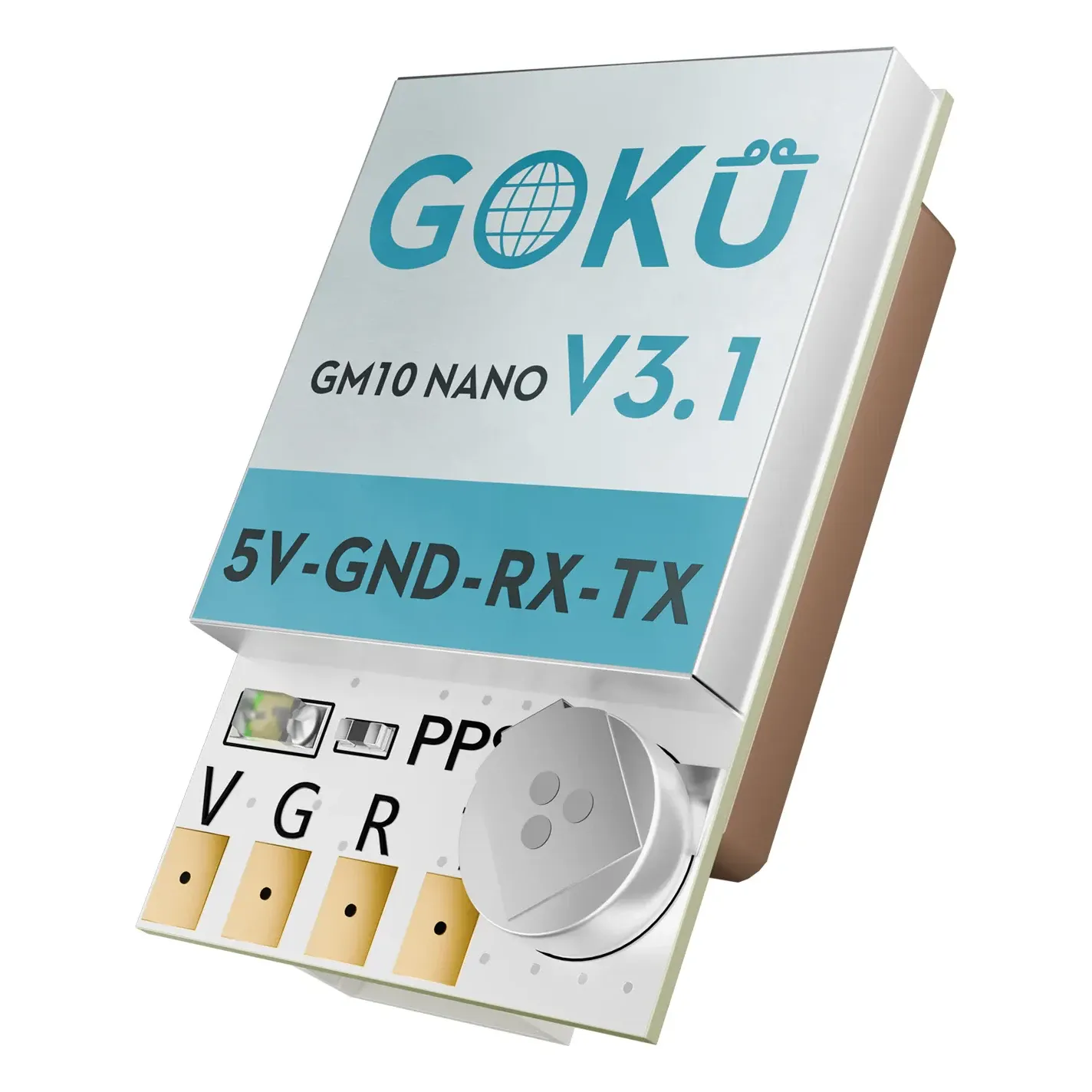

- Plug-and-play 4-pin pad connector removes the need to solder wires directly to the module.
- High sensitivity of -162dBm tracking and -160dBm reacquisition keeps lock under FPV canopies and carbon frames.
- Configurable output rate up to 10Hz keeps navigation data fresh for return-to-home and OSD readouts.
- Includes a 100mm cable and a copper foil shield for cleaner EMI performance.
Specifications
- Chipset: u-blox M10050 (10th generation)
- Dimensions: 12 x 16 x 4.5 mm
- Weight: 2.5 g
- Connector: 4-pin pad
- Power input: 3.3-5V DC
- Operating temperature: -40°C to +85°C

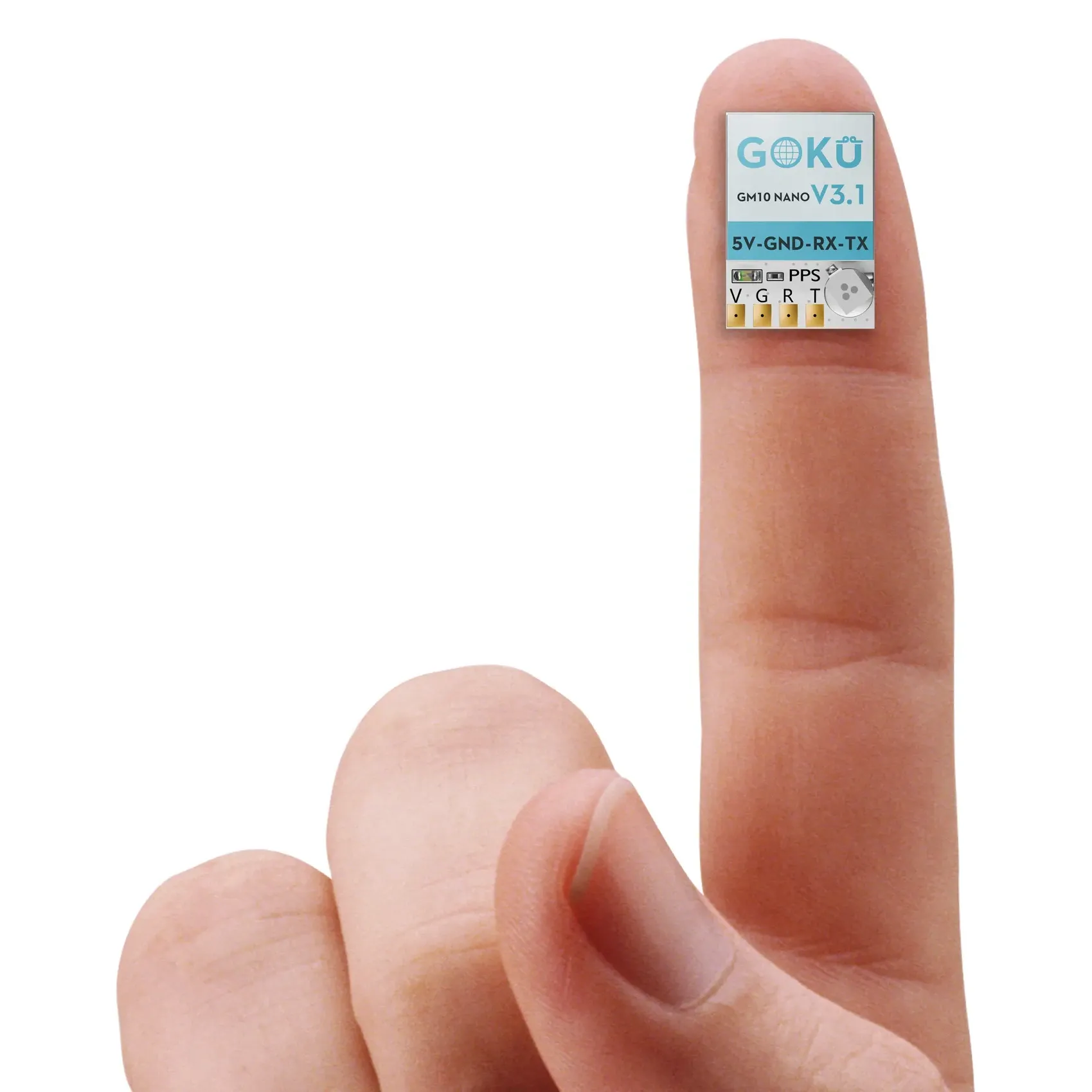

Its tiny footprint and low weight make it a natural fit for 3-inch toothpicks and micro long-range quads where a full-size GPS would add unwanted mass.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | Flywoo |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 2.5 g |
| Supported Firmware | Betaflight |
| Barometer | No |
