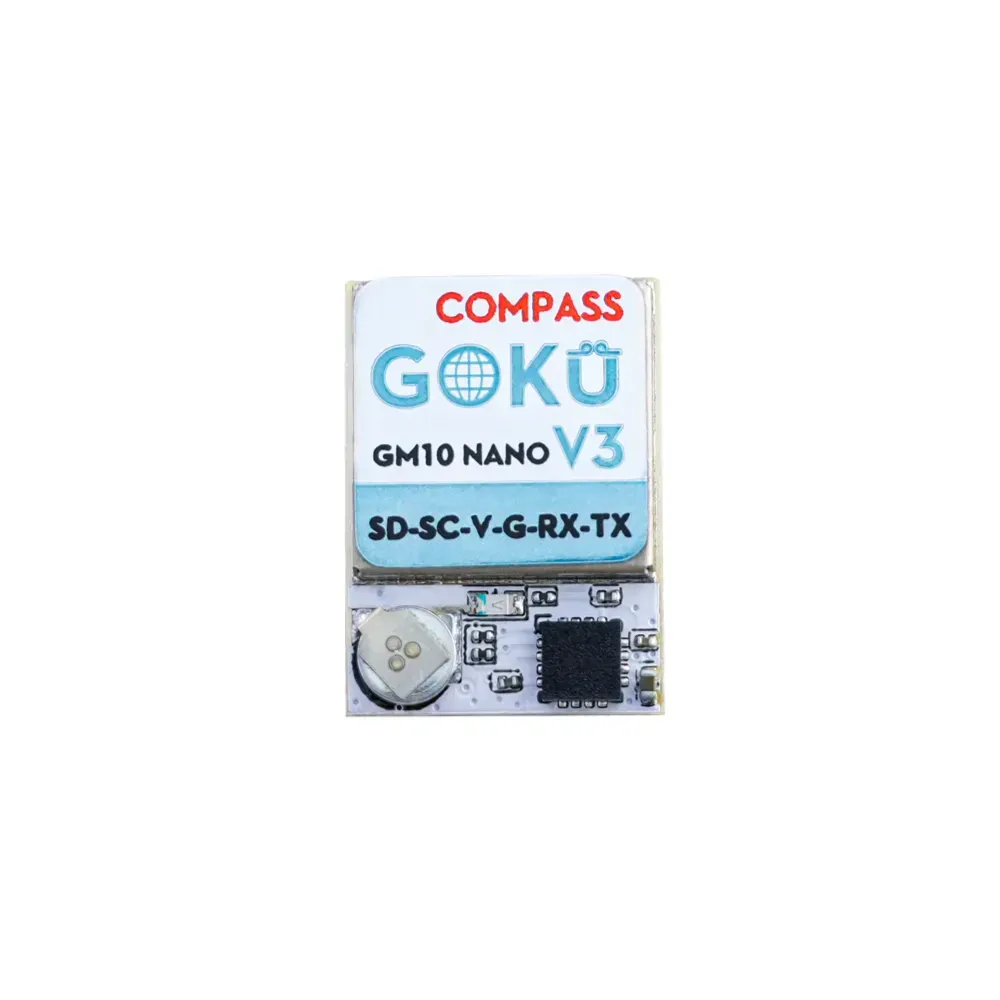

GOKU GM10 Nano V3 GPS w/ Compass

The Flywoo GOKU GM10 Nano V3 is a highly compact GPS and compass module built around the 10th-generation u-blox M10 architecture. Weighing just 1.2 grams and measuring a mere 12x12mm, this unit provides rapid satellite acquisition and robust positional accuracy without taking up valuable frame space. The integrated magnetometer allows for accurate directional heading data, making it an essential navigation tool for sub-250g micro drones, ultralight long-range builds, and cinewhoops running INAV or ArduPilot.

Key features

• u-blox M10050 GNSS chip delivers fast cold starts and excellent positional precision.

• Tracks GPS, GLONASS, Galileo, and BeiDou satellite constellations concurrently for a high satellite count.

• Built-in magnetometer enables advanced autonomous flight modes and accurate return-to-home functionality.

• Ultra-compact 12x12mm footprint designed specifically to fit tight micro FPV canopies and frames.

Specifications

• GNSS Chip: u-blox M10050

• Supported Constellations: GPS, GLONASS, Galileo, BeiDou

• Baud Rate: 115200 bps

• Data Protocol: UBLOX/NMEA

• Input Voltage: 5V

• Dimensions: 12 x 12 x 4.8 mm

• Weight: 1.2 g

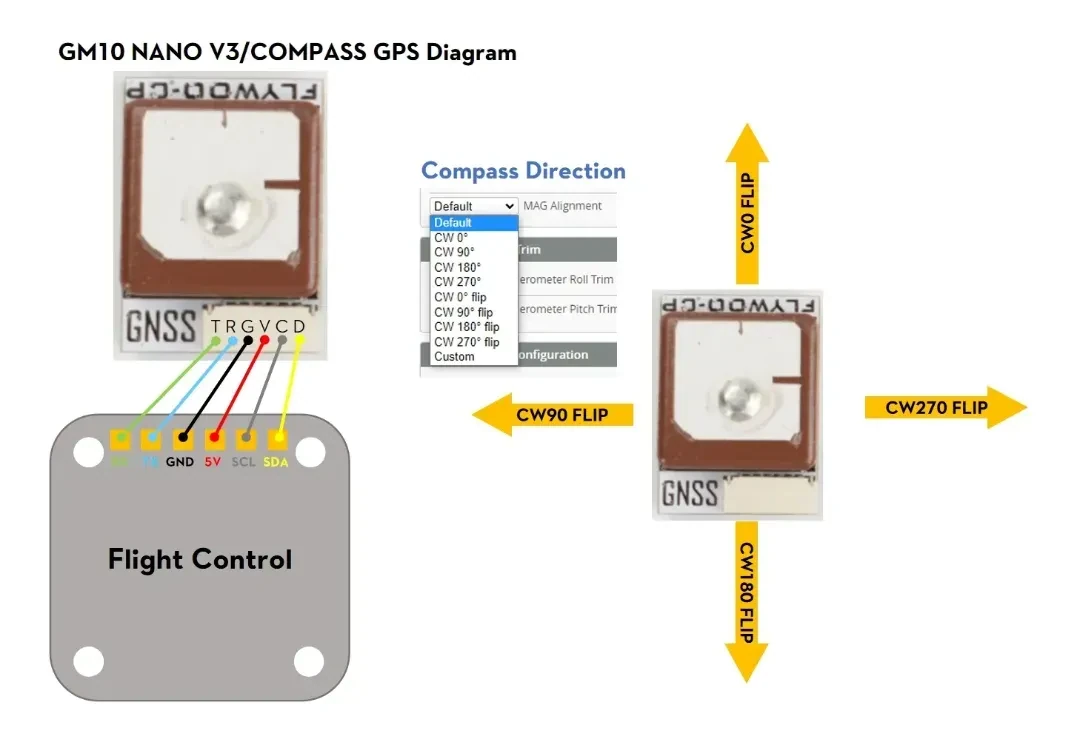

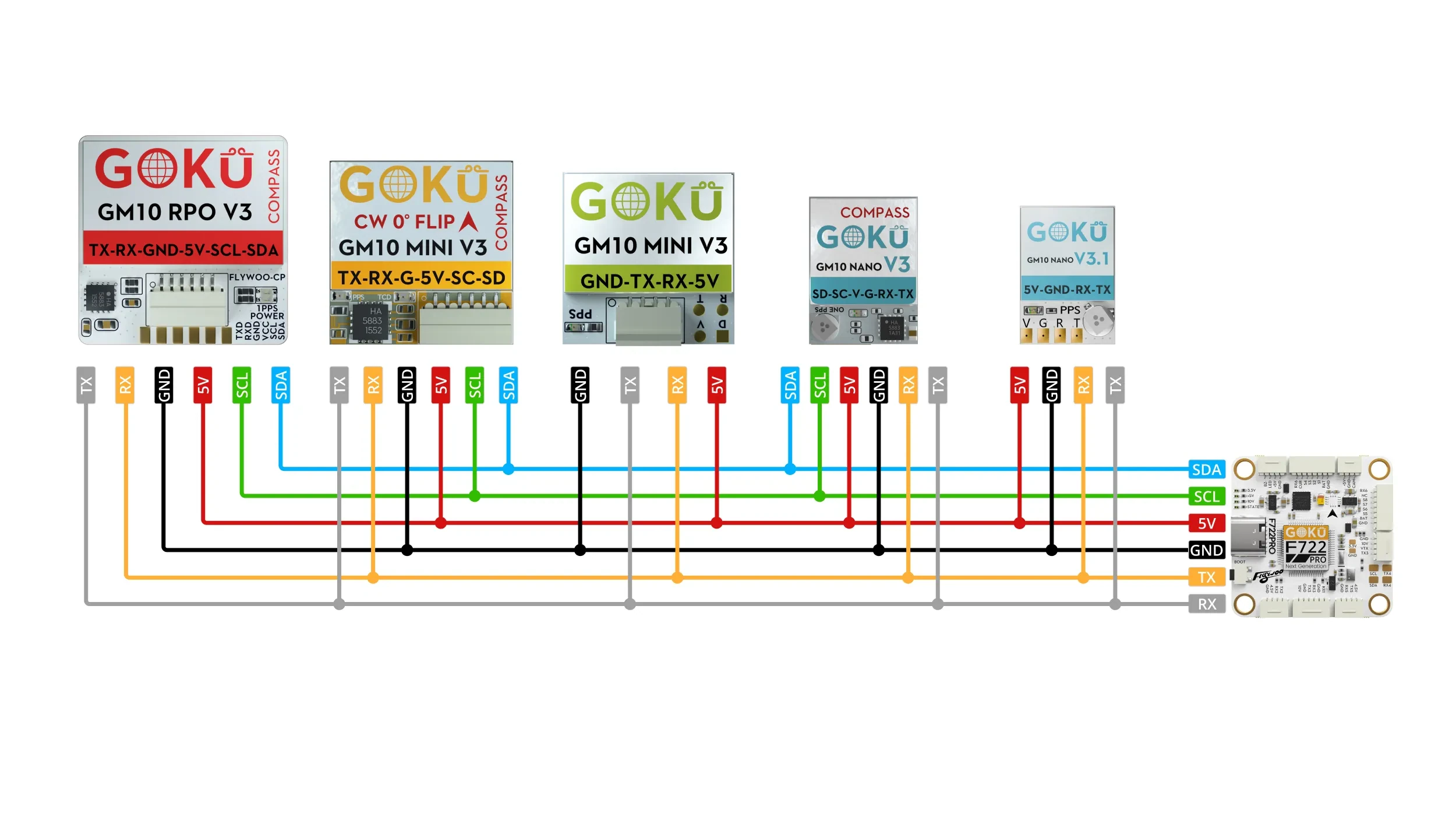

To utilise the compass for autonomous flight modes, ensure your flight controller has spare I2C pads (SCL and SDA) available. Mount the module as far as possible from motors and high-current power leads to prevent magnetic interference with the magnetometer.
