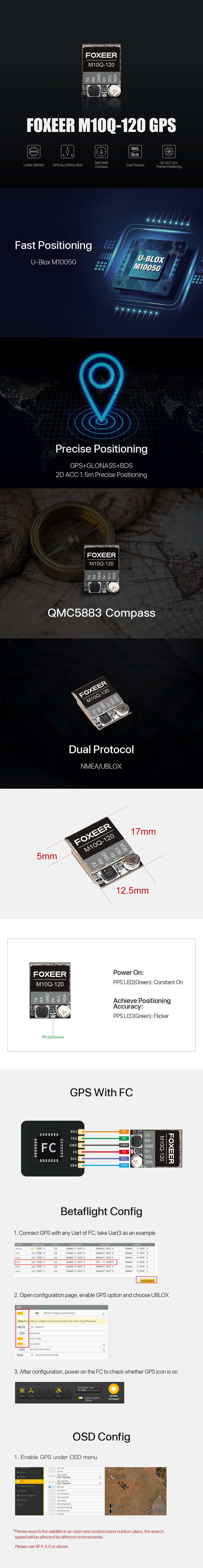

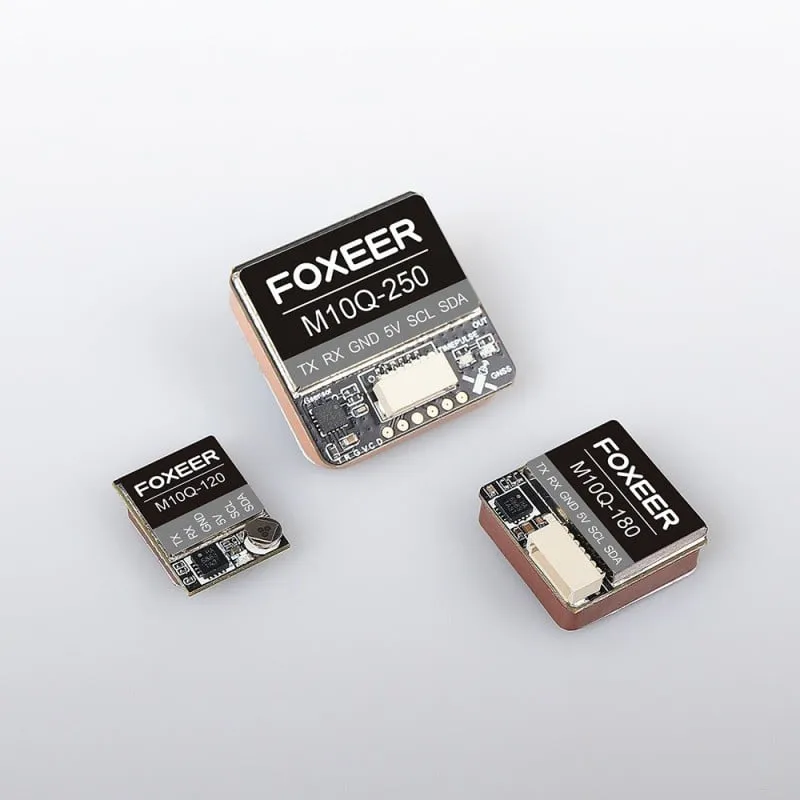

Foxeer M10Q-120 GPS with 5883 Compass

The Foxeer M10Q-120 pairs the fast-locking 10th-generation U-blox M10 GPS chip with an integrated QMC5883 compass, packed into an ultra-compact footprint. Weighing under 3 grams, this module provides highly accurate positional data and heading lock for INAV waypoint missions or Betaflight GPS rescue modes. Thanks to its tiny 12.5mm profile, it is an ideal navigation solution for micro long-range builds, sub-250g cinematic quads, and tight FPV frames where space is severely restricted.

Key features

• 10th-gen U-blox M10 architecture for rapid satellite acquisition and high-accuracy positioning

• Integrated QMC5883 compass for reliable heading data (crucial for INAV and ArduPilot navigation)

• Simultaneous reception of GPS, GLONASS, Galileo, and BDS constellations

• Ultra-small ceramic antenna footprint designed for micro and lightweight FPV drones

Specifications

• Chipset: U-blox M10

• Compass: QMC5883

• Supported Constellations: GPS, GLONASS, Galileo, BDS, QZSS, SBAS

• Input Voltage: 3.3V - 5.5V

• Baud Rate: 115200 bps

• Protocols: Ublox (GPS), I2C (Compass)

• Dimensions: 12.5 x 12.5 x 4.3 mm

• Weight: 2.7 g

Wire the TX/RX pads to a spare UART on your flight controller, and connect SCL/SDA to your I2C bus to enable full directional telemetry and rescue functionality.
