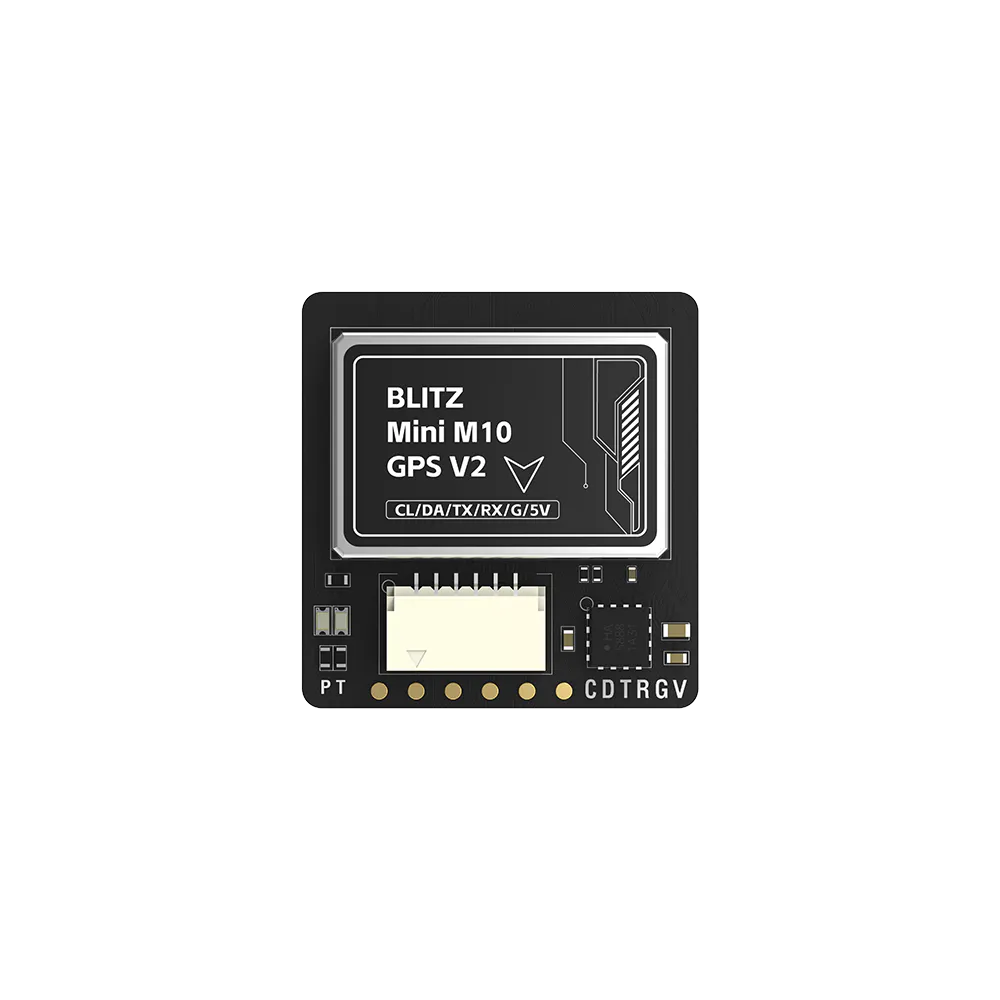

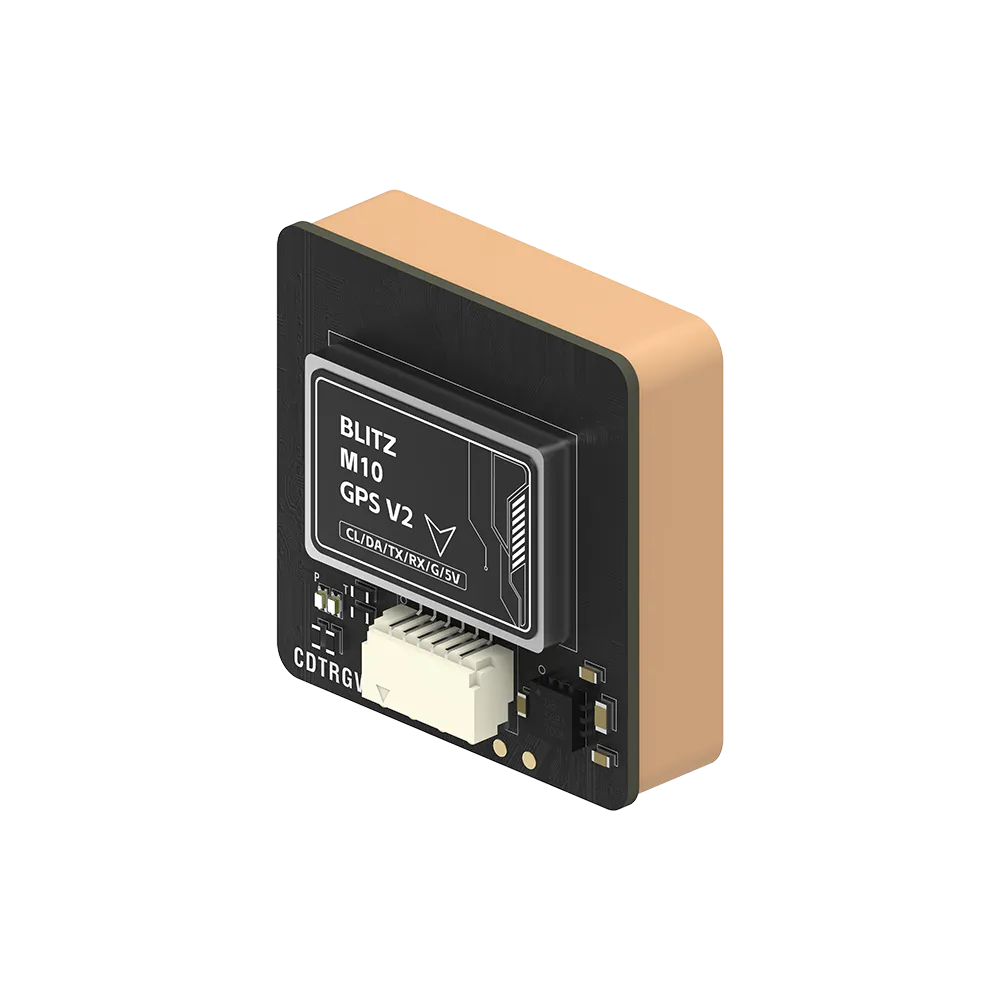

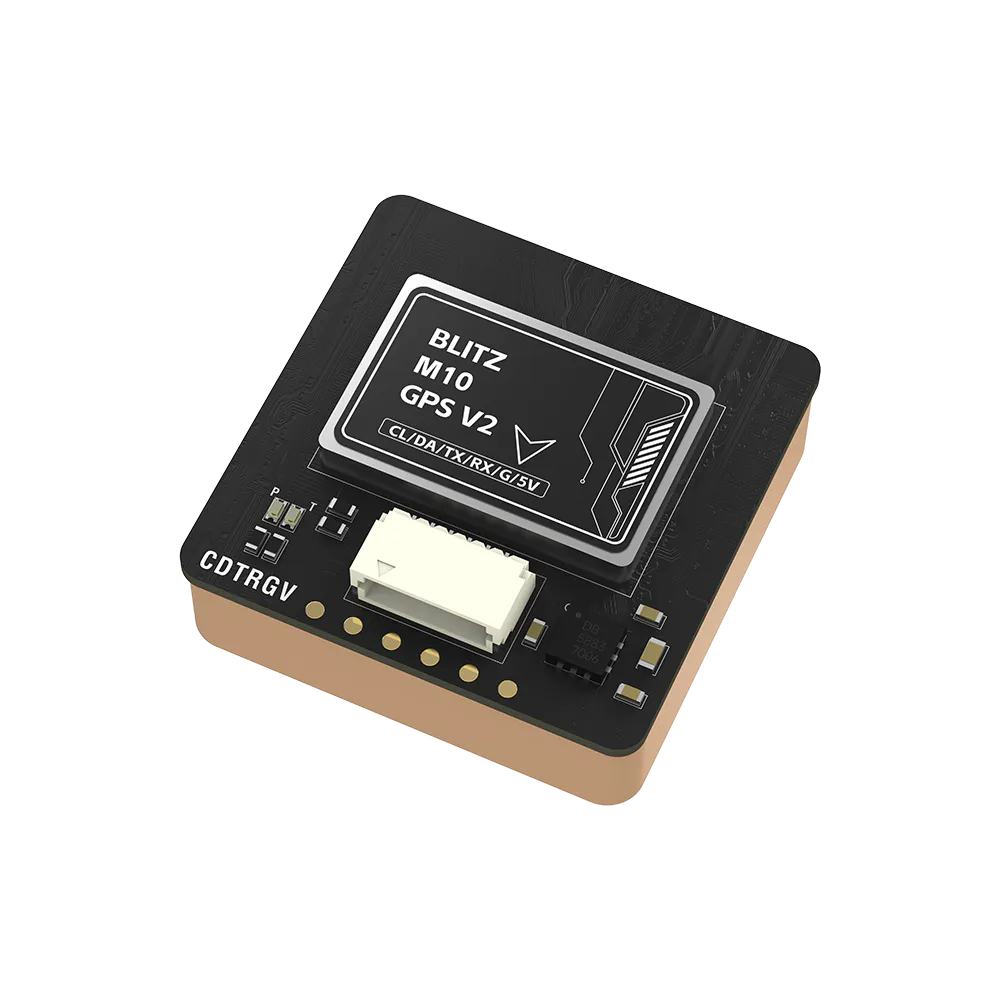

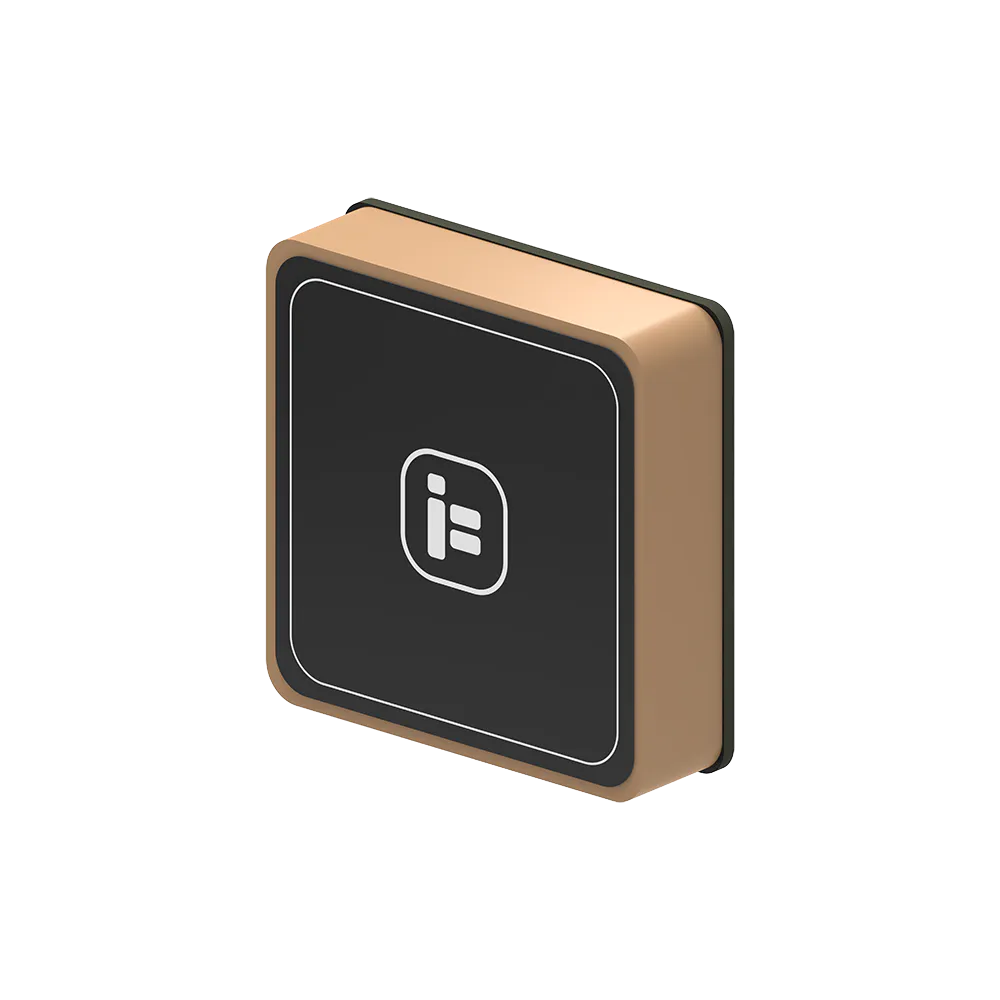

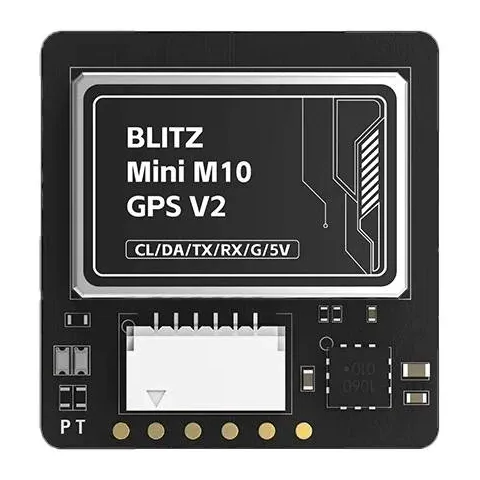

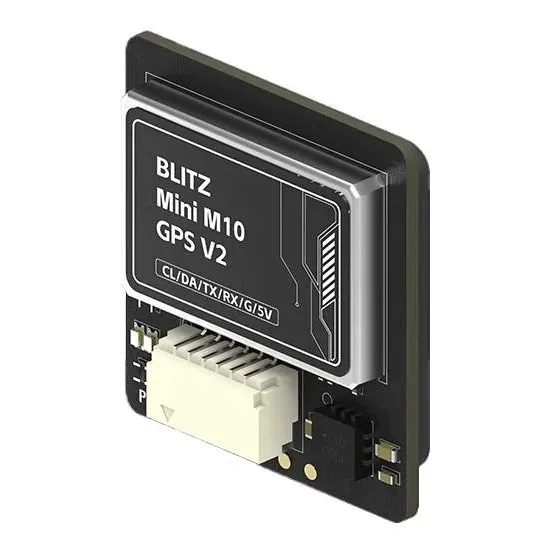

iFlight Blitz M10 GPS V2

The iFlight BLITZ M10 GPS V2 delivers fast, high-precision satellite locks for long-range FPV cruisers, cinematic rigs, and autonomous drones. Built around the 10th-generation u-blox M10 architecture, it concurrently tracks GPS, Galileo, GLONASS, QZSS and SBAS for rock-solid position hold and rapid cold starts. Available in two footprint options—Mini (20×21mm) and Standard (25×25mm)—it adapts seamlessly to everything from compact sub-250g builds to heavy-lift macroquads.

Key features

• 10th-generation u-blox M10 GNSS chipset for high-sensitivity tracking and rapid 3D fixes.
• Concurrent multi-constellation reception maximizes satellite count even in challenging RF environments.
• Built-in QMC5883L magnetometer provides reliable heading data for INAV and ArduPilot autonomous flights.
• Integrated backup supercapacitor ensures near-instant hot starts during field battery swaps.
• Pre-configured for a 115200 bps baud rate for direct flight controller integration.

Specifications

• GNSS Chip: u-blox M10
• Compass (Magnetometer): QMC5883L
• Supported Constellations: GPS, Galileo, GLONASS, QZSS, SBAS
• Baud Rate: 115200 bps
• Protocol: Ublox
• Refresh rate: 10 Hz
• Start time: 27 s cold, 1 s hot
• Input Voltage: 3.3V to 5.5V
• Connector: SH1.0 6-pin
• Antenna: 18.2 x 18.2 x 4 mm (Mini) / 25 x 25 x 6 mm (Standard)
• Dimensions: 20 x 21 x 8 mm (Mini) / 25 x 25 x 11 mm (Standard)
• Weight: 8 g (Mini) / 16 g (Standard)

Mount the module on the highest point of the airframe, away from the VTX and high-current ESC wires, to minimize electromagnetic interference. Betaflight requires firmware version 4.3 or newer for native M10 protocol support.
