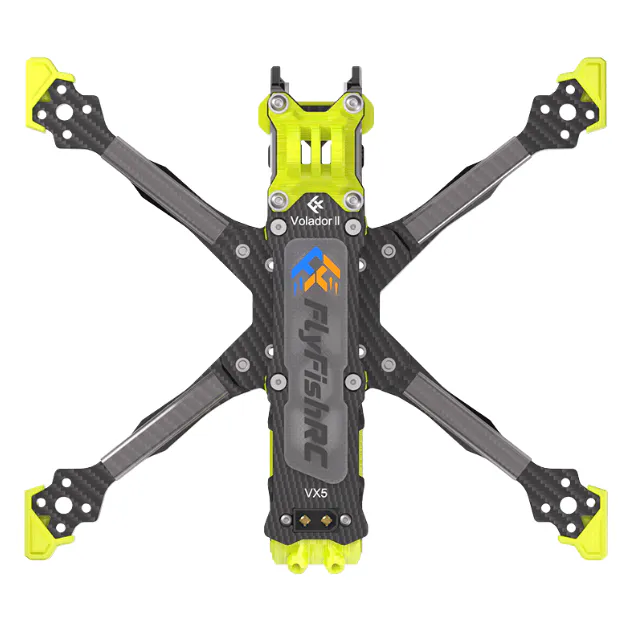

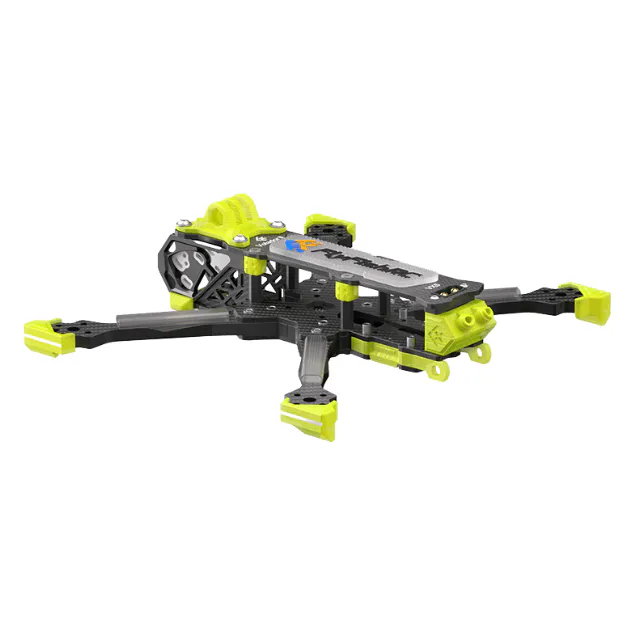

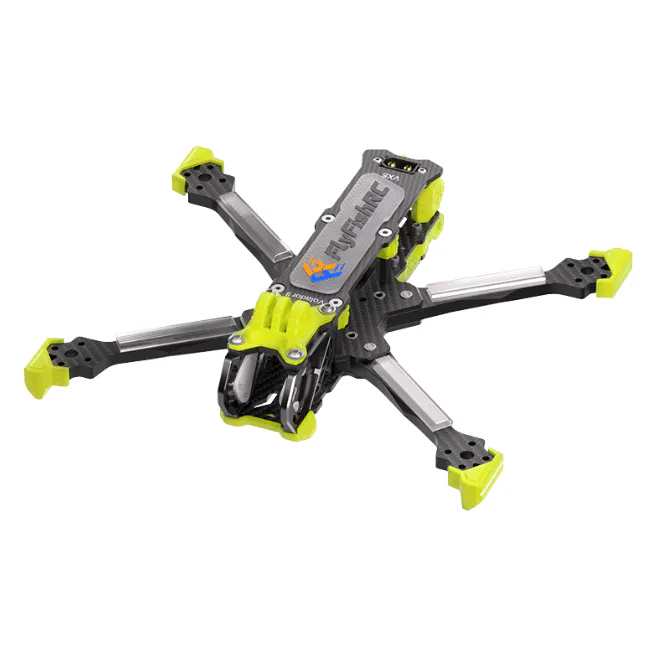

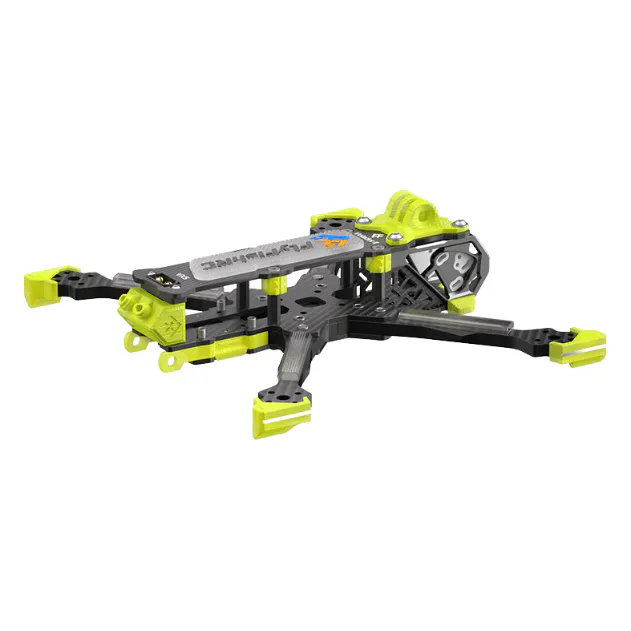

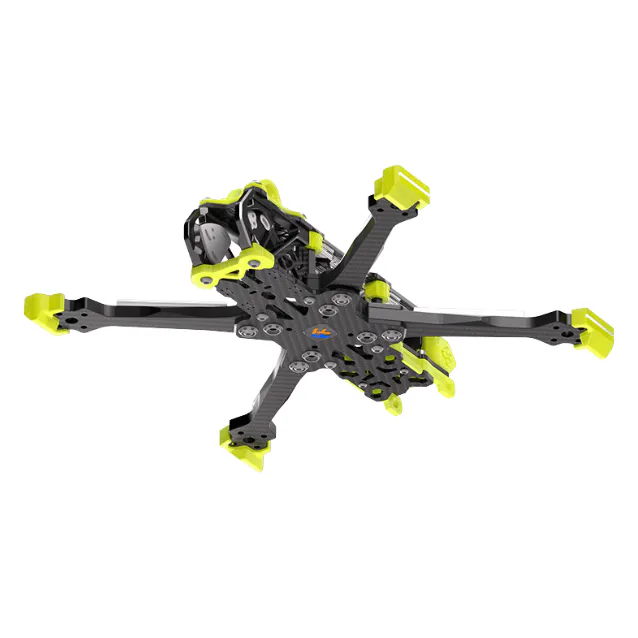

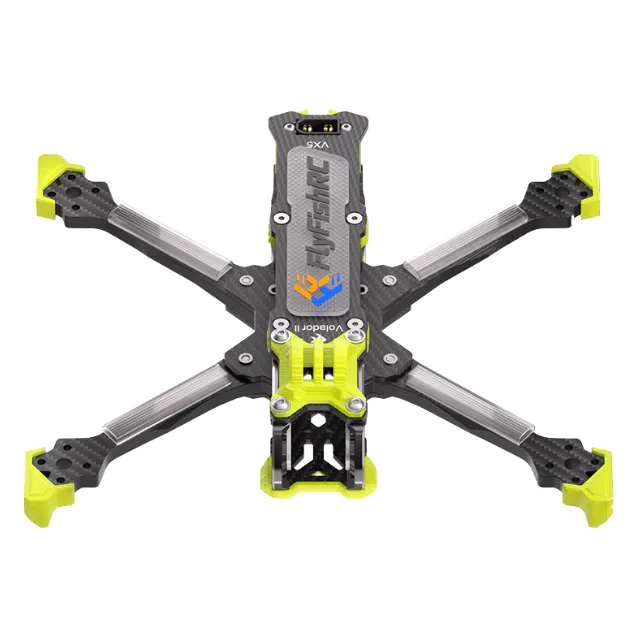

Flyfish Volador II VX5 O4 Pro FPV Freestyle T700 Frame Kit

The FlyFishRC Volador II VX5 O4 Pro is a premium 5-inch freestyle frame built from high-grade T700 carbon fibre and designed around a squashed-X geometry. This layout ensures tight cornering and balanced pitch and roll authority while keeping propellers entirely out of your HD camera feed. This "O4 Pro" iteration introduces upgraded CNC aluminium camera side plates equipped with integrated silicone dampers. These are specifically engineered to rigidly secure the DJI O4 and O3 Air Units while isolating the sensor to eliminate high-frequency vibration and jello in your HD footage.

Key features

• Squashed-X geometry for precise freestyle handling with zero propellers in the FPV or HD recording view.
• Constructed from chamfered T700 carbon fibre, featuring robust 6mm arms and a rigid 2.5mm middle plate for maximum impact resistance.
• Upgraded CNC aluminium camera plates featuring built-in silicone shock absorbers tailored for modern digital HD systems.
• Versatile internal layout with dual flight controller stack mounting and dedicated rear VTX mounting to accommodate oversized digital transmitters.
• Supplied with a comprehensive set of custom TPU mounts (arm guards, antenna mounts, GoPro base), a battery anti-slip pad, and pre-thread-locked YFS 12.9-grade hardware.

Specifications

• Geometry: Squashed-X
• Wheelbase: 225mm
• Material: CNC-machined T700 carbon fibre
• Arm thickness: 6mm
• Top, bottom and middle plate thickness: 2.5mm
• Stack mounting: 20x20, 30.5x30.5
• VTX mounting: 20x20, 25.5x25.5
• Camera compatibility: 20mm (DJI O4, DJI O3, Walksnail, standard analogue)
• Propeller size: 5-inch to 5.1-inch
• Weight: Approx. 153g (bare frame) / 178g (with TPU components)

With its 225mm wheelbase and highly protective structural design, the VX5 O4 Pro pairs perfectly with robust 2207, 2208 or 2306 motors. It provides ample internal clearance for heavy freestyle builds, ensuring your electronics survive bando bashing and high-stress aggressive flights.
