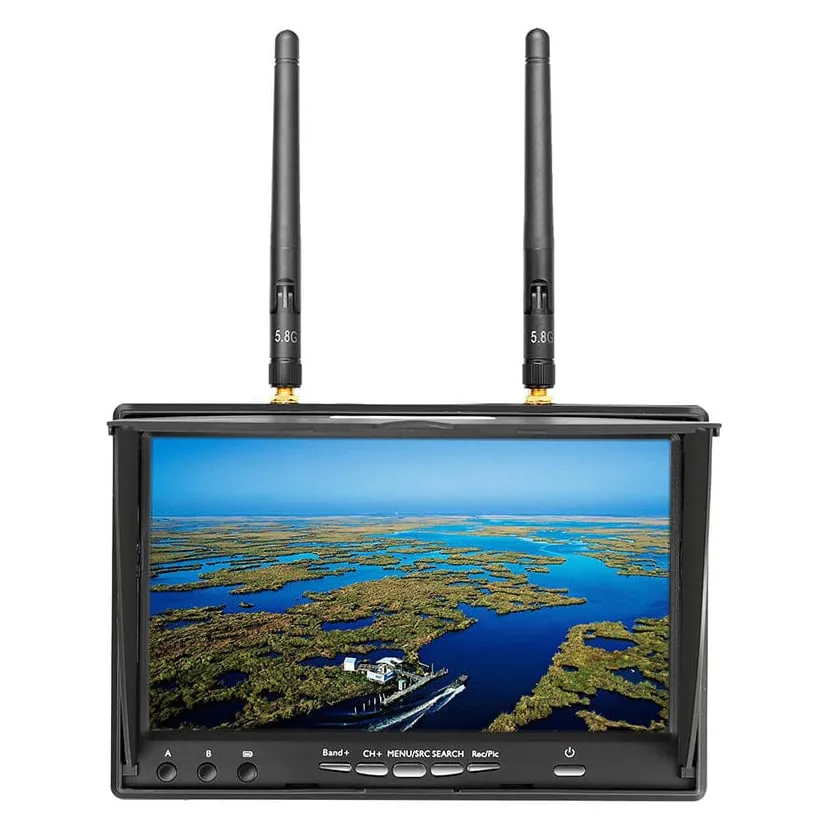

Eachine 5802D 7" 5.8GHz 40CH FPV Monitor with DVR

The Eachine LCD5802D is an all-in-one 7-inch analog FPV monitor designed for ground stations, bench testing, and spectator ride-alongs. It packs a dual-diversity receiver, an onboard DVR, and a rechargeable battery into a single portable unit, eliminating the need for messy external wiring.

Key features

• Dual diversity reception: Two integrated 5.8GHz receivers automatically evaluate and switch to the strongest antenna signal to prevent video dropouts.

• Integrated DVR: Records live flight footage directly to a microSD card, ensuring you always have a backup of your flight and OSD data.

• Cordless operation: The built-in 2000mAh LiPo battery delivers up to two hours of continuous runtime without external power banks.

• Outdoor ready: Includes a folding sun hood to block glare and ensure clear visibility on bright field days.

Specifications

• Screen: 7-inch LCD (800x480 resolution)

• Receiver: 5.8GHz 40CH (includes RaceBand)

• Antenna Connector: RP-SMA Female

• Battery: Built-in 7.4V 2000mAh LiPo

• Working Voltage: DC 7-16 V (max 650 mA at 12 V)

• Storage: microSD (Class 10, up to 32GB)

• Dimensions: 180 x 120 x 50 mm

• In the box: monitor, 2 x 5.8GHz antennas, 2 x AV cables, charger

With its auto-scan functionality and simple AV inputs/outputs, this monitor is a reliable, self-contained display solution for fixed-wing pilots, camera drone operators, and anyone needing a dedicated bench-testing screen.
