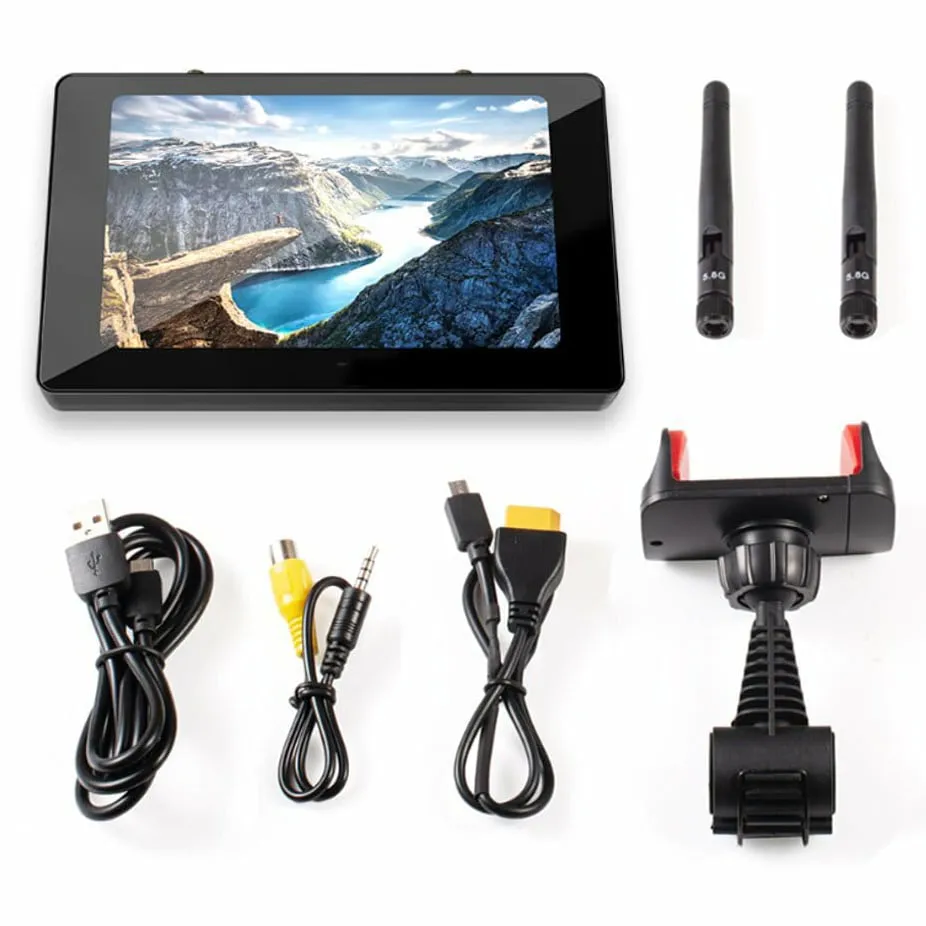

Eachine Moneagle 5" 800x480 5.8GHz 40CH Monitor

The Eachine Moneagle is a 5-inch IPS FPV monitor for analogue 5.8GHz flying, giving a bench or flight-line display without wearing goggles.

Key features

• 40-channel diversity receiver picks up 5.8GHz analogue video with fewer dropouts from signal reflections.
• 800x480 IPS screen rated at 1000 Lux stays readable in daylight at the field.
• Built-in DVR records the feed to a microSD card (up to 64GB, Class 10) with VGA, D1 or HD replay modes.
• Built-in 4000mAh battery runs the monitor away from mains power, useful for field days without a socket nearby.
• Stereo speaker plays FPV audio, where transmitted, without needing headphones.
• Compact monitor housing suits pit tables, ground-station rigs and shared field-side viewing where several people want to watch the same flight without goggles.

Specifications

• Display: 5 in IPS, 800 x 480, 1000 Lux
• Reception: 40-channel diversity, 5.8GHz analogue
• Battery: 3.8V 4000mAh, built-in, more than 3 hours of use
• Input voltage: DC 5-23 V (2-6S LiPo); charges over USB
• Storage: microSD, up to 64GB (Class 10)
• Dimensions: 145 x 86 x 16 mm (without antenna)

Works only with analogue 5.8GHz video transmitters — it isn't a digital HDZero, Walksnail or DJI receiver.
