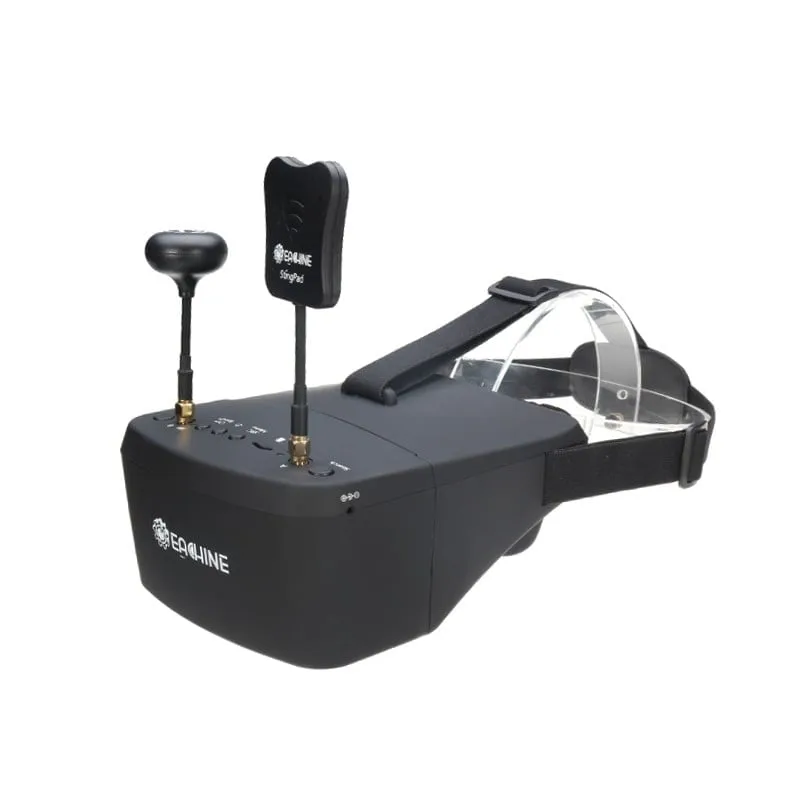

Eachine EV800D 5.8G 40CH Diversity FPV Goggles with DVR

The Eachine EV800D is a staple analog box goggle for beginner FPV pilots, offering true diversity reception and a unique separable design. The front display module unclips from the faceplate to function as a standalone 5-inch monitor, making it a versatile tool for bench testing or a spectator screen long after you upgrade your primary flight goggles.

Key features

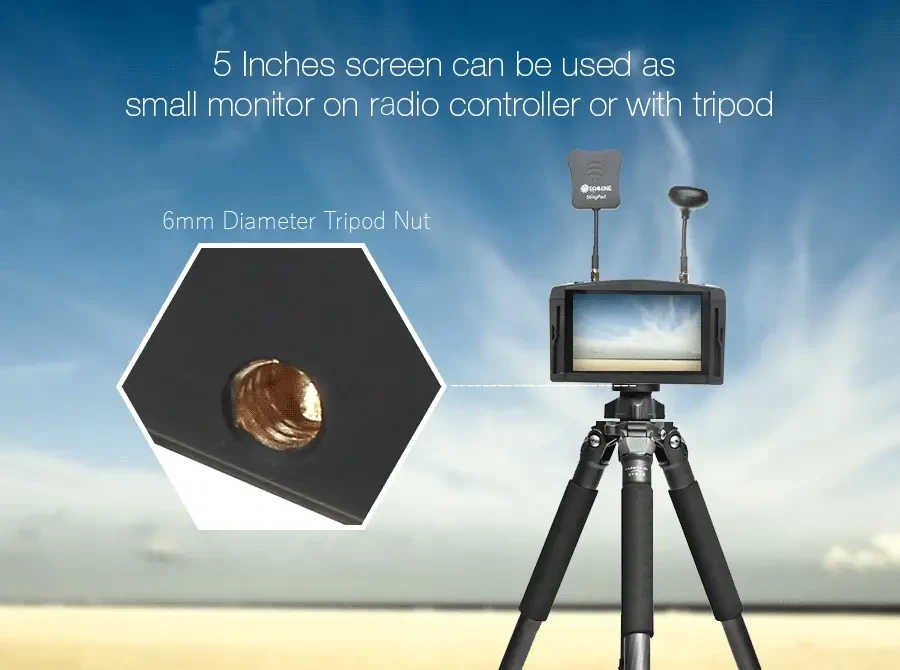

• Separable design converts the goggle into a tripod-mountable 5-inch FPV monitor.

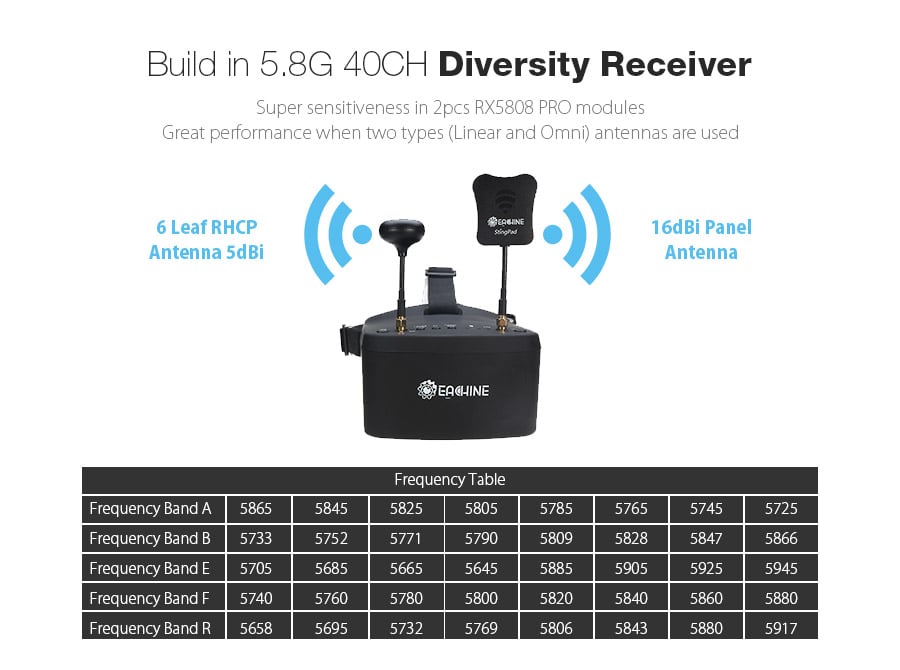

• True diversity 5.8GHz receiver with automatic switching for optimal video signal retention.

• Integrated DVR records analog flight footage directly to a microSD card.

• High-brightness screen with a custom built-in 3x magnifying lens.

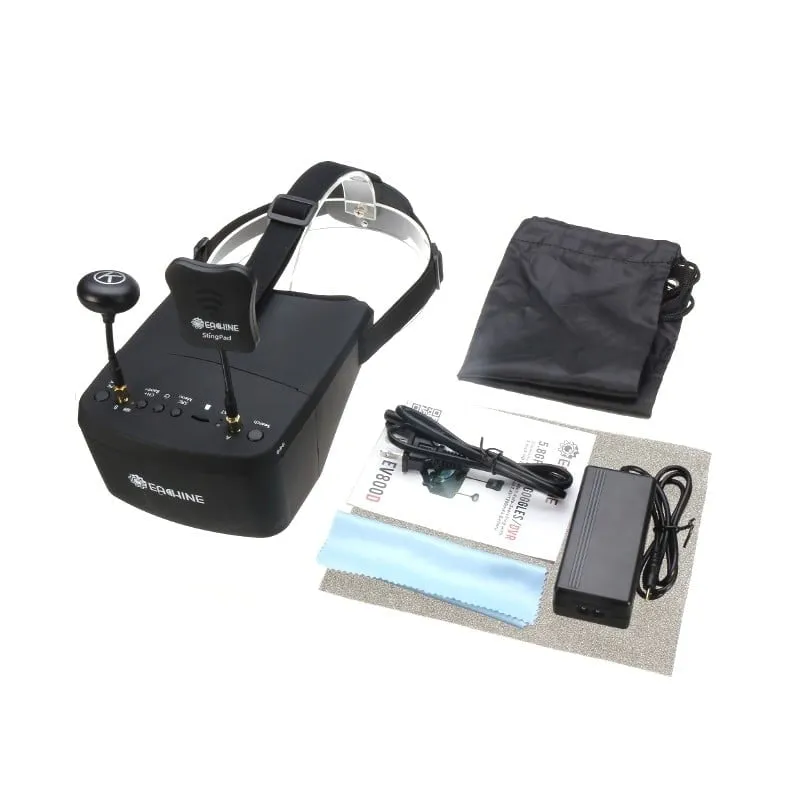

• Includes one directional panel antenna and one omnidirectional cloverleaf antenna out of the box.

Specifications

• Screen: 5-inch LCD, 800x480 resolution

• Brightness: 600 cd/m²

• Receiver: 5.8GHz 40CH Diversity (RaceBand supported)

• DVR Resolution: 720x576, supports up to 128GB microSD

• Internal Battery: 7.4V 1200mAh LiPo (~2 hours runtime)

• External Power: Accepts 11-20V (2-3S LiPo) via backup adapter cable

• Dimensions: 180 x 145 x 82 mm

• Weight: 362g (without antennas)

The wide facial contour comfortably accommodates most prescription glasses, while the three-point adjustable head strap prevents front-heavy sagging during long flying sessions.
