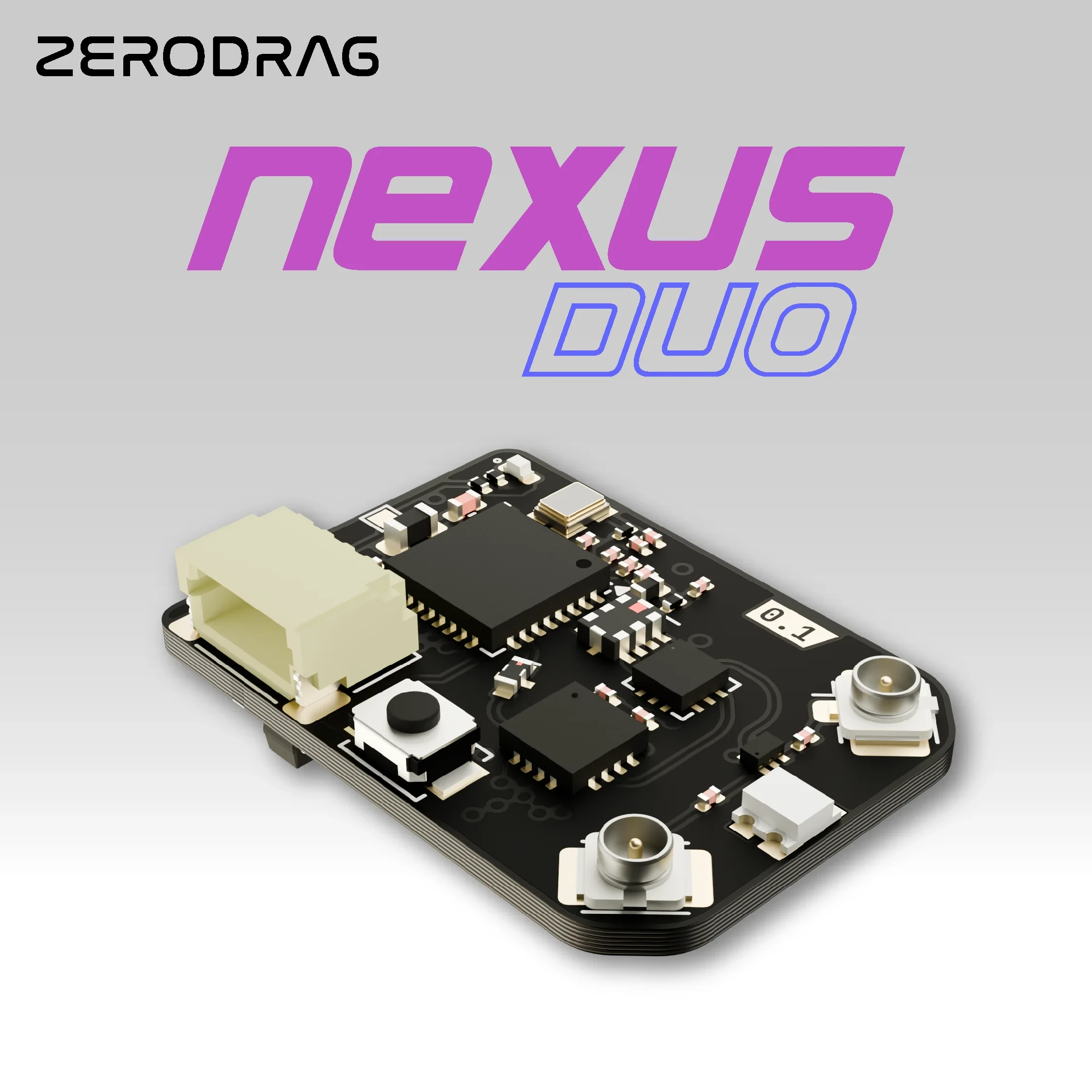

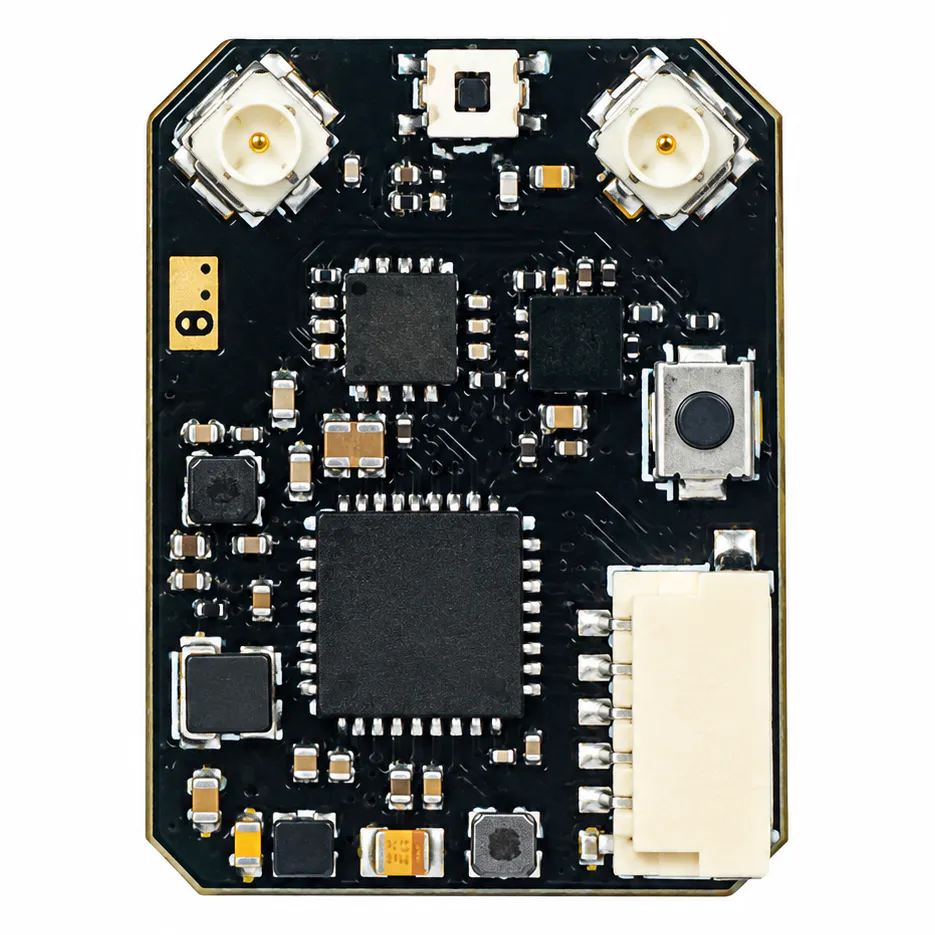

Zerodrag Nexus Duo Dual-Band ELRS Receiver (2.4GHz/900MHz)

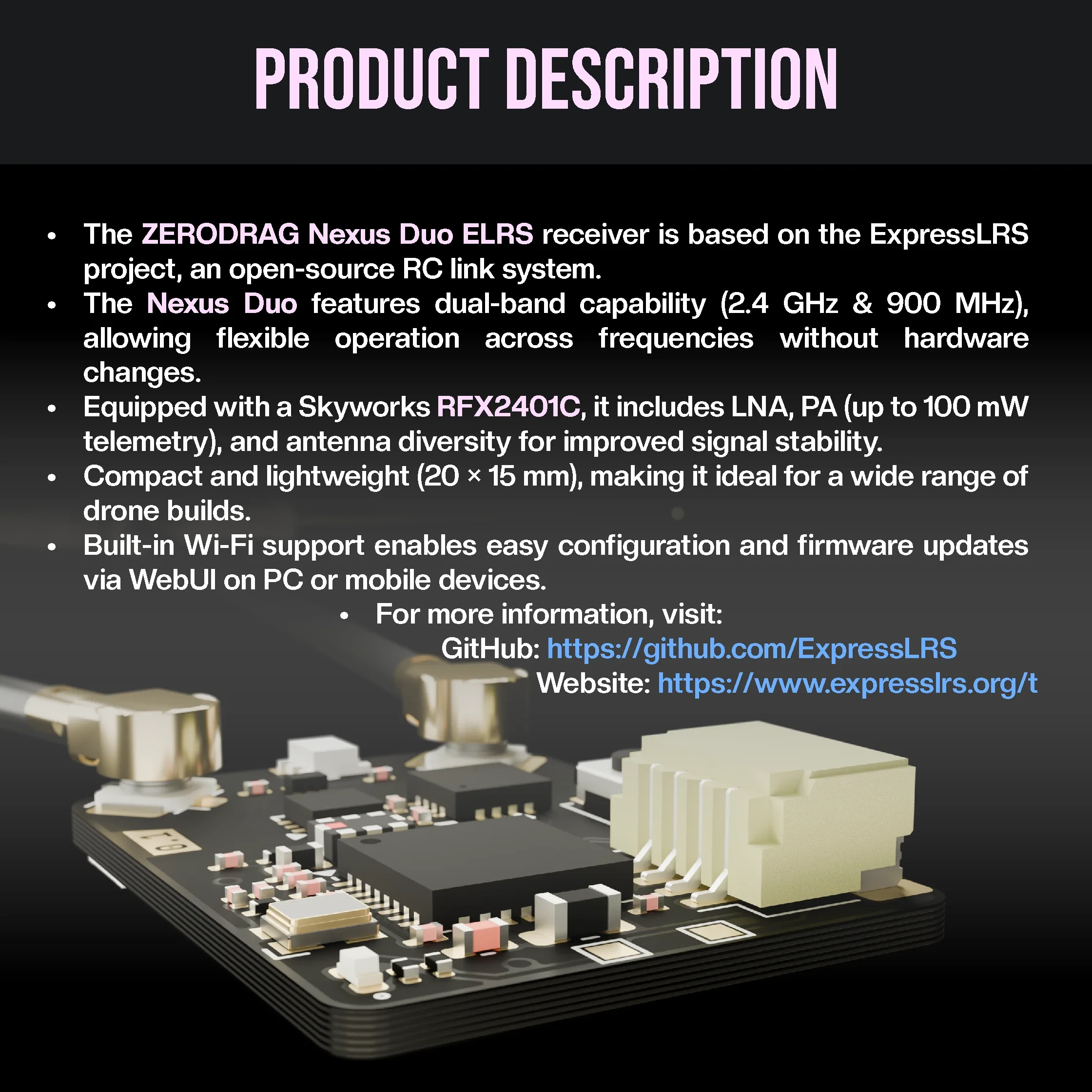

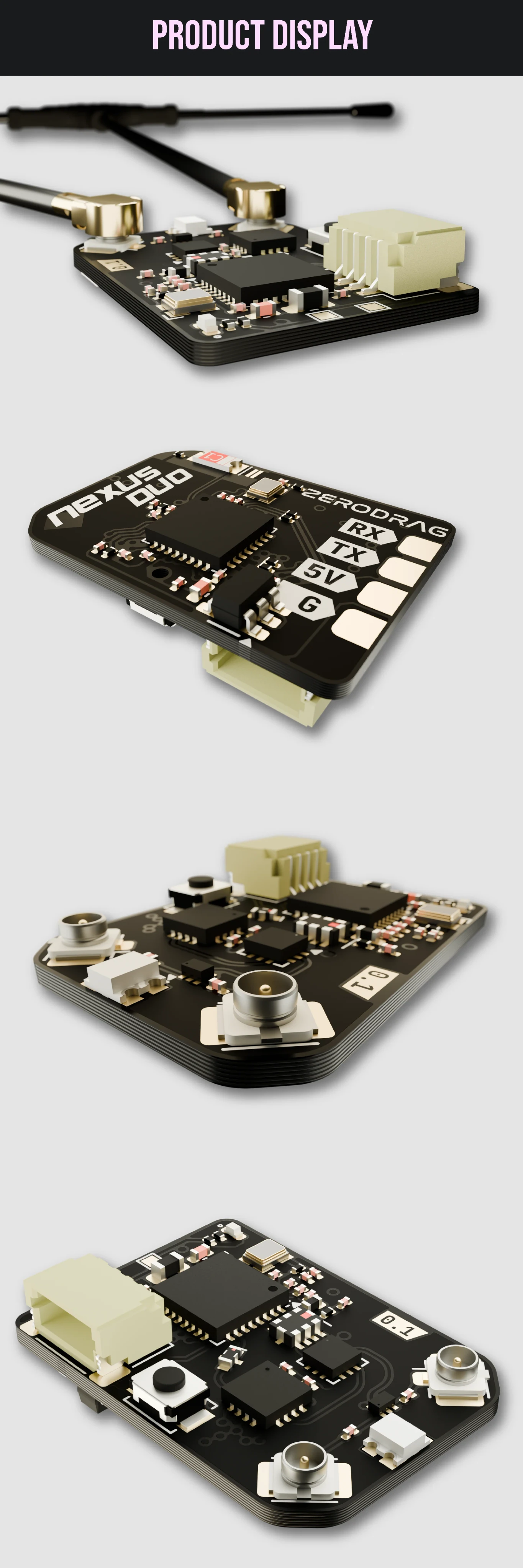

The Zerodrag Nexus Duo is a Made in India ExpressLRS receiver built around the LR1121 transceiver, so one board links on either the 2.4 GHz band or the 900 MHz band without a hardware change. It suits long-range FPV quads, fixed-wing aircraft and UAV builds that want ELRS with the option of sub-GHz range and penetration.

Key features

• LR1121 dual-band radio: runs on 2.4 GHz or 900 MHz from the same hardware, matching whichever band your transmitter module uses.

• Skyworks RFX2401C front end with LNA and PA for stronger reception and up to 100 mW telemetry output.

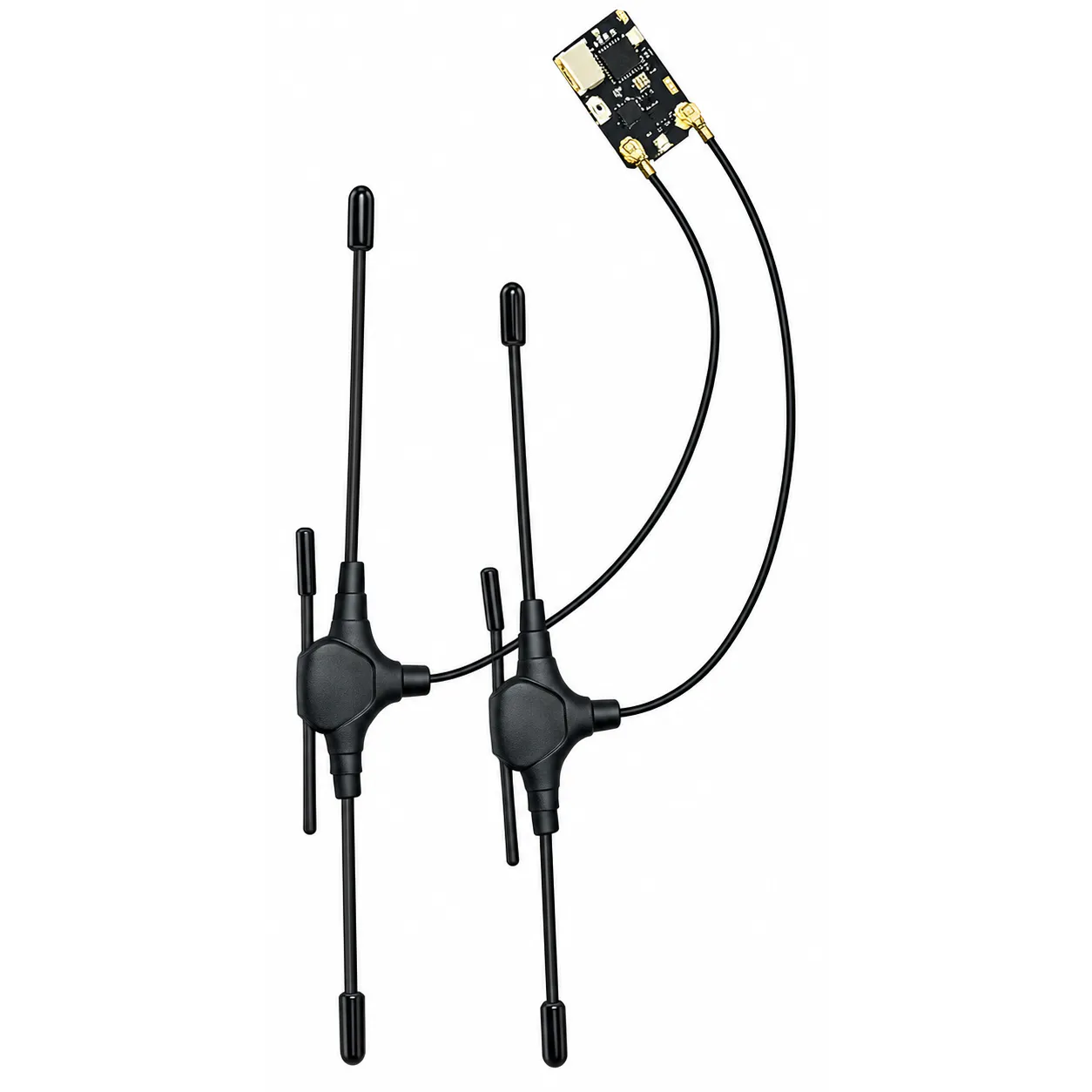

• Antenna diversity with two dual-band antennas supplied.

• Built-in Wi-Fi for configuration and firmware updates through the ExpressLRS web UI from a phone or PC.

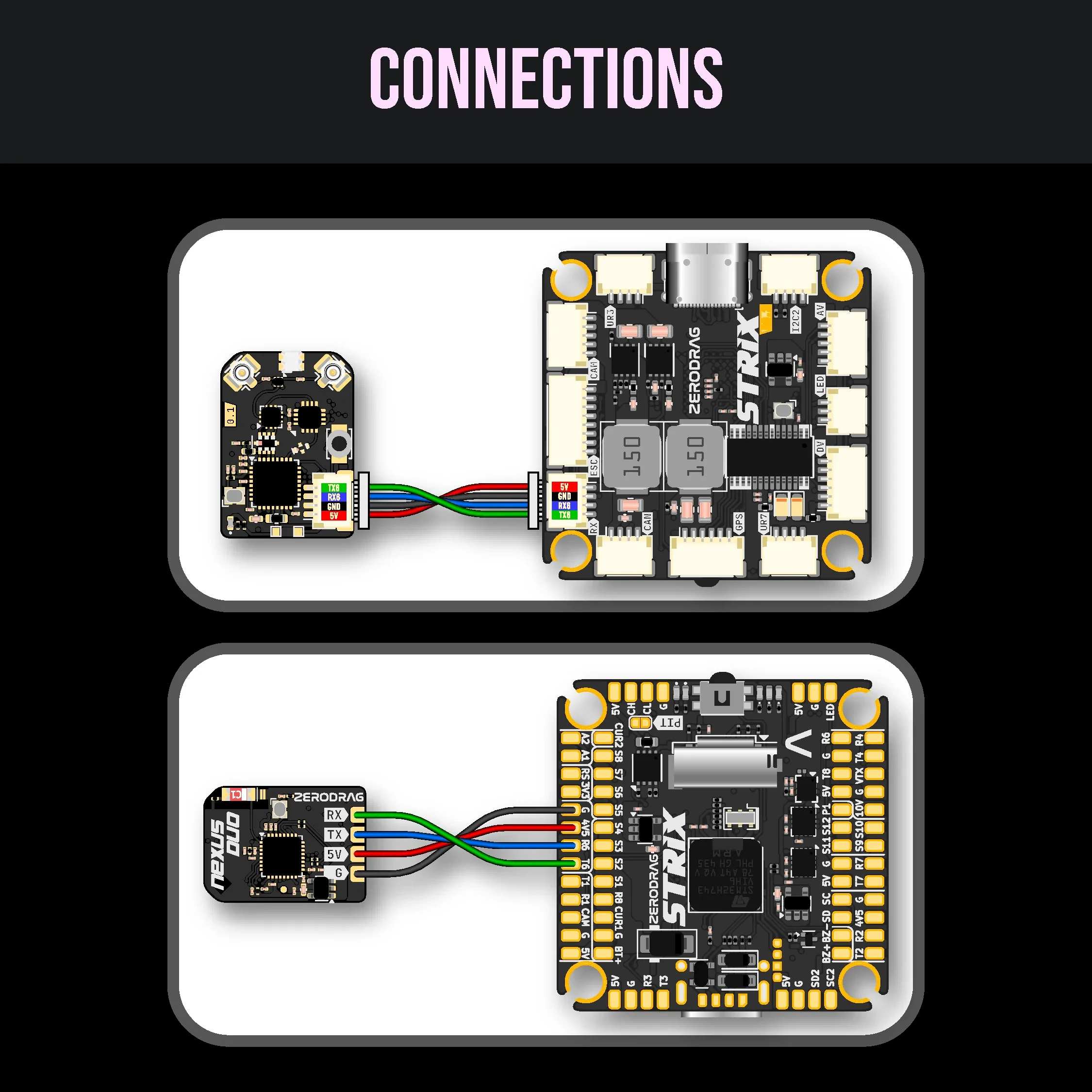

• Solderless install: connects through the supplied 4-pin JST-SH cable, and the board measures just 20 × 15 mm.

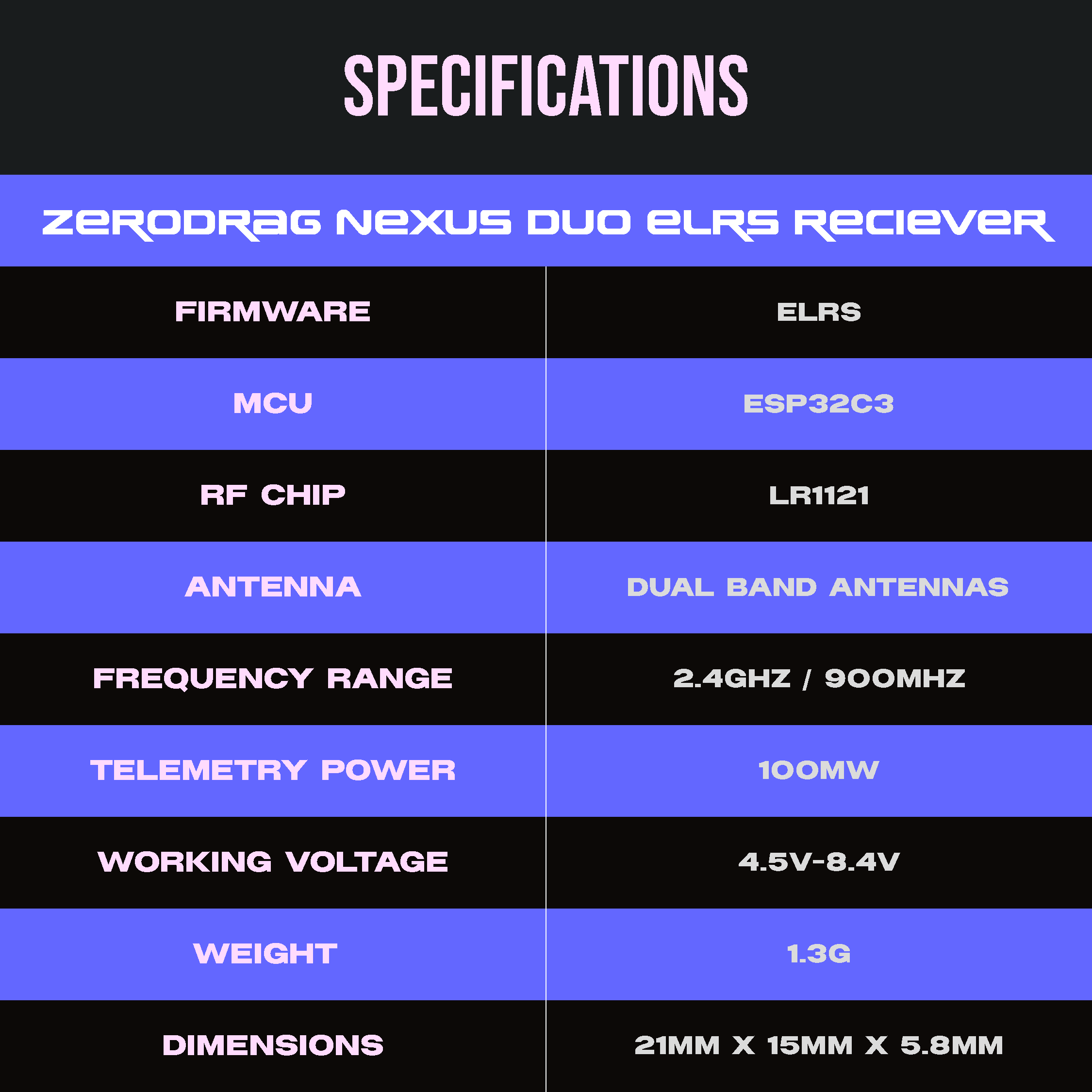

Specifications

• Firmware: ExpressLRS

• RF chip: LR1121

• Front end: Skyworks RFX2401C (LNA + PA)

• Bands: 2.4 GHz and 900 MHz

• Telemetry power: up to 100 mW

• Size: 20 × 15 mm

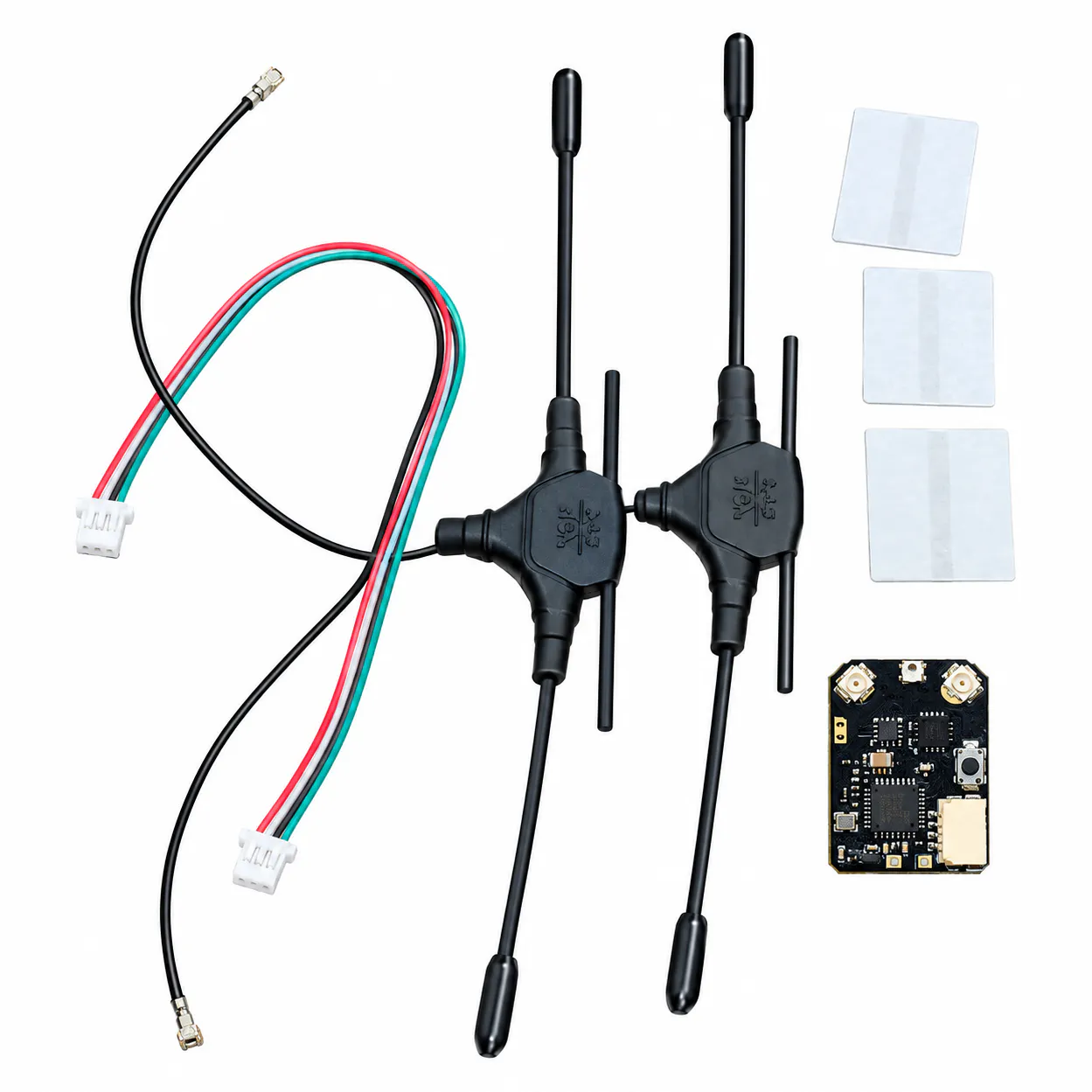

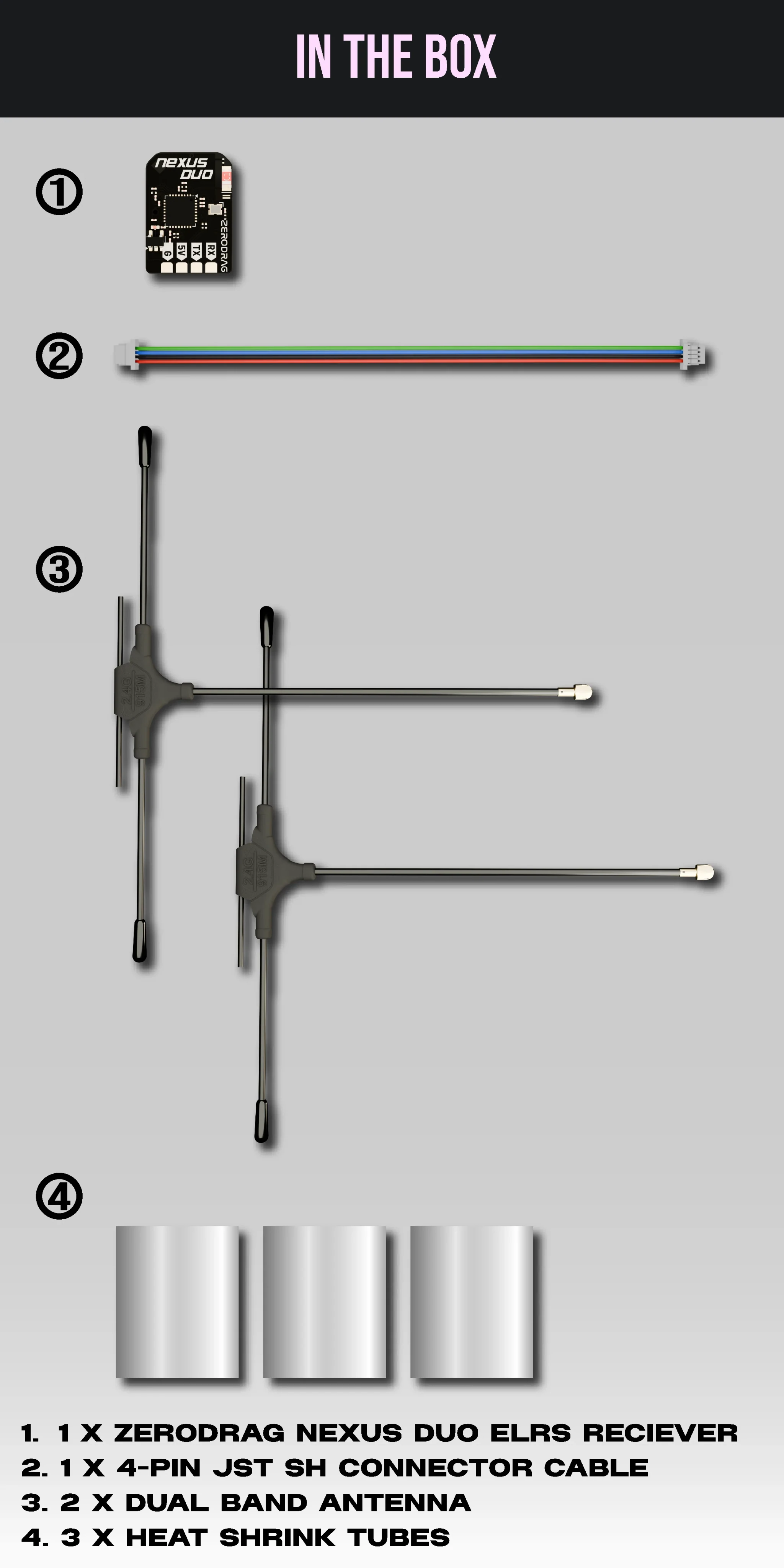

• In the box: receiver, 4-pin JST-SH cable, 2 dual-band antennas, 3 heat-shrink tubes

Pair it with an ELRS transmitter module that covers the band you plan to fly, and keep transmitter and receiver on the same ExpressLRS major version so they bind.
