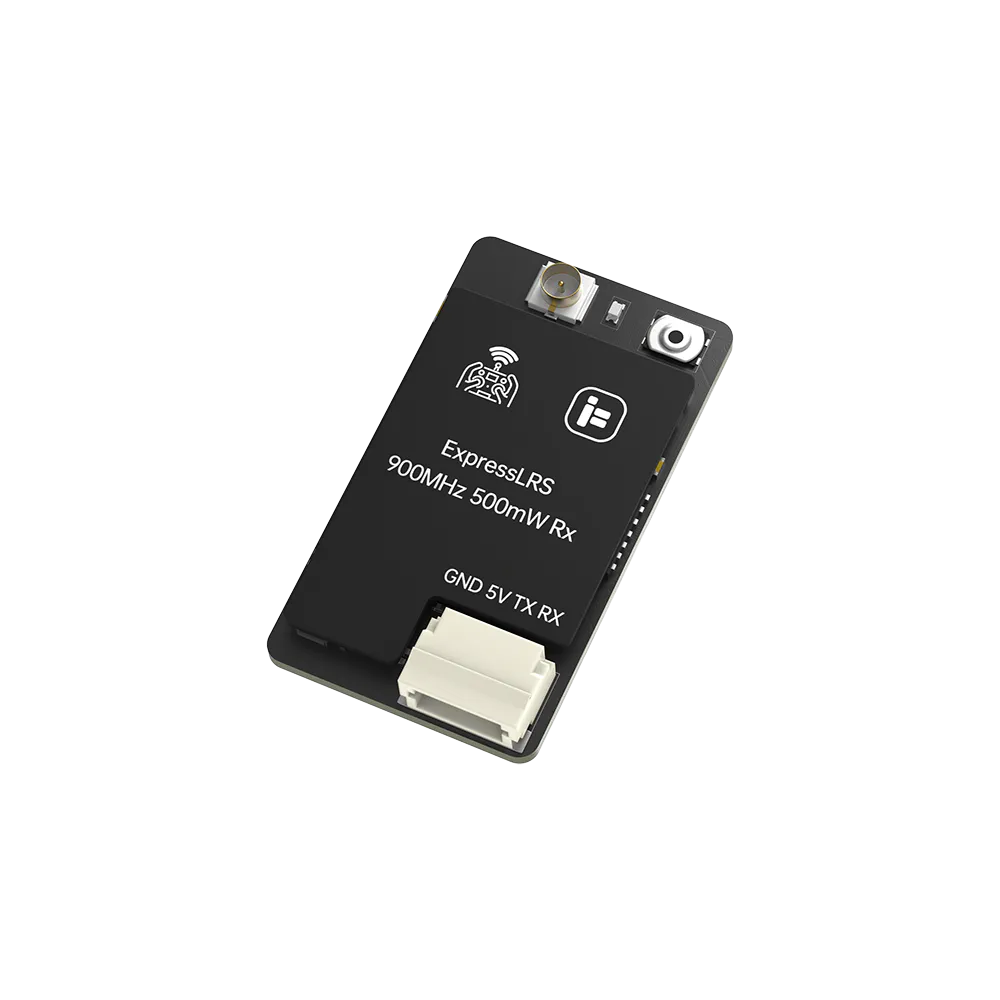

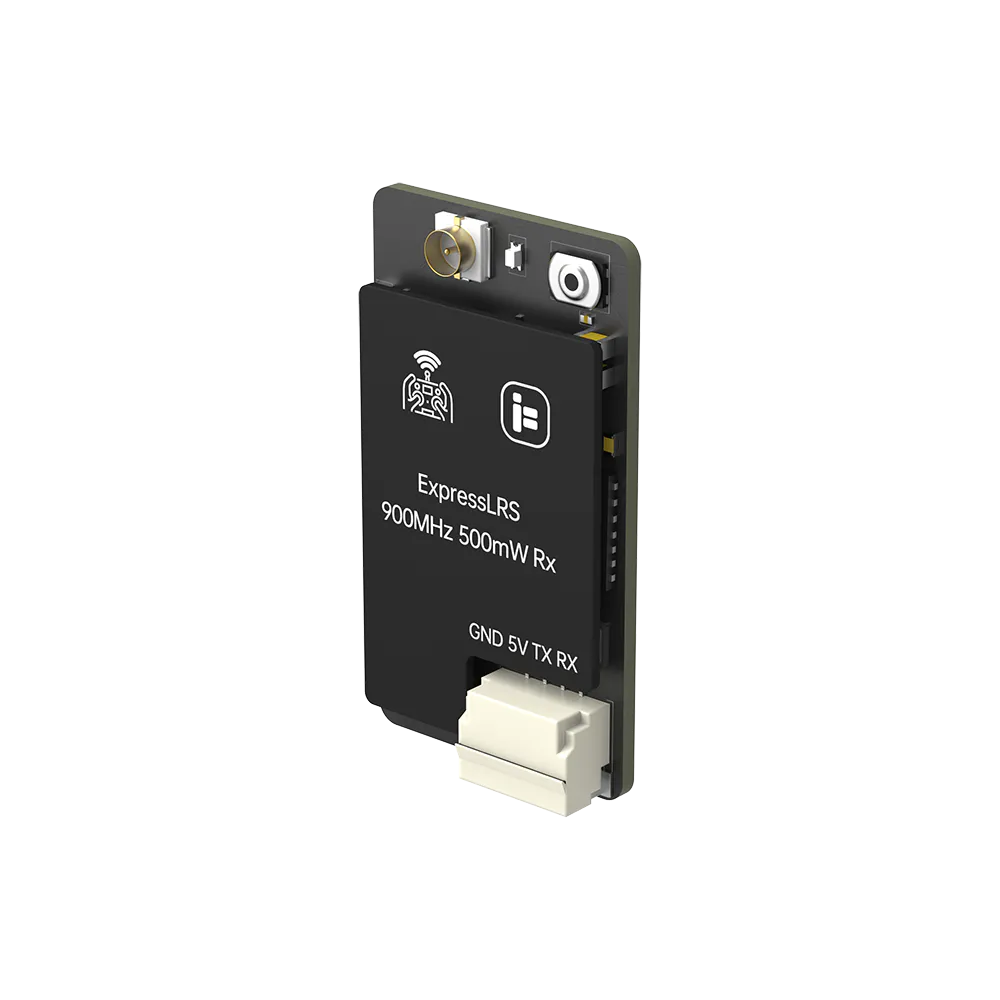

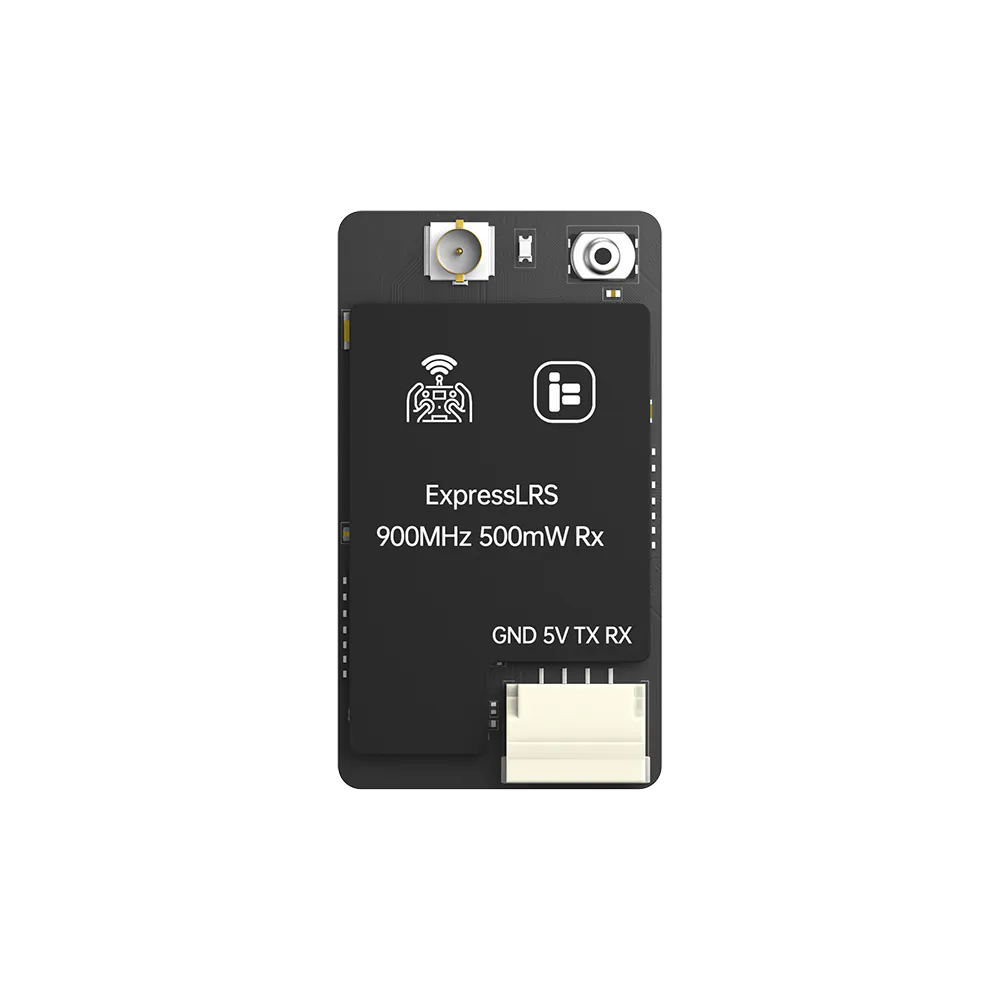

iFlight ELRS 500mW Dual-Band Receiver

The iFlight ELRS Dual-Band Receiver is engineered for extreme long-range FPV, mountain surfing builds, and professional cinelifters operating in challenging RF environments. By combining the high refresh rate and low latency of the 2.4GHz spectrum with the superior obstacle penetration of the 900MHz band, this receiver maintains a robust control link when pushing past standard operational limits.

Key features

• True dual-band operation across 2.4GHz and 868/915MHz frequencies for unmatched link reliability and redundancy.
• Massive 500mW telemetry output power guarantees solid return link data, GPS coordinates, and Lua script responsiveness at extreme distances.
• Powered by the open-source ExpressLRS architecture for industry-leading latency and high packet rates.
• Ideal for setups where standard 2.4GHz links struggle with dense foliage, concrete penetration, or high noise floors.

Specifications

• Protocol: ExpressLRS (ELRS)
• Operating frequencies: 2.4GHz, 868/915MHz
• Telemetry output power: 500mW

To fully utilise both frequency layers simultaneously, this receiver must be paired with an ExpressLRS transmitter module capable of dual-band transmission.
