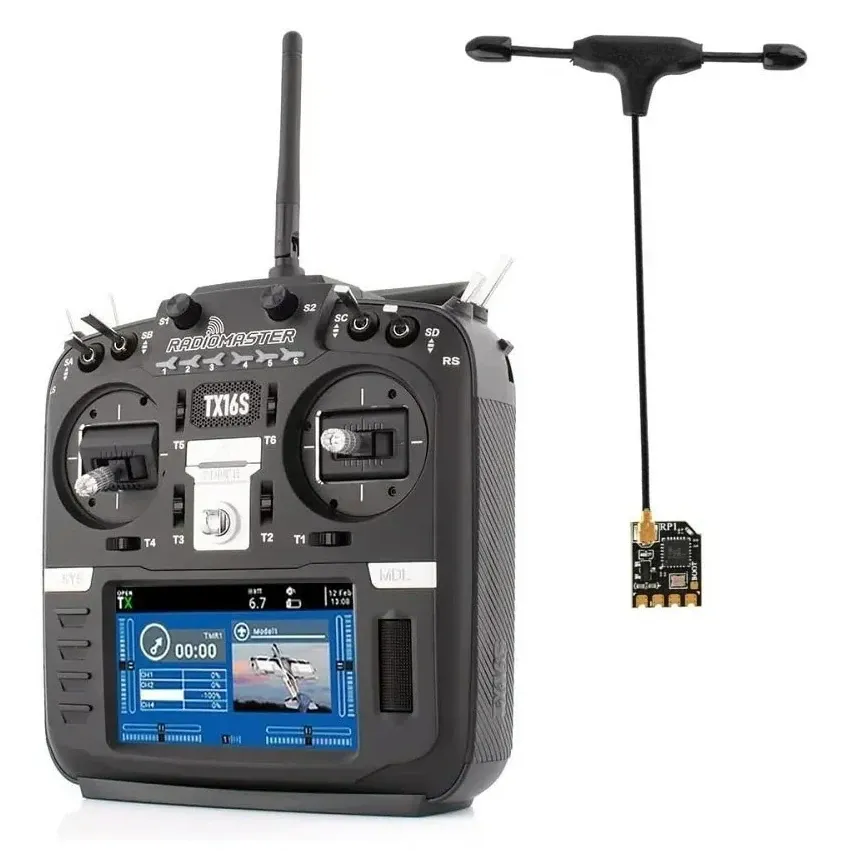

RadioMaster TX16S MKII Hall V4.0 ELRS Radio with RP1 Receiver

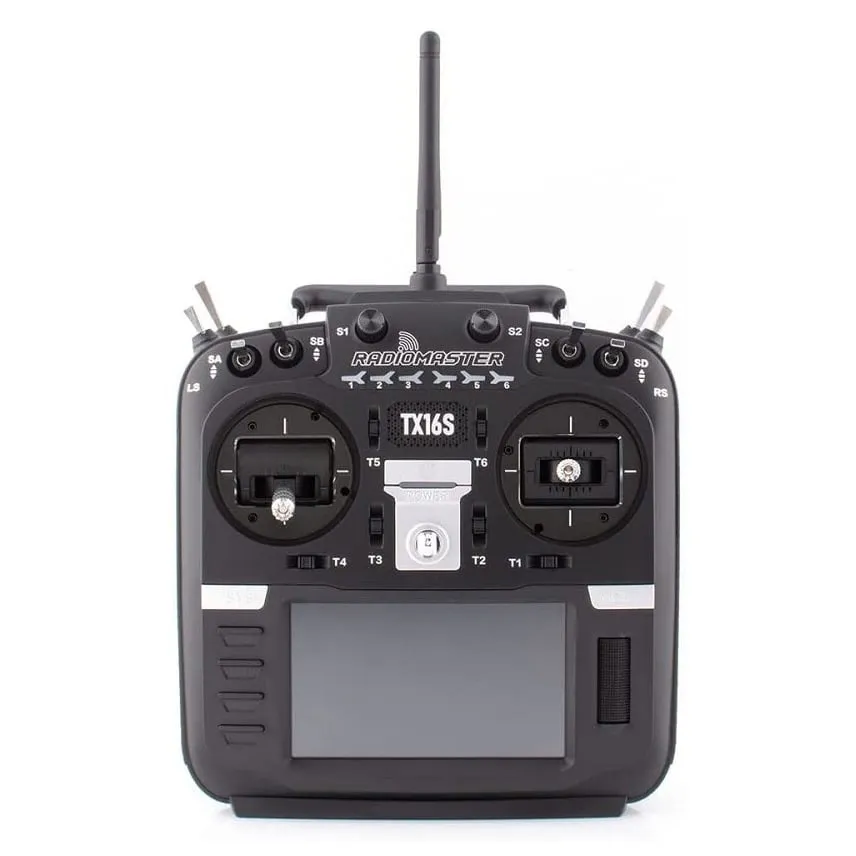

The RadioMaster TX16S MKII is a full-size 16-channel radio with V4.0 Hall-effect gimbals, an internal 2.4GHz ExpressLRS (ELRS) RF module and EdgeTX running on a 4.3-inch colour touchscreen. This bundle adds an RP1 ELRS 2.4GHz nano receiver, so you can bind a quad, wing or plane straight away.

Key features

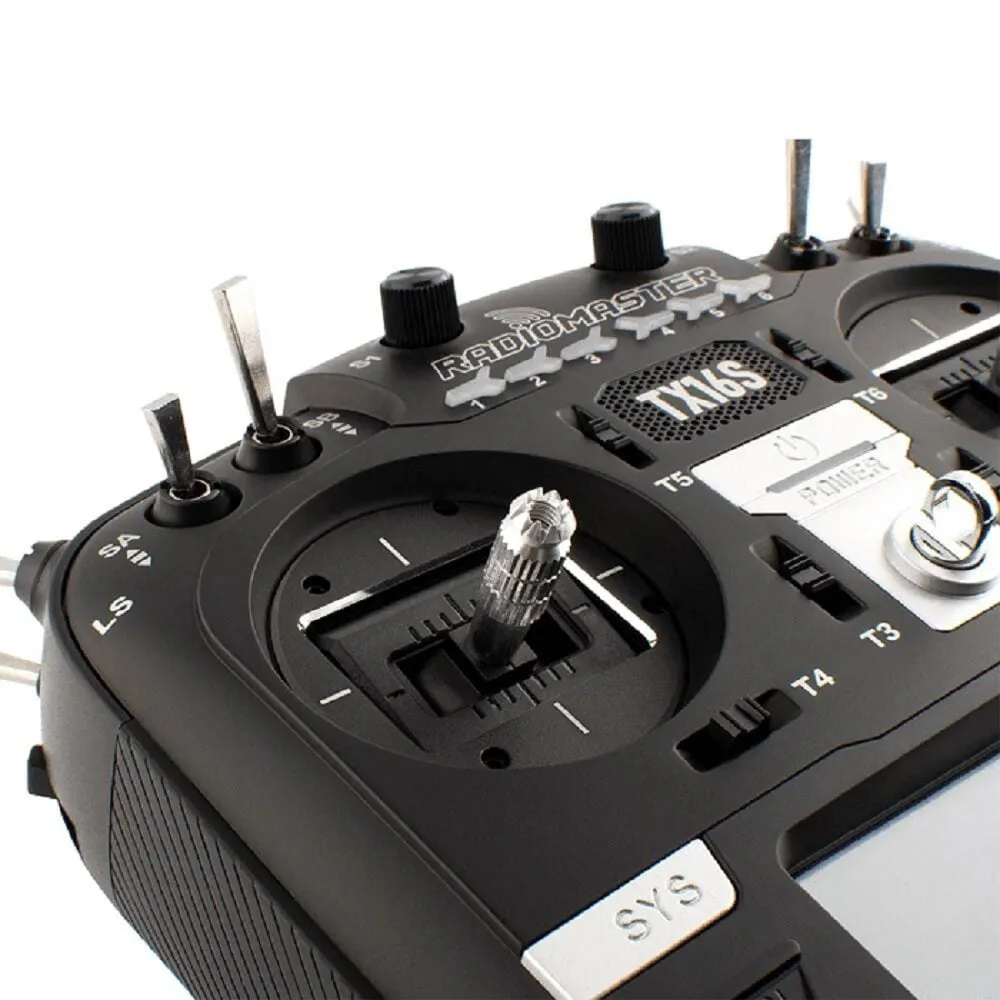

• V4.0 Hall gimbals with improved centring and temperature stability, using the same circuitry as RadioMaster's AG01
• JR module bay at the back for a second RF module such as Crossfire or a multi-protocol unit
• Internal USB-C charging at up to 2.2 A, with reverse-polarity protection on the charge circuit
• Rear 3.5 mm headphone jack, standard 3.5 mm TRS trainer port and a rear DIY socket for mods

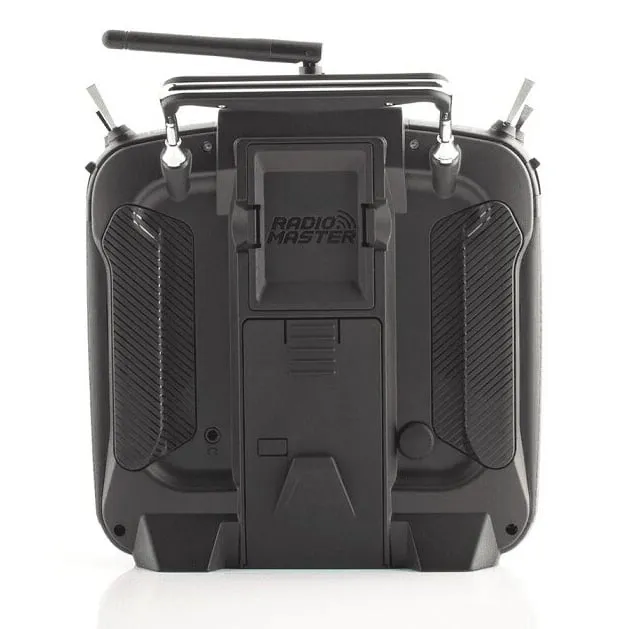

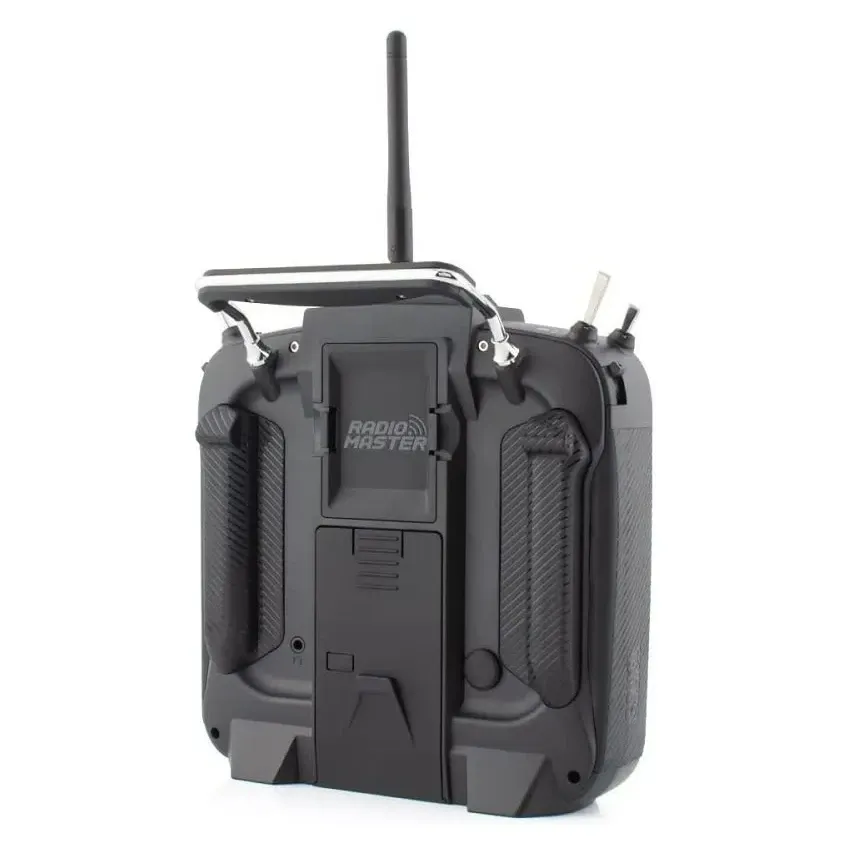

• Reworked S1/S2 knobs and LS/RS sliders with clear centre detents; flat and raised rear grips both included

Specifications

• Channels: 16
• Internal RF: ELRS, 2.400–2.480 GHz
• Firmware: EdgeTX pre-installed; needs EdgeTX 2.6.0 or OpenTX 2.3.15 or later
• Display: 4.3-inch colour touchscreen, 480 × 272
• Supply: 6.6–8.4 V DC (2S)
• Working current: 400 mA
• Weight: 750 g without battery

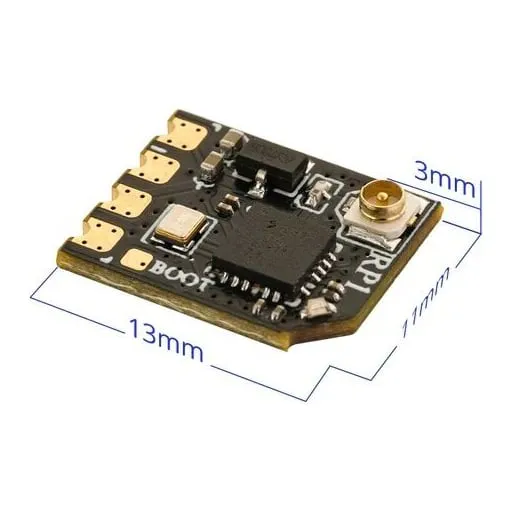

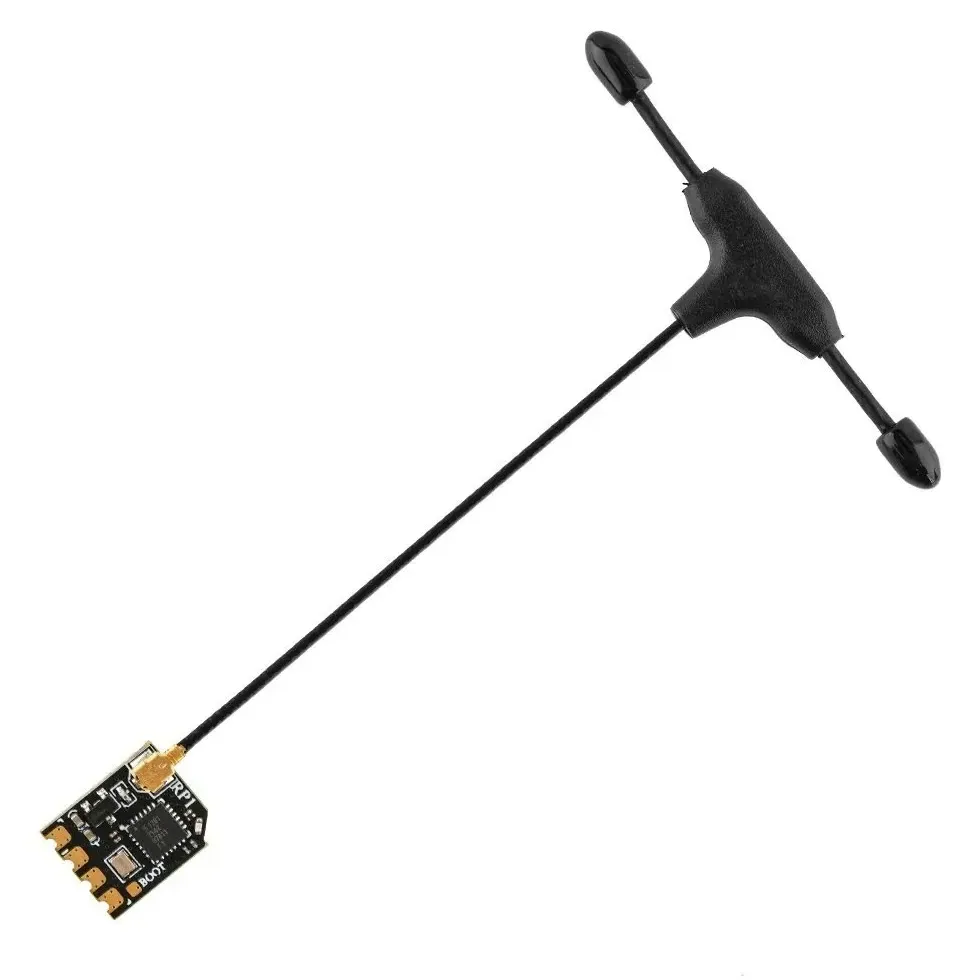

• Receiver: RadioMaster RP1 ELRS 2.4GHz nano
• In the box: radio, RP1 receiver, USB-C cable, screen protector, flat and raised grip pairs, keychain, manual

Cells are not in the box: the radio runs on a 2S supply such as two 18650 Li-ion cells and charges them in place over USB-C. Before binding, flash the RP1 and the radio's internal module to the same ExpressLRS major version and set a matching binding phrase.
