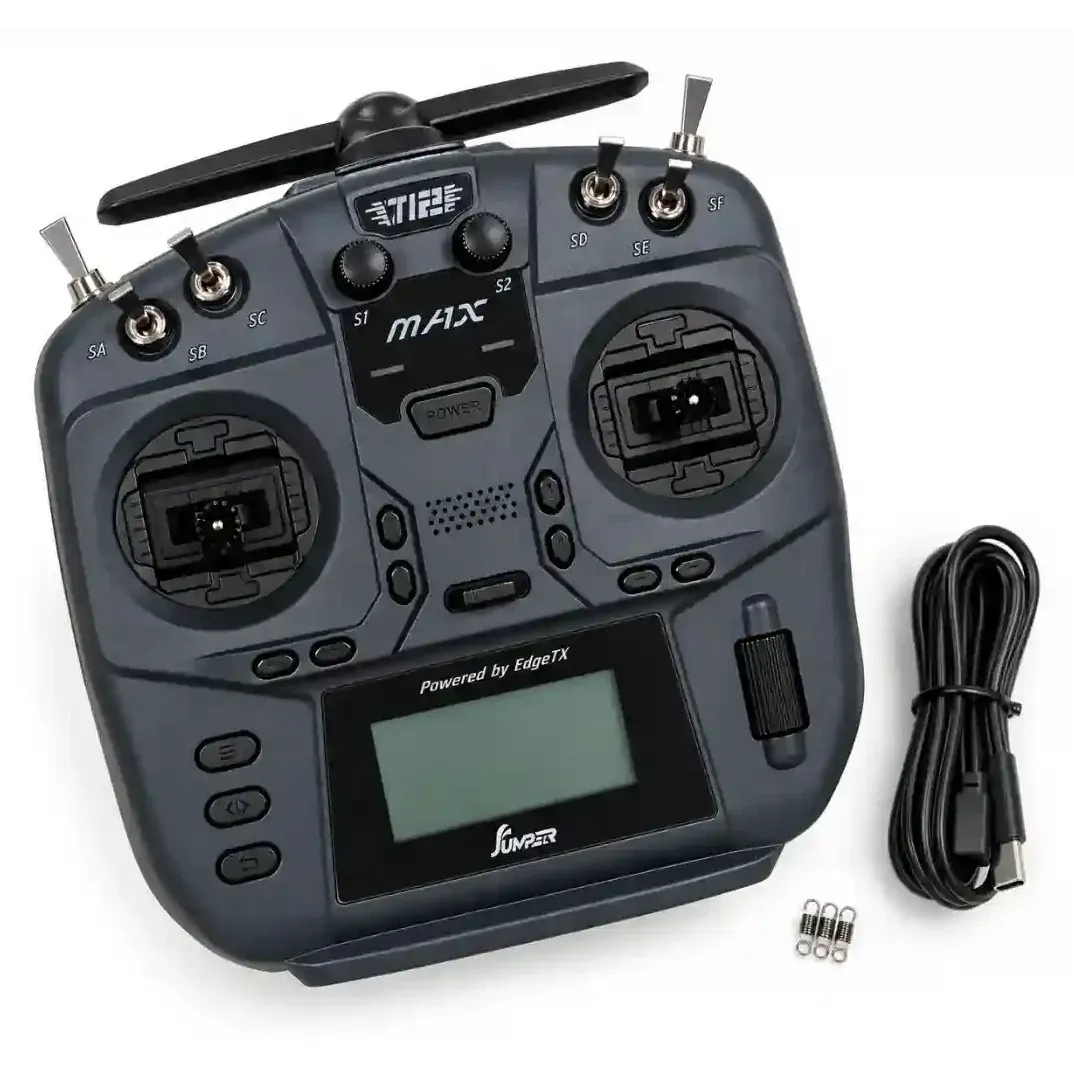

Jumper T12 Max ELRS 2.4GHz Hall Gimbal Radio Transmitter

The Jumper T12 Max is a mid-sized EdgeTX radio with a built-in ELRS 2.4GHz module, Hall-effect gimbals and a compact, travel-friendly body. It suits FPV pilots who want ELRS range and low latency in a smaller handset than a full-size radio, for freestyle, racing, cinematic and long-range flying.

Key features

• Internal ELRS 2.4GHz RF module with up to 500 mW output and packet rates up to 1 kHz; a built-in fan cools it on high-power flights
• Hall-effect gimbals for smooth stick feel without potentiometer wear
• 6 switches and 2 potentiometers, with a 1.7-inch 128 × 64 monochrome screen
• JR module bay for adding a second RF system such as a Crossfire or 900 MHz ELRS module

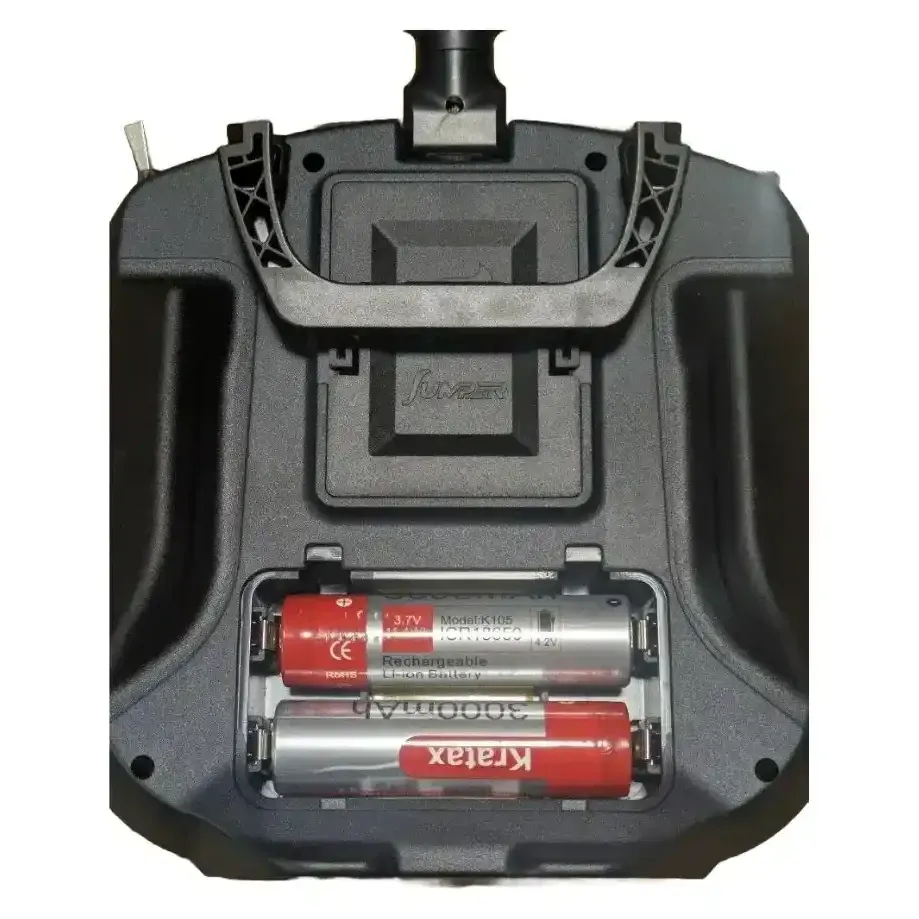

• Runs on 2 × 18650 Li-ion cells (not included), charged in the radio over USB-C at up to 10 W
• Foldable antenna and handle; 355 g without batteries

Specifications

• MCU: STM32F407ZET6
• RF: ELRS 2.4GHz, up to 500 mW
• Gimbals: Hall-effect
• Screen: 1.7-inch, 128 × 64 monochrome
• Controls: 6 switches, 2 potentiometers
• External bay: JR
• Batteries: 2 × 18650 (not included), 6–8.4 V operating range
• Charging: USB-C, up to 10 W
• Dimensions: 152 × 160 × 63 mm
• Weight: 355 g without batteries

Pair it with any 2.4GHz ELRS receiver, keeping both ends on the same major ELRS version and binding phrase. Order two good-quality 18650 cells alongside, as none come in the box.
