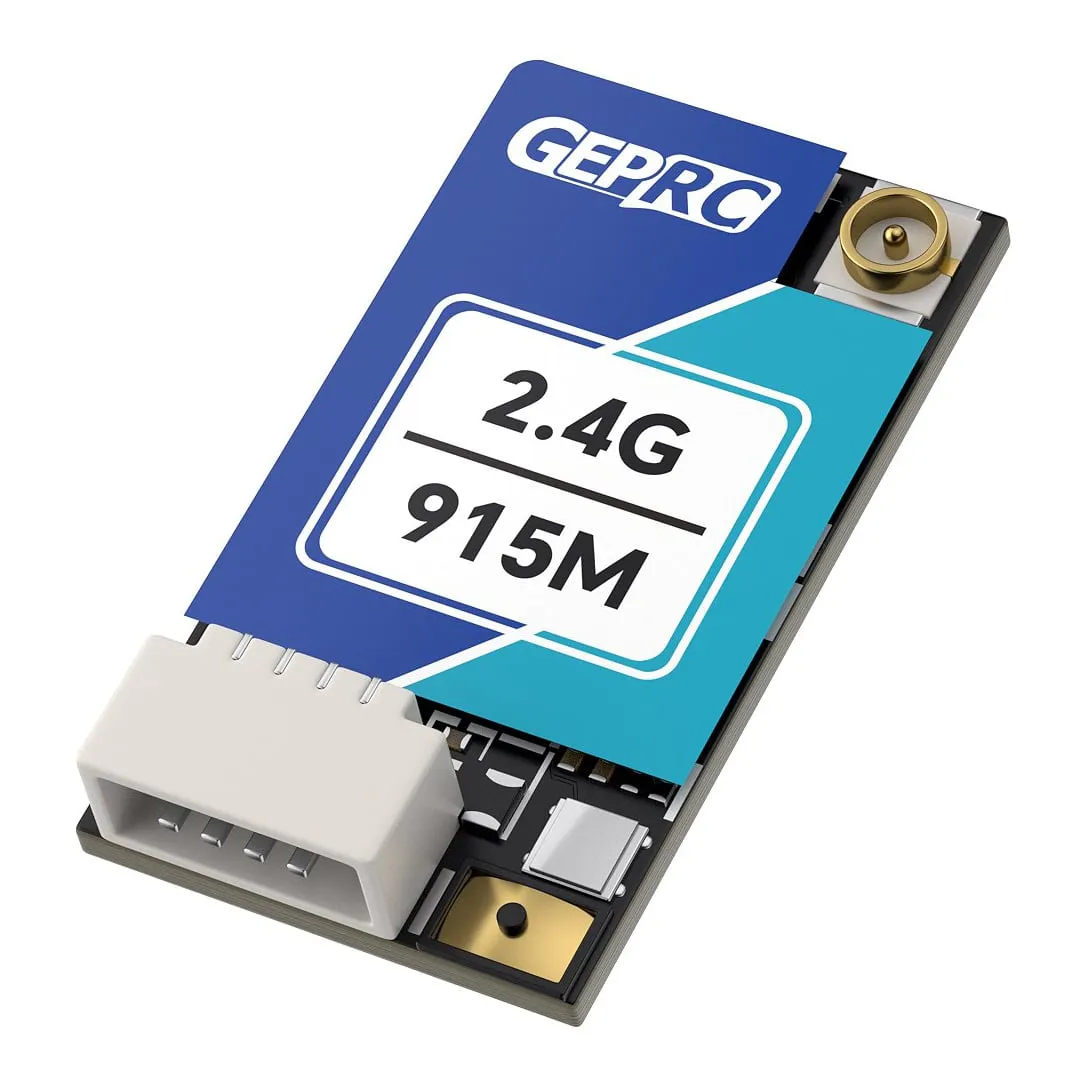

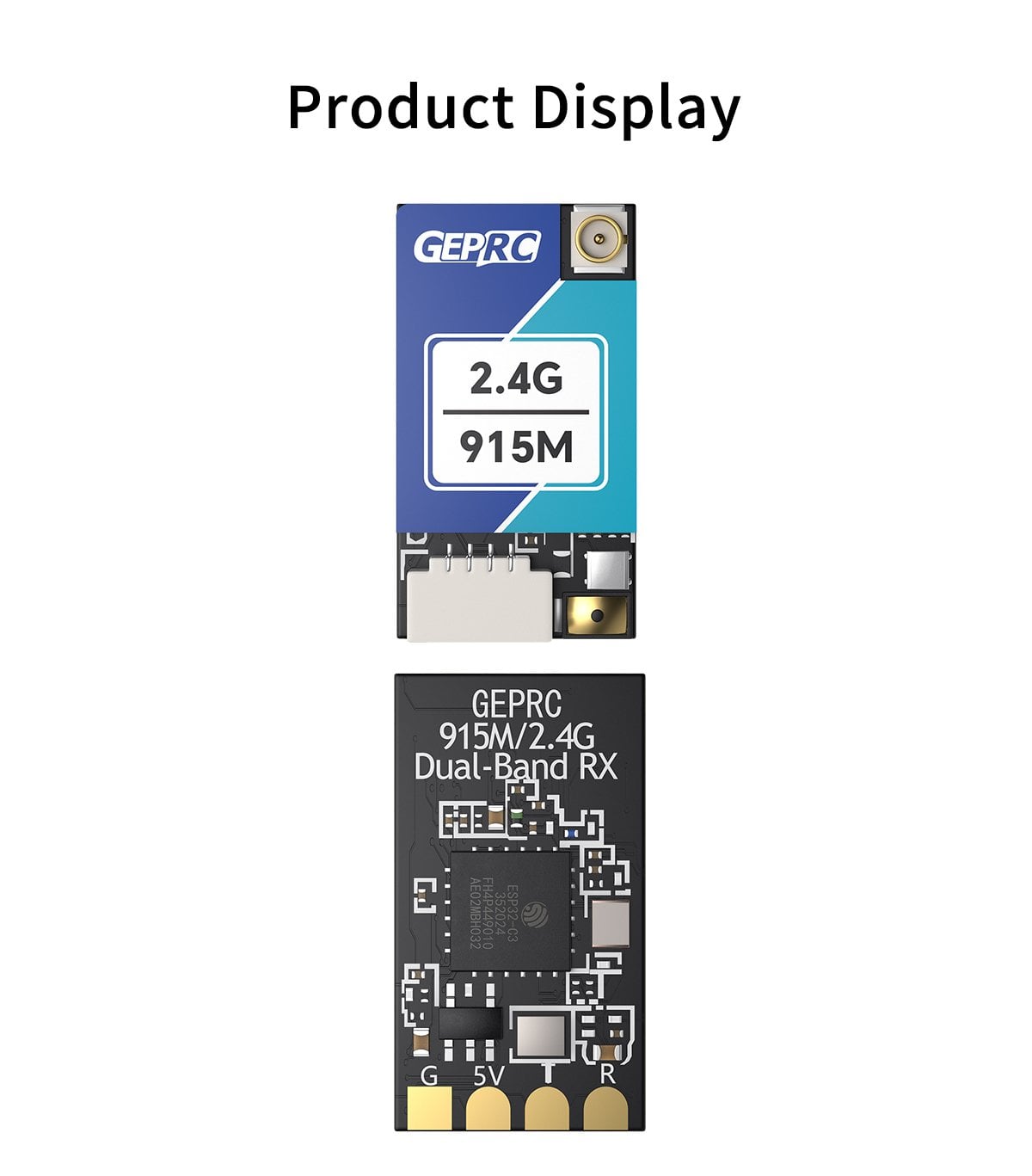

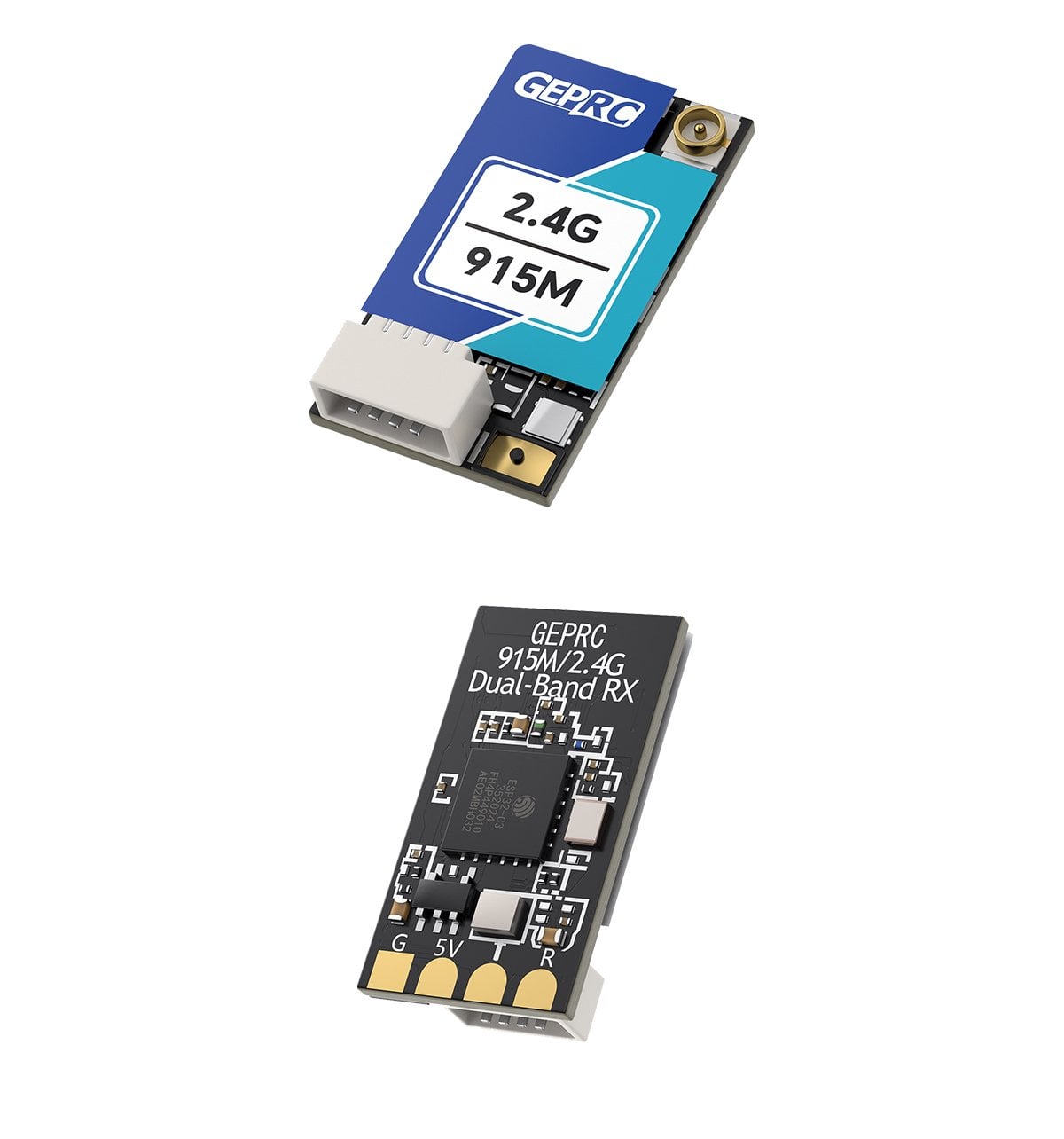

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

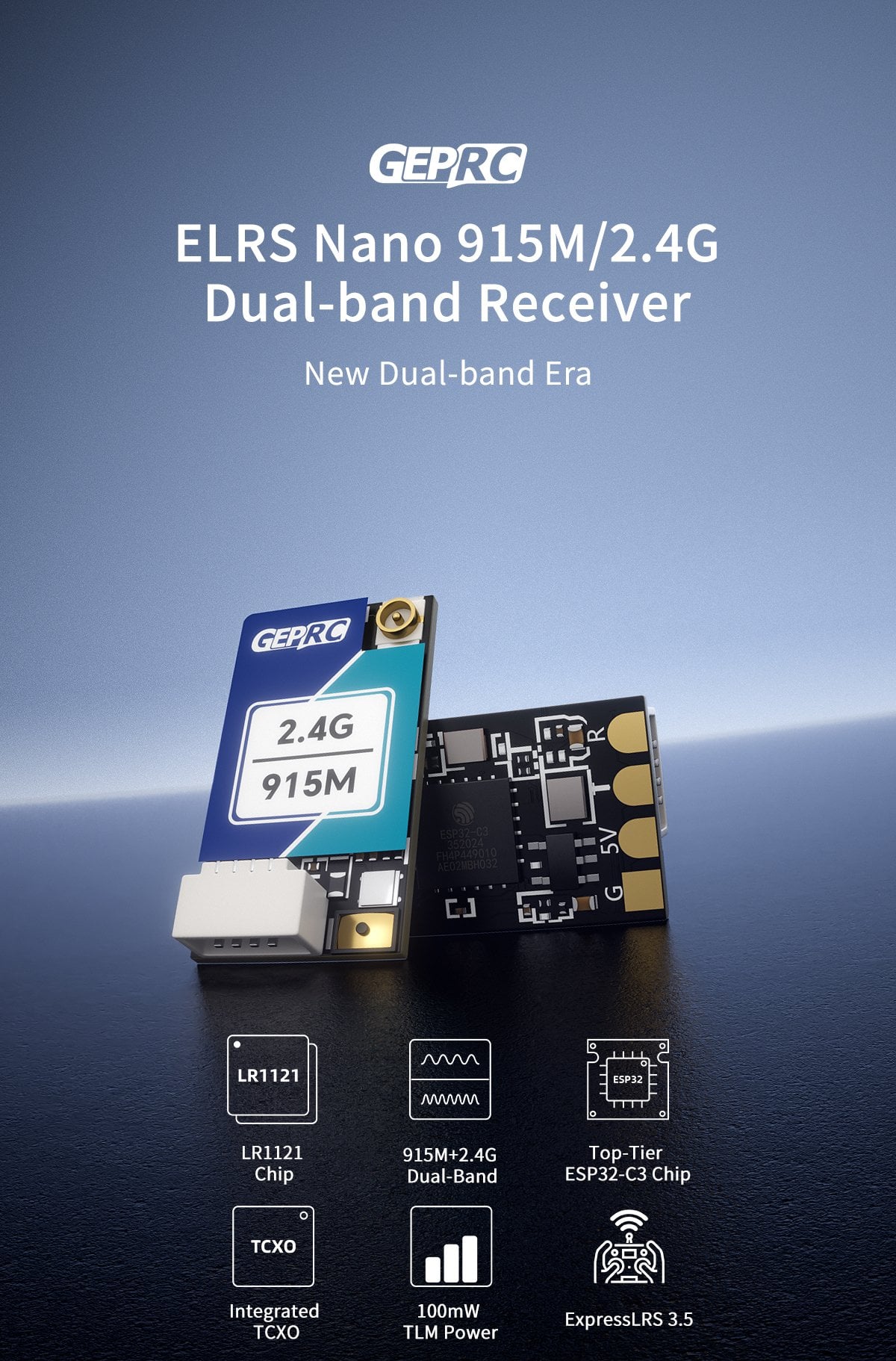

GEPRC's ELRS Nano dual-band receiver is built on Semtech's third-generation LR1121 RF silicon with an ESP32-C3, letting one tiny receiver run on the sub-GHz band (915 MHz FCC or 868 MHz EU) or on 2.4 GHz. It suits pilots who fly both a long-range 900 MHz radio and a 2.4 GHz setup and want one receiver type across their fleet, and micro builders short on space.

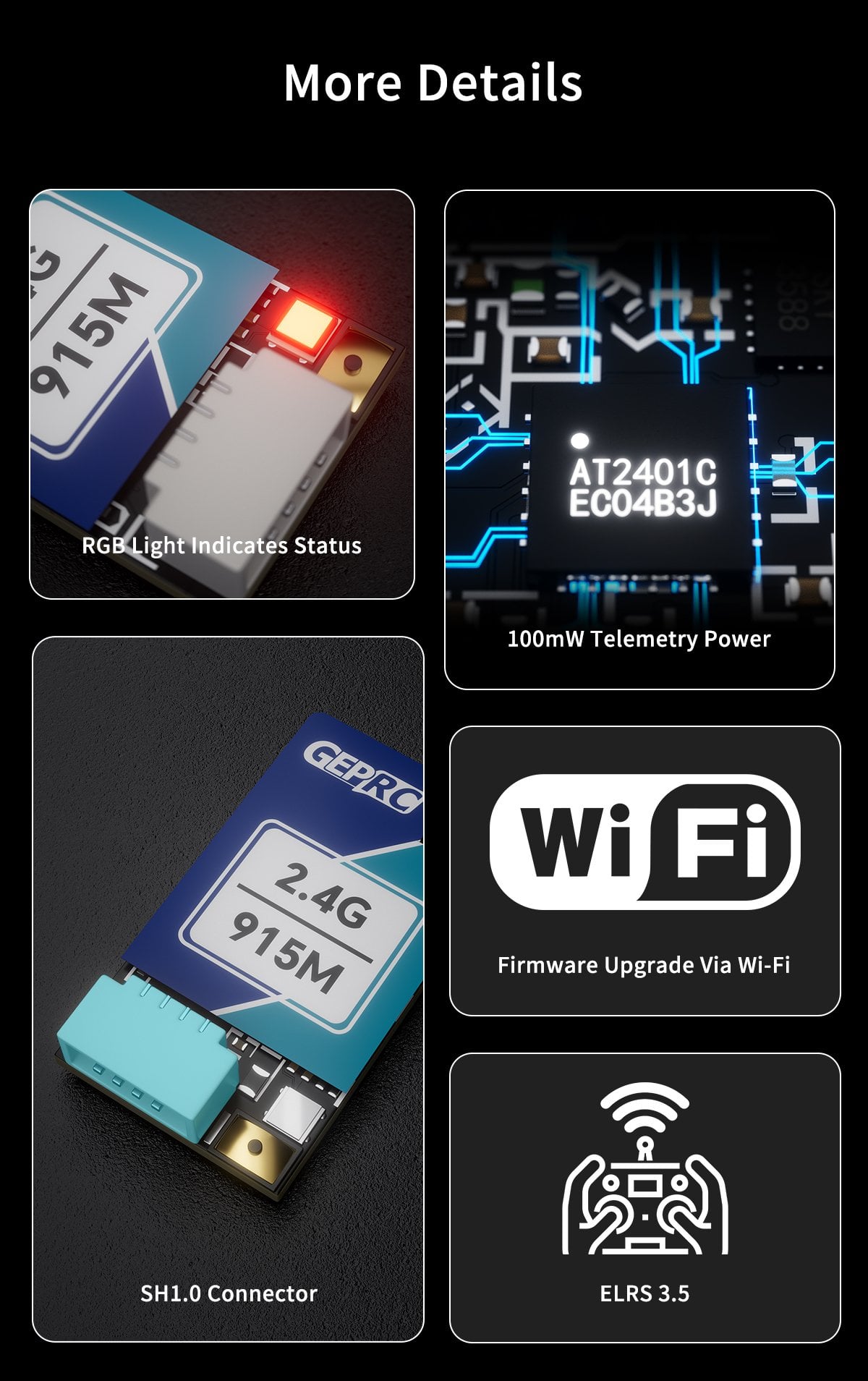

Key features

• Switchable between 915 MHz, 868 MHz and 2.4 GHz operation; works with existing single-band ELRS transmitter modules on either band

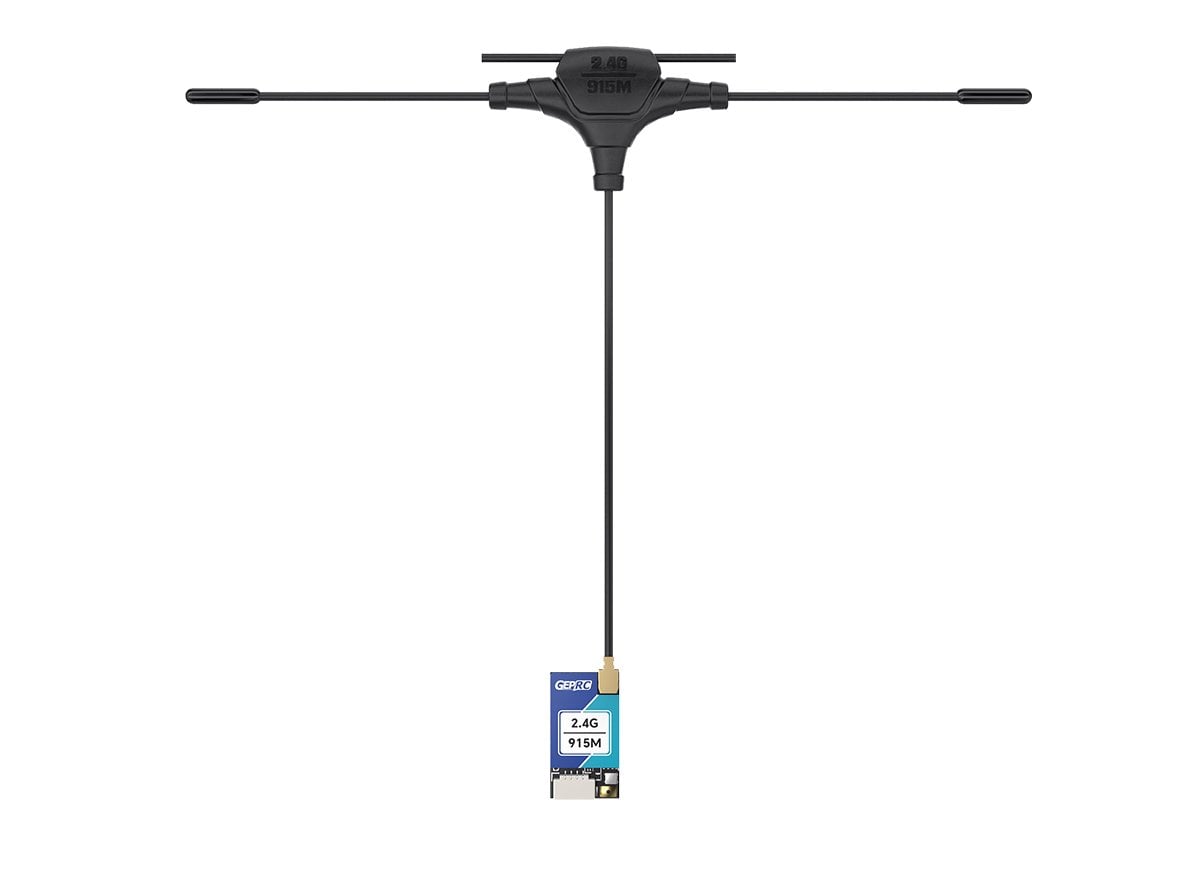

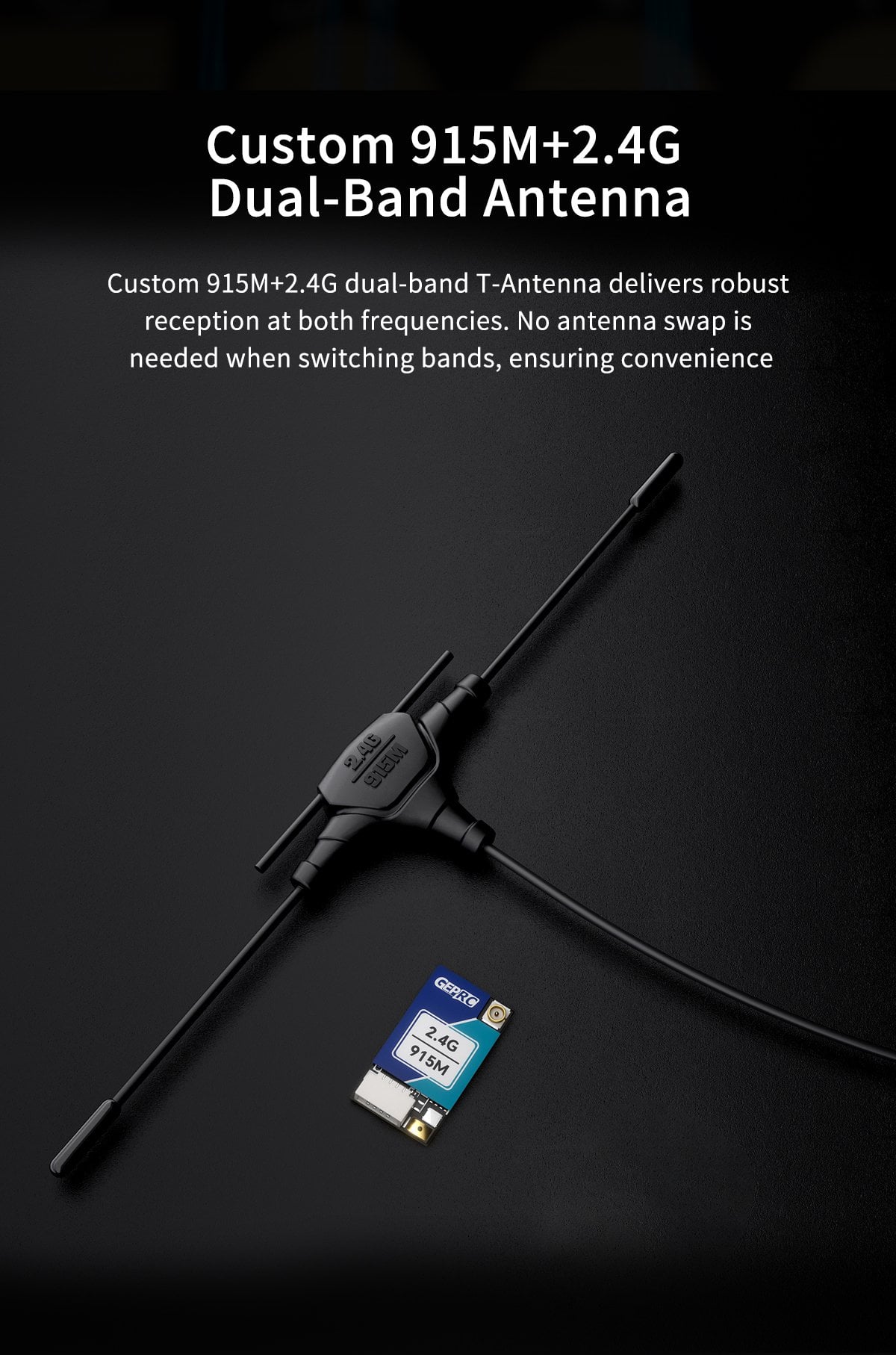

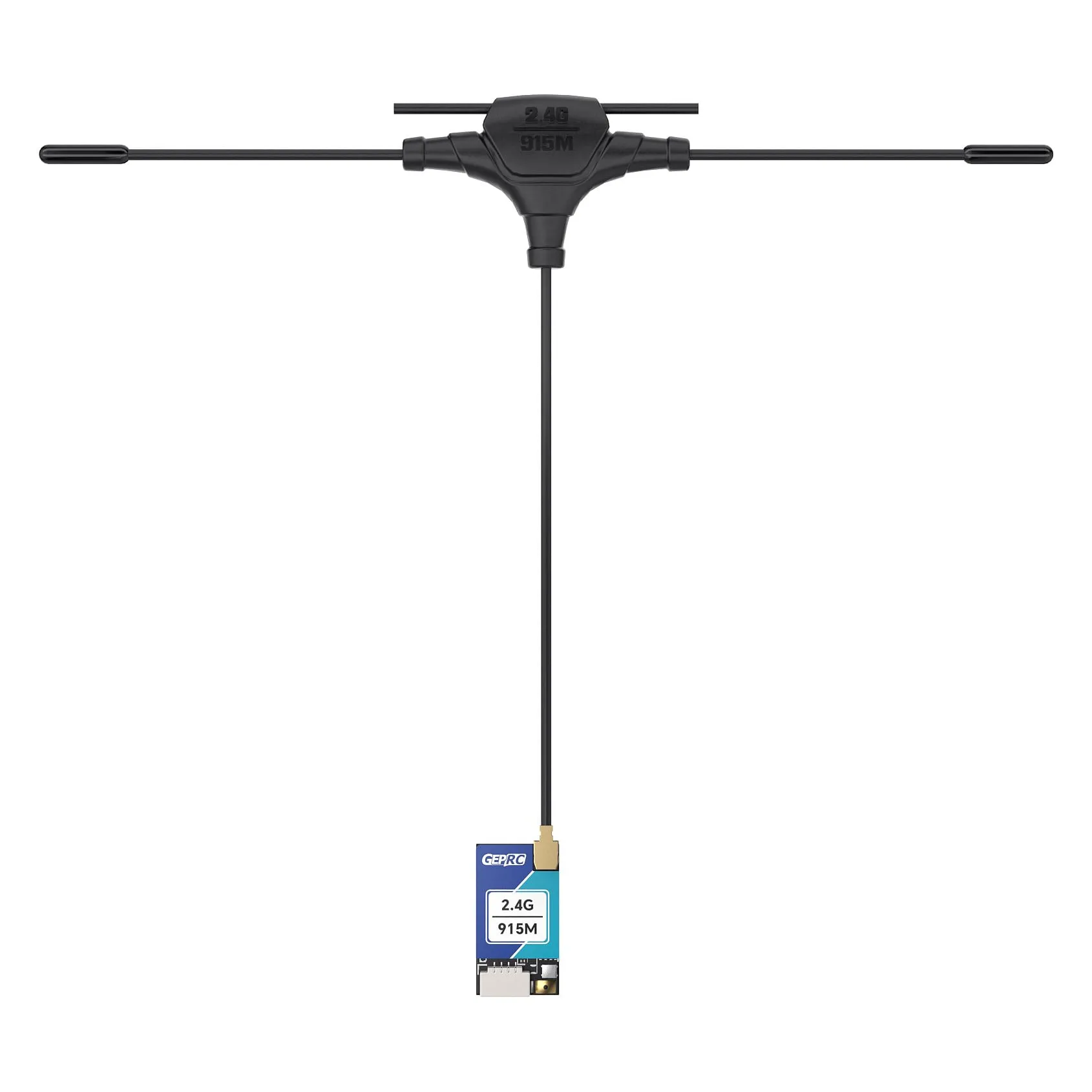

• One dual-band T-antenna in the box covers both bands

• Refresh rate 25–1000 Hz; TCXO keeps the frequency steady as temperature changes

• Telemetry power up to 100 mW

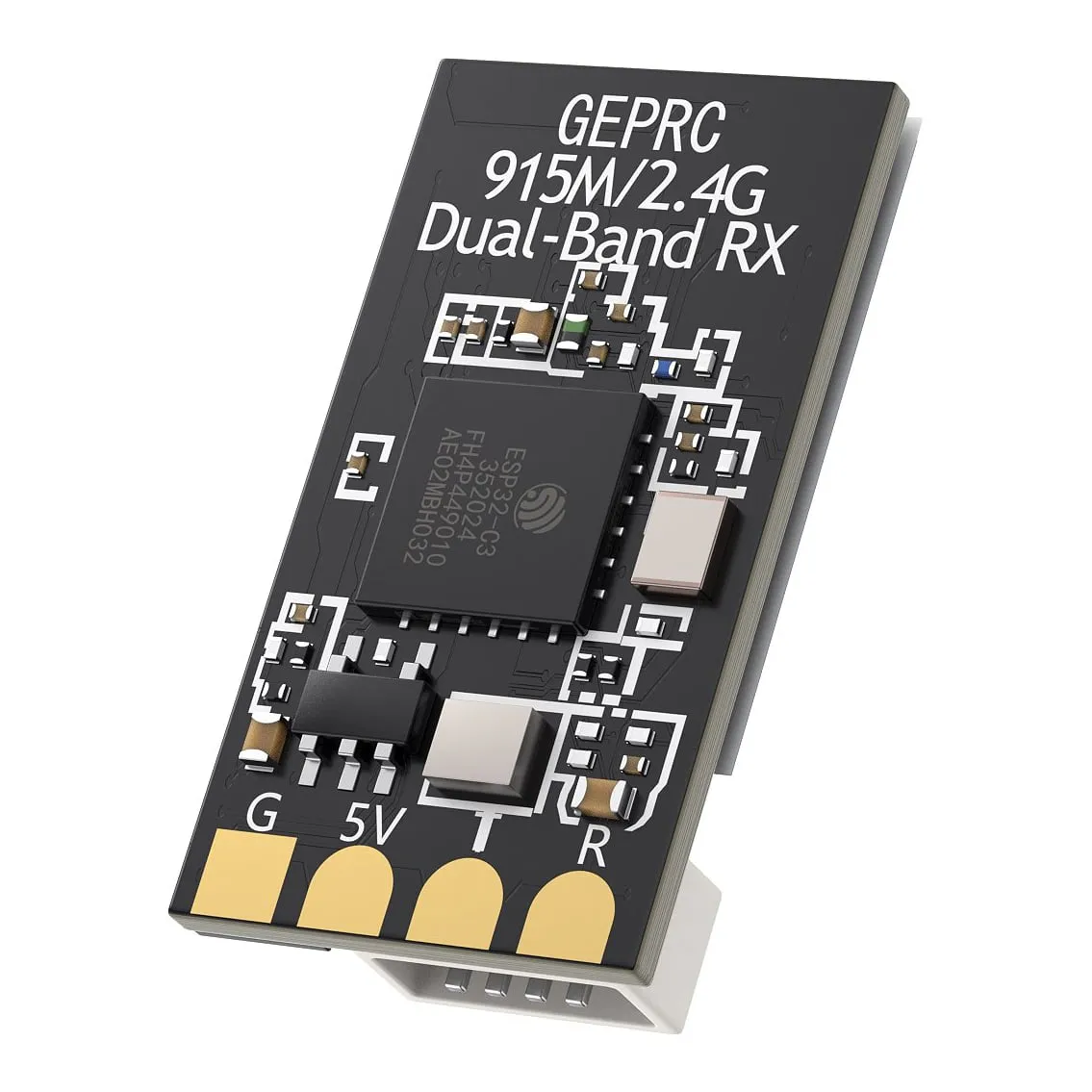

• WiFi firmware updates via the built-in WiFi antenna; SH1.0 connector with a 4-pin silicone lead supplied

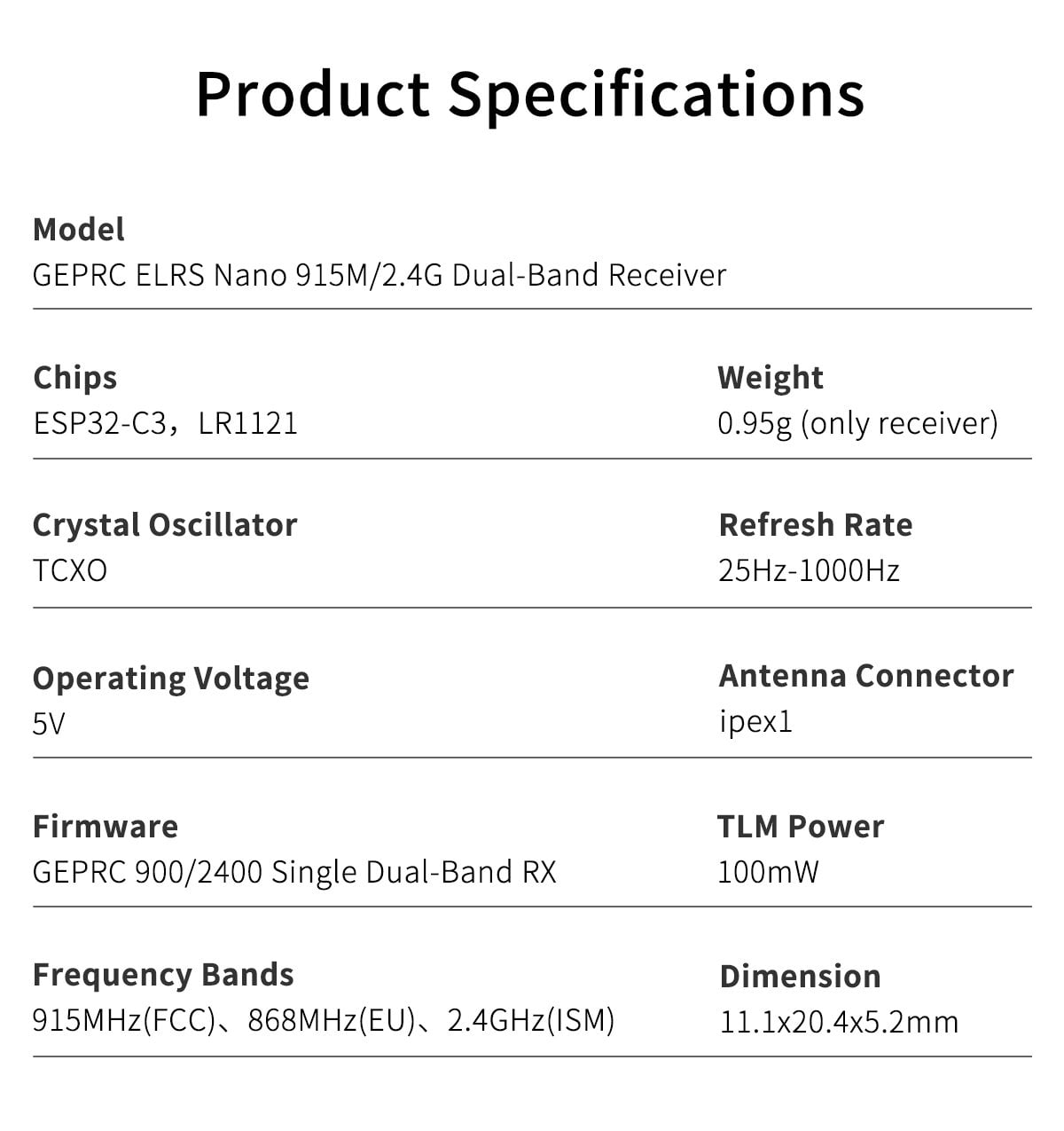

Specifications

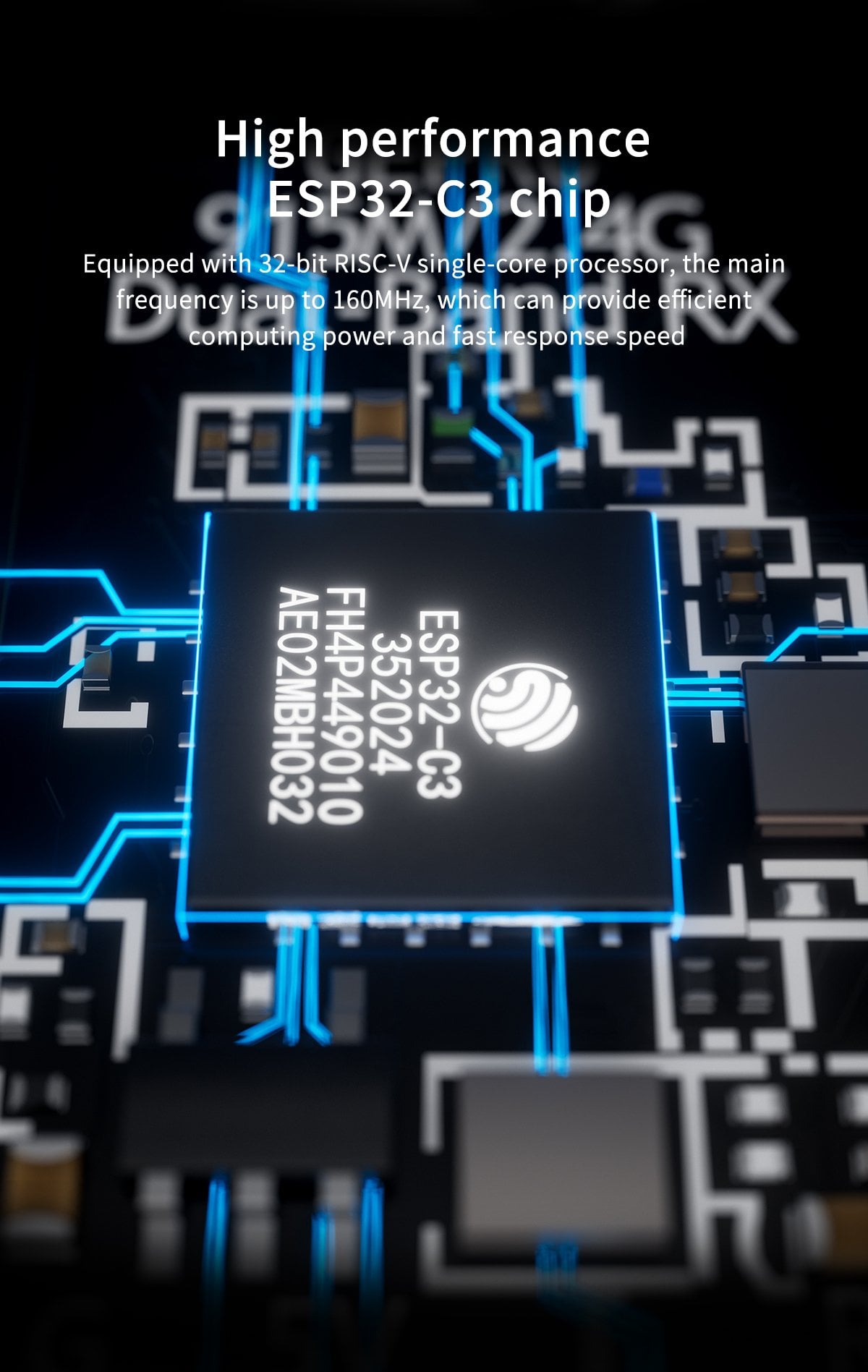

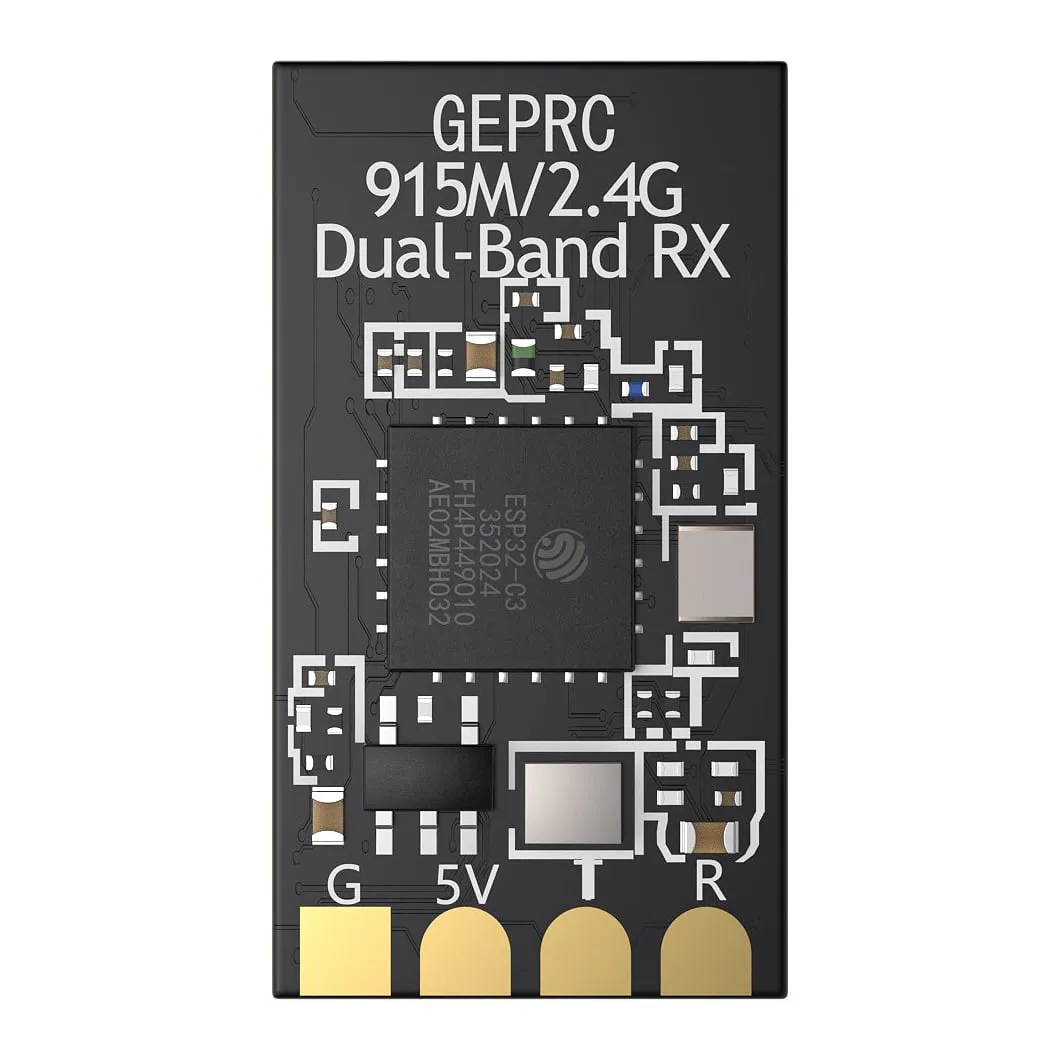

• MCU: ESP32-C3

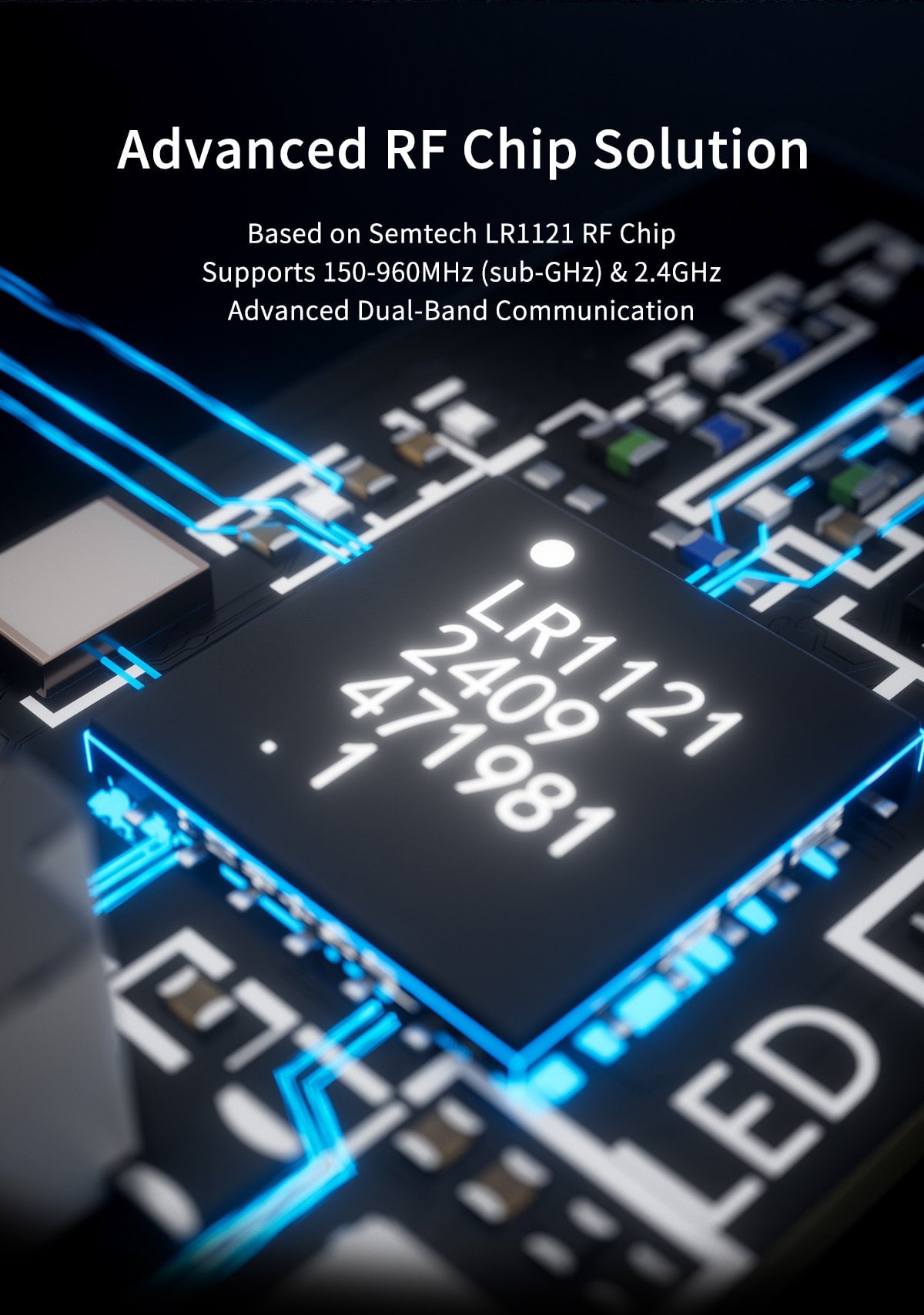

• RF: Semtech LR1121

• Bands: 915 MHz (FCC), 868 MHz (EU), 2.4 GHz (ISM)

• Refresh rate: 25–1000 Hz

• Telemetry power: up to 100 mW

• Operating voltage: 5V

• Antenna connector: IPEX1 (U.FL)

• Dimensions: 11.1 × 20.4 × 5.2 mm

• Weight: 0.95 g (receiver only)

• Firmware target: GEPRC 900/2400 Single Dual-Band RX

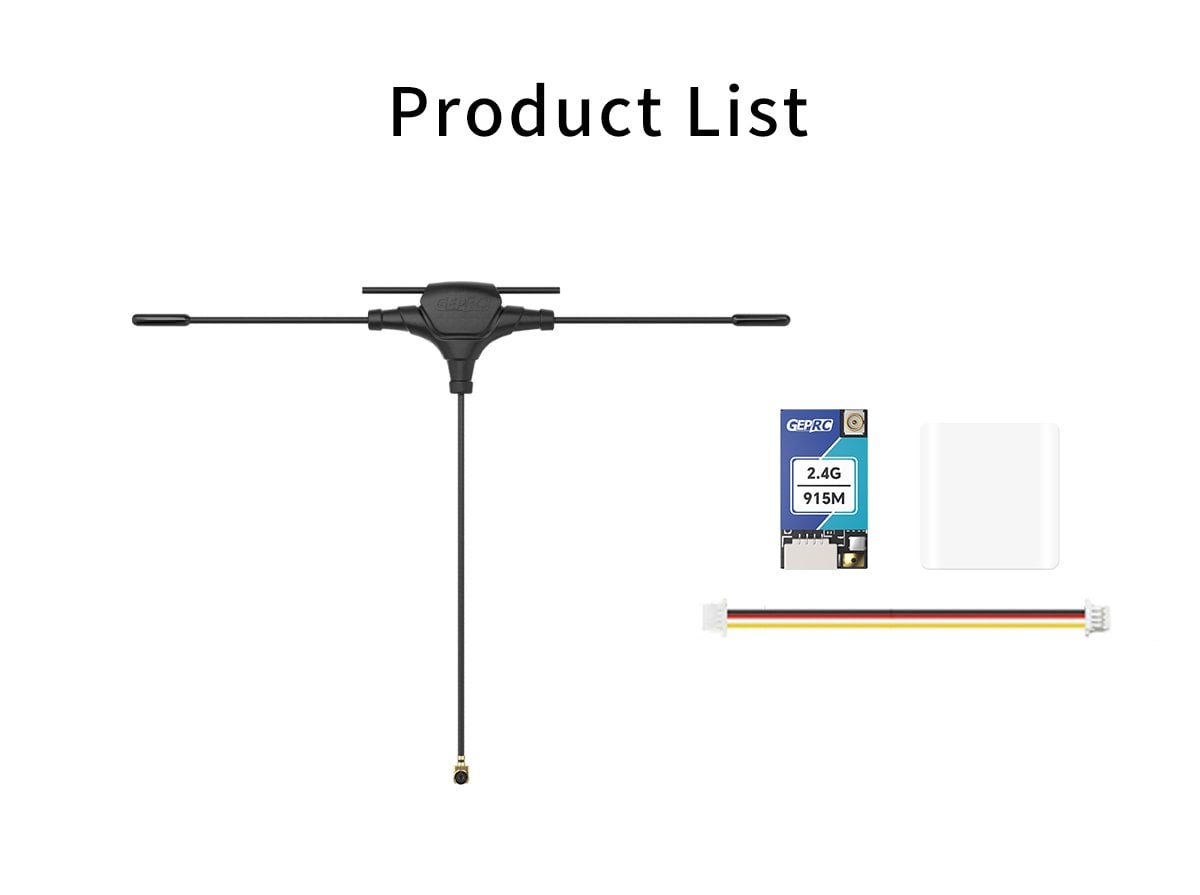

• In the box: receiver, 915 MHz/2.4 GHz dual-band T-antenna, heat-shrink, 4-pin silicone lead, manual

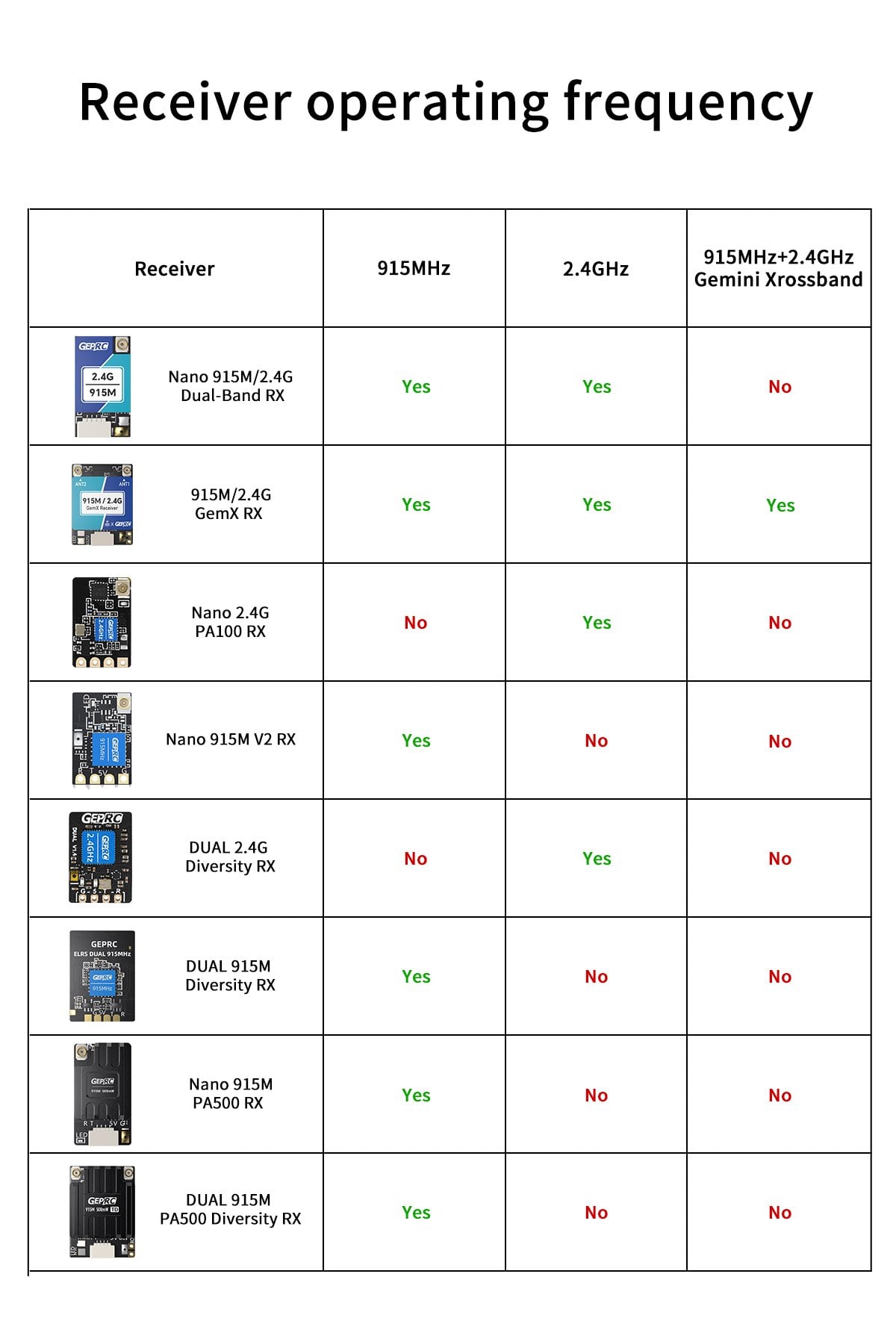

This is a switchable receiver, not a Gemini unit: it runs on one band at a time, so set it to the band your transmitter module uses. For simultaneous dual-band links, choose GEPRC's Gemini Xrossband receiver instead.
