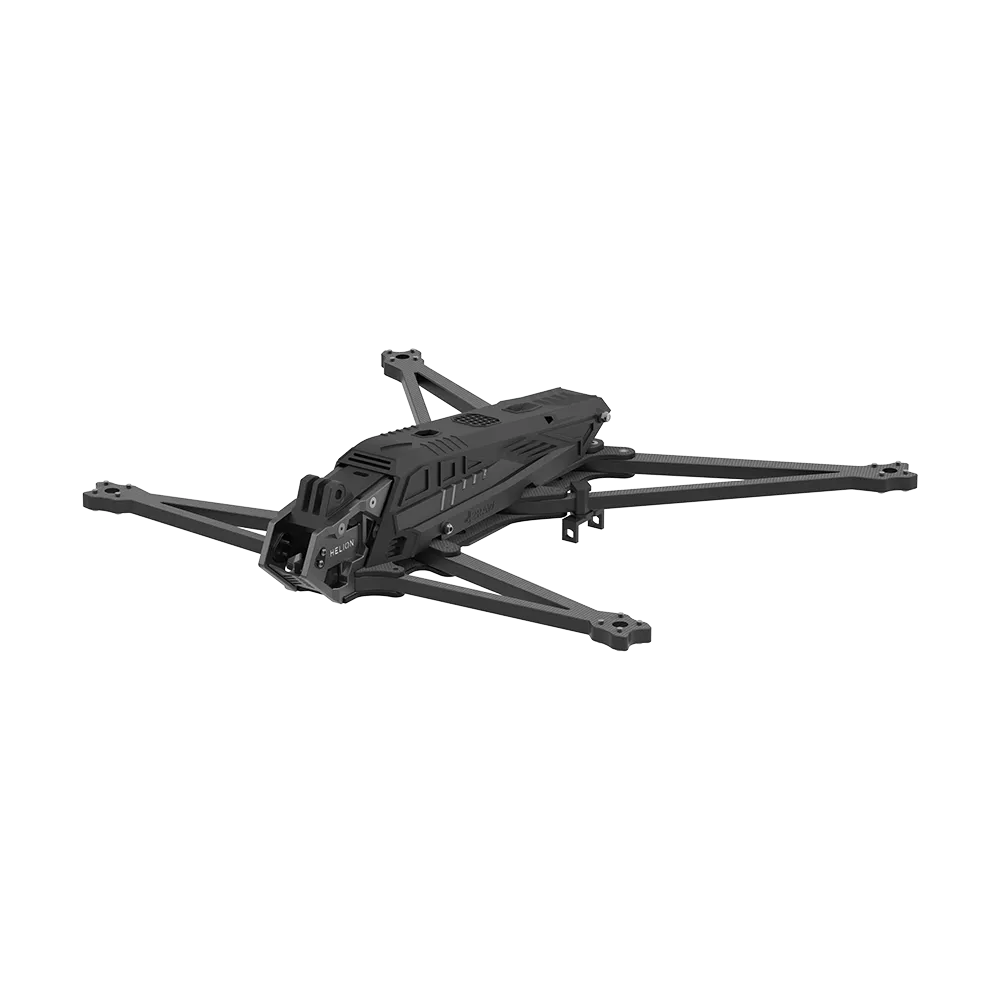

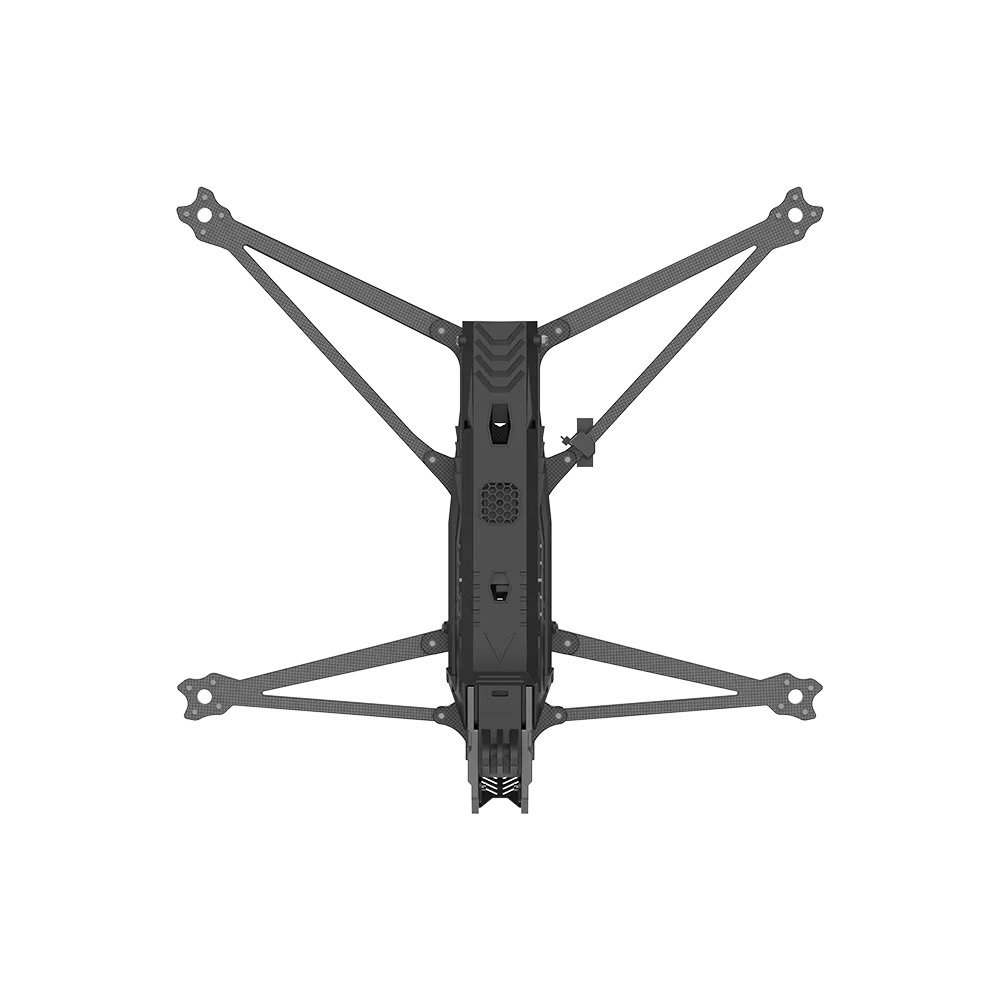

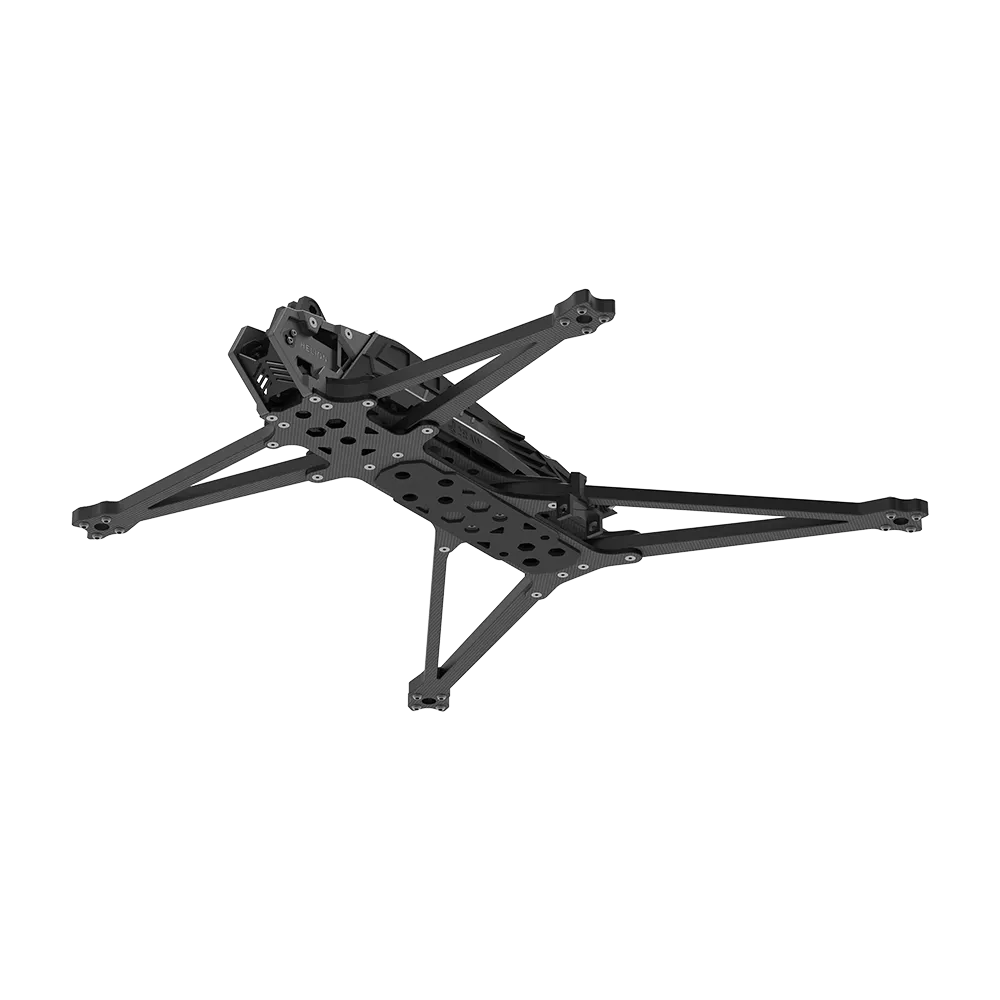

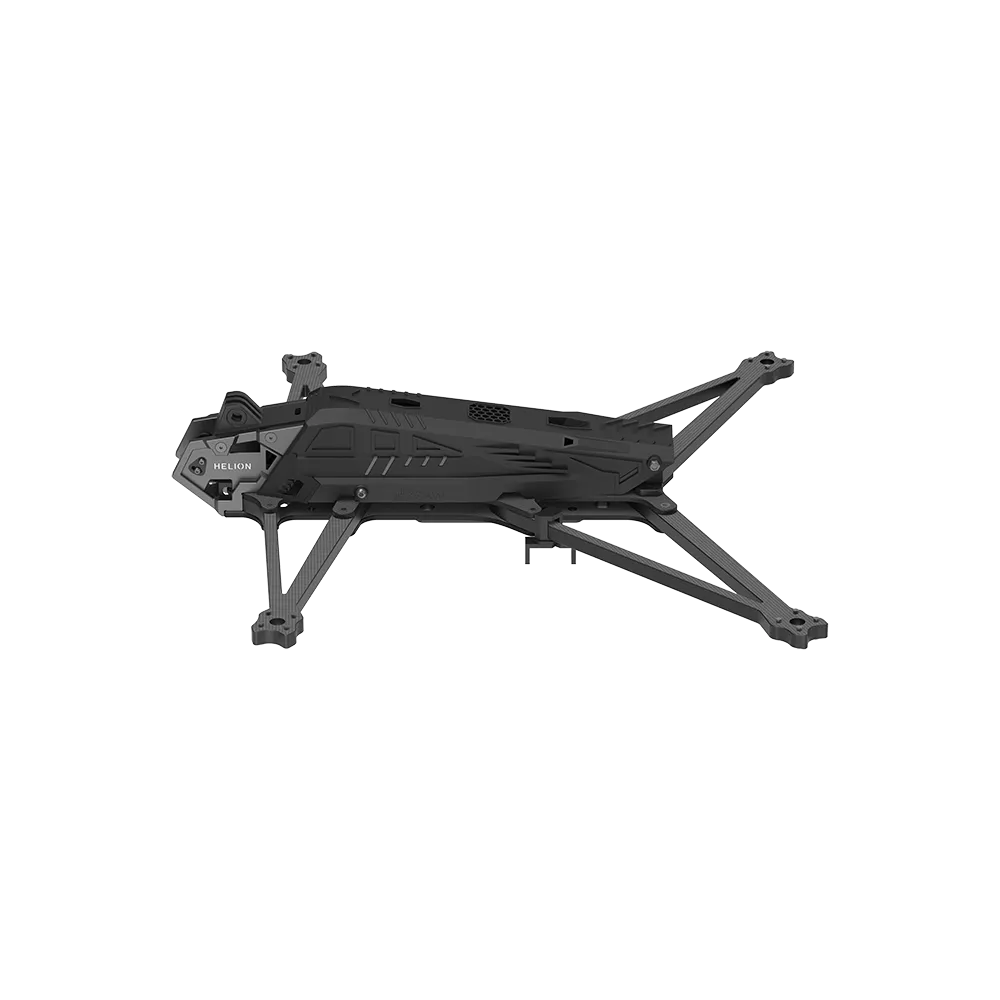

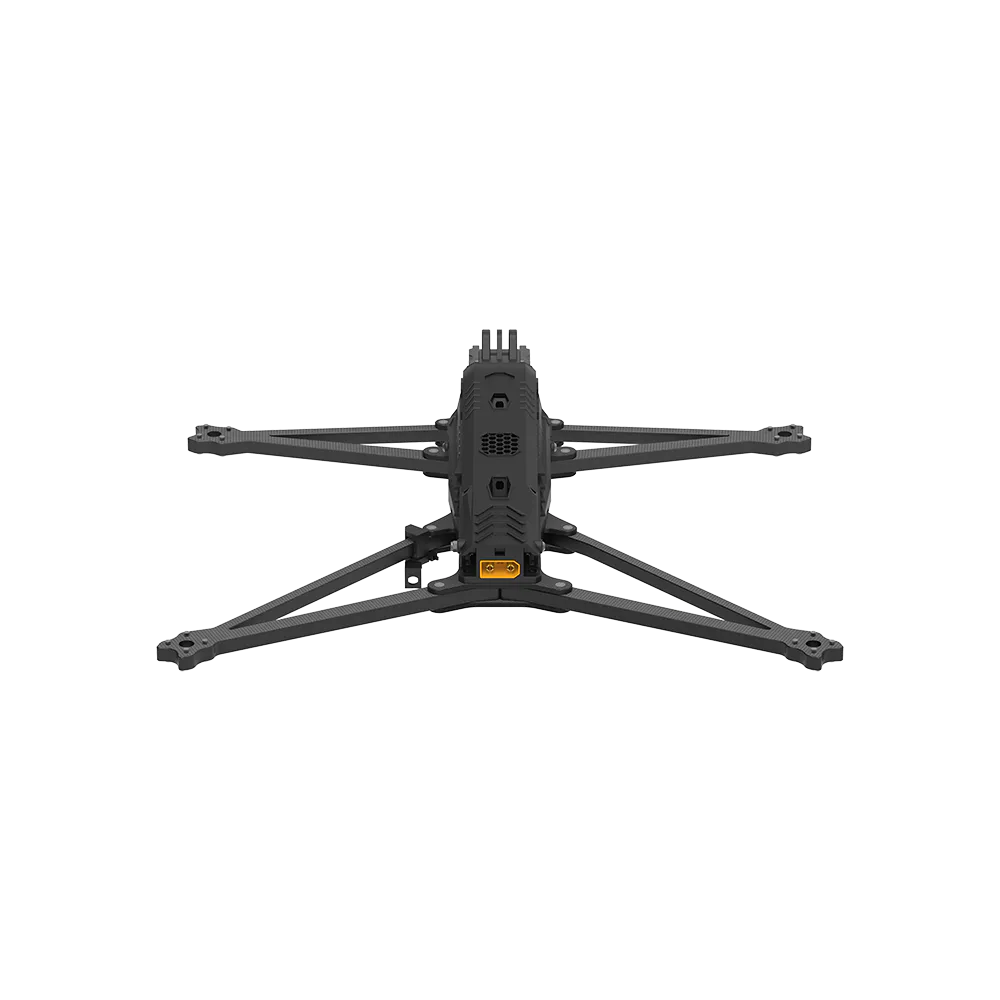

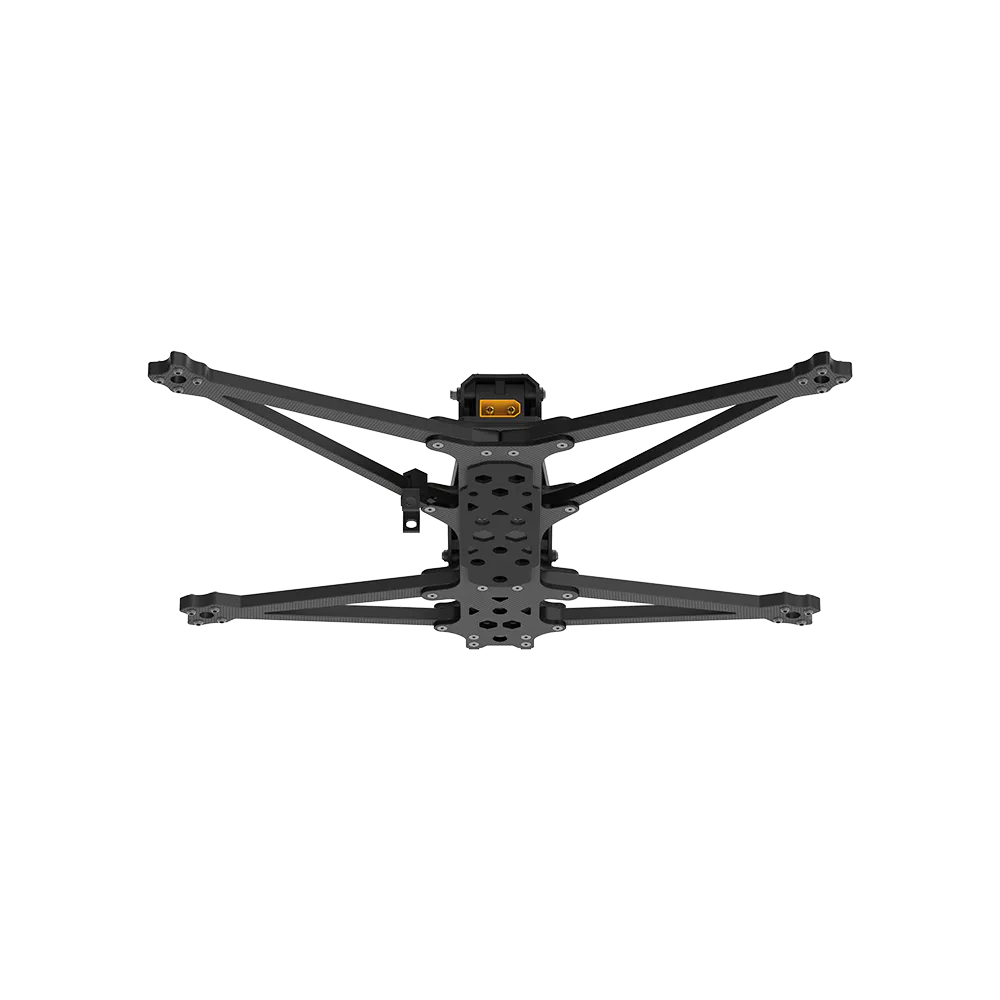

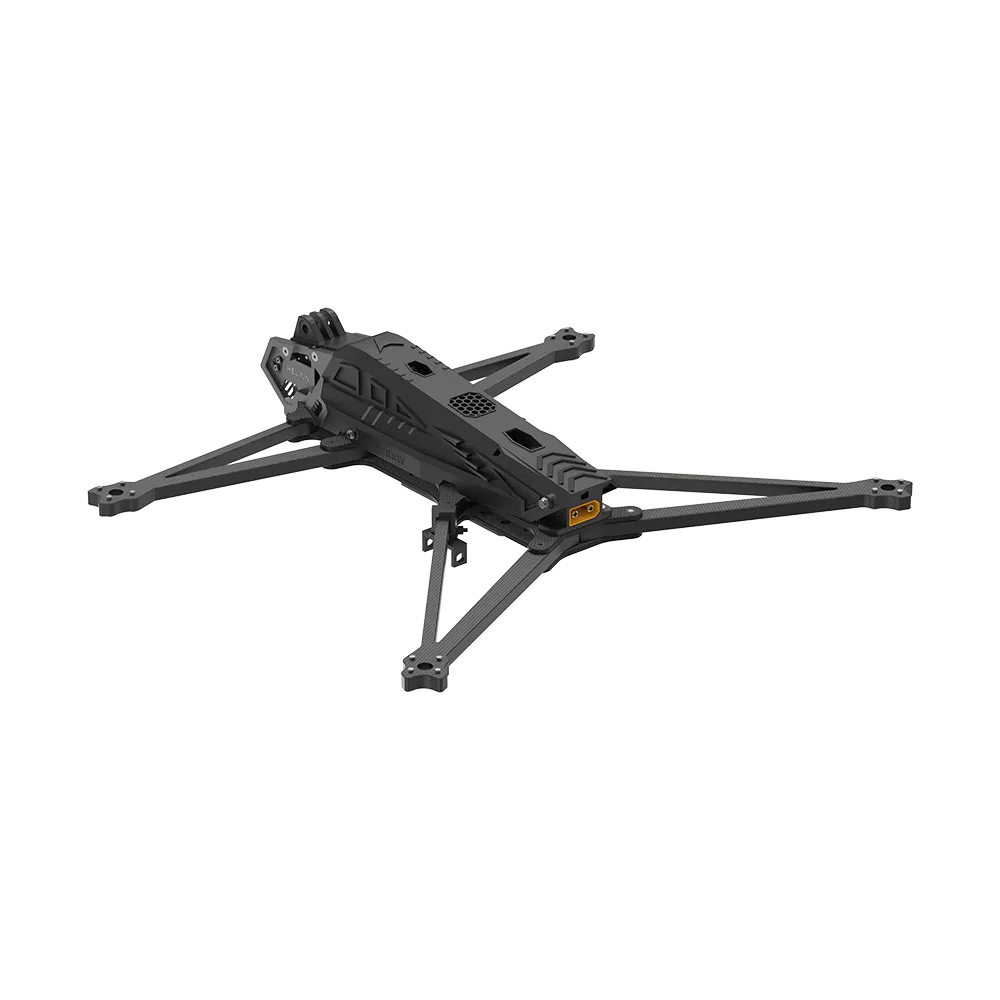

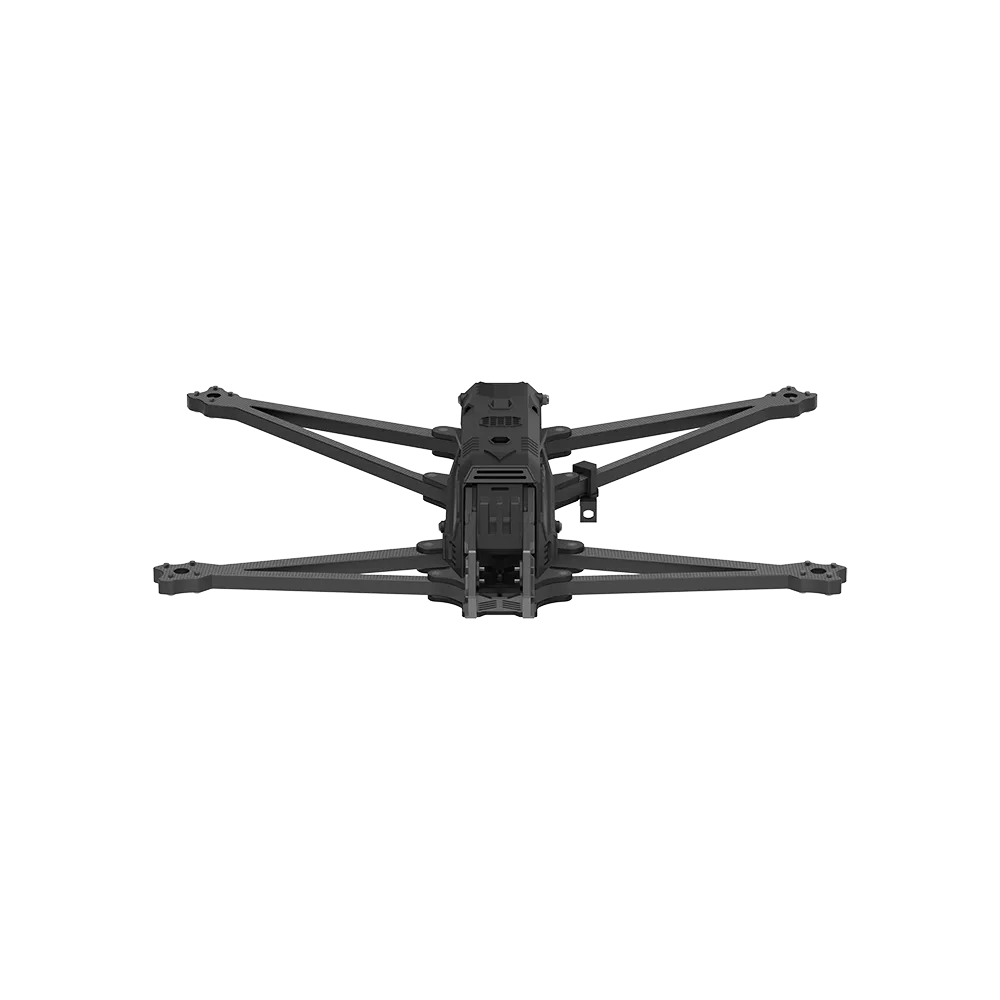

iFlight Helion 10 2RAW 10" Frame Kit

The iFlight Helion 10 is a 10-inch long-range and cinelifter frame kit co-developed with 2RAW, built around an A-frame chassis and an aerodynamic shell that opens up for maintenance while protecting the motors and stack inside.

Key features

• A-frame geometry and 8mm-thick carbon arms are tuned to minimise vibration and torsion on a large 418mm-wheelbase airframe
• Hinged aero-shell body gives full access to the power train for servicing while shielding it in flight
• Separate 30.5x30.5mm flight-stack mount and 25.5x25.5mm VTX mount keep the FC/ESC stack and air unit on their own dedicated pads
• Compatible with the DJI O3 Air Unit/HD Vista as well as the newer DJI O4 Air Unit Pro
• Sized to carry large 4500mAh+ LiPo or Li-Ion packs for extended range and flight time

Specifications

• Propeller size: 10"
• Wheelbase: 418mm
• Frame dimensions: 324 x 264 x 63mm
• Arm thickness: 8mm
• Top/bottom plate thickness: 3mm
• Flight stack mounting: 30.5x30.5mm (max stack height 25mm)
• VTX mounting: 25.5x25.5mm (max VTX height 22mm)
• Motor mounting: 19x19mm, M3
• Weight: 540g

Pair it with large 31xx–33xx cinelifter motors and a high-current ESC stack to make the most of its payload capacity on long-range and mountain-surfing missions.
