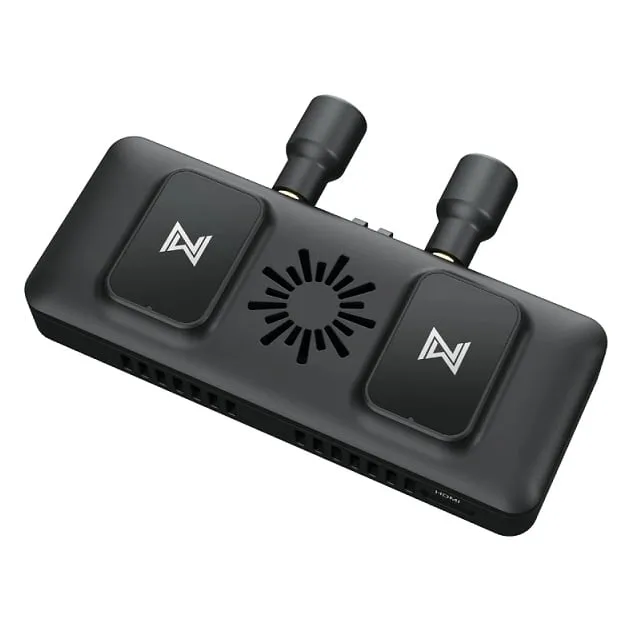

Walksnail Avatar HD VRX

The Walksnail Avatar HD VRX transforms your existing analog FPV goggles into a high-definition digital system. Connecting directly via the HDMI input, it brings crisp 1080p/60fps and 720p/100fps low-latency video to supported displays like the FatShark HDO2 or Skyzone series headsets. It is a straightforward upgrade route for pilots wanting the clarity and 4-kilometre range of the Walksnail Avatar ecosystem without abandoning their trusted analog gear.

Key features

• Delivers 1080p/60fps or 720p/100fps digital HD video output via standard HDMI

• Four-antenna receiver design featuring two built-in directional patches and two external SMA connectors for a robust video link

• Supports H.265 encoding for efficient, high-quality DVR recording directly to an onboard microSD card

• Wide 7 to 21V input voltage range, allowing it to be easily powered by 2S to 5S LiPo batteries

Specifications

• Video output: HDMI

• Resolution: 1080p 60fps, 720p 100fps, 720p 60fps

• Average latency: 22ms

• Antenna configuration: 2x Built-in patch, 2x SMA external (Red Bird included)

• Input voltage: 7–21V (2–5S LiPo)

• Storage: MicroSD slot (up to 256GB)

• Dimensions: 114 x 55 x 22 mm

• Weight: 43 g (module only), 83 g (with antennas)

Verify that your goggles feature a compatible HDMI-in port capable of receiving 1080p or 720p signals prior to installation. The VRX includes the necessary HDMI and power cables to integrate cleanly with your ground station.
