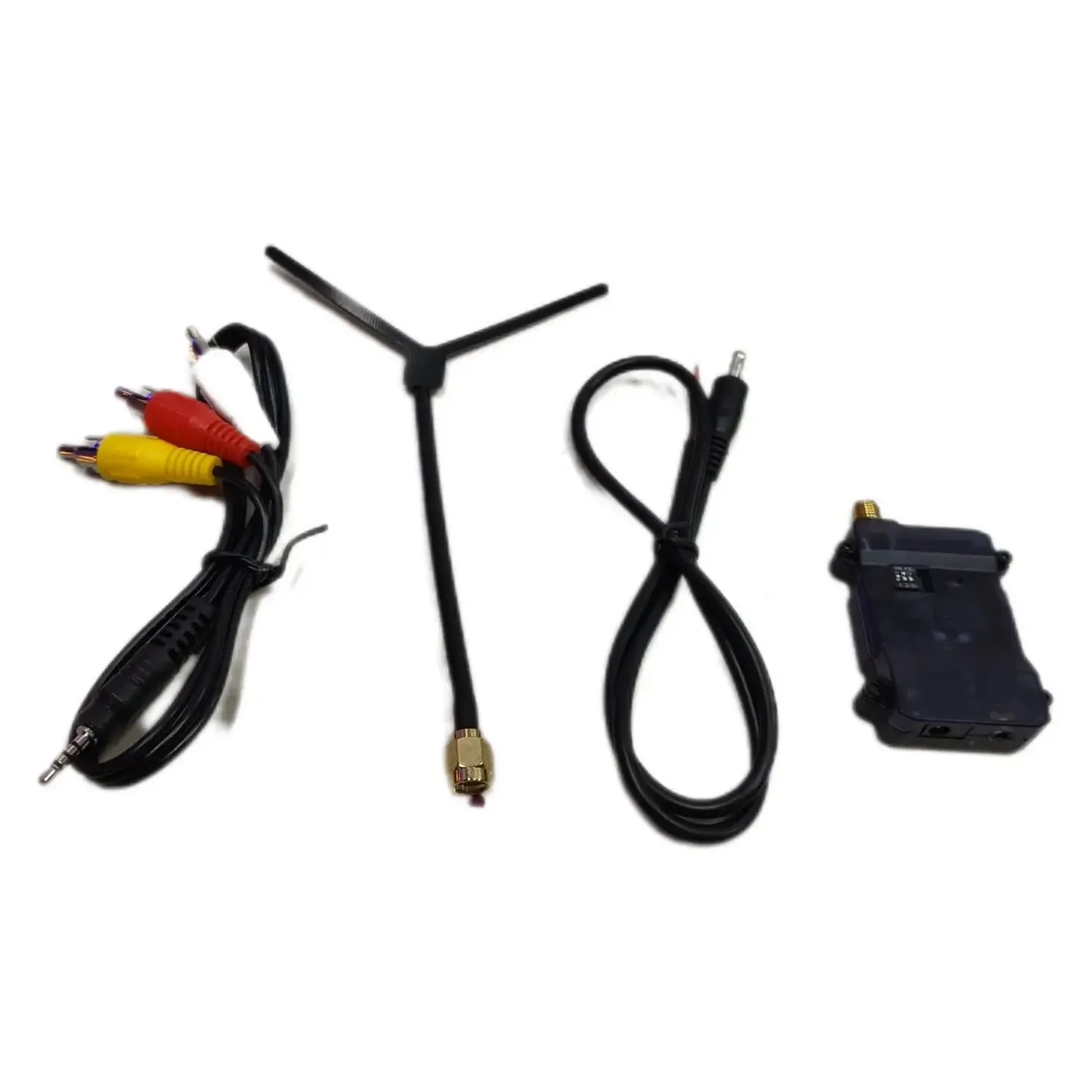

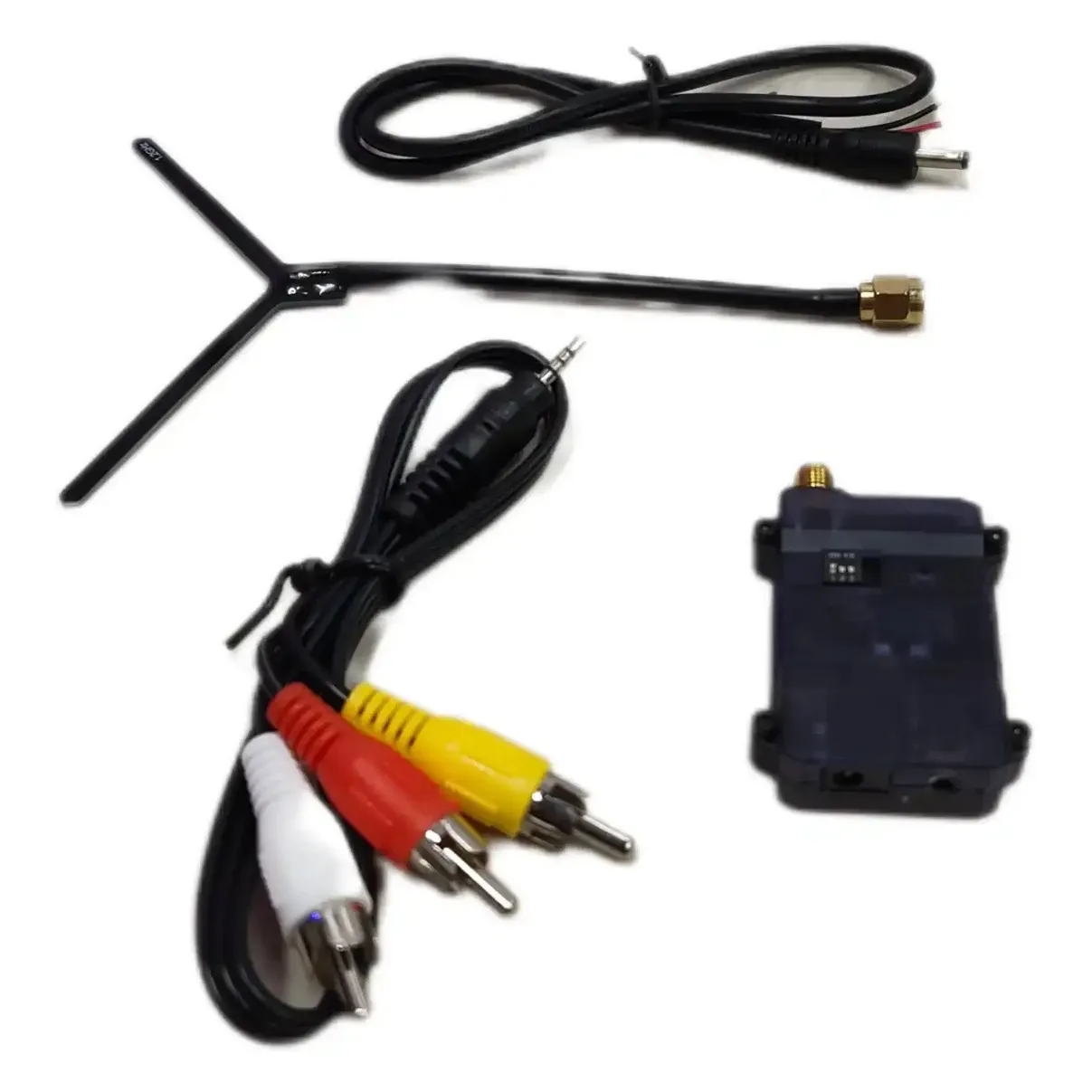

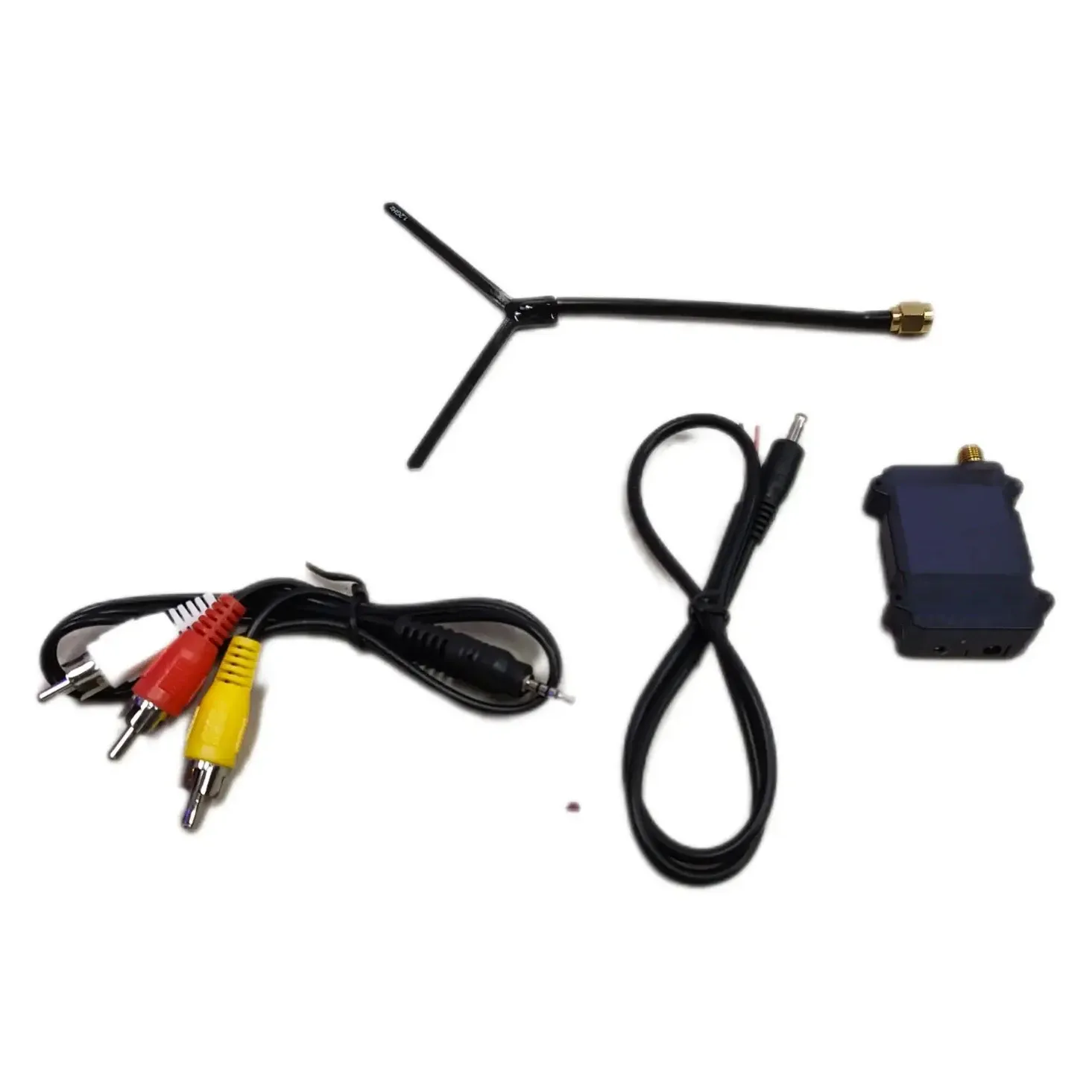

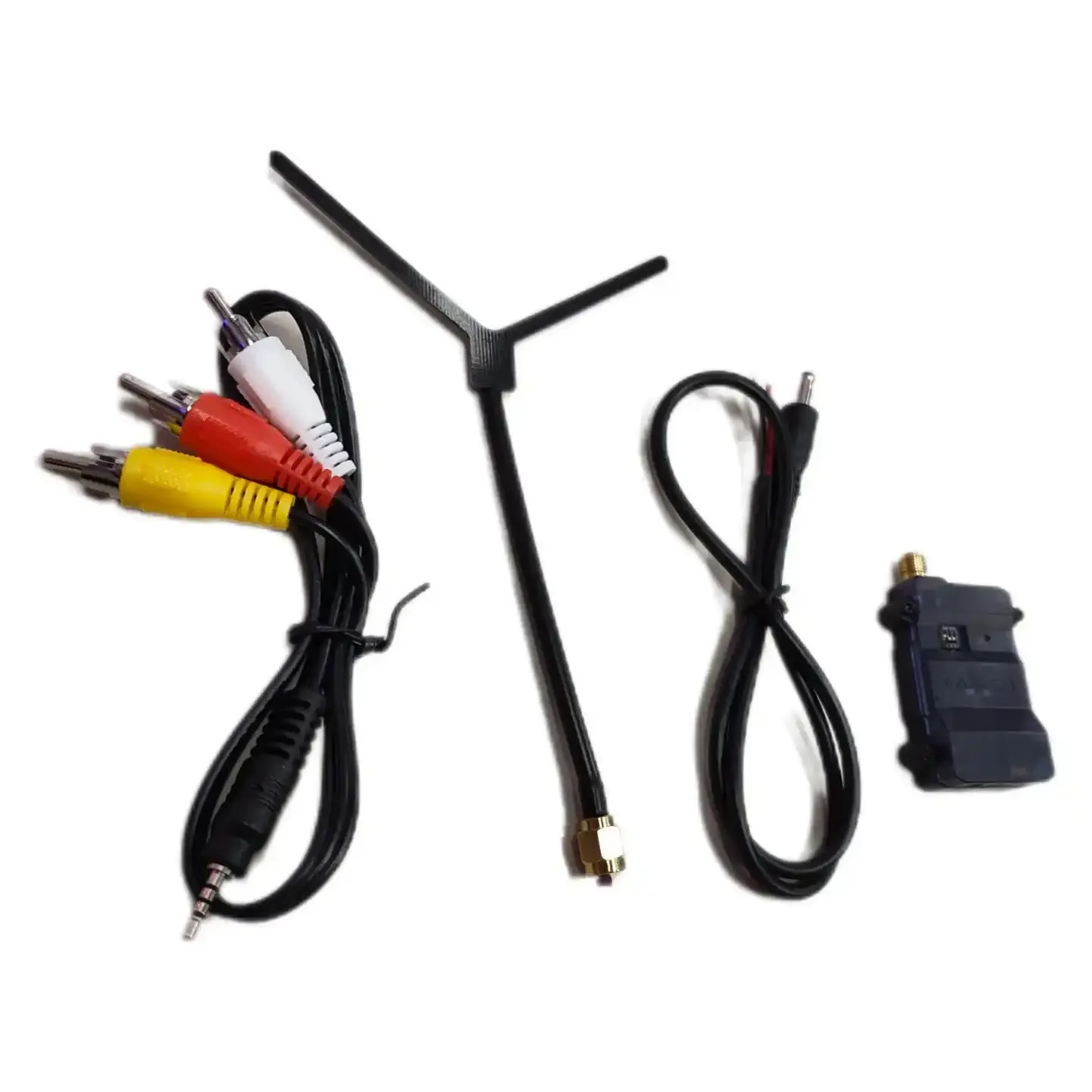

Tarot TL300N5-03 1.2G 8-Channel Analog Video Receiver

The Tarot TL300N5-03 is the ground receiver of Tarot's 1.2G analog video link, built for long-range FPV and UAV ground stations. It covers eight channels between 1080 and 1360 MHz, weighs just 17 g without antenna and runs from a 12 V supply.

Key features

• Eight channels selected with a 3-position mini DIP switch.
• FM analog reception on the 1.2 GHz band, which penetrates obstacles and vegetation better than 5.8 GHz.
• RP-SMA antenna port (50 Ω) for a wide range of external 1.2 GHz antennas.
• Matched transmitters: works with Tarot's 800 mW and 1600 mW 1.2G transmitters.
• Wide operating range: -10 °C to +60 °C.

Specifications

• Frequencies: 1080 / 1120 / 1160 / 1200 / 1240 / 1280 / 1320 / 1360 MHz
• Channels: 8, DIP-switch selected
• Modulation: FM
• Antenna connector: RP-SMA, 50 Ω
• Input voltage: 12 V
• Weight: 17 g without antenna
• Dimensions: 55 × 36.7 × 13.4 mm
• Operating temperature: -10 °C to +60 °C

Set the receiver and transmitter to the same channel, fit a 1.2 GHz antenna before powering up, and feed the video output to your monitor or DVR.
