Walksnail Avatar HD VRX + Avatar HD Nano Kit V3 Bundle

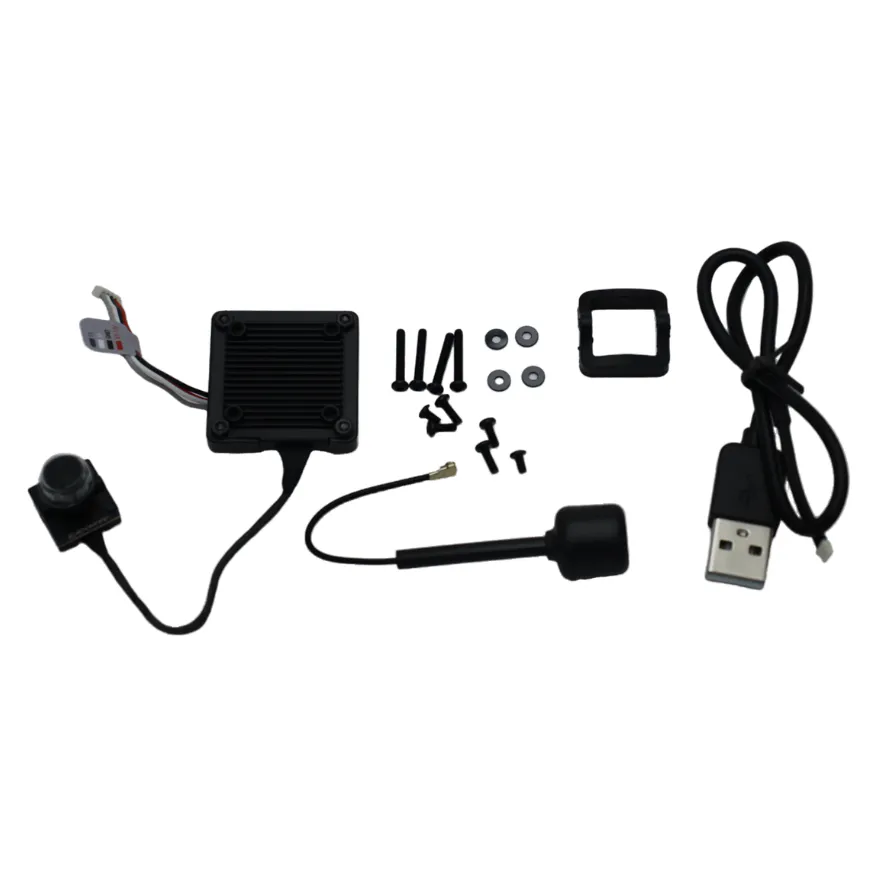

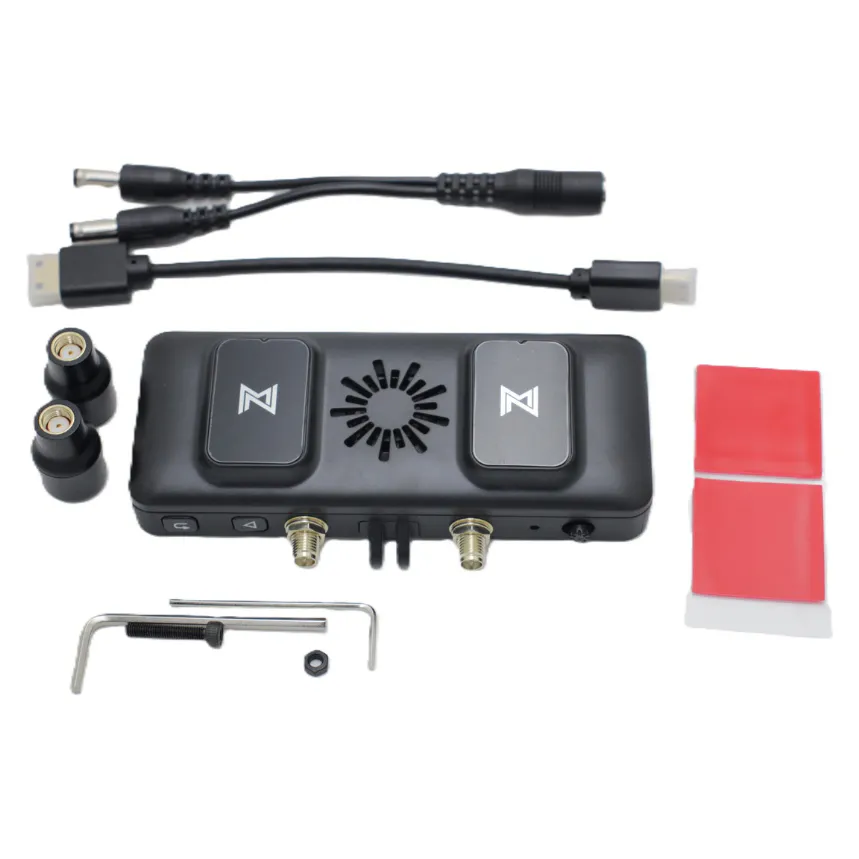

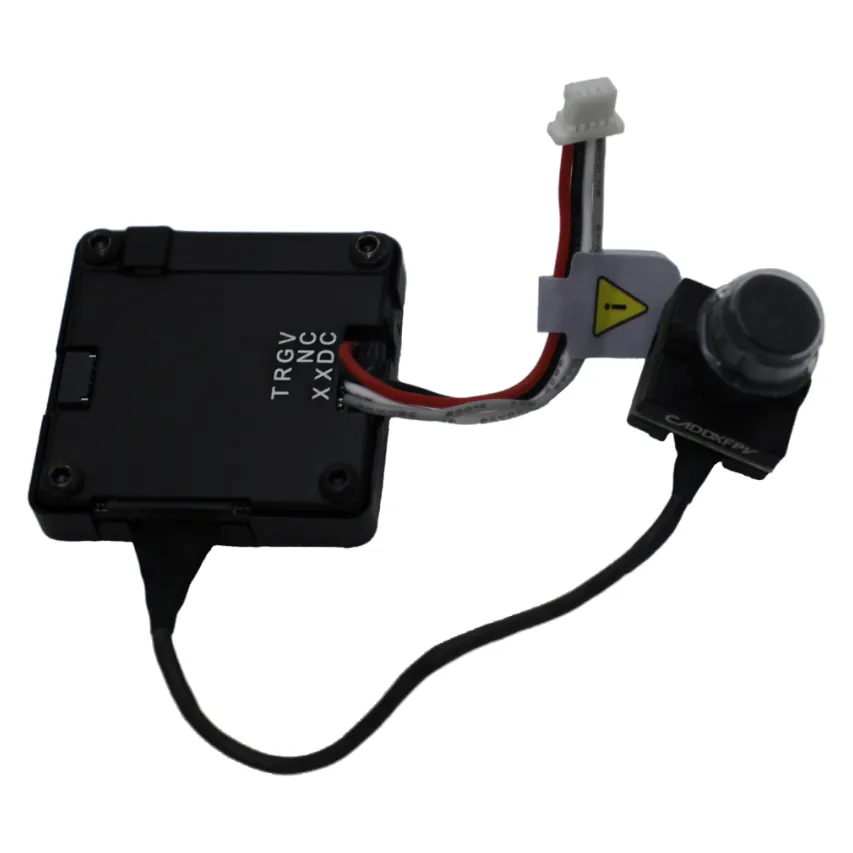

This bundle pairs the Walksnail Avatar HD VRX ground receiver with the Avatar HD Nano Kit V3: the Nano Camera V3 and the Mini VTX V3 with 32 GB of onboard recording. The air unit runs on 1S to 3S and mounts on either 25.5×25.5 mm whoop or 20×20 mm micro patterns, while the VRX sends its 1080p feed over HDMI to any monitor, TV or capture device.

Key features

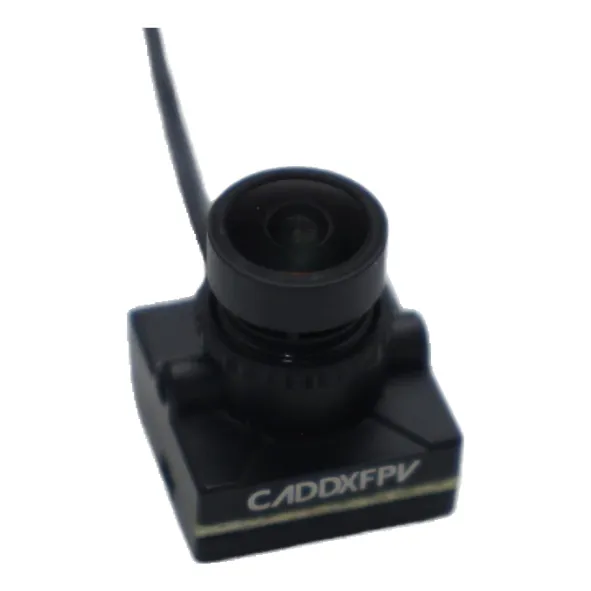

• Nano Camera V3: 1/3.2" 4 MP sensor, 2.1 mm F2.0 lens and 160° field of view in a 14 mm body weighing 3 g
• Mini VTX V3 takes 3.1–13 V and records 1080p or 720p to 32 GB of built-in storage
• H.265 encoding with about 22 ms average latency

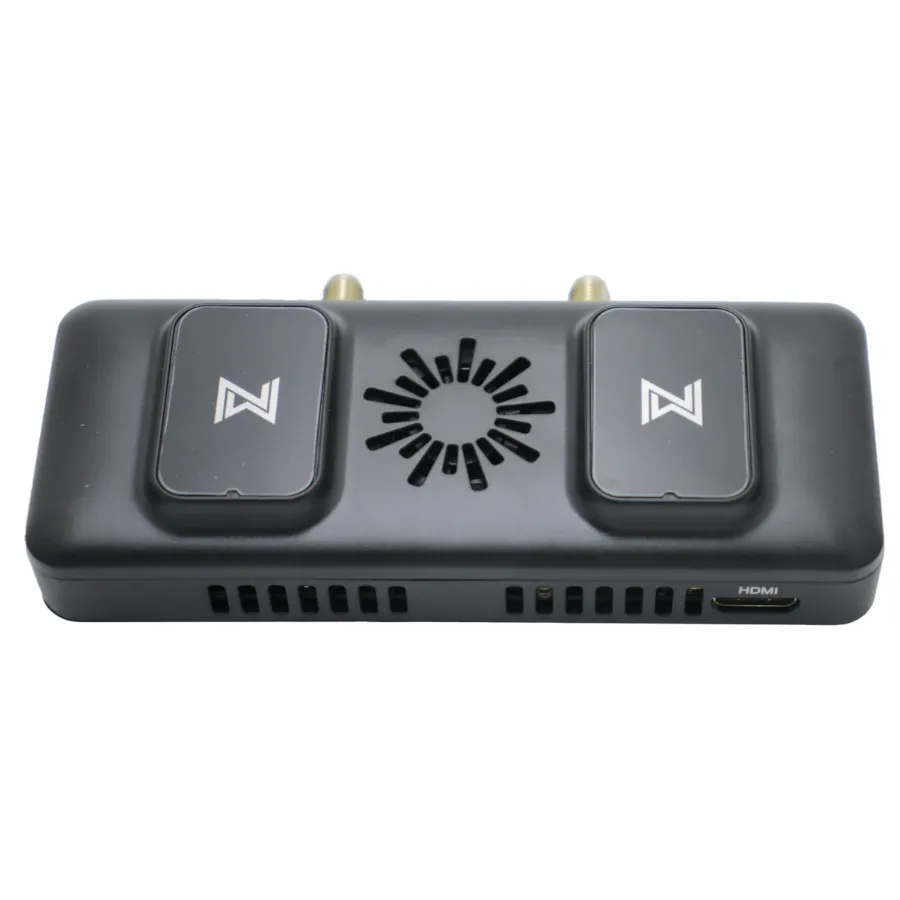

• VRX HDMI output at 1080p60, 720p100 or 720p60, plus a microSD slot for cards up to 256 GB

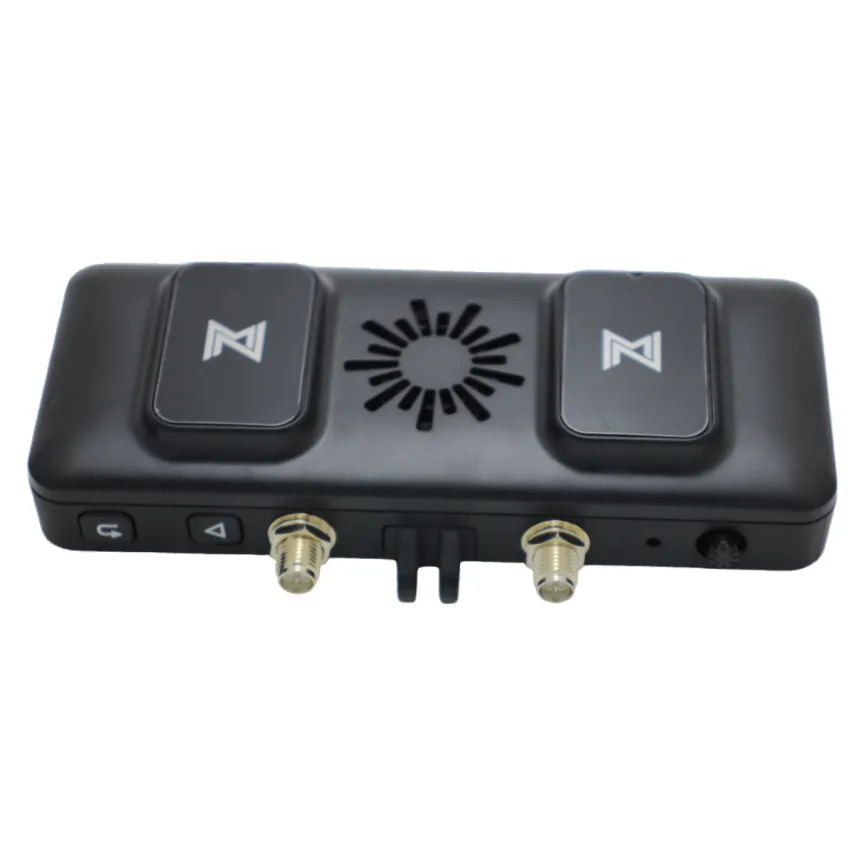

• Four-antenna VRX with two directional antennas, rated for up to 4 km
• Air unit works with Betaflight, INAV, FETtec, KISS and ArduPilot

Specifications

• Frequency: 5.725–5.850 GHz
• VTX power (EIRP): below 27 dBm FCC (about 500 mW)
• VTX weight: 13.4 g
• VTX dimensions: 31.5 × 31.5 × 9.4 mm
• VTX mounting: 25.5×25.5 mm (M2), 20×20 mm (M3)
• VTX antenna connector: IPEX (U.FL)
• Channels: 8
• Camera modes: 1080p60, 720p120, 720p60
• Camera size: 14 × 14 × 16.8 mm, 3 g without cable
• VRX power input: 7–21 V (2–5S), DC 5.5×2.1 mm
• VRX weight: 83 g

The air unit also works with Walksnail Avatar goggles on current firmware. The VRX needs a separate HDMI display and a 2–5S supply.
