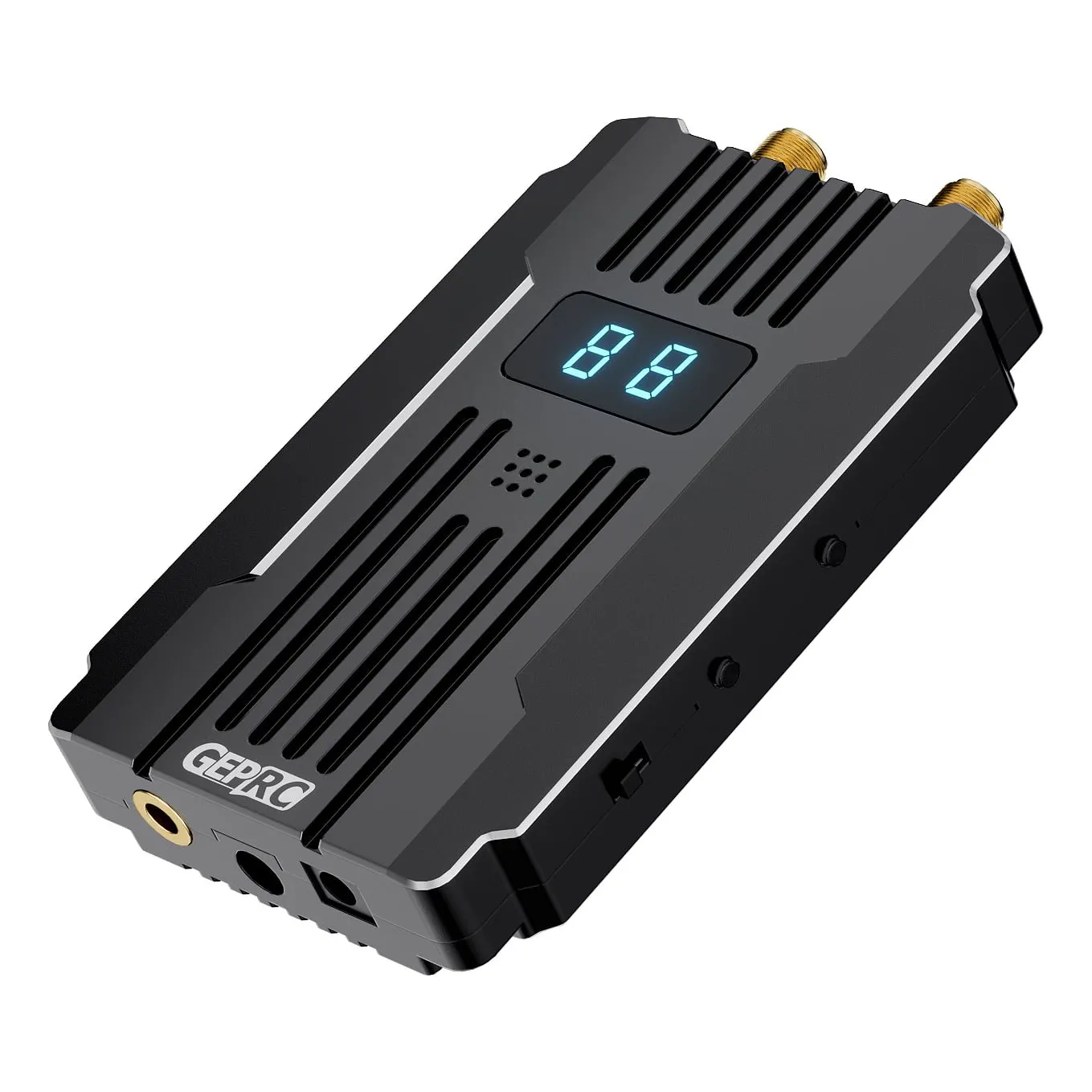

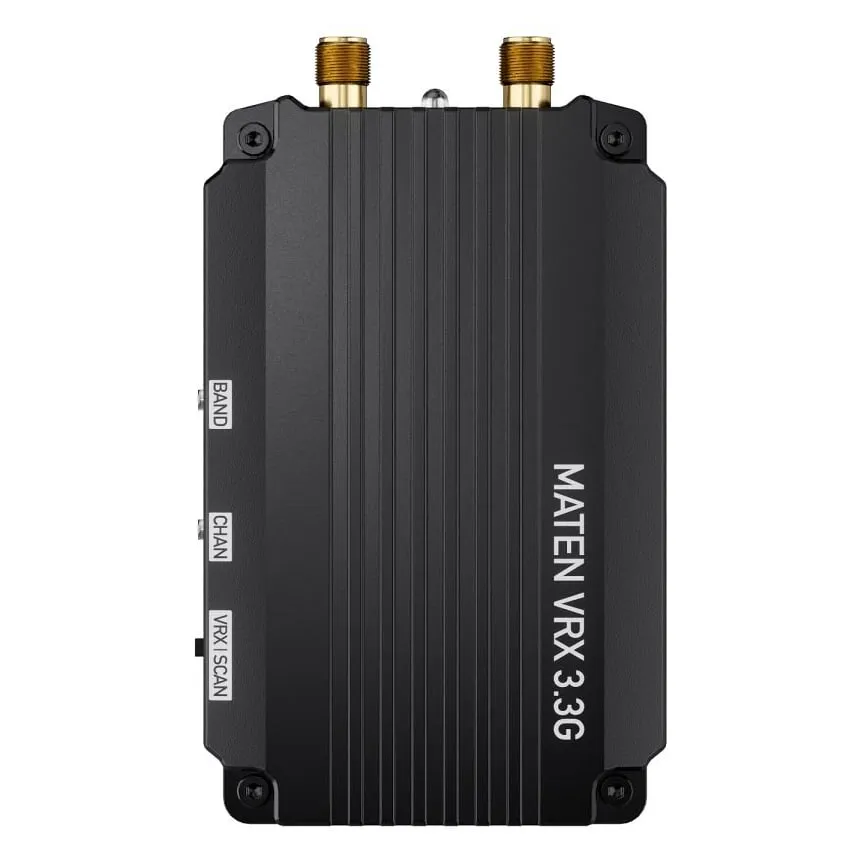

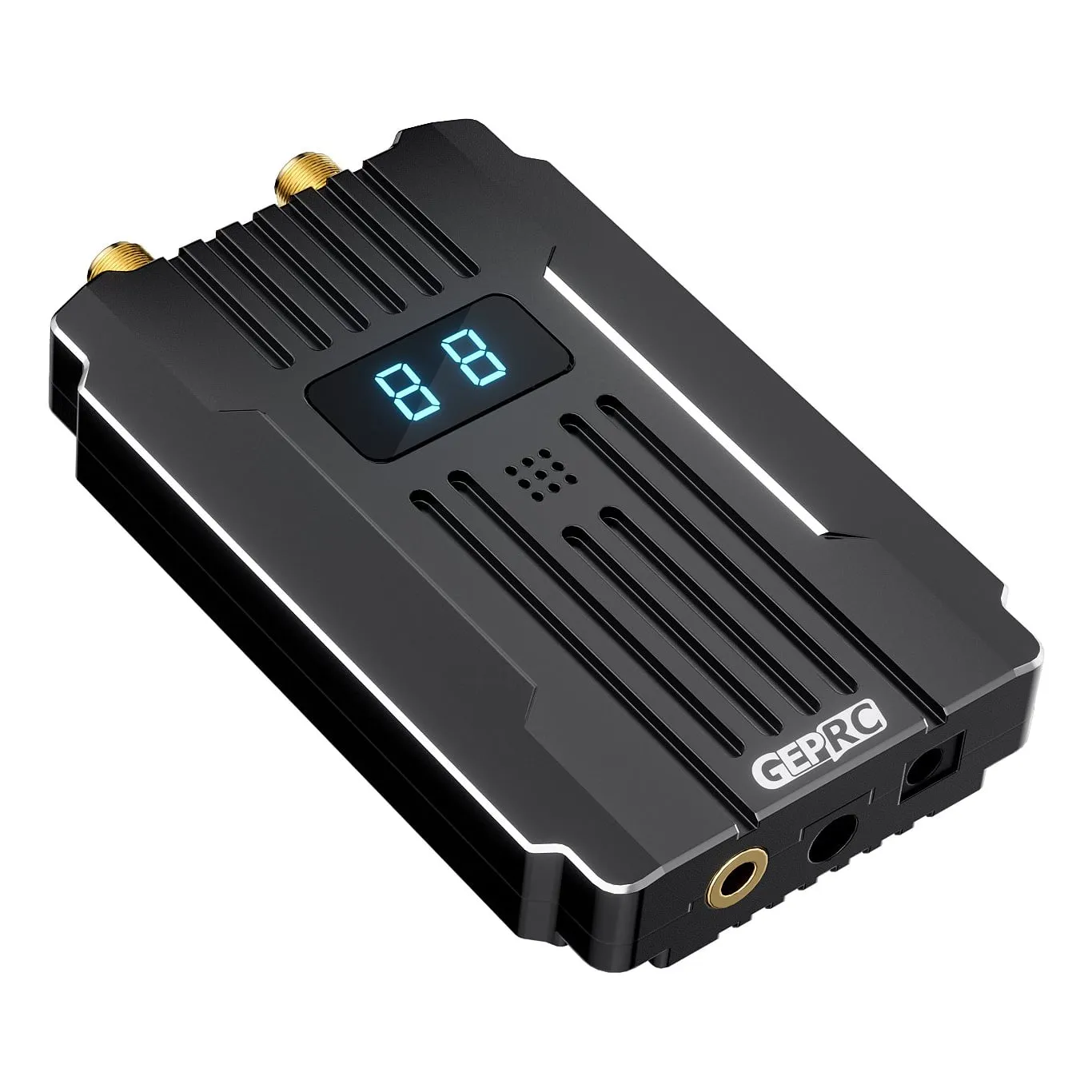

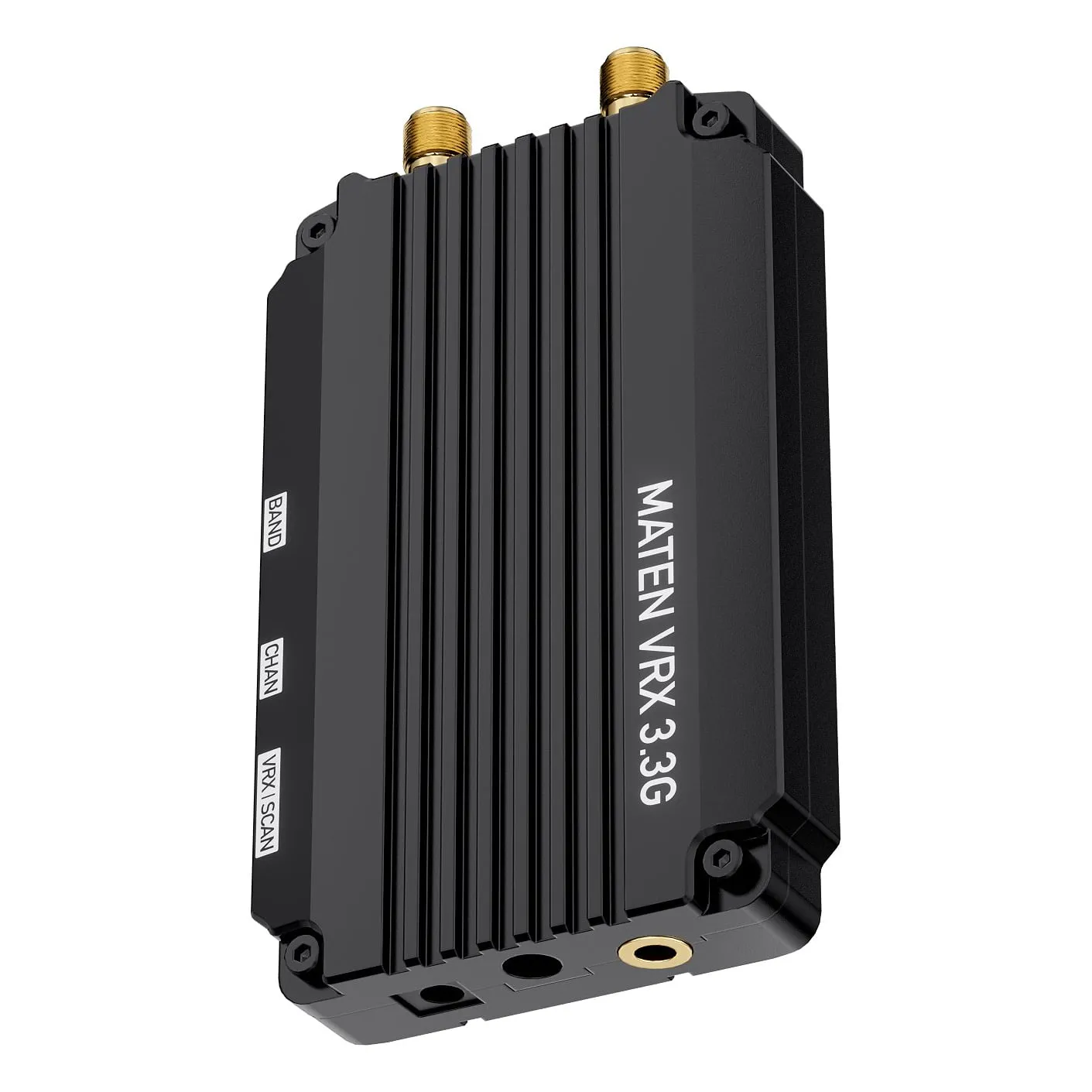

GEPRC MATEN 3.3G VRX with Signal Alarmer

The GEPRC MATEN 3.3G VRX is an analog video receiver for the 3.3 GHz band with a built-in audible signal alarm. Use it as the ground receiver for a 3.3 GHz long-range or penetration build, feeding a monitor or goggles through its video lead, or switch to scan mode to home in on a transmitter by sound.

Key features

• 40 channels across five bands (A to E), covering 3083–3480 MHz
• VRX mode: BAND and CHAN buttons for manual selection; hold either button to auto-scan and lock onto the strongest channel
• SCAN mode sweeps every channel, shows the strongest and beeps faster as the signal grows
• -98 dBm receiver sensitivity
• Runs straight off a 3–8S flight pack (12–36 V DC)
• 1/4-inch threaded hole for a tripod or monitor mount

Specifications

• Frequency range: 3083–3480 MHz
• Channels: 40 (5 bands × 8)
• Sensitivity: -98 dBm
• Input voltage: 12–36 V DC (3–8S)
• Antenna connector: SMA
• Video connector: 3.5 mm
• Power connector: DC 3.5 × 1.35 mm
• Dimensions: 52.3 × 87.5 × 14.7 mm
• Weight: 69 g
• In the box: receiver, power cable, video signal cable, user manual

It receives 3.3 GHz analog video only, so pair it with a matching 3.3 GHz VTX; it will not pick up 5.8 GHz or 1.2 GHz transmitters. No antenna is listed in the box, so fit a 3.3 GHz antenna with an SMA plug.
