FPV Video Receivers1.2GHz 12CH Analog FPV Audio/
1.2GHz 12CH Analog FPV Audio/
₹2,999Incl. GST
SKU GEN-12G-VRX
Frequency: 1.2GHzMade in India: NoBrand: GenericAntenna Connector: SMA
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
12-channel analog audio/video receiver on the 1.2GHz band for FPV ground stations, long-range aircraft and wireless camera links. This is the receiver only; pair it with a 1.2GHz transmitter tuned to the same channel.
Key features
- 12 receive channels across 0.9–1.2GHz with –85 dBm sensitivity
- Composite video and audio out at 1Vp-p, ready for any monitor, DVR or capture card with an AV input
- Runs on 12V DC; allow 2A from the supply

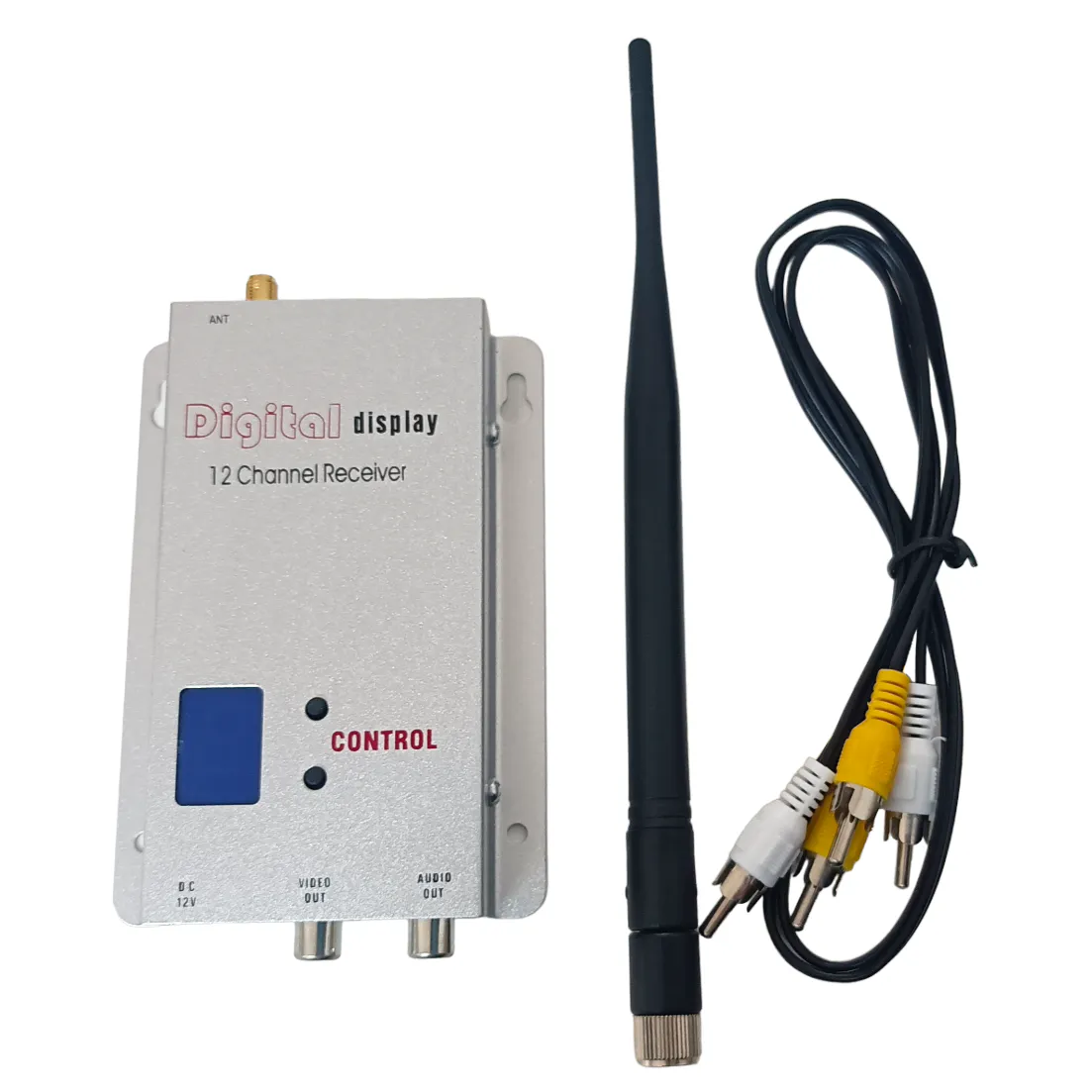

- Supplied with an antenna and an AV conversion cable
Specifications
- Receive frequency: 0.9–1.2GHz
- Channels: 12
- Sensitivity: –85 dBm
- Video / audio level: 1Vp-p
- Input: 12V DC, 2A
- Antenna connector: SMA
- Operating humidity: up to 85% RH
- Dimensions: 115 × 60 × 20 mm
- Weight: 158 g
- In the box: receiver, antenna, AV conversion cable
At the ground station, run it from a 12V adapter or a 3S pack and feed its AV output to a monitor or goggles with an AV-in port. Swapping the stock antenna for a higher-gain directional one extends range when the aircraft flies in one general direction.
| Frequency | 1.2GHz |
|---|---|
| Made in India | No |
| Brand | Generic |
| Antenna Connector | SMA |
| FPV System | Analog |
