Walksnail Avatar HD VRX + Avatar 1S Kit Bundle

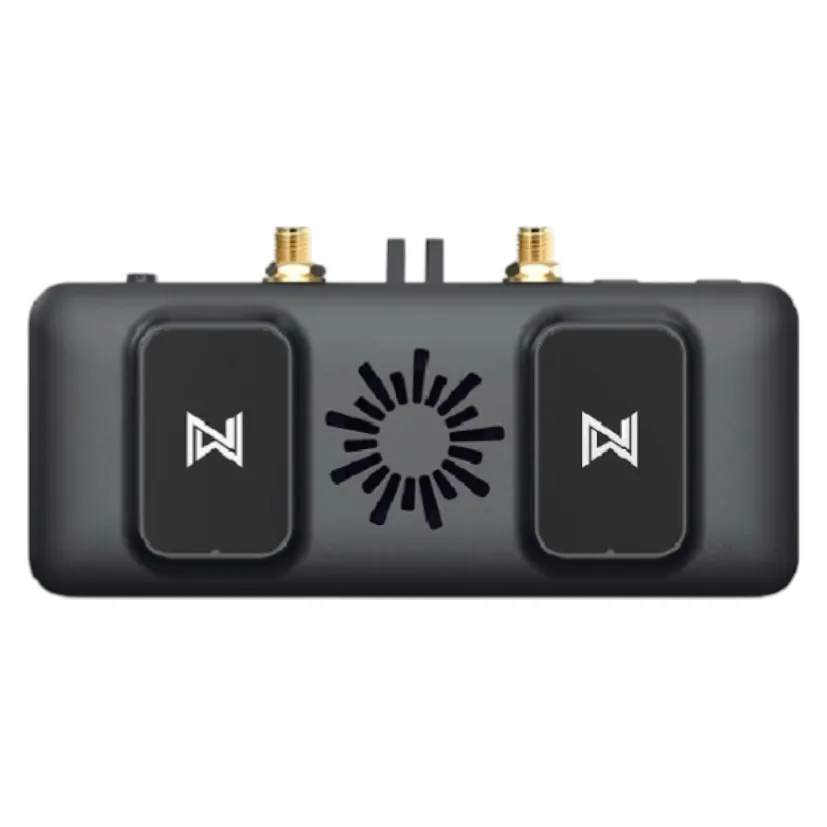

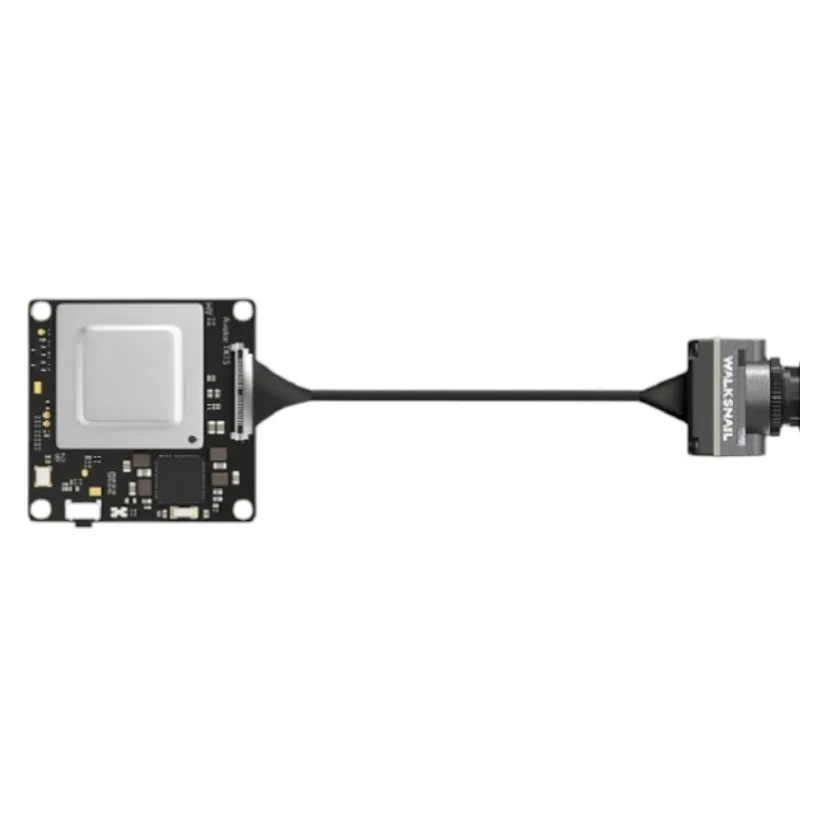

A matched Walksnail Avatar HD set: the Avatar HD VRX ground receiver together with the Avatar 1S air unit kit, a 1S-class VTX with the Avatar Nano camera. The VRX picks up the same digital link as Avatar goggles and puts it out over HDMI, so a monitor, TV or capture card can show and record the pilot's view. It suits instructors, spectators and pilots who prefer a screen to goggles on a 1S whoop or micro build.

Key features

• H.265 encoding with 1080p/60fps video and latency as low as 22 ms
• HDMI output at 1080p60, 720p100 or 720p60
• Four-antenna receiver with two directional antennas, rated for up to 4 km
• microSD slot on the VRX for ground-side recording, cards up to 256 GB
• Full Betaflight OSD carried through to the HDMI picture
• VRX runs from a 2–5S pack (7–21 V) through a DC 5.5×2.1 mm barrel jack

Specifications

• System: Walksnail Avatar HD
• Frequency: 5.725–5.850 GHz
• VRX HDMI output: 1080p60, 720p100, 720p60
• VRX interfaces: HDMI, microSD (up to 256 GB), DC 5.5×2.1 mm
• VRX power input: 7–21 V (2–5S)
• VRX weight: 83 g
• Camera: Avatar Nano, 1/2.7" sensor
• Camera modes: 1080p60, 720p120, 720p60
• Latency: from 22 ms

The VRX has no screen of its own: plan for an HDMI display and a 2–5S pack with a 5.5×2.1 mm lead to run it at the field.
