AKK 5.8GHz Diversity FPV Video Receiver (96CH)

The AKK 96CH Diversity Receiver is an analogue video receiver (VRX) designed for FPV goggles and base station monitors. By utilising dual-antenna diversity, it continuously evaluates two separate RF inputs and actively switches to the strongest signal, reducing video breakup and extending range in environments with heavy multipathing.

Key features

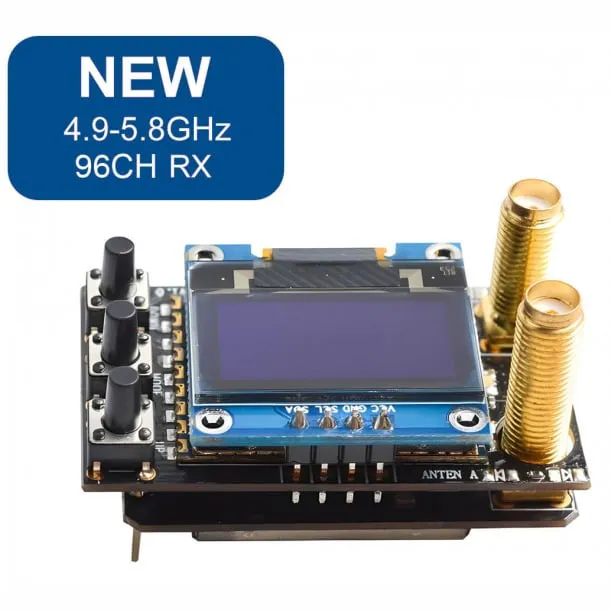

• Expansive frequency coverage from 4.9GHz to 5.8GHz for compatibility with non-standard VTX bands.
• 96 selectable channels, providing ample options to find a clean video feed at crowded flight lines.
• True diversity reception to maintain reliable signal retention behind obstacles.

Specifications

• Frequency range: 4.9–5.8 GHz
• Channel count: 96
• Receiver type: Analogue diversity

To maximise the performance of the diversity system, pair this module with one omnidirectional antenna for immediate surround coverage and one directional patch antenna for deep penetration in a specific direction.
