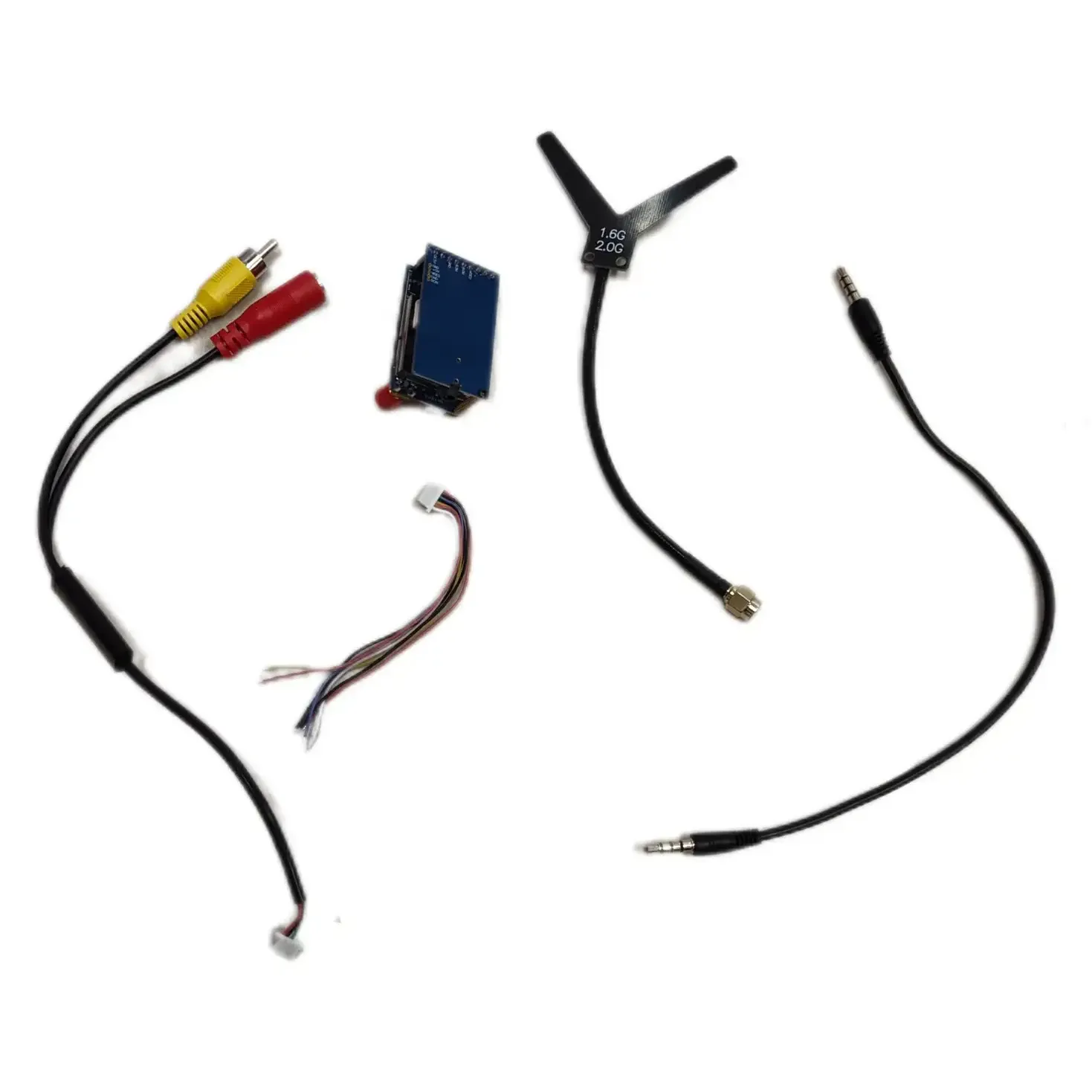

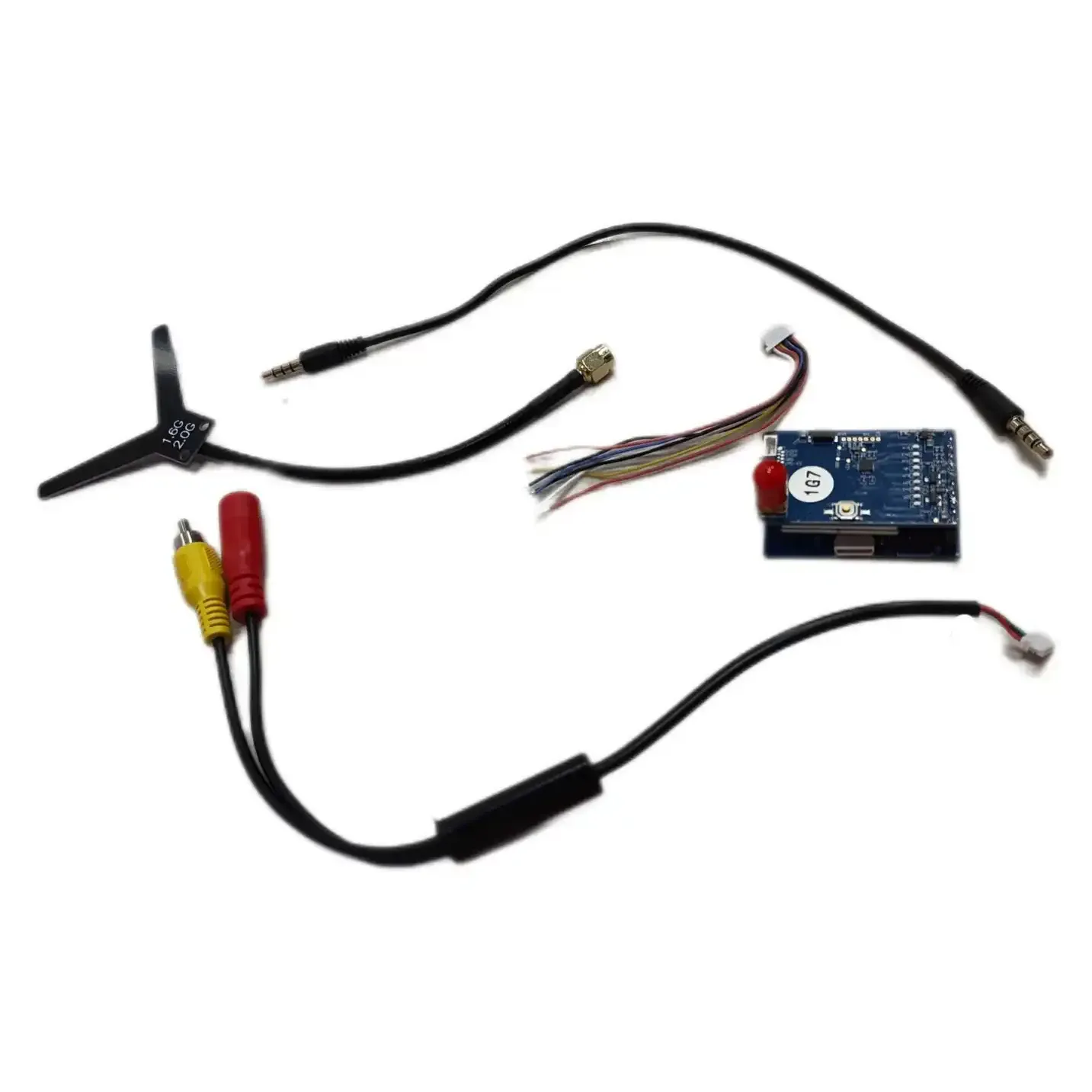

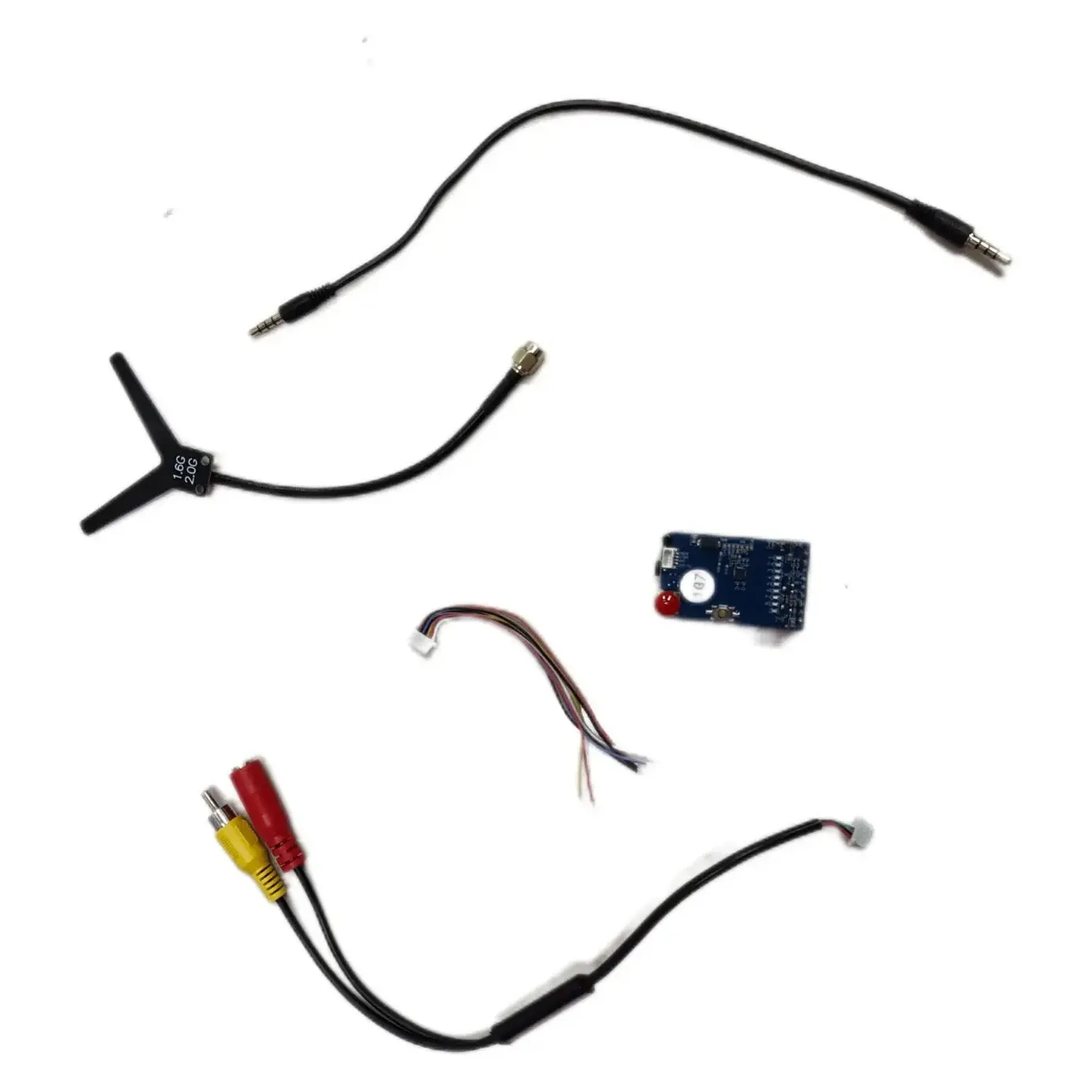

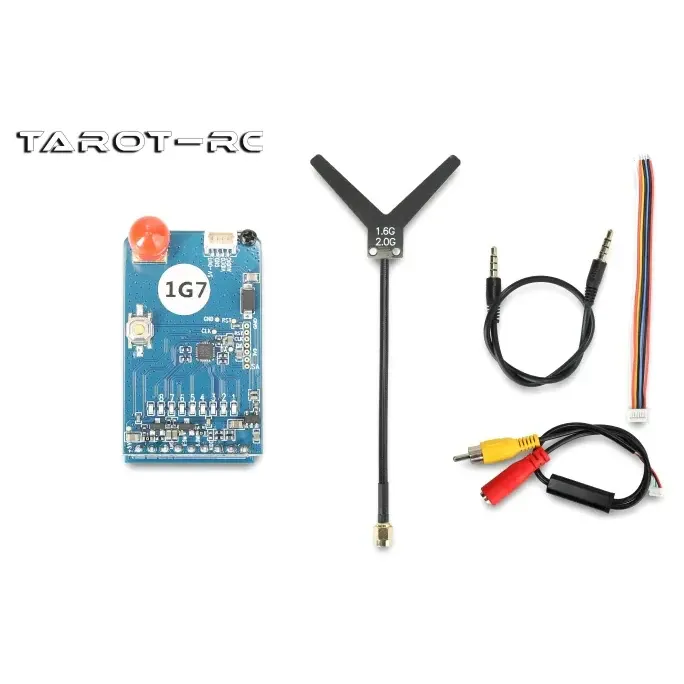

Tarot TL300N7-02 1.7G 8-Channel Analog Video Receiver (VRX)
SKU TAROT-TL300N7-02-VRX
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Tarot TL300N7-02 is an ultra-compact, lightweight 1.7GHz analog video receiver made to pair with Tarot's 1.7G video transmitter. It suits FPV and UAV video links on the 1.7GHz band rather than 5.8GHz, and plugs straight into FatShark, Skyzone and other headsets with an analog AV input, or into an analog monitor.
Key features
- Eight receive channels from 1680 to 1960 MHz in 40 MHz steps; a short press steps through them and a green LED blinks 1–8 times to show the active channel
- High receive sensitivity of up to -97 dBm
- Efficient DC/DC power stage accepts 7–36 V, so it runs directly from a 2S to 8S LiPo
- 5 V / 0.5 A output to power a connected display or accessory
Specifications
- Channels: 8
- Frequencies: 1680 / 1720 / 1760 / 1800 / 1840 / 1880 / 1920 / 1960 MHz
- Sensitivity: -97 dBm (max)
- Modulation: FM
- Video system: PAL / NTSC
- Input voltage: 7–36 V DC (2–8S)
- Output: 5 V, 0.5 A
- Antenna connector: SMA (external thread, centre hole)
Set the receiver to the same channel as your 1.7G transmitter and fit antennas tuned for the 1.7GHz band — a 5.8GHz antenna is the wrong size for this frequency. Check that your goggles or screen accept an external analog AV input before ordering.
| Frequency | 1.7GHz |
|---|---|
| Made in India | No |
| Brand | Tarot |
| Antenna Connector | SMA |
| FPV System | Analog |
