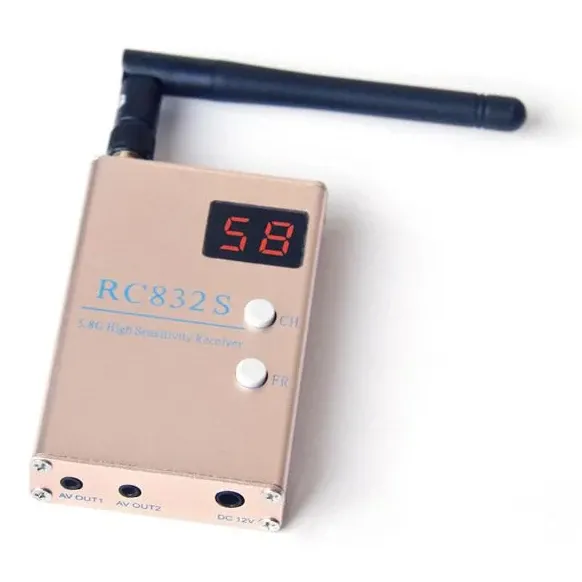

RC832S 5.8G 32CH Analog FPV Video Receiver

The RC832S is a 32-channel 5.8GHz analog video receiver for ground stations: connect it to a monitor, video glasses or a recorder to watch the feed from an analog FPV video transmitter. It runs from a 3S LiPo through the included pre-wired power cable.

Key features

• 32 channels across four bands, with separate buttons for channel and band.
• Two-digit display shows the current band and channel, and the receiver recalls its last setting at power-up.

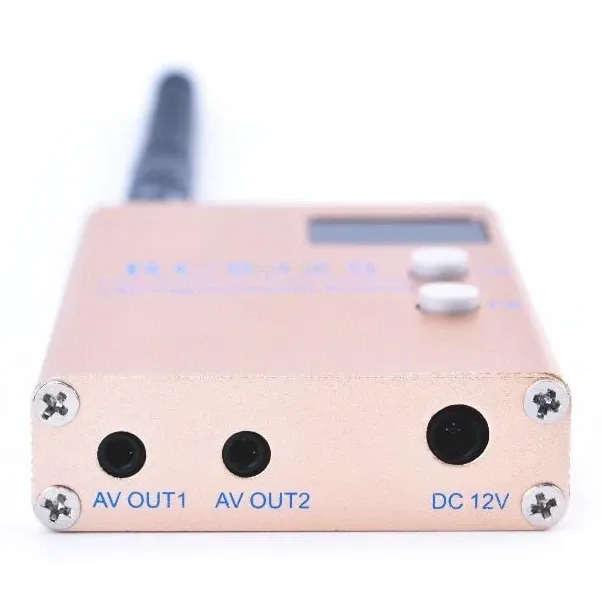

• Two independent AV outputs carry video and audio, so you can feed a monitor and a recorder at once.
• -95 dBm receive sensitivity for a clean picture at range.

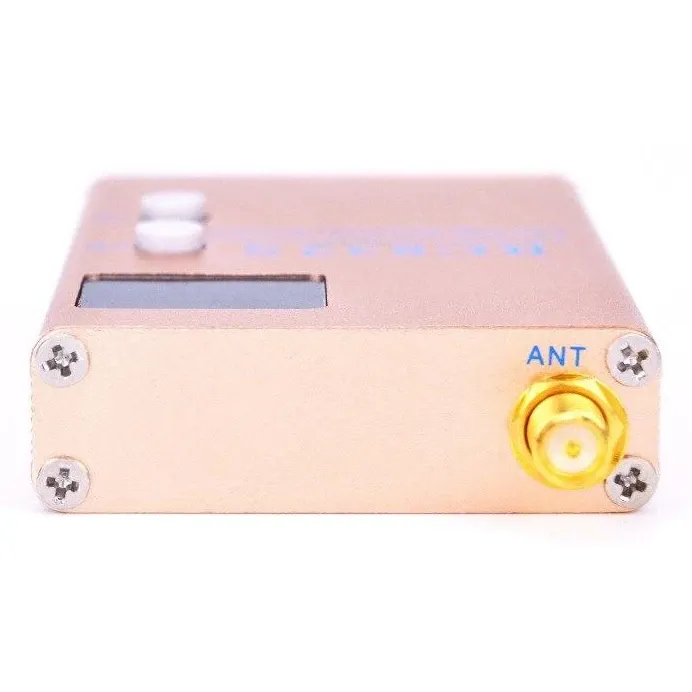

• Removable antenna on an RP-SMA connector, easy to swap for a patch or higher-gain antenna.

Specifications

• Frequency: 5.8GHz ISM, 32 channels
• Sensitivity: -95 dBm
• Video output: PAL, NTSC, SECAM
• Audio: 6.5MHz subcarrier
• Supply: 7-26 V DC, 130 mA
• Antenna connector: RP-SMA
• Operating temperature: -10 to 85 C
• Dimensions: 78 x 50 x 15 mm

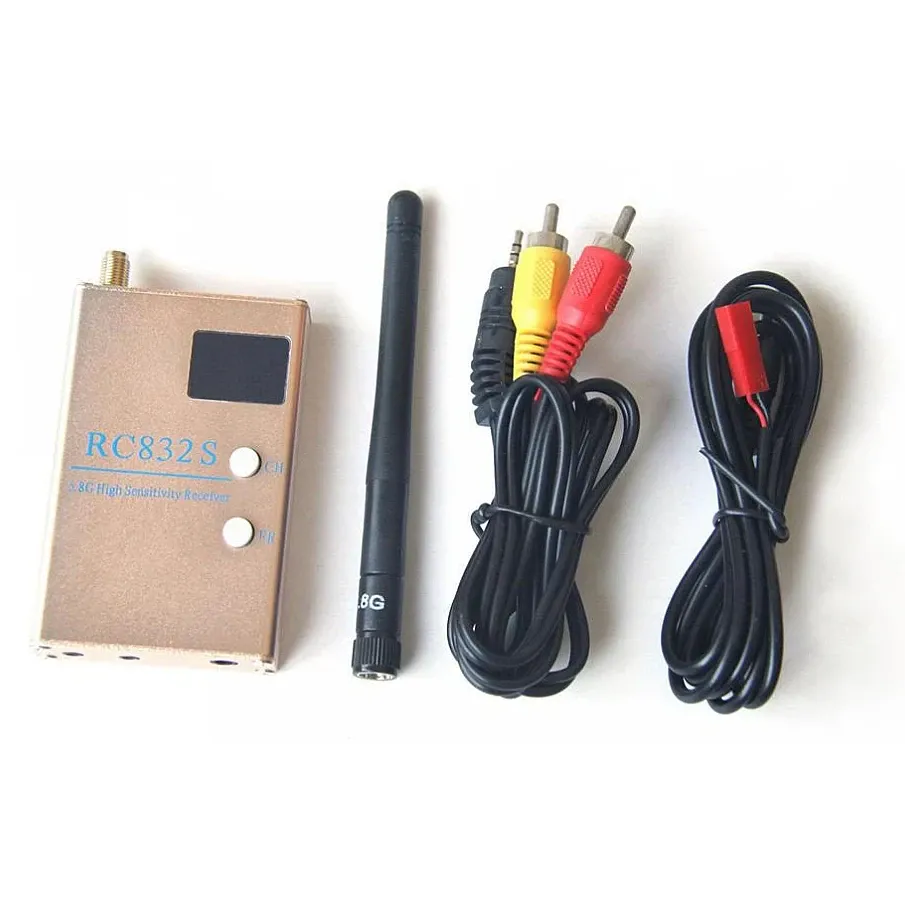

• In the box: receiver, power cable, video cable, antenna

It receives analog video only, not DJI, Walksnail or HDZero digital feeds. Set your VTX to one of its 32 channels; 32-channel receivers like this one do not include Raceband.
