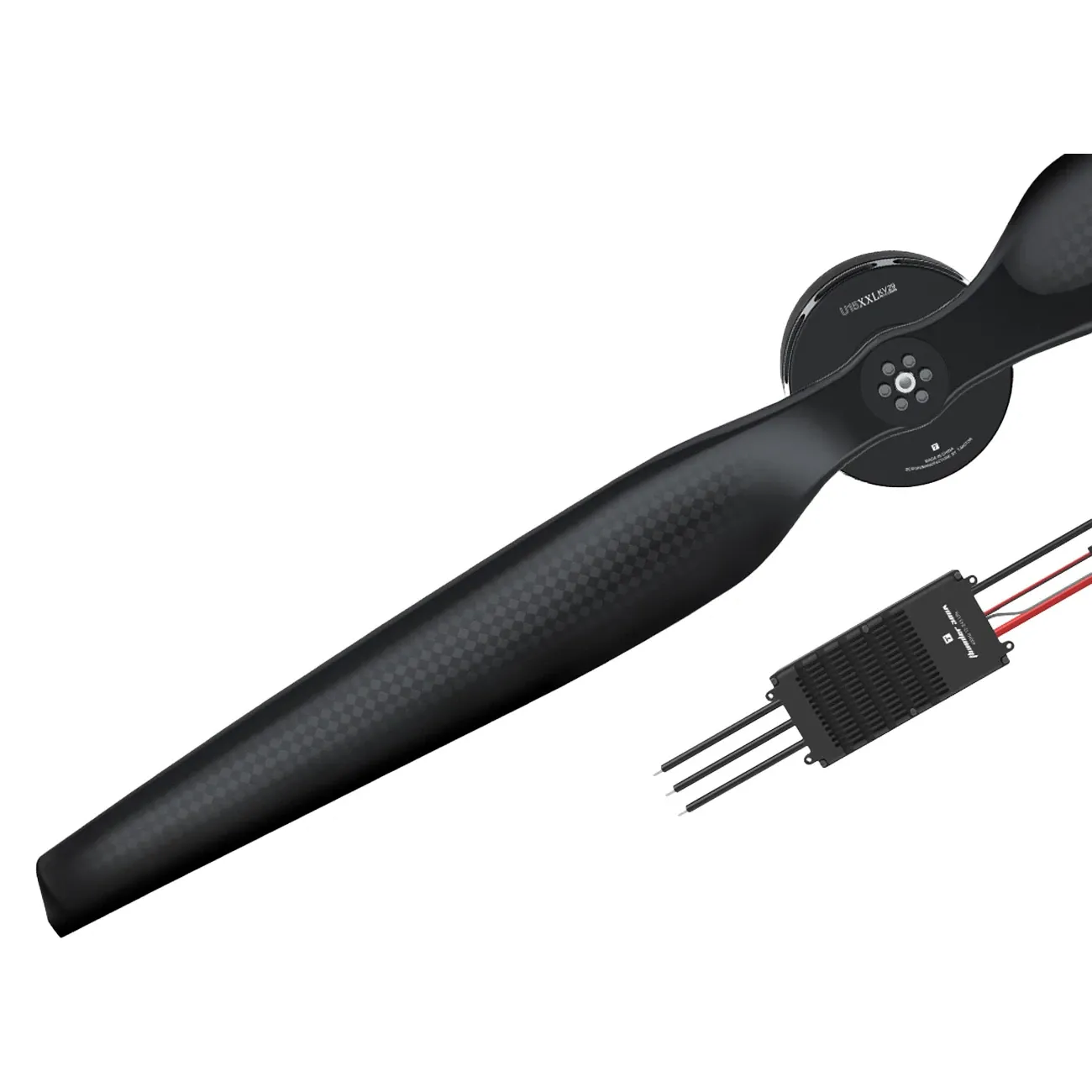

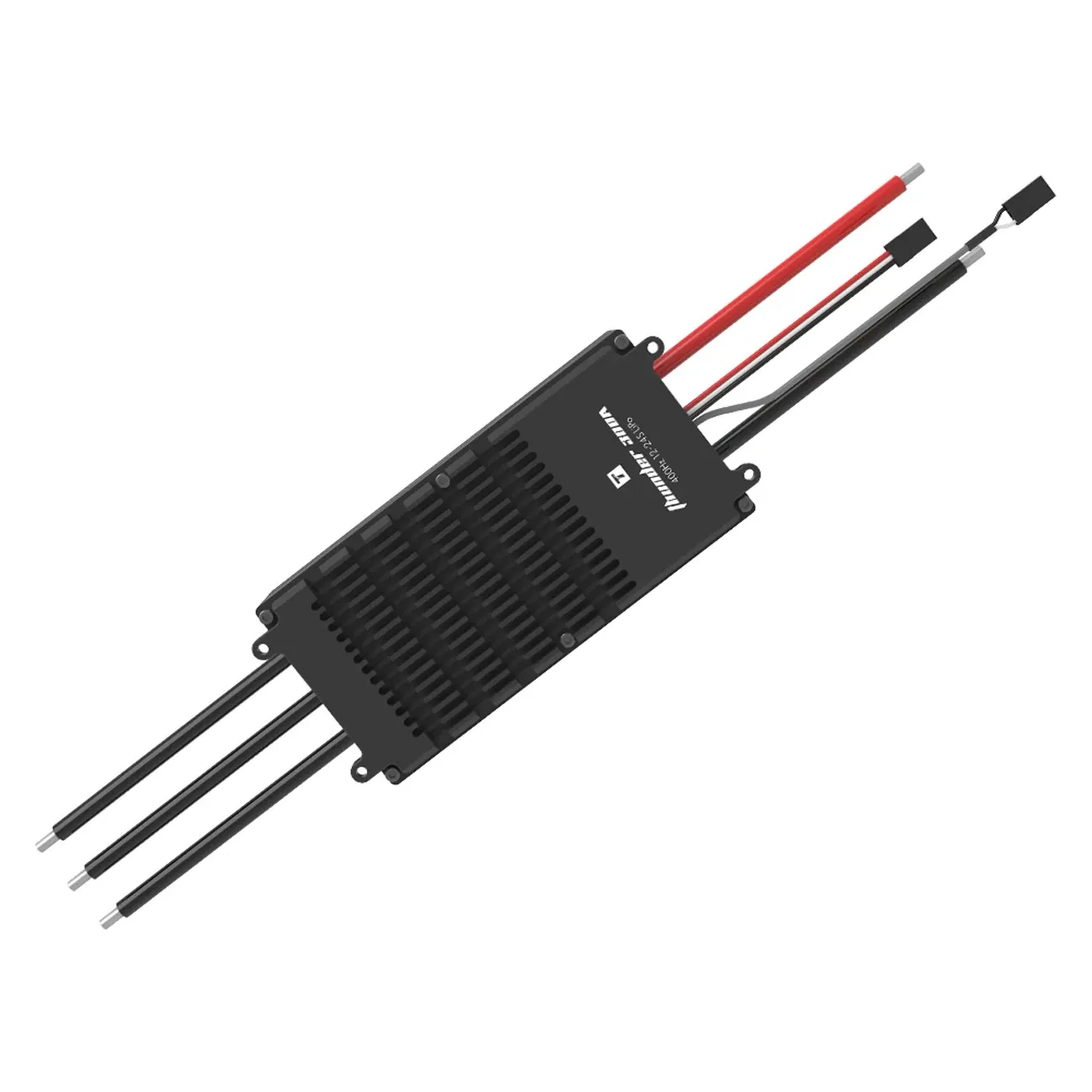

T-Motor Thunder 300A 24S High-Voltage ESC (150A/300A)

The Thunder 300A 24S is an industrial-grade high-voltage electronic speed controller engineered for extreme heavy-lift platforms, agriculture drones, and large-scale VTOL aircraft, including manned eVTOL applications. Built to manage massive 24S LiPo power systems, its high-voltage input keeps current draw manageable and heat generation low during sustained heavy-payload operations.

Key features

• High-voltage architecture specifically designed to operate on extreme 12S-24S LiPo setups for commercial and industrial heavy-lift multirotors
• Sustains a continuous 150A draw, driving massive motors smoothly during long-endurance flights without thermal throttling
• Safely manages up to 300A peak currents to handle aggressive throttle spikes, wind resistance, and sudden payload shifts
• Suited for X-Class builds, custom manned multirotors, and large agricultural crop-spraying drones requiring uncompromising power delivery

Specifications

• Continuous Current: 150A
• Peak Current: 300A (10 s)
• Input Voltage: 12S-24S LiPo
• BEC: None
• Programmable: No
• Dimensions: 154.9 x 69.6 x 48.9mm
• Weight (with cables): 870g

This ESC is designed strictly for builders constructing specialised high-voltage power systems. Ensure your frame hardware, heavy-lift motors, and power distribution systems are explicitly rated for matching high-voltage industrial standards before integration.
