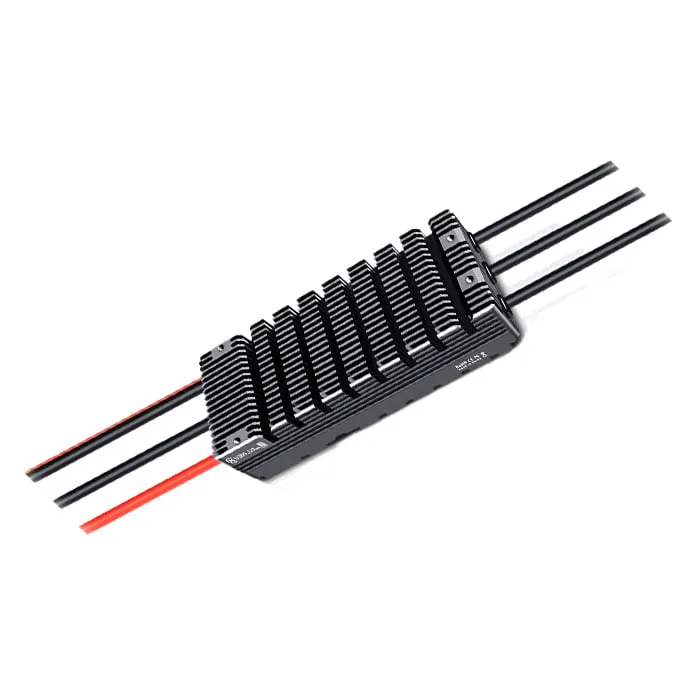

XC 300A 12S 48V 13HP Powered Paraglider ESC
₹44,699Incl. GST
SKU XC-ESC-300A-12S-48V
ESC Current: 300 AInput Voltage: 5–14SBrand: XC
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The XC 300A ESC is specified for 12S, 48V powered paraglider brushless motor systems and installations rated for 13HP. It is intended for high-current propulsion setups that need a dedicated electronic speed controller.
Key features
- Rated for brushless motor systems in powered paraglider propulsion.
- Designed for a high-current propulsion installation rather than a small-FPV ESC.
- Match the motor, battery and wiring arrangement to the stated input specification.
- Provide connectors and cooling hardware sized for the operating current.
- Short-circuit, voltage and temperature protection, with IPX4 water and dust resistance.
- RS-485 communication interface for integration with flight controllers.
Specifications
- Model: U300 V2
- Brand: XC
- ESC current: 300 A
- Peak current: 320 A
- Input voltage: 12S (supports 5-14S LiPo)
- System input: 48 V
- Rated system power: 13 HP
- Throttle signal: 3.3 V / 5 V PWM, 1050-1940 us pulse width
- Power/motor leads: 7 AWG
- Dimensions: 176.0 x 73.0 x 42.2 mm
- Weight: approx. 645 g (excluding wires)
- Operating temperature: -25 to 60 C
- Application: Powered paraglider brushless motor systems
Verify the battery, motor, wiring and cooling arrangement against the 12S and 300 A ratings before installation.
| ESC Current | 300 A |
|---|---|
| Input Voltage | 5–14S |
| Brand | XC |
