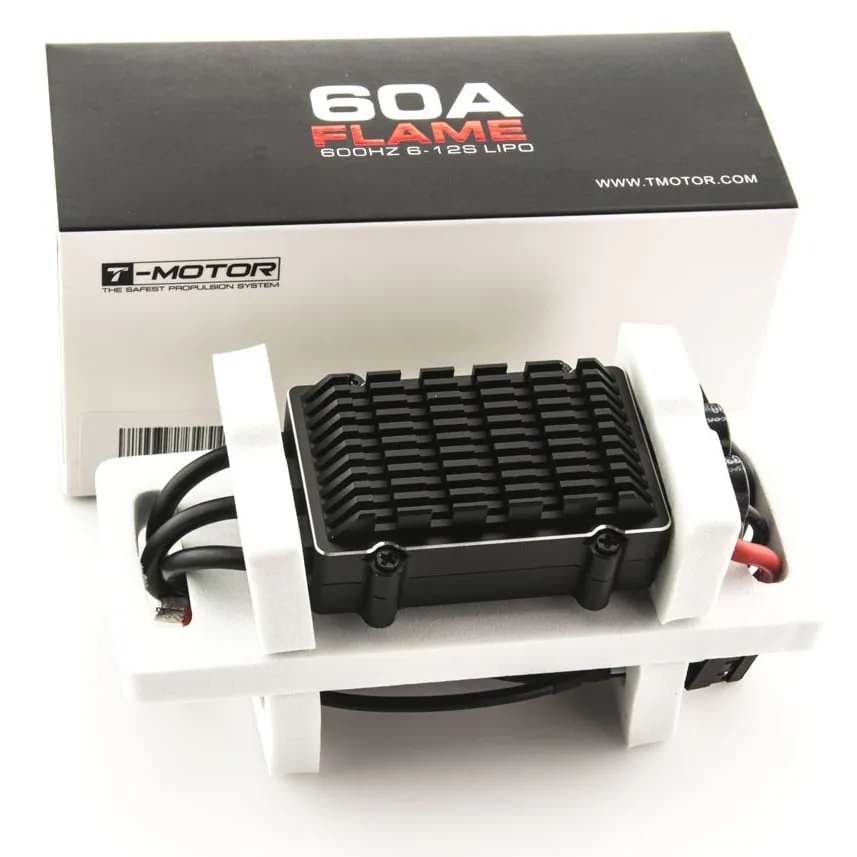

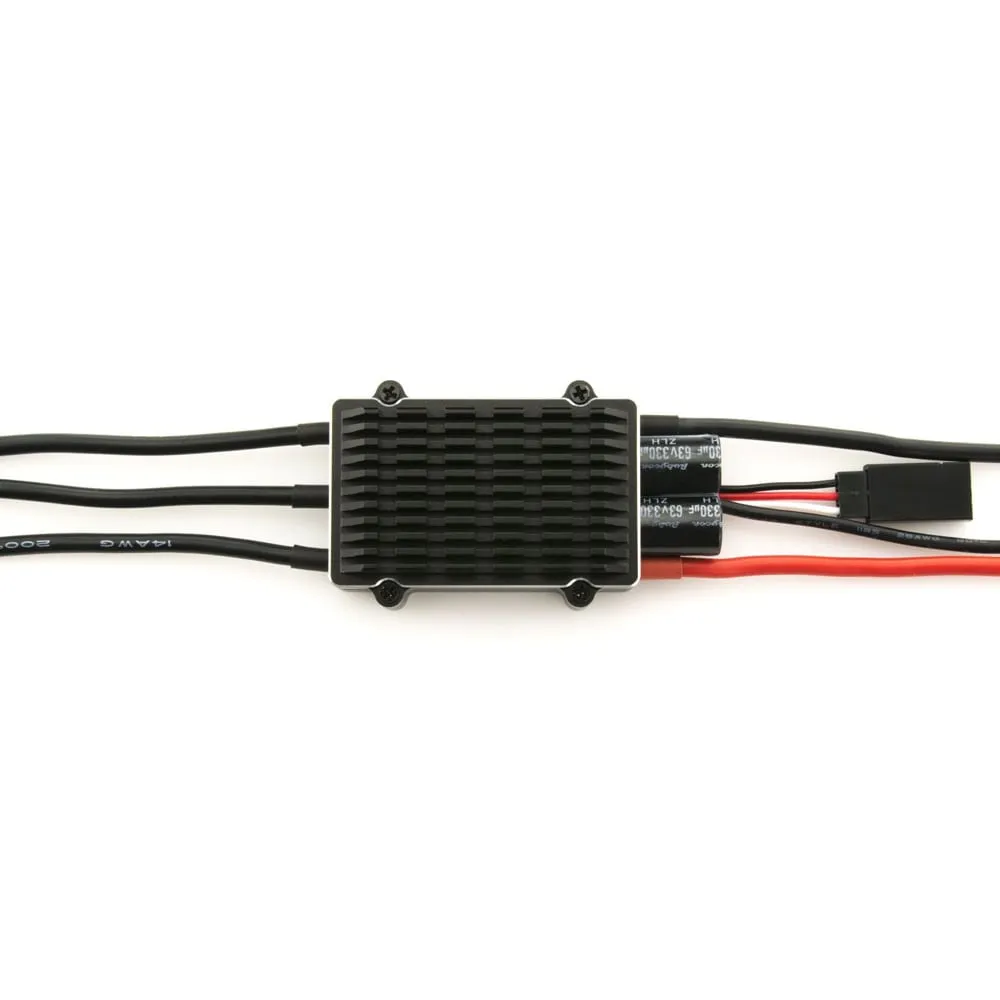

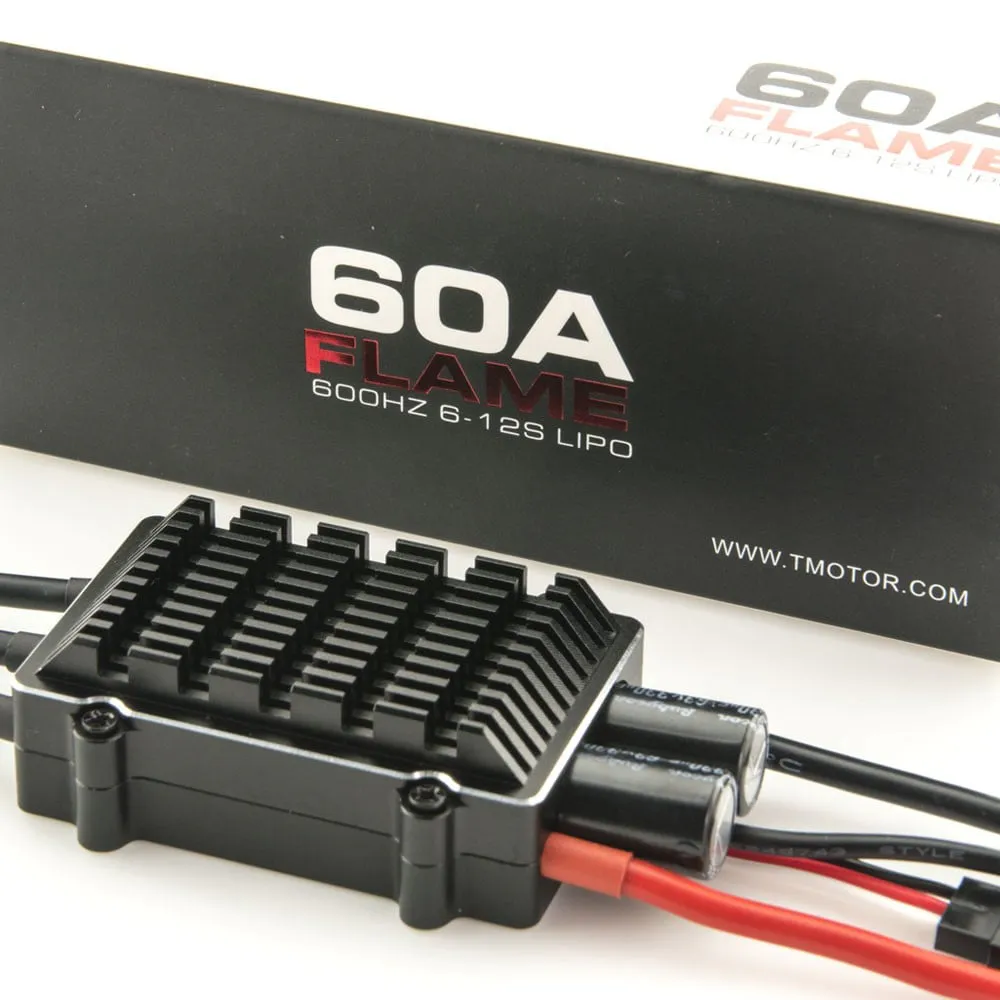

T-Motor FLAME 60A HV 6S-12S Brushless ESC

The T-Motor FLAME 60A HV is a single high-voltage speed controller for large multirotors that run one ESC per motor. It accepts 6S to 12S packs and delivers 60 A continuously, which places it with heavy-lift hexacopters, octocopters and industrial inspection platforms rather than 5-inch freestyle builds.

Key features

• 60 A continuous output with 80 A available in 10-second bursts for punch-outs and gust correction
• 6S to 12S input, so the airframe can run higher voltage and thinner power wiring for the same thrust
• Layered internal construction that spreads heat away from the FETs during sustained hover loads
• Start-up, throttle signal loss, motor lock-up and overload protection built into the firmware
• No BEC on board, so the flight controller and payload need their own regulator

Specifications

• Continuous current: 60 A
• Burst current: 80 A for 10 s
• Input: 6S-12S LiPo
• BEC: none
• Throttle signal: up to 600 Hz
• Enclosure: CNC aluminium alloy
• PCB protection: IP55 nano-coating
• Weight: 73.5 g
• Size: 66.5 x 38.5 x 17.7 mm

Plan the build around a separate BEC or a power module for the autopilot, and size the main pack and distribution board for the full number of ESCs at 60 A each.
